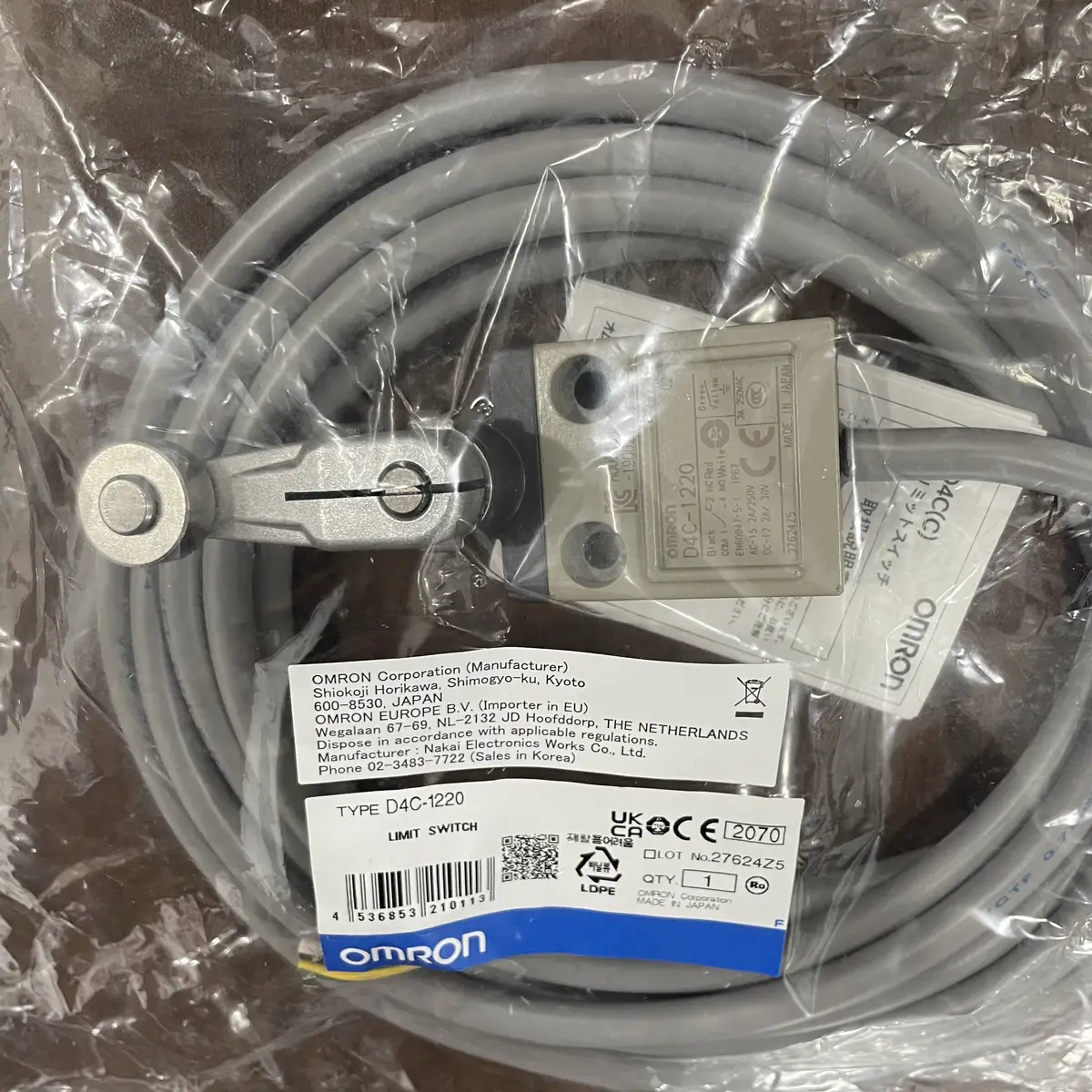

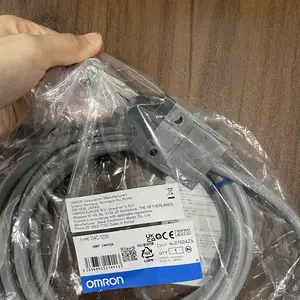

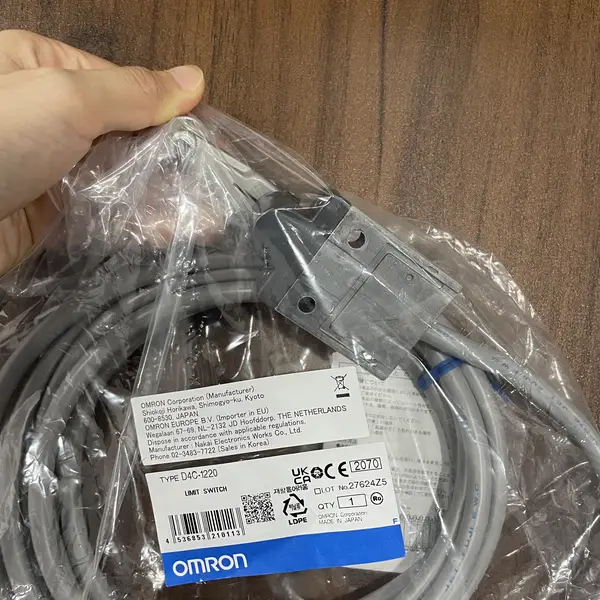

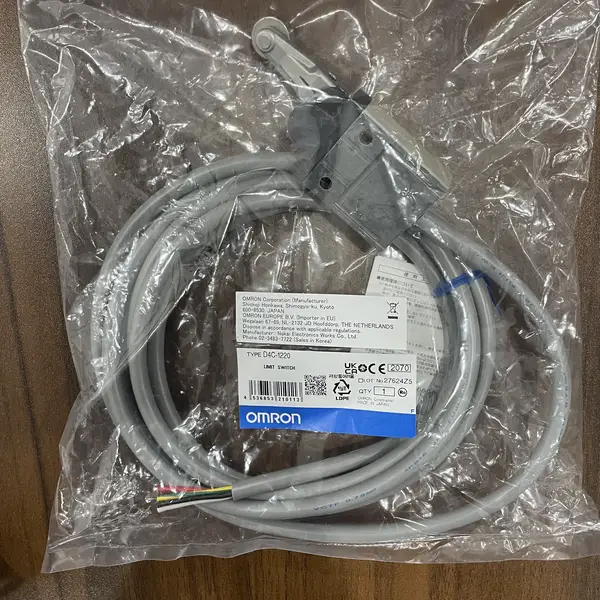

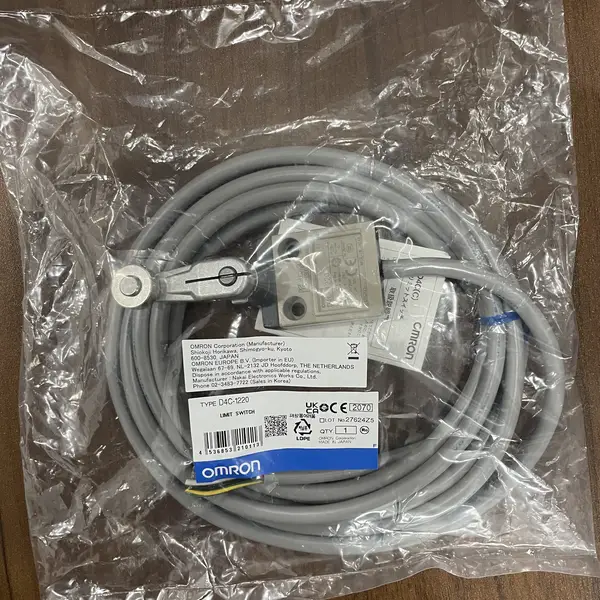

Omron D4C-1220 — Slim Limit Switch, Roller Lever, 3 m
SKU: D4C-1220USD 30.00
16 mm slim sealed limit switch with roller lever actuator, 1NC/1NO snap-action contacts, pre-wired 3 m VCTF oil-resistant cable, 5 A 250 VAC / 4 A 30 VDC, IP67, -10 to +70 °C. Triple-sealed die-cast construction.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The D4C-1220 is the high-sensitivity roller-lever variant of Omron's D4C sealed compact limit switch family — a 16 mm-thin die-cast housing with triple-sealed construction (plunger section sealed with nitrile rubber packing AND diaphragm, switch section sealed with nitrile rubber cap, cable entrance encapsulated) for use in water-splash and oil-splash environments. The high-sensitivity '2' suffix means the lever operates with very low force (~5 g operating force vs ~25 g on the standard D4C-1201), making this the right pick for low-mass targets (small flags, light cam plates) or where the cam approach speed is low. The 3 m pre-wired VCTF cable is oil-resistant and pre-cut to length for panel-build OEM installations.
Decoding the D4C-1220 model number
The D4C model code: D4C = slim 16 mm enclosed limit switch family (vs D4A = heavy-duty 40 mm, D4N/D4B = medium safety-rated); 1 = actuator code (1 = roller lever, 2 = plunger, 3 = cross-roller, 4 = sealed plunger, etc.); 2 = high sensitivity (vs 1 = standard sensitivity); 2 = contact configuration (1 = 1NC, 2 = 1NC/1NO); 0 = terminal type (0 = pre-wired cable, 1 = M12 connector, 2 = screw terminal).
Triple-sealed construction — for oil and water splash
The D4C-1220 has three independent seals: (1) plunger section sealed with nitrile rubber (NBR) packing and a flexible diaphragm — protects the moving plunger from contamination while allowing free motion; (2) switch section sealed with a nitrile rubber cap — protects the snap-action mechanism and contacts from oil and water spray; (3) cable entrance sealed with encapsulating material — protects the wiring transition from cable to internal terminals. Together, these seals give the D4C-1220 an IP67 rating for temporary submersion (1 m for 30 min) and high-pressure washdown resistance (food-processing and machine-tool environments).
High-sensitivity roller lever — for low-force targets
The '2' digit in the 1220 means high sensitivity: the roller lever operates with ~5 g (0.05 N) minimum operating force vs the standard D4C-1201's ~25 g (0.25 N). This is critical for: (1) low-mass targets (small plastic flags, paper sheets, thin metal strips) that would not register on a standard switch; (2) low-speed cam approach (1-10 mm/s) where the target might bounce off the lever; (3) precision position detection where the lever contact can deform a soft target. The trade-off is reduced vibration tolerance — the high-sensitivity lever can chatter in a high-vibration environment; for those applications, the standard-sensitivity D4C-1201 is preferred.
Key Features
- 16 mm slim compact limit switch
- Triple-sealed construction: plunger NBR packing + diaphragm, switch NBR cap, cable encapsulated
- IP67 protection rating — water and oil splash resistant
- Roller lever actuator
- High-sensitivity '2' variant
- 1NC / 1NO snap-action contact
- Contact rating 5 A 250 VAC / 4 A 30 VDC resistive
- Pre-wired 3 m VCTF oil-resistant cable
- SKU: D4C-1220
- Series: D4C Compact Enclosed Limit Switch
- Voltage: 250 VAC
Best-Fit Applications
- Pneumatic cylinder end-of-stroke detection on a packaging machine — D4C-1220 mounted at the cylinder body, lever actuated by the cylinder.
- Conveyor belt edge detection in a small assembly line — D4C-1220 mounted at the side of the conveyor with the.
- Door-position feedback on a small machine guard — D4C-1220 lever actuated by the door panel; 1NO contact illuminates a 'door.
- Limit detection on a sliding gate or transfer mechanism — D4C-1220 at the travel-limit position with a striker on the.
Buying Checklist
- Pick D4C-1220 for 16 mm slim high-sensitivity roller-lever sealed limit switch with 3 m VCTF cable
- Pick D4C-1201 if the standard sensitivity is acceptable — pick if vibration might cause high-sensitivity lever chattering
- Pick D4C-1230 for cross-roller plunger actuator — pick if the target approaches at 90° to the standard roller direction
- Pick D4C-1301 for M12 connector instead of pre-wired cable — pick for quick-disconnect installations
- Pick D4N-112G if you need a safety-rated limit switch with direct opening
- Pick D4A-A00 for heavy-duty 40 mm package with -40 to +100 °C operating range — pick for outdoor or food-grade environments
Technical Specifications
| Model | D4C-1220 |
|---|---|
| Series | D4C Compact Enclosed Limit Switch |
| Type | 16 mm slim sealed roller-lever limit switch, high sensitivity |
| Contact Configuration | 1NC / 1NO snap-action (SPDT Form C) |
| Snap-Action Characteristic | < 5 ms transfer time |
| Actuator Type | Roller lever (resin roller, lever length adjustable) |
| Operating Force (OT) | 5 g (0.05 N) min |
| Release Force (RF) | 0.5 g (0.005 N) min |
| Rated Voltage | 250 VAC max / 30 VDC max |
| Rated Current | 5 A 250 VAC resistive, 4 A 30 VDC resistive |
| Inrush Current | 15 A max (for inductive loads, ≤ 100 ms) |
| Operating Temperature | -10 to +70 °C (no icing) |
| Mounting | 25 mm mounting hole spacing, 2 × M4 mounting screws on base |
| Certifications | UL listed, CSA, CE, EN 60947-5-1 compliant |
Resources & Downloads
FAQ for D4C-1220
What's the difference between D4C-1220 and D4C-1201?
Both are 16 mm slim sealed roller-lever limit switches with 1NC/1NO snap-action contacts. The D4C-1220 (this SKU) has high-sensitivity lever (~5 g operating force) — pick for low-mass targets, low-speed cam approach, or precision position detection. The D4C-1201 has standard sensitivity (~25 g operating force) — pick for general-purpose use and high-vibration applications where the high-sensitivity lever might chatter. Same electrical specs (5 A 250 VAC, IP67, 3 m VCTF cable), same housing, same dimensions.
Can the D4C-1220 be used in wet or oily environments?
Yes — the D4C-1220's triple-sealed construction (plunger NBR packing + diaphragm, switch NBR cap, cable entrance encapsulated) gives it IP67 protection, suitable for: (1) outdoor installations with rain exposure (temporary submersion to 1 m for 30 min); (2) machine-tool environments with cutting-oil splash; (3) food-processing washdown (high-pressure hot water spray at 80 °C); (4) conveyor installations with water spray. The 3 m VCTF cable is oil-resistant and chemical-resistant for common industrial fluids (mineral oil, cutting fluid, water, dilute acids).
Is the D4C-1220 safety-rated?
No — the D4C-1220 is NOT safety-rated and does NOT have a direct-opening mechanism (DOM). The 1NC / 1NO snap-action contact is suitable for general-purpose position detection but not for personnel-protection guard interlock applications above Cat 1 / PL c. For safety-rated guard door switches (Cat 1 / PL c minimum, up to Cat 4 / PL e), use the D4N-112G (plastic-body DOM), D4B-4111N (aluminum-body DOM), or D4BL-2CRA (guard-lock switch with DOM and 700 N holding force).
What does the high sensitivity "2" suffix mean on the D4C-1220?
The '2' digit indicates high sensitivity — the roller lever operates with ~5 g (0.05 N) minimum operating force vs the standard D4C-1201's ~25 g (0.25 N) min.
