Omron D4V-8108SZ-N — Vertical Limit Switch, 5 A, IP65
SKU: D4V-8108SZ-NUSD 7.00
D4V-N compact vertical limit switch, adjustable roller lever, SPDT, 5 A at 250 VAC, IP65, 10 million mechanical operations.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

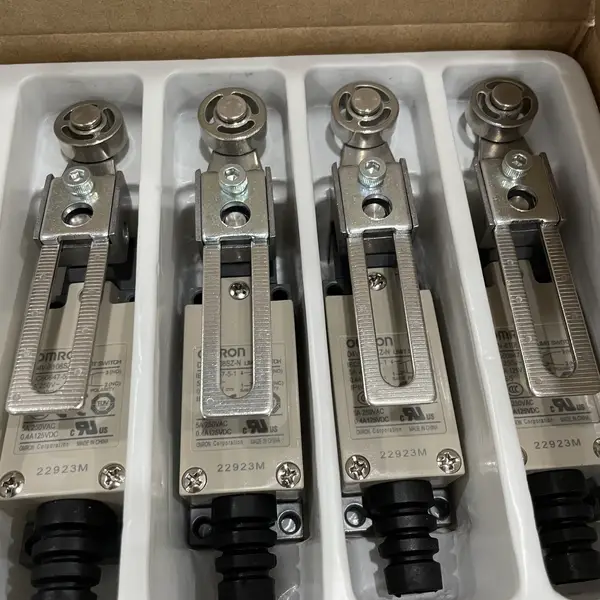

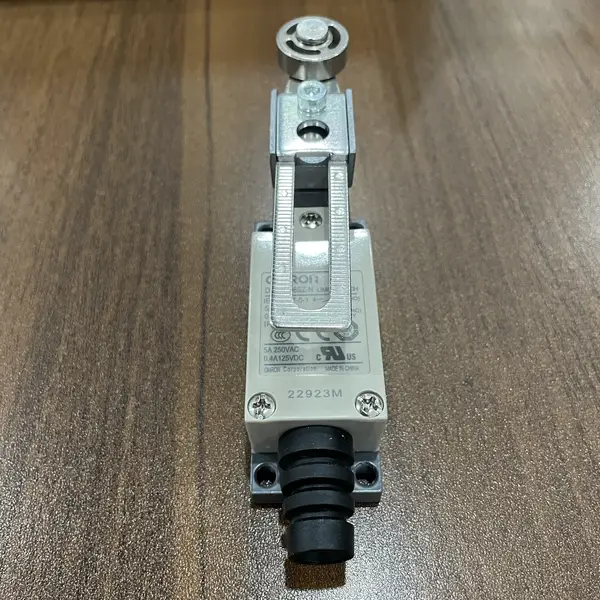

The Omron D4V-8108SZ-N is a compact vertical limit switch from the D4V-N family — Omron's Asia-spec line of small, vertical-mount limit switches, roughly one-third the size of the standard D4V vertical switch. The body sits upright on a panel or bracket and is wired from the open conduit entrance on the bottom. With an adjustable roller-lever actuator, SPDT (single-pole double-throw) contacts, and a 5 A at 250 VAC resistive rating, it's a general-purpose position-detection switch for light- and medium-duty machine work.
Where the D4V-8108SZ-N fits on a machine
D4V-N vertical limit switches are typically mounted at the end of a cam or workpiece travel, with the roller lever facing the moving part. When the cam hits the lever, the contacts change state — signalling a PLC, sending a machine-stop command, or toggling the next step in a sequence. The D4V-8108SZ-N is a reasonable fit for printing machines, small packaging equipment, light machine tools, and conveyor end-of-line detection where panel space is limited and a vertical footprint saves room.
Reading the model code
D4V-8108SZ-N breaks down roughly as: D4V-N = compact vertical limit switch for Asia; 8108 = roller-lever head with SPDT contacts; SZ = the wiring variant (open conduit for hard-wiring); N = Asia-spec sub-line. Same-style siblings in the D4V-N family cover other roller lengths, top plunger, and wobble-stick actuators. For a heavier-duty machine with more frequent cycles, move up to the D4N series (4 A at 240 VAC, polymer body) or the WL series (up to 10 A, oil- and weather-resistant).
Before ordering
Plan the cable entry from below — the SZ variant is hard-wired through the open conduit. For a switch that needs to survive coolant, hot oil, or washdown, pick the WLCA12 or D4C series instead. The rated current of 5 A applies to AC resistive loads; derate for inductive, lamp, or motor loads — the datasheet shows the AC-15 and motor-load curves. Operating temperature is -20 to +60 °C, so this switch is not suited to outdoor cabinets or freezer rooms.
Key Features
- D4V-N series compact vertical limit switch — Asia-spec small body
- Adjustable roller-lever actuator
- SPDT (1 Form C) snap-action contacts
- 5 A resistive at 250 VAC; lower on inductive and motor loads (datasheet derating)
- IP65 oil- and dust-resistant enclosure
- Mechanical life >=10 million operations; electrical >=300,000 operations
- Operating temperature -20 to +60 °C
- Open conduit wiring (SZ variant); terminal cover protects the wires
- SKU: D4V-8108SZ-N
- Series: D4V-N compact vertical limit switch (Asia-spec)
- Voltage: 250 V
Best-Fit Applications
- End-of-travel detection on a small packaging machine's slide mechanism
- Cam-operated sequencing on a printing press or label applicator
- Conveyor line full / empty detection where panel space is limited
- Generic position indication on light machine tools, assembly stations, or OEM skids
- Door or guard-position indication on simple enclosures where a safety-rated switch is not required
Buying Checklist
- Choose D4V-8108SZ-N for a small vertical roller-lever limit switch on a light-duty machine; switch to a WL or D4C if coolant, hot oil, or washdown is in the environment.
- Use the SZ (open-conduit) variant for hard-wired terminations; if you prefer a pre-wired pigtail, look at the V-series drops in the D4V-N family.
- Derate the 5 A rating for inductive and motor loads — refer to the AC-15 and motor curves on the datasheet before sizing the contact.

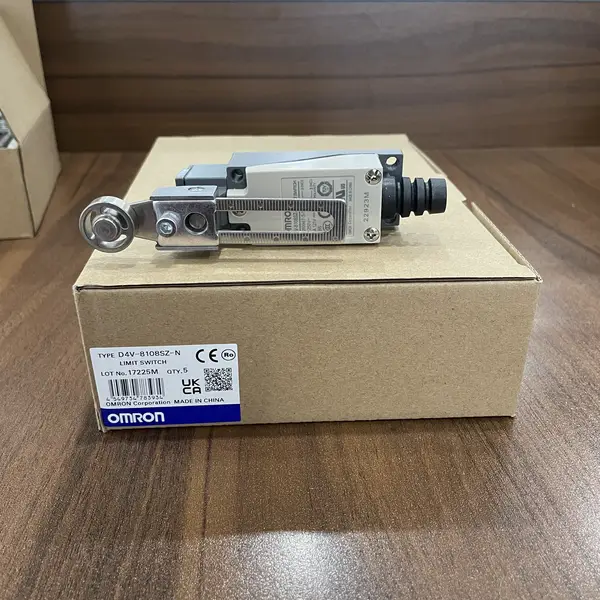

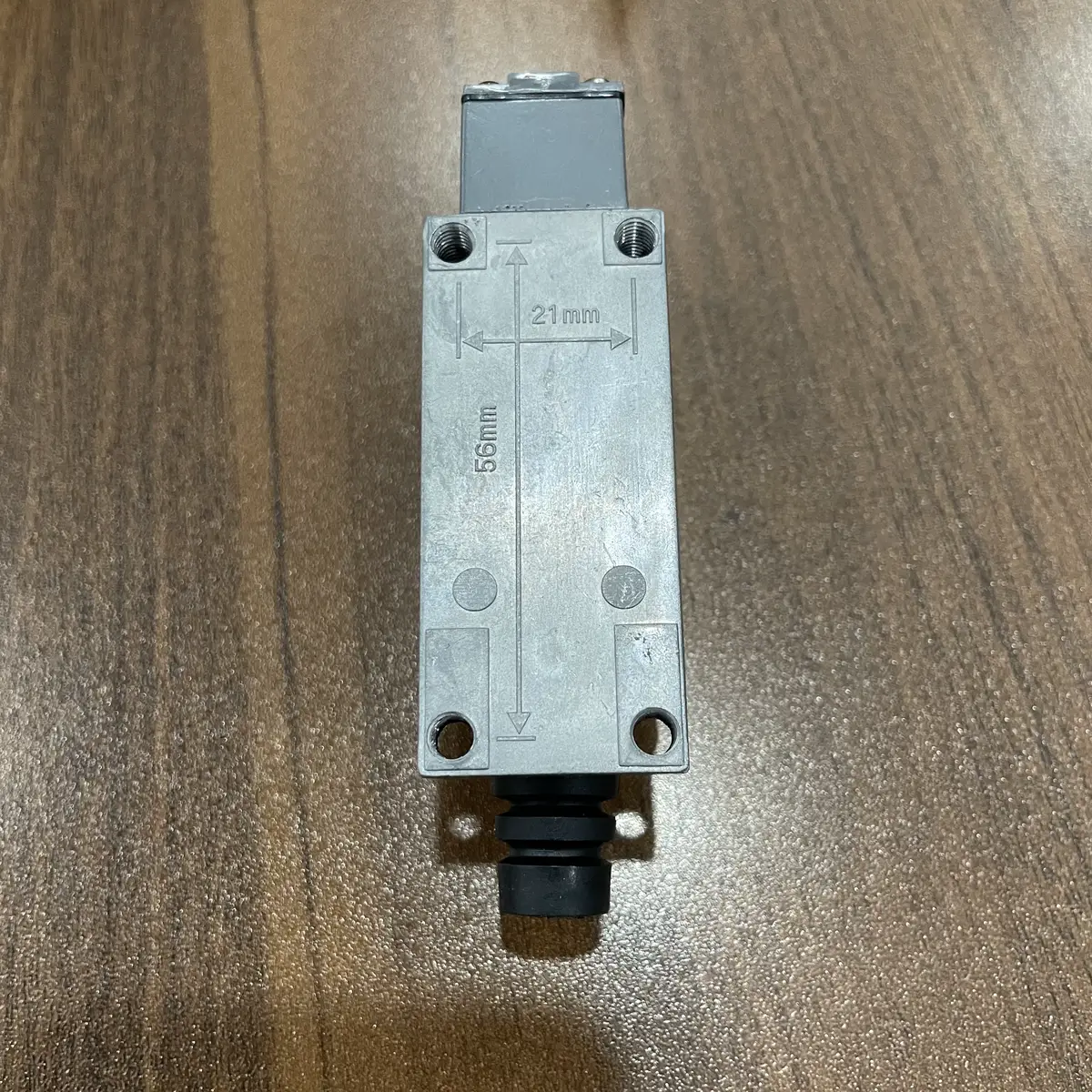

- Confirm the panel space — the D4V-N is the compact (Asia-spec) body; the standard D4V vertical body is roughly 3x larger and may not fit your bracket.
- Add a separate guard-rated interlock (such as D4NS-1AF or D4N-112G) on machine guards — the D4V is a general-purpose position switch, not a safety device.
Technical Specifications
| Model | D4V-8108SZ-N |
|---|---|
| Series | D4V-N compact vertical limit switch (Asia-spec) |
| Actuator | Adjustable roller lever |
| Contact Form | SPDT (1 Form C) snap action |
| Rated Current | 5 A (AC resistive at 250 VAC) |
| Rated Insulation Voltage (Ui) | 250 V |
| Operating Speed | 5 mm/s to 0.5 m/s |
| Mechanical Life | >=10 million operations |
| Electrical Life | >=300,000 operations (250 VAC, 5 A resistive) |
| Protection Rating | IP65 |
| Operating Temperature | -20 to +60 °C (no icing) |
| Approvals | UL, CSA, CE, CCC |
Resources & Downloads
FAQ for D4V-8108SZ-N
What is the difference between D4V-8108SZ-N and a D4N safety switch?
D4V-8108SZ-N is a general-purpose compact vertical limit switch for position detection only. The D4N family is snap-action limit switches designed for direct-mount use, with some variants offering safety-rated direct-opening contacts on machines. Pick D4V-N for sequencing and end-of-travel signals; pick D4N when the switch is part of a machine guard circuit.
What is the electrical rating of the D4V-8108SZ-N?
5 A resistive at 250 VAC is the headline figure. For inductive loads (AC-15) the rating drops to around 1.5 A at 250 VAC, and for motor loads to about 1 A at 250 VAC — use the datasheet derating curves when sizing downstream fuses or contactors. The rated insulation voltage (Ui) is 250 V, and the short-circuit protection is a 10 A gG/gI fuse.
How does the D4V-8108SZ-N compare to the WLCA12 family?
WLCA12 is a heavier-duty general-purpose limit switch with up to 10 A current, IP67 sealing, and a wider variety of heads (roller, plunger, wobble). D4V-8108SZ-N is the more compact Asia-spec alternative for light-duty panels where space is at a premium. For harsh environments with coolant, hot oil, or outdoor exposure, choose the WLCA12 or D4C series instead.
Is the D4V-8108SZ-N safe to use as a machine guard interlock?
No — the D4V-8108SZ-N is a general-purpose position switch with no certified direct-opening mechanism. For a swinging or sliding guard that needs to be interlocked with a safety circuit, use a switch from the D4NS, D4NL, D4N, or D4BL series instead. Those have certified direct-opening NC contacts that meet EN ISO 14119.
