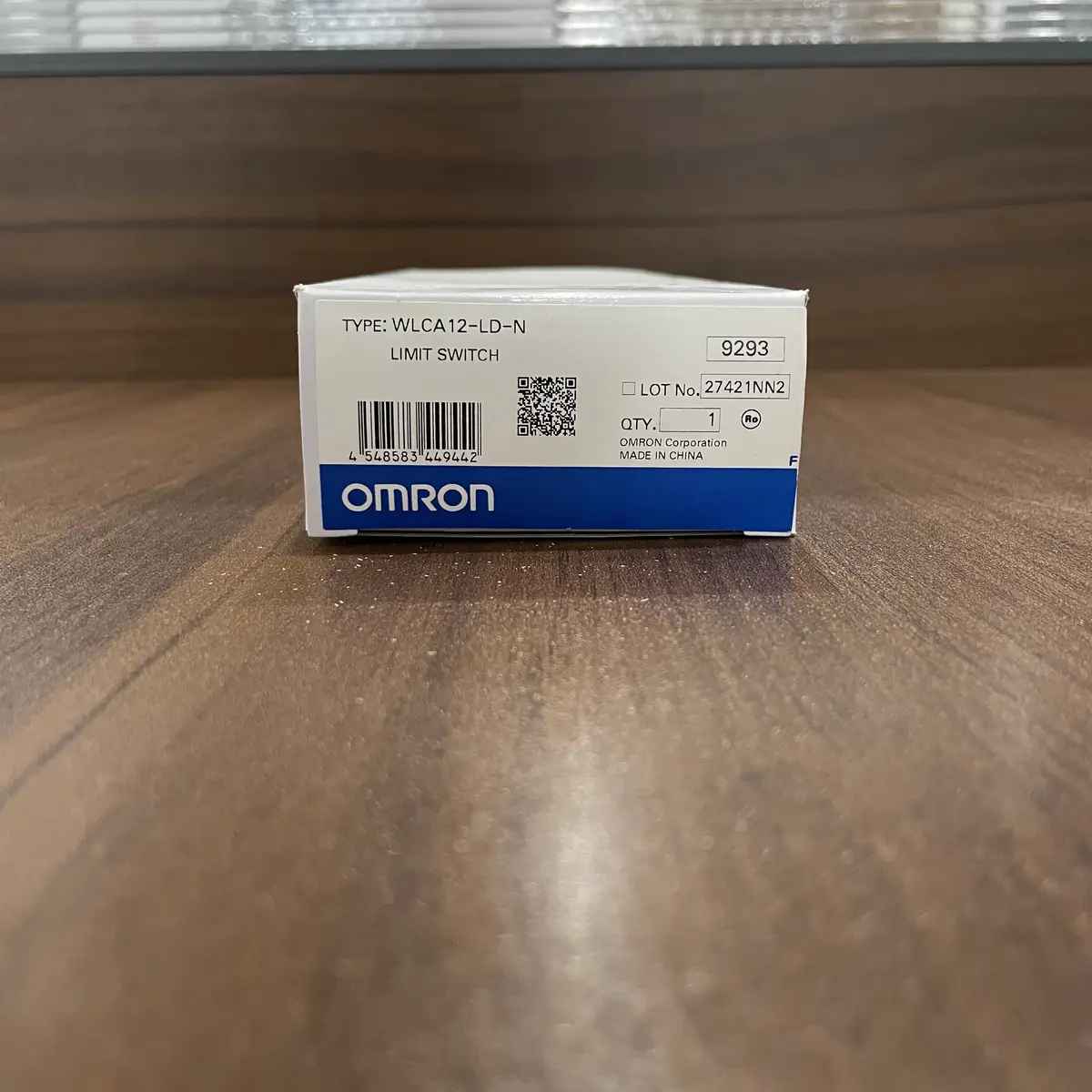

Omron WLCA12-LD-N — Limit Switch, Roller Lever, LED
SKU: WLCA12-LD-NUSD 22.50
WL-N series 2-circuit limit switch, adjustable roller lever, SPDT×2, 10 A, IP67, with operation LED indicator.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

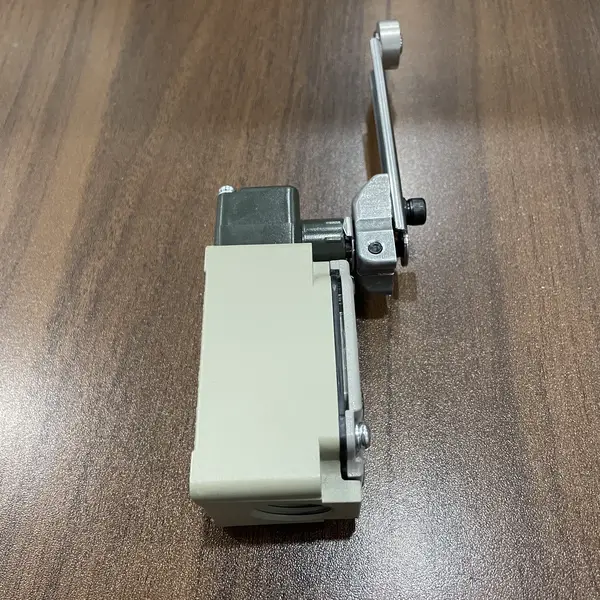

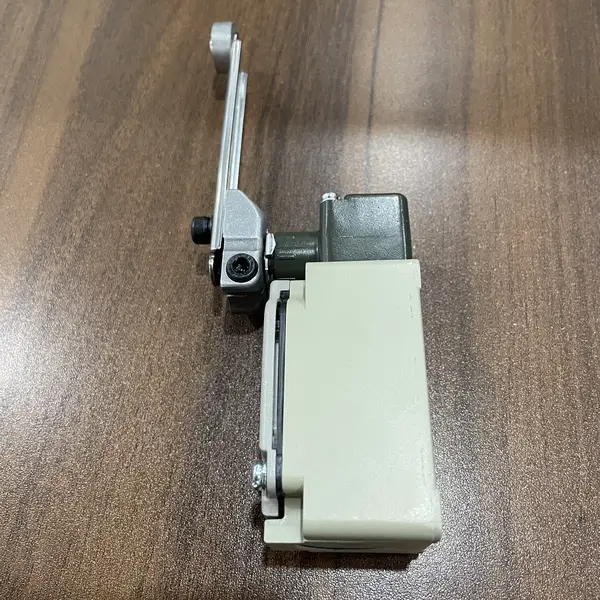

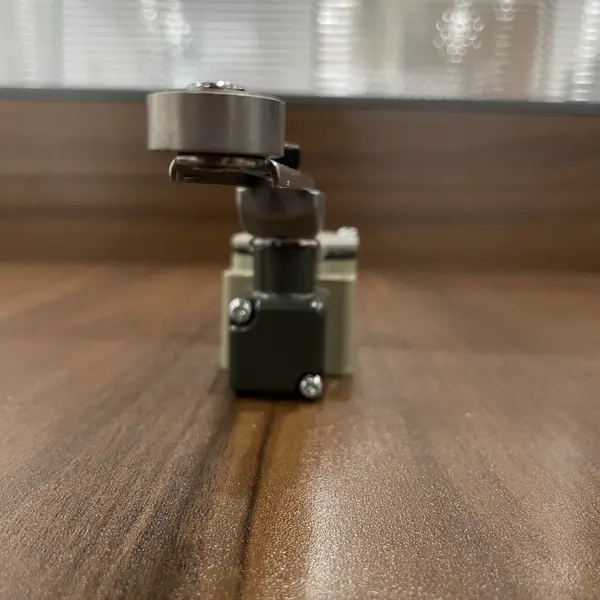

The Omron WLCA12-LD-N is a general-purpose limit switch in the WL-N family, with two SPDT contacts (a 2-circuit double-break switch), a side-rotary adjustable roller lever, and an operation LED on the housing. The die-cast aluminium body and oil-resistant seals give it an IP67 rating, so it fits washdown and outdoor panels. The '12' in WLCA12 marks the standard sensitivity, 'LD' marks the LED operation indicator, and 'N' marks the standard (vs high-sensitivity or high-precision) sensitivity class. The roller lever can be indexed in four positions around the shaft and the length is adjustable, so one switch covers a wide range of cam and dog actuations.
Why two circuits
Most limit switches in the WL-N family carry two independent SPDT contacts, wired through the same terminal block. That gives a safety-style redundancy where one contact runs the machine stop and the other feeds back to the PLC, or one contact drives the load and the other runs an indicator. For a single-circuit switch with the same lever, look at the WL-N base model WLCA12-N (no LED).
Choosing the right WLCA12 variant
WLCA12-LD-N has the LED indicator and a 24-240 VAC or 10-125 VDC indicator voltage range. The WLCA12-2N-N is the same switch on a different terminal pattern without the LED. For a top plunger, look at the WLCA12-TH-N, which uses the same WL-N body but with a vertical plunger actuator instead of the rotary lever. For a more compact DIN-style limit switch, the D4N-112G is a common alternative.
Before ordering
Confirm the cam or dog actuates the lever from the right side so the roller faces the moving part. Allow at least 70 degrees of overtravel past the operating position so the lever is not jammed against the end of its travel. Match the LED indicator voltage to the actual panel supply (24 VDC vs 200 VAC) before wiring.
Key Features
- WL-N general-purpose 2-circuit limit switch
- Side-rotary adjustable roller lever (4-way indexable)
- Two SPDT (DB/DM) snap-action contacts
- Operation LED on the housing cover
- 10 A at 250 VAC / 30 VDC rated contacts
- IP67 die-cast aluminium body with oil seals
- Mechanical life 15 million operations minimum
- SKU: WLCA12-LD-N
- Series: WL-N / WLG general-purpose limit switch
Best-Fit Applications
- End-of-travel detection on conveyor diverters and lift tables
- Position feedback on packaging machine guards and doors
- Cam-actuated control on bottling, filling, and capping lines
- Limit switch on overhead crane trolleys and hoist carriages
- Door-position switch on machine tool enclosures and safety gates
Buying Checklist
- Choose WLCA12-LD-N when you need an LED operation indicator on a 2-circuit switch.
- Choose WLCA12-N when a 2-circuit switch is enough and the LED is not required.
- Choose WLCA2-LD-N for the smaller compact body with the same LED feature.
- Choose WLCA12-TH-N for a top-plunger actuator in the same WL-N body.
- Confirm the LED indicator voltage matches the panel supply (24 VDC or 200 VAC).
- Check the roller lever has at least 70° of overtravel past the operating position.
Technical Specifications
| Series | WL-N / WLG general-purpose limit switch |
|---|---|
| Configuration | 2-circuit double-break (2× SPDT, DB/DM) |
| Actuator | Side rotary, adjustable roller lever |
| Contact Rating | 10 A at 250 VAC / 30 VDC (resistive) |
| Mechanical Life | 15,000,000 operations minimum |
| Electrical Life | 750,000 operations at rated load |
| Operating Temperature | -10 to +80 °C |
| Indicator | LED operation indicator (24-240 VAC / 10-125 VDC) |
| Operating Force | 1360 gf max. |
| Pretravel / Overtravel | 20° pretravel, 70° overtravel |
| Protection Rating | IP67 (IEC 60529) |
| Conduit Entry | PG13.5 (G1/2 adapter on request) |
Resources & Downloads
FAQ for WLCA12-LD-N
What is the difference between WLCA12-LD-N and WLCA12-N?
Both are WL-N series 2-circuit limit switches with the same roller lever and body. WLCA12-LD-N adds an LED operation indicator that lights when the switch actuates, useful for fast visual diagnostics on the machine. WLCA12-N is the base model without the LED. Pick the LD version for status indication at the panel.
How many contacts does the WLCA12-LD-N have?
The WLCA12 is a 2-circuit (double-break) limit switch, so it carries two independent SPDT contact sets in the same housing. Each contact is rated 10 A. The two circuits are typically used for one safety-style redundant stop plus one PLC input, or one power contact and one indicator contact.
What is the LED voltage rating on the WLCA12-LD-N?
The LED operation indicator accepts a wide supply range of 24-240 VAC or 10-125 VDC, so it can be wired across the contact voltage on most panels. Match the LED supply polarity to the housing label when running on DC, and use the AC range on 100/200 VAC panels.
