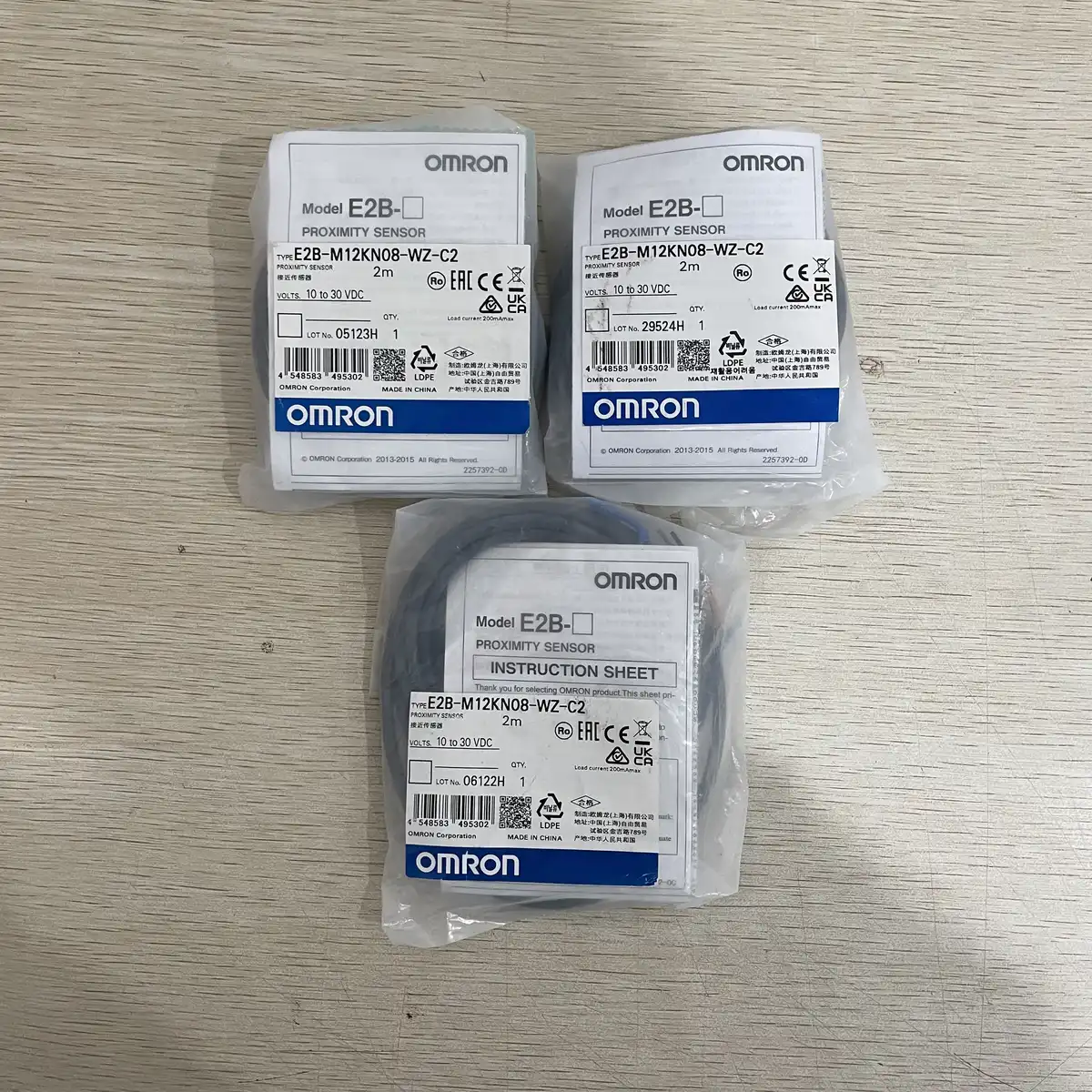

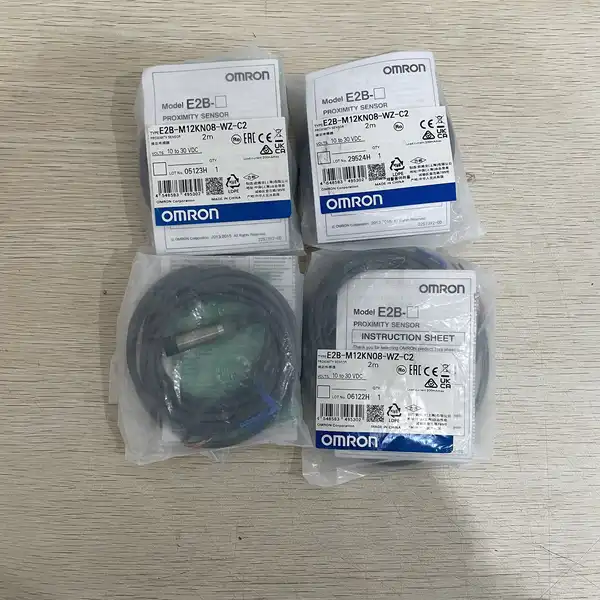

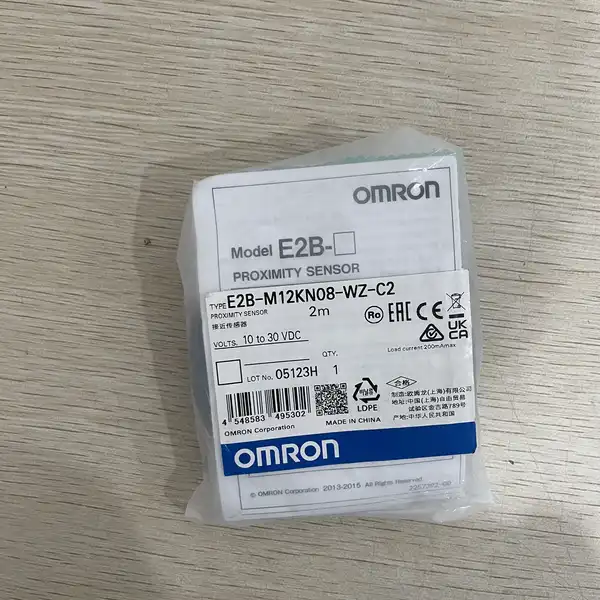

Omron E2B-M12KN08-WZ-C2 — Inductive Sensor, M12, 8 mm, NPN
SKU: E2B-M12KN08-WZ-C2USD 10.00
E2B M12 inductive proximity sensor, 8 mm range, NPN NO, 2 m cable, IP67. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E2B-M12KN08-WZ-C2 is an M12 cylindrical inductive proximity sensor from the E2B brass standard series It is manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The sensor detects ferrous metal at 8 mm when unshielded (non-flush mounted). Output is 3-wire NPN normally open, switching up to 200 mA at 12 to 24 VDC.
For 4 mm range in the same M12 body, pick the E2B-M12KN05-WZ-B1. Key specs: Body Size / Thread M12 x 1, brass standard length; Sensing Distance 8 mm (unshielded / non-flush); Output Type NPN normally open, 3-wire; Supply Voltage 12 to 24 VDC (10 to 30 VDC operating range); Switching Current 200 mA max; Response Frequency 800 Hz; Connection 2 m PVC pre-wired cable; Protection / Temperature IP67 (IEC 60529); -25 to +70 degC operating.
Key Features
- E2B brass-standard M12 inductive proximity sensor, unshielded, 8 mm sensing range
- 3-wire NPN normally open output, 12 to 24 VDC, 200 mA switching, 800 Hz response

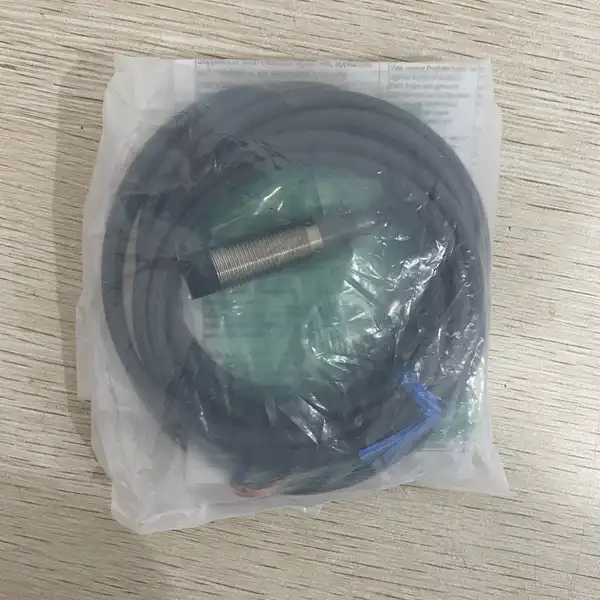

- 2 m PVC pre-wired cable, M12 x 1 nickel-plated brass body, IP67, -25 to +70 degC
- 10 mA max current draw, PBT sensing face, 4-way LED indicator on the body cap
- SKU: E2B-M12KN08-WZ-C2
- Series: Omron E2B-series cylindrical inductive proximity sensor
- Voltage: 12 TO 24 VDC
Best-Fit Applications
- End-of-stroke detection on a small pneumatic cylinder where the 8 mm range covers the cam without flush mounting
- Position feedback on a conveyor diverter arm where the M12 body fits the standard mounting bracket and the NPN output matches the PLC
- Spare drop-in for an existing E2B cell where the previous proximity sensor failed and the field wiring is NPN 3-wire
Buying Checklist
- Pick the E2B-M12KN08-WZ-C2 for an M12 unshielded inductive sensor with NPN NO output and a 2 m cable.
- Pick the E2B-M12KN08-WZ-B1 instead when the field wiring is PNP and the same 8 mm range is needed.
- Pick the E2B-M12KN05-WZ-B1 instead when the cabinet only has room for a 4 mm range and the body stays M12.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron E2B-series cylindrical inductive proximity sensor |
| Model / SKU | E2B-M12KN08-WZ-C2 |
| Body Size / Thread | M12 x 1, brass standard length |
| Sensing Distance | 8 mm (unshielded / non-flush) |
| Output Type | NPN normally open, 3-wire |
| Supply Voltage | 12 to 24 VDC (10 to 30 VDC operating range) |
| Switching Current | 200 mA max |
| Response Frequency | 800 Hz |
| Connection | 2 m PVC pre-wired cable |
| Protection / Temperature | IP67 (IEC 60529); -25 to +70 degC operating |
| Material / Weight | Nickel-plated brass body, PBT face; approx. 65 g with cable |
FAQ for E2B-M12KN08-WZ-C2
What does the C2 suffix mean on the E2B-M12KN08-WZ-C2?
C2 is the operation-mode suffix: C = NPN output, 2 = normally closed. So the -WZ-C2 sensor is NPN normally closed. For NPN normally open on the same 8 mm range, pick the E2B-M12KN08-WZ-C1.
Can the E2B-M12KN08-WZ-C2 be flush mounted?
No. The 8 mm range on this unit is the unshielded (non-flush) rating. Flush mounting reduces the usable range. If the panel needs flush mounting, pick the shielded E2B-M12KN08-WZ-B1 in the same body.
What PLC input cards work with this sensor?
Any PLC input card or DC input module that accepts a sinking (NPN) signal. On Omron CP1W-ID211 / CP1W-ID212 inputs, wire the black wire to the input terminal and the blue wire to common.
Can the E2B-M12KN08-WZ-C2 detect non-ferrous metal?
Yes, but at reduced range. The datasheet gives 8 mm on mild steel. Stainless steel drops to about 0.5 of that, brass to about 0.4, and aluminium to about 0.3. For an aluminium-only line, derate the range or pick a larger body such as the E2B-M18KS08-M1-B1.
