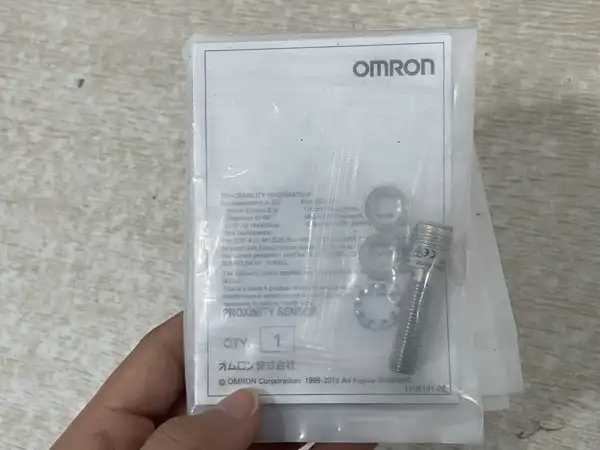

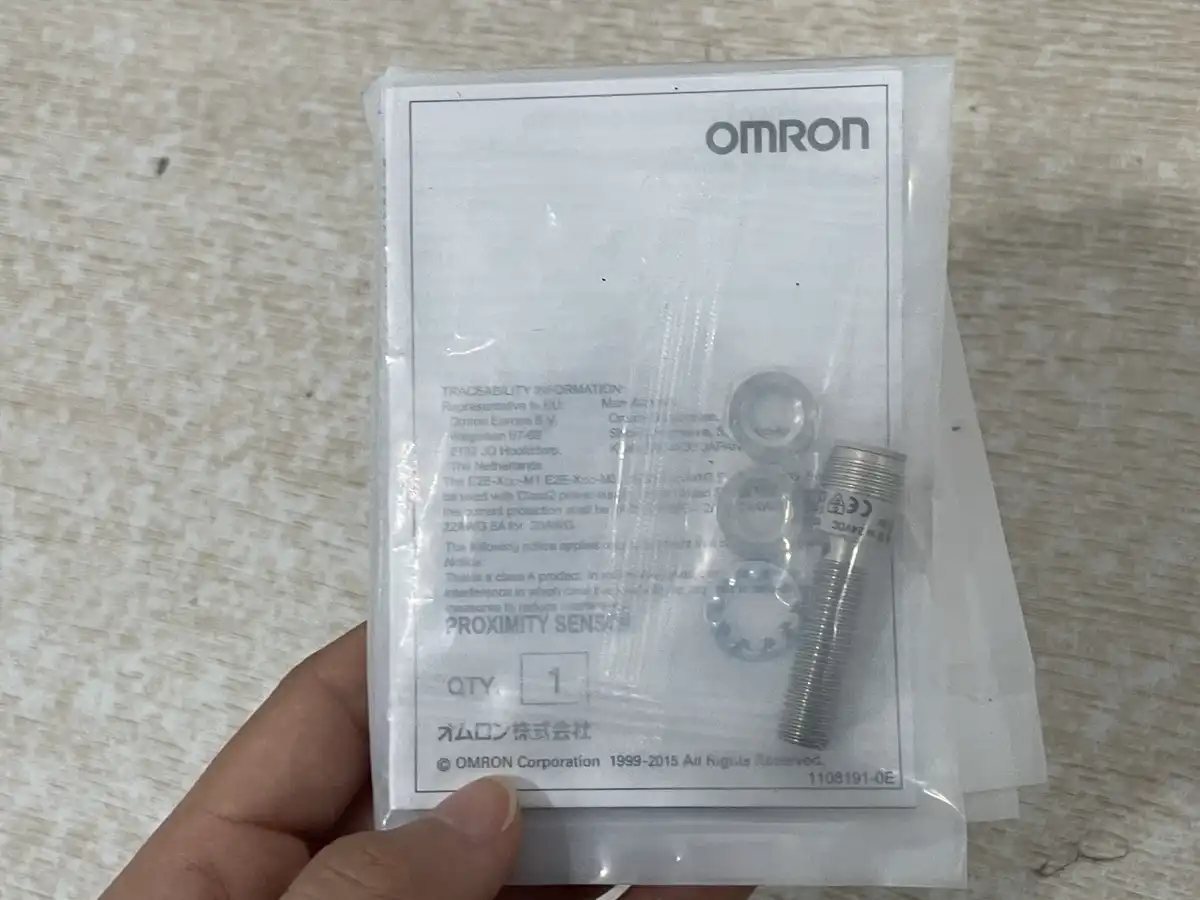

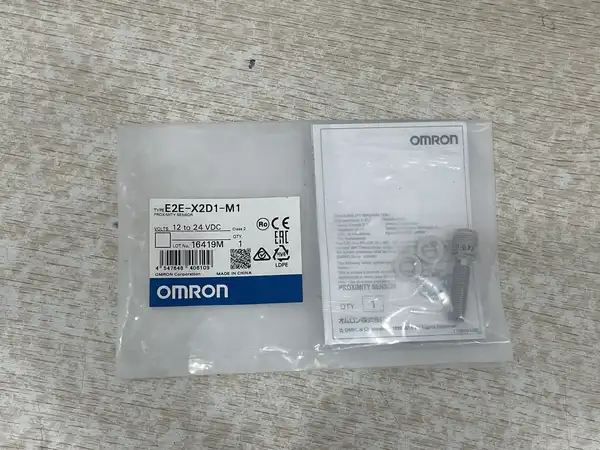

Omron E2E-X2D1-M1 — M8 Inductive, 2 mm, DC 2-Wire, M12 Conn
SKU: E2E-X2D1-M1USD 12.00
M8 brass cylindrical inductive proximity sensor, 2 mm shielded (flush-mountable) sensing distance, DC 2-wire polarized NO output via M12 4-pin metal connector. 12-24 VDC supply, 1.5 kHz response, IP67. Pairs with XS3F-M421-402-A M12 cable.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The E2E-X2D1-M1 is the M8 brass-body, 2 mm shielded (flush-mountable) inductive proximity sensor with DC 2-wire polarized normally-open output and an M12 4-pin metal connector on the cable end — the right pick for tight-space flush-mountable installations where a quick-disconnect is needed. The 'M8' in the part name refers to the barrel / sensing-head body; the 'M1' suffix is the connector type — M12 4-pin male metal connector per IEC 60947-5-2. Common confusion: some catalogs list this as 'M12 sensor' because of the M1 connector, but the barrel thread is M8.
Decoding the E2E-X2D1-M1 model number
The full model code follows the E2E family convention: E2E = standard cylindrical inductive; X = standard oil-resistant PVC cable family (vs S = enhanced PUR for coolants, R = robot-grade, U = polyurethane); 2 = 2 mm sensing distance (vs 8 = 8 mm, 14 = 8 mm M18 body, etc.); D = DC 2-wire polarized output (vs Y = DC 3-wire, R = DC 2-wire non-polarized, E = AC 2-wire); 1 = normally-open (NO — '2' would be NC); M1 = M12 4-pin connector (vs M3 = M8 connector, no suffix = pre-wired 2 m, blank = factory pre-wired).
DC 2-wire polarization — wiring on M12 connector pins
The M12 connector follows IEC 60947-5-2 pinout for DC 2-wire: pin 1 = +V (brown wire inside the cordset), pin 4 = 0V (blue wire). When a target is detected, the sensor sinks current through the load (which is connected between the blue wire and ground). Polarity is strict — reversed polarity prevents switching and stresses the internal protection diode.
Why pick M8 shielded over M12 unshielded (E2E-X2D1-M1 vs E2E-X8MD1 2M)
Two key advantages for M8 shielded 2 mm: (1) flush-mountable in ferrous metal — install directly into a steel bracket or aluminum frame with no clearance gap, allowing higher packing density than unshielded M12 8 mm which needs 36 mm gap. (2) higher switching frequency 1.5 kHz — the small sensing face and shorter magnetic loop let the sensor respond in 0.67 ms vs the E2E-X8MD1's 0.8 kHz = 1.25 ms, allowing faster detection in high-speed packaging, labeling, and printing lines.
Key Features
- M8 brass nickel-plated cylindrical body
- 2 mm nominal sensing distance
- DC 2-wire polarized output, normally-open
- M12 4-pin metal connector
- 12 to 24 VDC supply
- 1.5 kHz response frequency
- 100 mA max load current
- 0.8 mA max leakage current when OFF
- SKU: E2E-X2D1-M1
- Series: E2E Standard Cylindrical Inductive Proximity Sensors
- Voltage: 12 TO 24 VDC
- I/O: 2 I/O
Best-Fit Applications
- Gear-tooth counting on a gearbox output shaft — the E2E-X2D1-M1 sits 1.5 mm above the gear teeth, sensing each tooth-rotation.
- Cam-position detection on a pneumatic indexing table — small M8 barrel allows tight-pitch mounting next to the cam disc; the.
- Drill-bit-in-spindle confirmation on a CNC machining center — the M8 sensor confirms the drill bit is fully retracted; 2-wire output.
- Wire-feed speed confirmation on a welding wire feeder — the M8 sensor detects the rollers on the wire-feed mechanism; 2-wire.
Buying Checklist
- Pick E2E-X2D1-M1 for M8 shielded 2 mm DC 2-wire NO inductive sensor with M12 4-pin connector
- Pick E2E-X2D1 2M for M8 shielded 2 mm DC 2-wire NO with pre-wired 2 m cable instead of M12 connector
- Pick E2E-X2D2-M1 for NC — pick for fail-safe logic where 'sensor blocked = output ON'
- Pick E2E-X2Y1-M1 for NPN DC 3-wire — pick for modern PLC inputs that expect separate signal output
- Pick E2E-X8MD1 2M for M12 body 8 mm unshielded with pre-wired 2 m — pick for longer range, no flush-mount
- Pick E2E-X3D1-M1 for M12 body 3 mm shielded — same connector style but longer barrel for threaded-mount
Technical Specifications
| Model | E2E-X2D1-M1 |
|---|---|
| Series | E2E Standard Cylindrical Inductive Proximity Sensors |
| Type | M8 shielded, DC 2-wire polarized, NO, M12 4-pin connector |
| Body Size (Barrel) | M8 × 1.0 thread (NOT M12 despite the 'M1' connector suffix) |
| Connector Type | M12 4-pin male metal connector per IEC 60947-5-2 A-coded |
| Sensing Distance | 2 mm ±10% (with iron 8 × 8 × 1 mm target) |
| Setting Distance | 0 to 1.6 mm (80% of nominal rated) |
| Differential Travel | 10% max of sensing distance (≤ 0.2 mm) |
| Standard Sensing Object | Iron, 8 × 8 × 1 mm |
| Power Supply Voltage | 12 to 24 VDC, ripple (p-p) 10% max |
| Operating Voltage Range | 10 to 30 VDC |
| Leakage Current | 0.8 mA max (sensor OFF) |
| Control Output | DC 2-wire polarized, 100 mA load max, 30 VDC residual voltage max |
| Connector Body Material | Brass, nickel-plated |
| Sensing Face Material | PBT (polybutylene terephthalate) |
Resources & Downloads
FAQ for E2E-X2D1-M1
Is the E2E-X2D1-M1 an M8 or M12 sensor?
The E2E-X2D1-M1 is an M8 body (sensing-head barrel thread) with an M12 connector on the cable end. The 'M1' suffix in the E2E model code means 'M12 4-pin connector' — it's the connector type, not the body size. The thread size is M8 × 1.0, which is the small 8 mm barrel used in tight-space applications. The M12 connector is the standard IEC 60947-5-2 4-pin male plug on the back of the sensor, which mates with cordset XS3F-M421-402-A.
Can the E2E-X2D1-M1 be wired directly to a relay coil?
Yes — the DC 2-wire output can switch up to 100 mA at 30 VDC, enough to drive small relay coils directly. Wire the relay coil between the sensor's 0 V line (pin 4 on the M12 connector, blue wire on the cordset) and chassis ground; connect +V (pin 1, brown) to 24 VDC supply. The sensor acts as a NO contact closure between brown and blue when a target is detected, allowing current to flow through the load.
What's the sensing distance on non-ferrous metal targets with the E2E-X2D1-M1?
The 2 mm nominal sensing distance is specified for iron (SPCC/ST37). Other materials reduce the sensing range by approximately: stainless steel (304) = 0.85× = 1.7 mm; aluminum (6061) = 0.55× = 1.1 mm; brass = 0.55× = 1.1 mm; copper = 0.45× = 0.9 mm. For aluminum-detecting at <1.1 mm, the E2E-X2D1-M1 is borderline — consider the E2E-X3D1-M1 (3 mm shielded M12) with its 3/4 = 2.25 mm aluminum range if the application is consistent aluminum-target detection.
Can the E2E-X2D1-M1 be flush-mounted into a steel bracket?
Yes — that's the entire point of the 'shielded' / flush-mount designation. The E2E-X2D1-M1 has an internal metal collar around the PBT sensing face that contains the magnetic field, allowing the body to be set in a steel or aluminum bracket with 0 mm side clearance from ferrous material.
