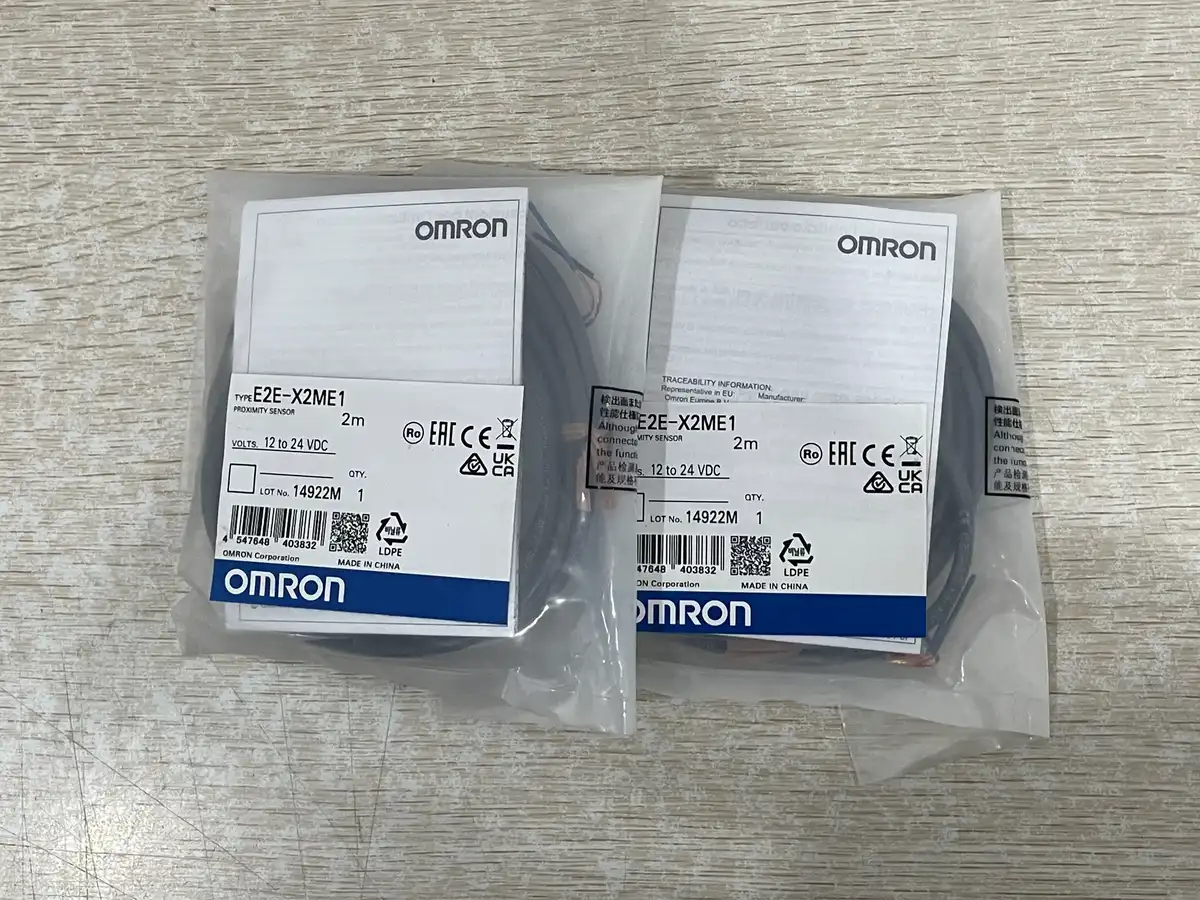

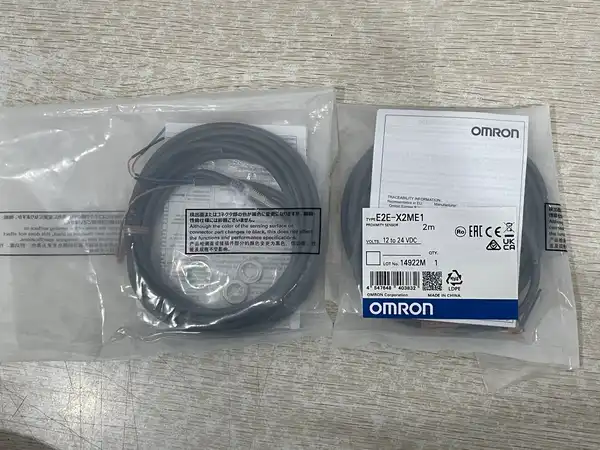

Omron E2E-X2ME1 — M8 Inductive Proximity Sensor, 2 mm, NPN
SKU: E2E-X2ME1USD 13.00
Compact M8 inductive proximity sensor, 2 mm sensing, NPN NO output, 12–24 VDC supply, 2 m pre-wired cable, IP67.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The E2E-X2ME1 is a small 8 mm threaded inductive proximity sensor for short-range metal detection. It senses a target up to 2 mm away, runs on 12 to 24 VDC, and switches 200 mA through an NPN transistor that pulls low when a target is present. A yellow LED on the housing lights up the moment the output turns on, so you can confirm detection during commissioning without a meter.
Where it fits

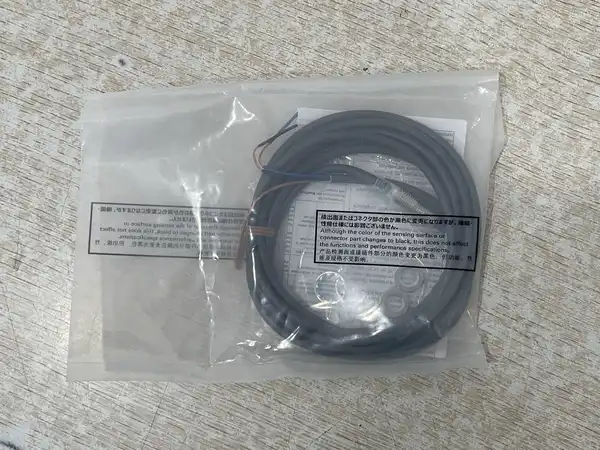

Pick the E2E-X2ME1 for tight-clearance installs: small pneumatic cylinders, vibratory bowl feeders, indexing tables, and screw or bolt detection on automotive lines. Use a non-metal mounting bracket so the barrel sides do not trigger on the bracket itself, and aim the target head-on at the front face. The 2 m PVC cable exits axially from the rear and is rated for typical cabinet routing; the IP67 housing survives coolant splash and outdoor wash-down when mounted vertically.
Sibling sizes in the E2E range
The E2E short-barrel range covers M8, M12, M18, and M30 sizes with NPN or PNP, NO or NC outputs, in pre-wired or connector versions. The E2E-X2ME1 is the M8 NPN-NO with a 2 m cable. For PNP, use E2E-X2MF1; for a connectorised M8 that lets you swap cables without re-wiring, use E2E-X2ME1-M1; for a longer 5 mm reach, step up to the M12 E2E-X5ME1.
Before ordering or installing
Confirm the target distance is within 0 to 1.6 mm and the target is at least 8 × 8 mm of flat steel. Mount in a non-metal bracket and aim the target head-on. Match the output to your PLC: NPN for CP1L-DC or CP2E-N20 inputs in sourcing mode; PNP for inputs in sinking mode.
Key Features
- 8 mm threaded barrel, unshielded (non-flush) mount
- 2 mm sensing distance
- NPN, normally-open output, 200 mA
- 12 to 24 VDC supply
- 2 m pre-wired PVC cable
- IP67 housing for splash and dust
- Yellow LED indicates detection on the front face
- Operating temperature -25 to +70 °C
- SKU: E2E-X2ME1
- Series: E2E short-barrel inductive proximity sensor
- Voltage: 12 TO 24 VDC
- I/O: 200 I/O
Best-Fit Applications
- End-of-stroke detection on small pneumatic cylinders
- Part detection on vibratory bowl feeders
- Index position confirmation on rotary tables
- Limit-switch replacement on packaging-line sensors
Buying Checklist
- Pick E2E-X2ME1 for M8 NPN-NO with 2 m pre-wired cable (this SKU)
- Pick E2E-X2MF1 for PNP NO instead
- Pick E2E-X2ME2 for NPN NC (closed when target present)
- Pick E2E-X5ME1 for 5 mm reach in M12 barrel
- Mount in a non-metal bracket and aim the target head-on at the front face
Technical Specifications
| Model | E2E-X2ME1 |
|---|---|
| Series | E2E short-barrel inductive proximity sensor |
| Body Size | M8 × 1 threaded barrel |
| Sensing Distance | 2 mm |
| Output | NPN, normally-open (NO), 200 mA |
| Supply Voltage | 12 to 24 VDC |
| Connection | 2 m pre-wired PVC cable, 3-wire |
| Indicator | Yellow LED on housing |
| Ingress Protection | IP67 |
| Operating Temperature | -25 to +70 °C |
Resources & Downloads
FAQ for E2E-X2ME1
Is the E2E-X2ME1 M8 or M12?
M8. The 'M' after 'X2' in E2E-X2ME1 means M8 barrel. An M12 sensor in the same family would have an extra digit, like E2E-X5ME1 (M12) or E2E-X8MD1 (M18). If a quote or invoice says M12 for this SKU, double-check the part number.
Can it detect stainless steel or aluminium?
Yes, but at a shorter range than the rated 2 mm. Stainless steel drops the range by about 10 to 20 percent, aluminium by 30 to 50 percent, copper and brass by roughly half. For aluminium-only targets, plan on a 1 mm working distance or step up to an M12 E2E-X5ME1.
Can I extend the 2 m cable?
Short extensions are fine. NPN sensors tolerate cable extensions up to about 50 m without issue. For longer runs, use the connectorised E2E-X2ME1-M1 with a heavier shielded cable. If the supply voltage at the sensor end dips below 10 VDC, the output becomes unreliable — check voltage under load before commissioning.
How do I wire it to a CP1L or CP2E PLC?
Brown to +24 V, blue to 0 V, black to the PLC input terminal. On a CP1L-DC or CP2E-N20DR-D, the input COM/SS terminal goes to +24 V (sourcing input mode). The sensor then pulls the input low when it detects a target, giving you a true input bit. If your PLC wants PNP inputs only, swap to the E2E-X2MF1.
