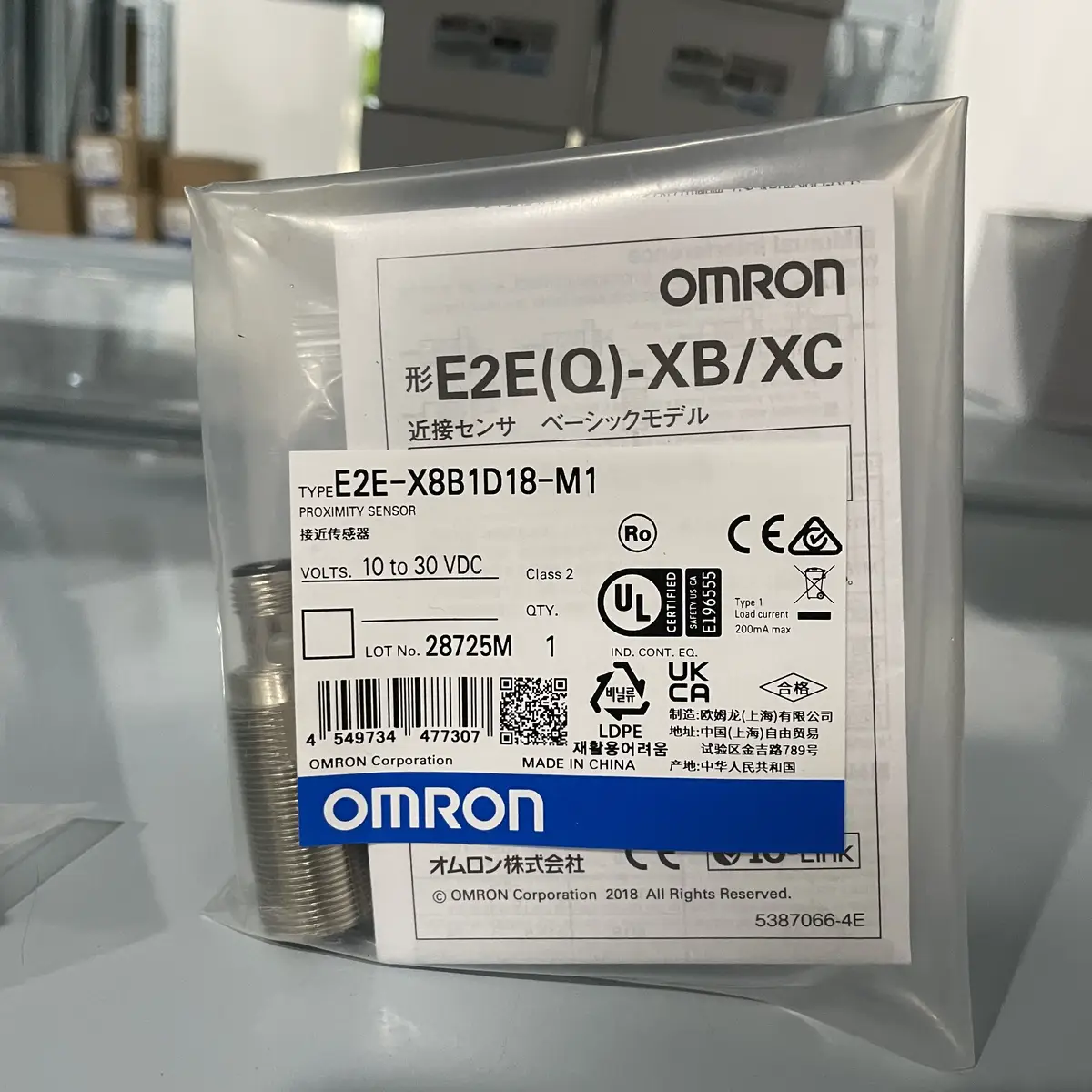

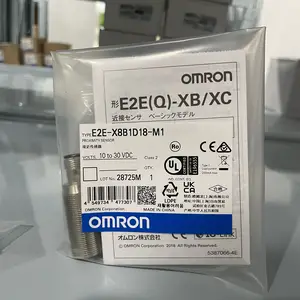

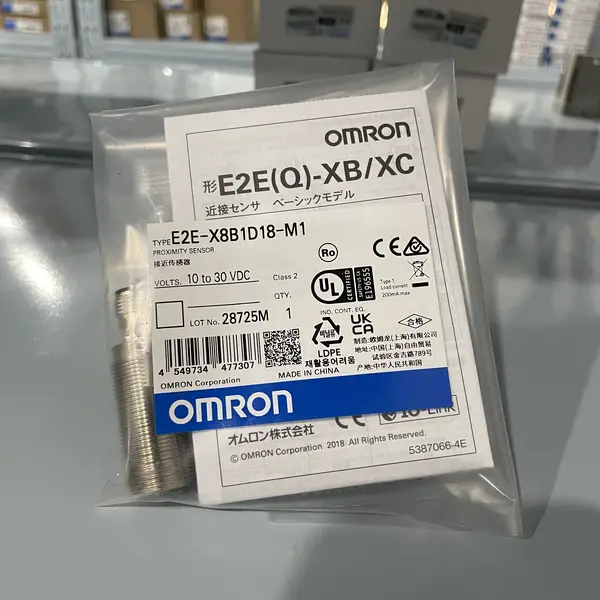

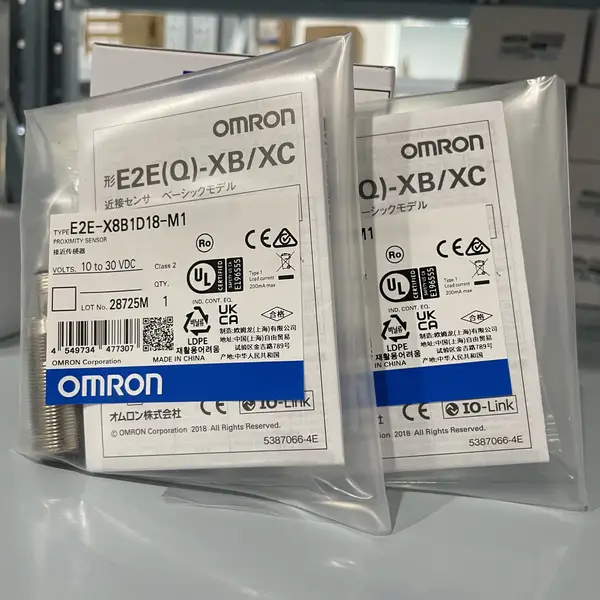

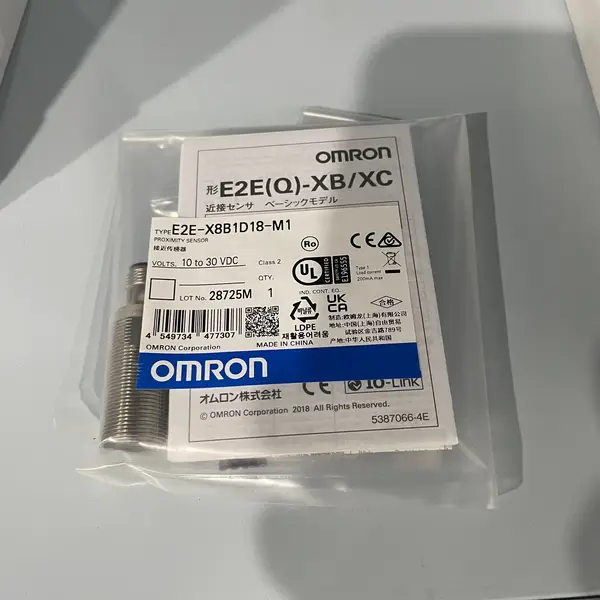

Omron E2E-X8B1D18-M1 — M18 Inductive Sensor, 8 mm, PNP
SKU: E2E-X8B1D18-M1USD 38.00
E2E NEXT M18 shielded inductive proximity sensor, 8 mm sensing distance, PNP NO, M12 4-pin connector.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E2E-X8B1D18-M1 is a shielded inductive proximity sensor in the E2E NEXT series, in an M18 stainless / brass barrel with an M12 4-pin connector. It detects ferrous metal targets at 8 mm with a PNP normally-open output, dropping straight into any PLC input card that expects a sourcing sensor. The 'X8' in the model code is the 8 mm sensing distance, 'B1' is PNP NO, 'D18' is the M18 thread, and 'M1' is the M12 4-pin pigtail connector. It runs on 10-30 VDC, switches in 0.5 ms, and is rated IP67 for washdown panels. It is the standard pick for end-of-stroke, part-present, and index-table detection on metal parts at short range.
Where M18 8 mm fits
The E2E NEXT line splits by size and range. The M8 E2E-X2D1-M1 covers 2 mm, the M12 E2E-X4B1D12-M1 covers 4 mm, and the M18 E2E-X8B1D18-M1 covers 8 mm. Above that, the M30 E2E-X15B1D30-M1 covers 15 mm. Pick the M18 8 mm version when the target is too far for an M12 or the bracket space allows a larger barrel. The shielded ('B') body means the sensor can be flush-mounted in metal without reducing range; use the unshielded 'D' code for slightly longer range at the cost of side-clearance.
Before ordering
Confirm the panel supply: shielded inductive sensors need a stable 24 VDC rail. Plan a free zone of 1.5 x the sensing distance around the active face to avoid mutual interference between adjacent sensors. Pair the sensor with an XS2F-M12 / M12-4A patch cord in the right length; pin 1 is +V, pin 3 is 0 V, pin 4 is the PNP output. For NPN or NC outputs, choose the E2E-X8C1D18-M1 (NPN NO) or E2E-X8B2D18-M1 (PNP NC).
Key Features
- E2E NEXT shielded inductive proximity sensor, M18 barrel
- 8 mm sensing distance on mild steel
- PNP normally-open output, three-wire DC
- M12 4-pin connector on the rear face
- 10-30 VDC supply, IP67 protection rating
- 0.5 ms response time, 200 mA load current
- Flush-mountable in metal without range loss
- SKU: E2E-X8B1D18-M1
- Series: E2E NEXT inductive proximity sensor
- Voltage: 10-30 VDC
- I/O: 200 I/O
Best-Fit Applications
- End-of-stroke detection on pneumatic cylinders with magnetic pistons
- Part-present check on a conveyor at a metal stamping cell
- Index-table home-position feedback on a rotary indexing machine
- Tool-present check on a CNC magazine with a metal target
- Speed sensing on a toothed gear with a ferrous target wheel
Buying Checklist
- Choose E2E-X8B1D18-M1 for M18, 8 mm, PNP NO, M12 connector.
- Choose E2E-X8C1D18-M1 for the same range in NPN normally-open.
- Choose E2E-X4B1D12-M1 when an M12 4 mm sensor fits the bracket.
- Choose E2E-X15B1D30-M1 when the target needs 15 mm range.
- Confirm the panel has a 24 VDC rail before wiring this sensor.
- Allow for 1.5 x the sensing distance around the face for adjacent sensors.
Technical Specifications
| Series | E2E NEXT inductive proximity sensor |
|---|---|
| Sensing Method | Inductive, shielded |
| Sensing Distance | 8 mm on mild steel (30 x 30 x 1 mm) |
| Barrel Size | M18 x 1 thread |
| Output | PNP open collector, normally open, 200 mA |
| Supply Voltage | 10-30 VDC, ripple 10 % p-p max. |
| Current Consumption | 16 mA max. |
| Response Time | 0.5 ms operate / release |
| Connection | M12 4-pin connector |
| Operating Temperature | -25 to +70 °C |
| Protection Rating | IP67 (IEC 60529) |
| Housing | Stainless steel or nickel-plated brass body, PBT face |
Resources & Downloads
FAQ for E2E-X8B1D18-M1
What is the difference between E2E-X8B1D18-M1 and E2E-X8C1D18-M1?
Both are M18 shielded sensors with 8 mm range and an M12 connector. The B1 suffix is PNP normally-open; the C1 suffix is NPN normally-open. Pick the B1 (this SKU) when the PLC input expects a sourcing signal; pick C1 when the PLC expects sinking. For normally-closed outputs, choose the B2 or C2 sibling.
Can this sensor detect stainless steel or aluminium?
Yes, with a derating. The 8 mm spec is on mild steel. Stainless steel reads at about 65-80 % of that range, and aluminium at 35-50 %. For non-ferrous targets at 8 mm range, fit a larger M30 sensor or use a ferrous target plate bonded to the part.
What M12 cord pairs with the E2E-X8B1D18-M1?
Any 4-pin M12 female cord works. The standard Omron option is the XS2F-M12 series (straight or right-angle) in 1 m, 2 m, 5 m, or 10 m. Pin 1 is +V (brown), pin 3 is 0 V (blue), and pin 4 is the PNP output (black).
