Omron E2EC-C1R5D1 — 5.4 mm Inductive Sensor, 1.5 mm
SKU: E2EC-C1R5D1USD 58.00
E2EC sub-miniature inductive sensor, 5.4 mm brass head, 1.5 mm shielded sensing, DC 2-wire NO, IP67, amplifier built into the cable.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

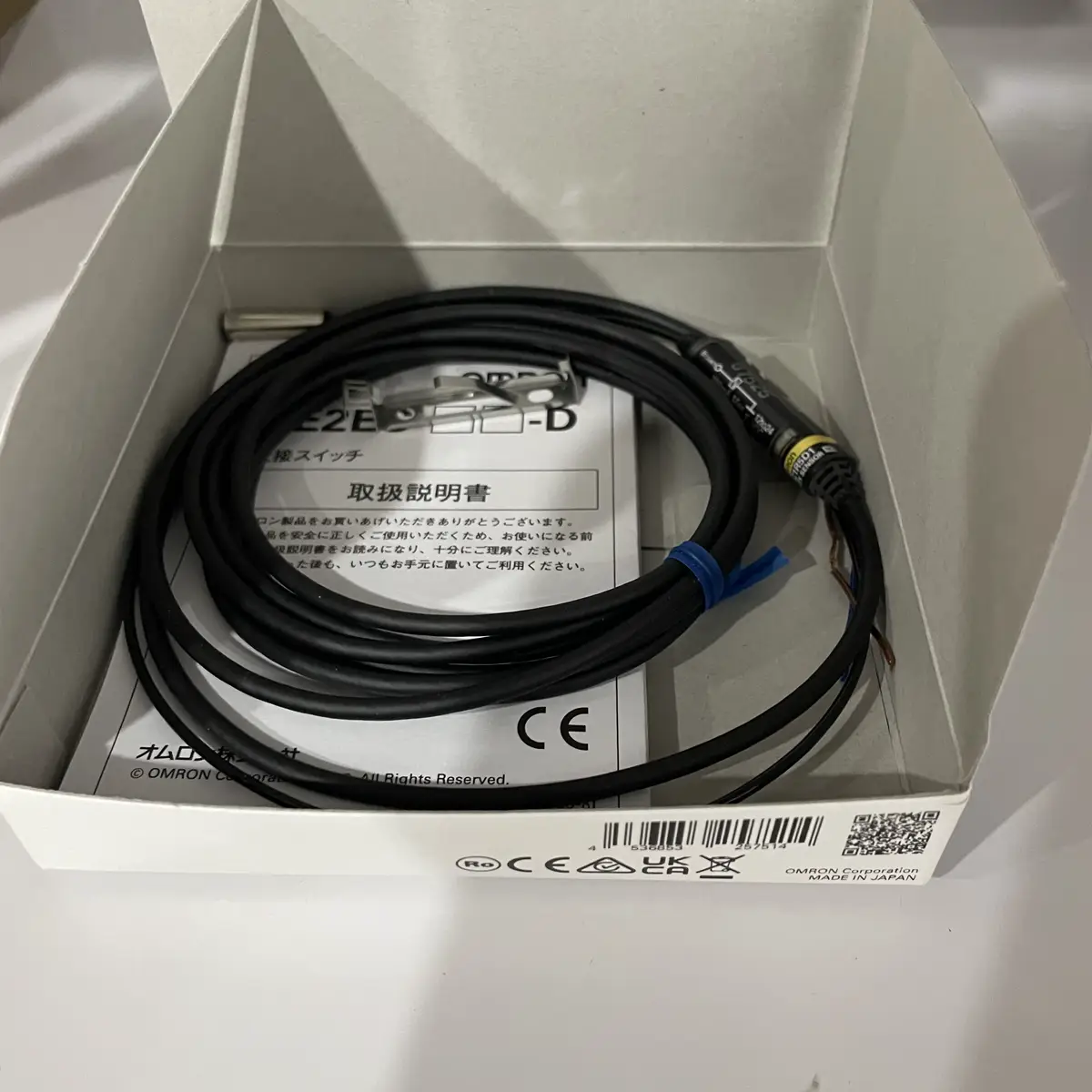

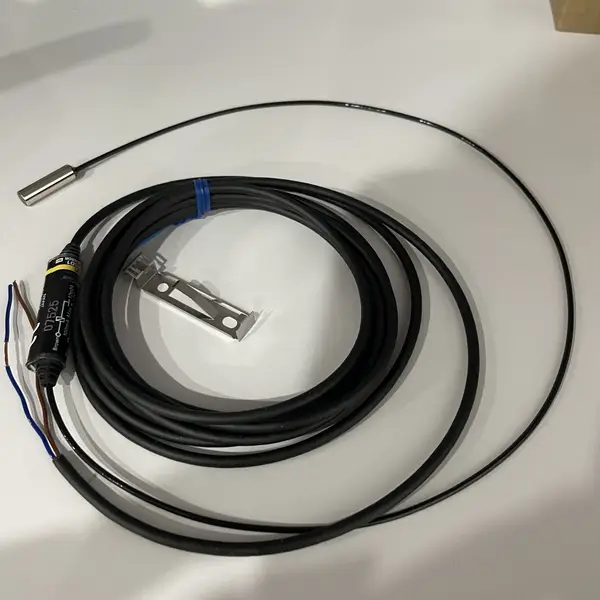

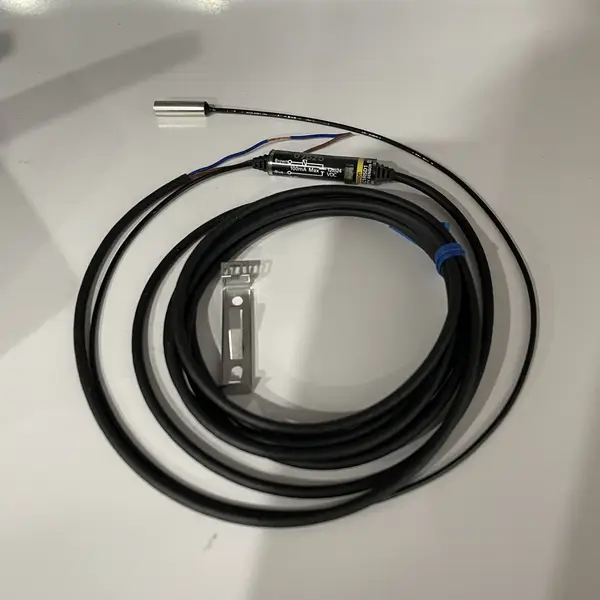

The Omron E2EC-C1R5D1 is a sub-miniature inductive proximity sensor designed for mounting spaces too tight for a standard M8 or M12 barrel. The sensing head is just 5.4 mm in diameter, brass case with an ABS sensing surface. A short 0.4 m cable runs back to a small inline amplifier where the switching electronics and operation LED live. It is the standard pick when a part-detection point needs a shielded 1.5 mm read range from a head that is small enough to drop into a 6 mm drilled hole or sit between two machined features.
Where it fits in the E2E family
The E2E next-generation family splits by head diameter and sensing range. The 5.4 mm head version (this unit) and 3 mm head version (E2EC-CR8D1) sit in the E2EC series because they cannot fit the amplifier into the head. Standard E2E-X family sensors put the amplifier in the barrel and only need an M8 or larger threaded body. Pick the E2EC-C1R5D1 when mounting space is below 8 mm. Pick the E2EC-C3D1 for the same approach with a longer 3 mm range. Pick the E2E-X8MD1 for a standard M12 inductive sensor with 8 mm range.
Why a separate amplifier
The sensing head alone cannot host the oscillator, rectifier, and switching transistor when the head diameter is below 8 mm. E2EC splits the design: the small brass head holds the sensing coil and matching network, and the 0.4 m cable feeds the inline amplifier that carries the operation LED. Mount the amplifier block where the LED is visible during commissioning without crowding the head location.
Before ordering
Confirm the target is ferrous metal; inductive sensors do not detect plastic. Mount the head with the sensing face flush to the target's approach plane. Verify the 0.4 m cable run is accounted for before drilling any panel cutouts. Wire the amplifier side to a 12-24 VDC supply (10-30 VDC operating) and the two-wire output to the PLC input, observing polarity. Use the operation LED on the amplifier to confirm switching during commissioning.
Key Features
- E2EC family sub-miniature inductive proximity sensor
- 5.4 mm diameter brass sensing head, ABS sensing surface
- 1.5 mm +/- 10 % shielded sensing distance
- DC 2-wire normally open output
- 0.4 m cable between sensing head and inline amplifier
- Inline amplifier with operation LED
- Power supply 12-24 VDC (10-30 VDC operating)
- 1.5 kHz response frequency
- IP67 housing, -25 to 70 degC operating temperature
- Embeddable in metal, robot-cable standard
- SKU: E2EC-C1R5D1
- Series: E2EC sub-miniature inductive proximity sensor
- Voltage: 12-24 VDC
- I/O: 2 I/O
Best-Fit Applications
- Part-presence check on a small parts feeder or escapement
- Detect inside a 6 mm clearance on a precision gauge jig
- End-of-stroke confirmation on a small pneumatic slide device
- Tamper switch in a coin or token mechanism
- Tool-position check inside a tight spindle nose pocket
Buying Checklist
- Confirm the head fits the available 6 mm clearance before drilling.
- Choose E2E-X2D1-M1 for an M8 inductive sensor with 2 mm range.
- Choose E2E-X3D1-U for a free-voltage AC/DC M12 inductive sensor.
- Choose E2E-X8MD1 for a standard M12 inductive sensor with 8 mm range.
- Confirm the inline amplifier is mounted where its LED is visible during commissioning.
- Verify the 0.4 m cable run between the head and the amplifier block is planned.
Technical Specifications
| Series | E2EC sub-miniature inductive proximity sensor |
|---|---|
| Sensing Head | 5.4 mm diameter, brass case with ABS sensing surface |
| Sensing Distance | 1.5 mm +/- 10 %, shielded |
| Output | DC 2-wire, normally open (NO) |
| Power Supply | 12-24 VDC nominal (10-30 VDC operating) |
| Response Frequency | 1.5 kHz |
| Protective Circuits | Surge absorber, short-circuit protection |
| Head-to-Amplifier Cable | 0.4 m |
| Degree of Protection | IEC 60529 IP67 |
| Operating Temperature | -25 to 70 degC (no icing, no condensation) |
| Indicator | Operation LED on the inline amplifier |
Resources & Downloads
FAQ for E2EC-C1R5D1
What is the difference between E2EC-C1R5D1 and E2E-X8MD1?
The E2EC-C1R5D1 is a sub-miniature inductive sensor with a 5.4 mm head and a separate inline amplifier on a 0.4 m cable. The E2E-X8MD1 is a standard M12 inductive sensor with 8 mm sensing distance and the amplifier built into the barrel. Pick E2EC for tight mounting below 8 mm; pick E2E for anywhere an M12 body fits.
Can the E2EC-C1R5D1 detect non-metal targets?
No. E2EC sensors are inductive and only respond to ferrous metals. They will also detect non-ferrous metals like aluminum, copper, or stainless steel at a reduced sensing distance (the standard 1/3 correction factor applies). For plastic, wood, glass, or liquid level sensing, move to the E2K capacitive proximity family.
Does this sensor need a separate controller or amplifier?
No external controller is needed. The amplifier circuit is integrated into the cable a short distance from the head, so the sensing head + amplifier + 2 m cable act as one unit. Wire the amplifier side directly to a 12-24 VDC supply and the two-wire output to the PLC input.
