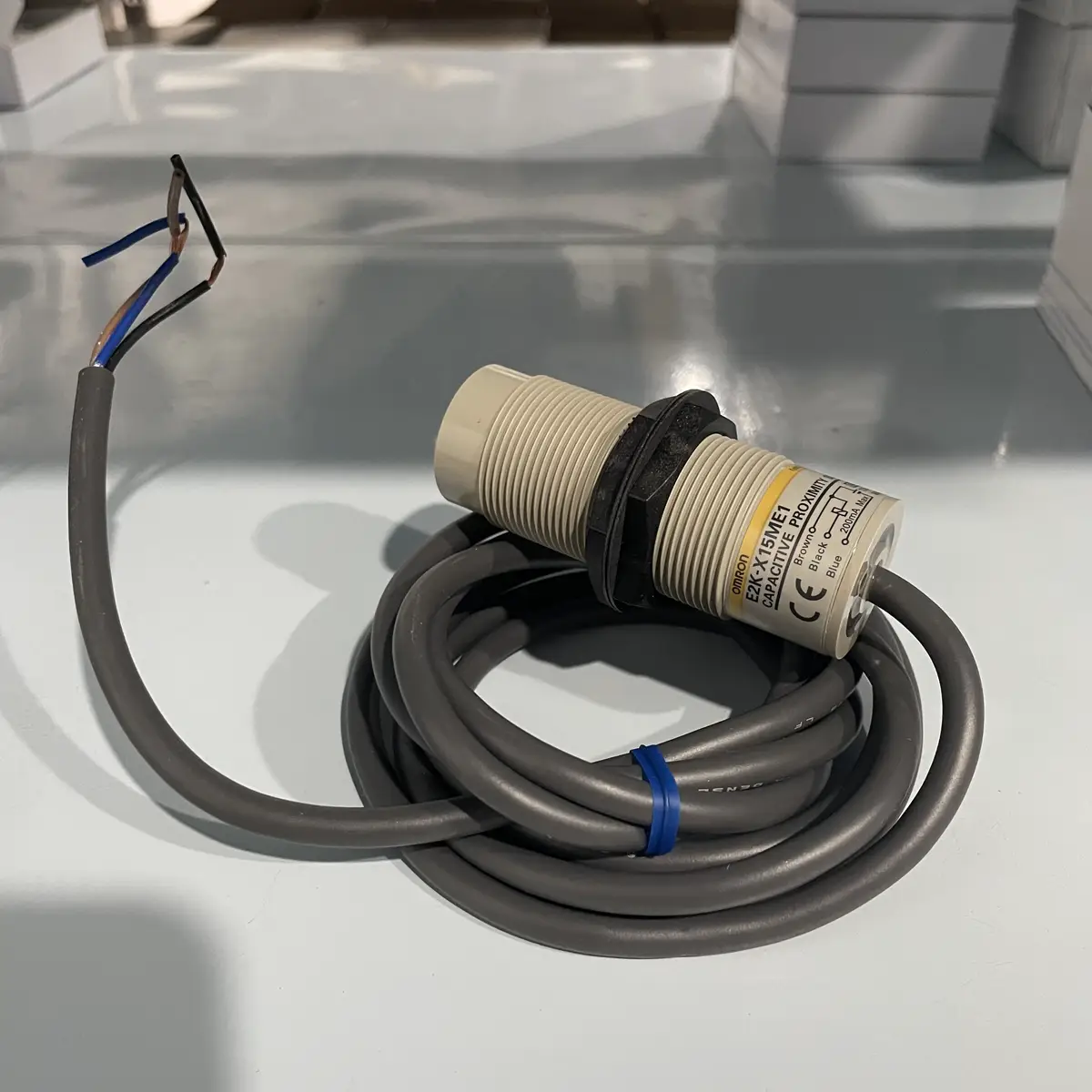

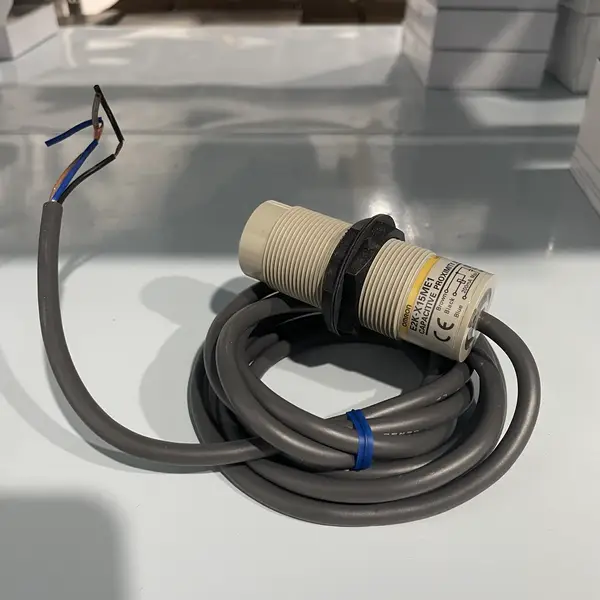

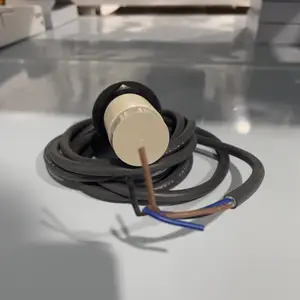

Omron E2K-X15ME1 — M30 Capacitive Sensor, 15 mm
SKU: E2K-X15ME1USD 65.00
Omron E2K-X15ME1 detects plastic, glass, water and metal up to 15 mm away. NPN NO, 2 m cable, IP66.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E2K-X15ME1 is an M30 threaded capacitive proximity sensor with a 15 mm sensing range, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
A capacitive sensor sees more than metal. This one picks up water, oil, glass, plastic and cardboard as well as conductors, so it suits level checks through a tank wall or confirming a plastic part is in the nest. The 15 mm range is fixed, with no sensitivity dial to set. Output is NPN normally open, up to 200 mA, from a 12 to 24 VDC supply on a 2 m cable.
The ABS barrel is unshielded and rated IP66, so leave the area around the sensing face clear of metal. Response is 100 Hz, fine for parts counting but not high-speed indexing. If the target is always metal, an inductive sensor such as the E2E-X8MD1 is cheaper and less fussy about its surroundings.
Key Features
- M30 x 1.5 threaded capacitive sensor, 15 mm fixed sensing range, unshielded
- Detects non-metals too — water, oil, glass, plastic, cardboard — not just conductors
- NPN normally open, 200 mA max, 12 to 24 VDC, 2 m pre-wired cable
- IP66 ABS housing, -25 to +70 °C, 100 Hz response frequency
- SKU: E2K-X15ME1
- Series: Omron E2K-X cylindrical capacitive
- Voltage: 12 TO 24 VDC
Best-Fit Applications
- Level check through the plastic wall of a resin hopper on an injection moulding machine, with no contact with the pellets
- Confirming a clear PET bottle is present on a filling line, where an inductive sensor would see nothing at all
- Detecting cardboard carton edges on a case packer, mounted in an M30 bracket clear of the steel frame
Buying Checklist
- Pick the E2K-X15ME1 for a normally open M30 capacitive sensor detecting non-metals up to 15 mm away.
- Pick the E2K-X15ME2 instead when the machine logic needs a normally closed output.
- Pick an inductive sensor such as the E2E-X8MD1 instead when the target is always metal and nearby steel is unavoidable.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron E2K-X cylindrical capacitive |
| Model / SKU | E2K-X15ME1 (2 m pre-wired) |
| Sensing Method | Capacitive, unshielded |
| Sensing Distance | 15 mm ±10% (recommended set distance 0 to 10 mm) |
| Thread / Body | M30 x 1.5, ABS resin |
| Output Type | NPN normally open, DC 3-wire |
| Load Current | 200 mA max (residual voltage 2 V max) |
| Supply Voltage | 12 to 24 VDC (10 to 30 VDC range), 15 mA max |
| Response Frequency | 100 Hz |
| Protection / Temperature | IP66, -25 to +70 °C |
FAQ for E2K-X15ME1
What can the Omron E2K-X15ME1 detect?
Both metals and non-metals: water, oil, glass, plastic, powder and cardboard, as well as conductors. Omron rates the 15 mm range against a grounded 50 x 50 x 1 mm metal plate, so plastics and liquids read at a shorter distance than that.
E2K-X15ME1 vs E2K-X8ME1 — what is the difference?
Body size and range. The E2K-X15ME1 is an M30 barrel with a 15 mm range; the E2K-X8ME1 is M18 with 8 mm. Both are NPN normally open on a 2 m cable. Pick by the mounting hole you have and the gap you need to cover.
What is the maximum sensing distance of the E2K-X15ME1?
15 mm ±10% against Omron's standard target. Omron gives a recommended set distance of 0 to 10 mm, so mount the target inside 10 mm for a stable signal rather than out at the 15 mm limit.
Can the E2K-X15ME1 be mounted in a metal bracket?
Yes, but it is unshielded, so surrounding metal shifts the switching point. Keep the area around and in front of the sensing face clear and re-check the switch point after mounting. A shielded inductive sensor is the better pick if it has to sit flush in steel.
Does the E2K-X15ME1 need a sensitivity adjustment?
No. The 15 mm range is fixed and there is no pot or teach button. Wire the three leads on the 2 m cable, set the target within 10 mm, and it works.
