Omron E39-L98 — Swing Bracket for E3Z Sensors
SKU: E39-L98USD 10.00

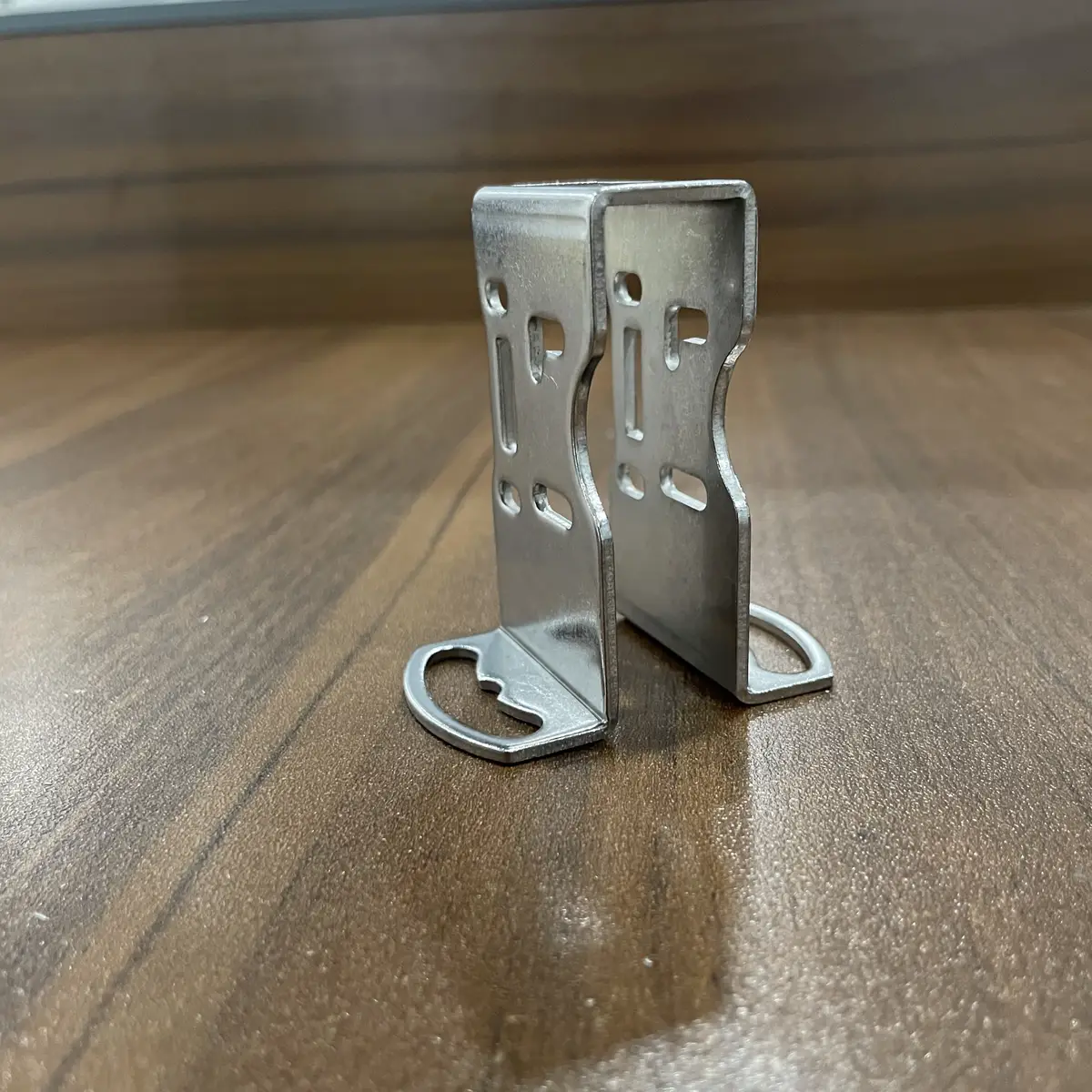

Omron E39-L98 360-degree stainless-steel swing mounting bracket for E3Z photoelectric sensors. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E39-L98 is a 360-degree adjustable swing mounting bracket for E3Z-series photoelectric sensors, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The bracket holds the E3Z pre-wired sensor body and lets the beam angle be tuned plus or minus 10 degrees in both axes after the bracket is bolted to the frame. Tightening the M3 screws locks the sensor in place. The stainless-steel body holds up to water and cutting-oil splash.

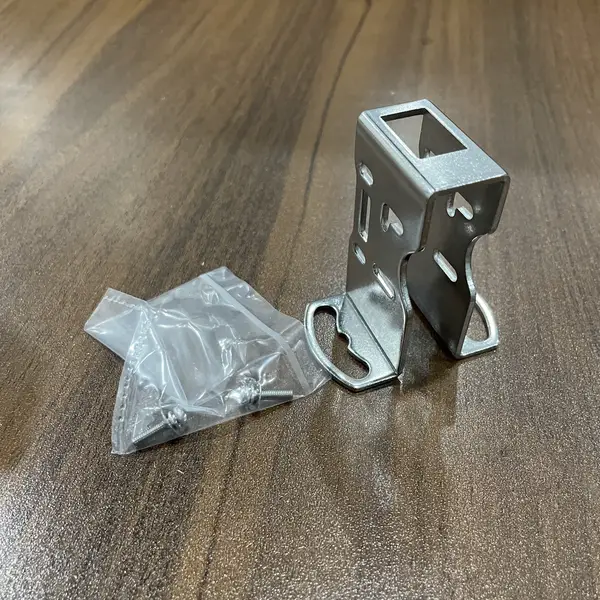

Two M3 x 12 screws with spring washers and plain washers ship with each bracket. The bracket is 34 mm wide, 61 mm tall, and 34 mm deep. The L-shape non-swing bracket for the E3Z is the E39-L96. The reflectors for retro-reflective sensors are the E39-R1S (small) and E39-R7 (84 mm IP69K).
Key Features
- 360-degree adjustable swing mounting bracket for E3Z-series pre-wired photoelectric sensors
- Stainless-steel SUS304 body, white finish, 34 x 61 x 34 mm, 2 mm thickness, 50 g
- Plus or minus 10 degree beam adjustment in both axes, M3 x 12 mounting screws and washers included
- Compatible with E3Z pre-wired, E3S-R, and E3ZM photoelectric sensors
- SKU: E39-L98
- Series: Omron E39-series sensor accessories (E39-L mounting brackets)
Best-Fit Applications
- Conveyor photo-eye mount where the E39-L98 tilts an E3Z-D61 down 10 degrees to avoid specular reflection from a shiny carton
- Through-beam alignment on a long conveyor where the 360-degree swing squares the E3Z-T61 emitter and receiver without re-drilling
- Spare replacement on a cutting machine where a fixed L-shape bracket is upgraded for the E39-L98 swing on a stainless enclosure
Buying Checklist
- Pick the E39-L98 for a 360-degree swing bracket for an E3Z pre-wired photoelectric sensor with M3 hardware included.
- Pick the E39-L96 instead when the cabinet only needs a fixed L-shape bracket on the same E3Z body without the swing adjustment.
- Pick the E39-L97 instead when the panel uses the larger E3S-series sensor body and needs the matching stainless-steel swing bracket.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron E39-series sensor accessories (E39-L mounting brackets) |
| Model / SKU | E39-L98 |
| Material | Stainless steel SUS304, white finish |
| Dimensions | 34 mm wide x 61 mm tall x 34 mm deep, 2 mm thickness |
| Adjustment | 360-degree swing, plus or minus 10 degree fine adjustment in both axes via M3 locking screws |
| Mounting Hardware | 2 x M3 x 12 slotted / Phillips screws with spring washers and plain washers included |
| Compatible Sensors | E3Z-series pre-wired photoelectric sensors, E3S-R series, E3ZM series |
| Mounting Method | Screw mounting (surface) to machine frame or DIN rail bracket |
| Weight | Approximately 50 g |
| Environment | Indoor / outdoor when paired with IP67-rated E3Z sensor; cut-oil splash resistant |
| Sister Brackets | E39-L96 (L-shape non-swing for E3Z), E39-L93 (L-shape for E3S), E39-L97 (swing for E3S) |
FAQ for E39-L98
What is the Omron E39-L98 used for?
It is a 360-degree adjustable swing mounting bracket for E3Z-series pre-wired photoelectric sensors. The stainless-steel body lets the installer tune the sensor beam plus or minus 10 degrees in both axes, then lock the bracket with the M3 screws. Typical uses are conveyor photo-eyes, through-beam alignment on long runs, and any E3Z install that needs fine angle tuning on a stainless-steel frame.
E39-L98 vs E39-L96 - what is the difference?
Both are stainless-steel brackets for the E3Z-series sensor body and use the same M3 x 12 hardware. The -L98 has a 360-degree swing with plus or minus 10 degree fine adjustment; the -L96 is a fixed L-shape bracket without the swing. Pick the -L98 when the alignment needs to be tuned after the frame is bolted down; pick the -L96 when the install is simple and the bracket angle is fixed by the frame drilling.
Does the E39-L98 fit the E3ZM stainless-steel sensors?
Yes. The E39-L98 fits the E3ZM stainless-steel food-grade sensor body as well as the standard E3Z pre-wired body. The bracket sits on the same M3 mounting holes on both sensor lines, so the E39-L98 is the bracket of choice for washdown panels.
Does the E39-L98 include mounting screws?
Yes. Each E39-L98 ships with two M3 x 12 slotted / Phillips screws, two spring washers, and two plain washers for mounting the bracket to the machine frame. The two M3 screws that lock the sensor body into the bracket are pre-installed on the E3Z sensor.
