Omron E39-R7 — 84 mm Round Reflector, IP69K
SKU: E39-R7USD 7.00
84 mm round acrylic reflector for retro-reflective photoelectric sensors, IP67 / IP69K. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E39-R7 is an 84 mm round acrylic reflector from the E39-series It is manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.

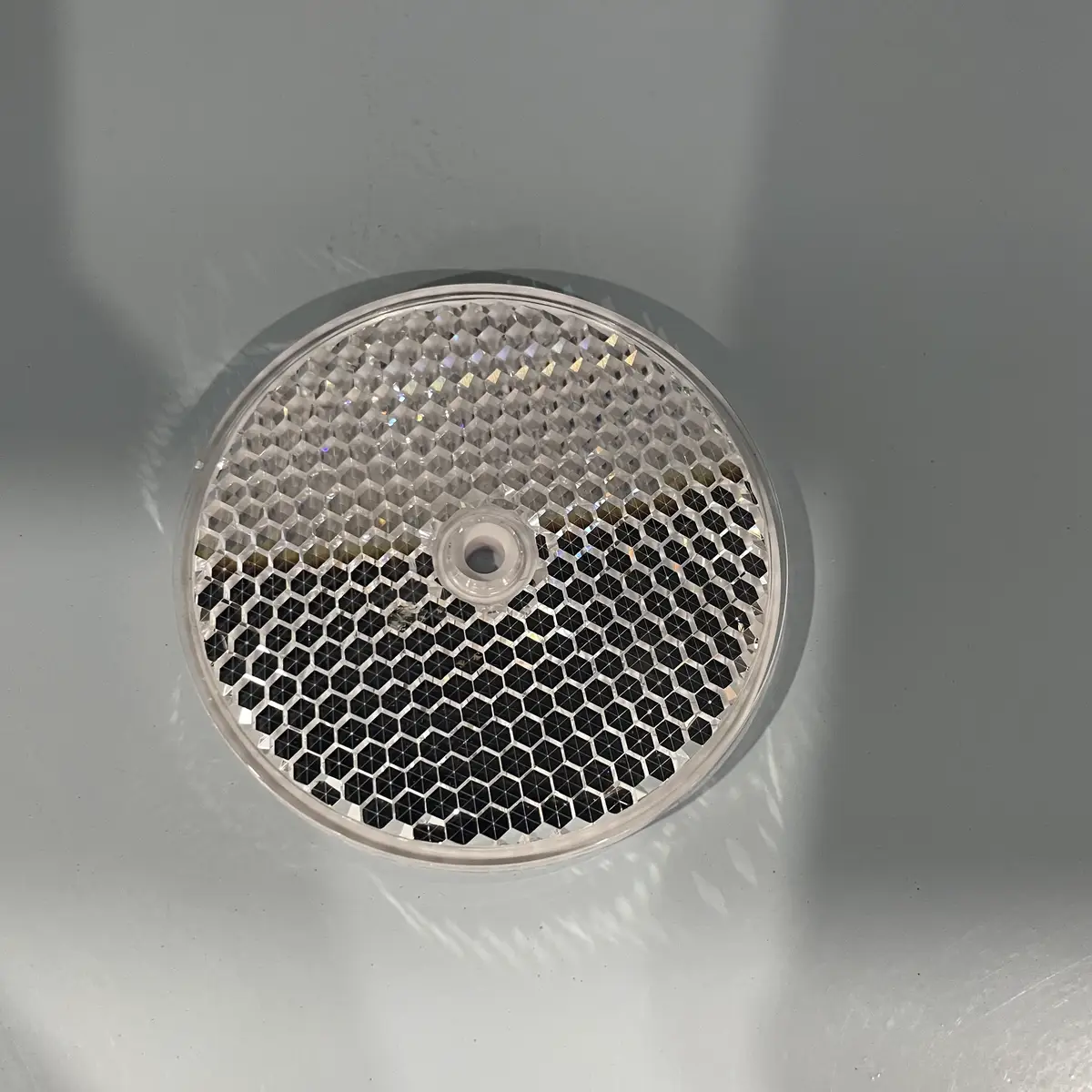

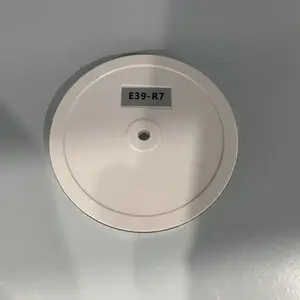

The reflector face is 84 mm in diameter and 7.4 mm thick, weighing 32 g. A single M4 mounting hole in the centre seats a vibration-resistant bolt.
Storage -25 to +65 degC; operating -10 to +55 degC. Key specs: Reflector Type Round, acrylic, micro-prism; Outer Diameter 84 mm; Thickness 7.4 mm; Mounting Hole 1 x M4 centre hole; Adhesive Backing None (bolt-mount only); Compatible Sensors E3F2, E3FA, E3Z, E3JM retro-reflective heads; Protection IP67 / IP69K; Operating Temperature -10 to +55 degC operating, -25 to +65 degC storage.
Key Features
- E39-series 84 mm round acrylic reflector
- IP67 and IP69K rated for high-pressure washdown panels
- Single M4 mounting hole, 32 g, no self-adhesive backing
- Pairs with E3F2 / E3FA / E3Z / E3JM retro-reflective sensors
- SKU: E39-R7
- Series: Omron E39-series reflector accessory
Best-Fit Applications
- Long-distance bottle detection on a beverage line where the IP69K face survives daily clean-in-place washdown at 80 degC
- ASRS bay-clearance check on a warehouse crane where the 84 mm face returns a strong signal at the 4 m sensing distance
- Spare replacement on a conveyor where the original small reflector kept missing clear PET bottles and the E39-R7 fixed the false-negatives
Buying Checklist
- Pick the E39-R7 for an 84 mm round IP69K reflector on a washdown line where a smaller reflector keeps missing clear targets.
- Pick the E39-R1S instead when the application needs a 60 mm square reflector on the same E39 platform.
- Pick the E39-L98 instead when the panel needs a protective mounting bracket for an E3Z sensor, not a reflector.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron E39-series reflector accessory |
| Model / SKU | E39-R7 |
| Reflector Type | Round, acrylic, micro-prism |
| Outer Diameter | 84 mm |
| Thickness | 7.4 mm |
| Mounting Hole | 1 x M4 centre hole |
| Adhesive Backing | None (bolt-mount only) |
| Compatible Sensors | E3F2, E3FA, E3Z, E3JM retro-reflective heads |
| Protection | IP67 / IP69K |
| Operating Temperature | -10 to +55 degC operating, -25 to +65 degC storage |
| Dimensions / Weight | 84 dia. x 7.4 mm; 32 g |
FAQ for E39-R7
What sensors does the E39-R7 work with?
Most Omron retro-reflective photoelectric sensors, including the cylindrical E3F2 family and the compact E3FA, E3Z and E3JM heads. The 84 mm face gives a strong return signal, so it is a good match for clear-object and long-range applications.
Can the E39-R7 survive high-pressure washdown?
Yes. The reflector carries IP67 plus IP69K ratings, which covers 80 degC, 80 to 100 bar high-pressure hot-water jets from any angle. Food, beverage and pharmaceutical panels are the main use cases.
Does the E39-R7 need a separate bracket?
Not usually. The single M4 centre hole takes a bolt directly through the back of the reflector. For adjustable mounting, fit the reflector on an E39-L98 sensor mounting bracket or a standard 84 mm sensor bracket.
How big a target can the E39-R7 detect?
Detection depends on the sensor. As a rule, the E39-R7 extends the sensing distance of a matched E3F2 or E3Z sensor by 30 to 50 percent compared with the smaller E39-R1S reflector, because the larger face returns more light.
Does the E39-R7 work with red-light sensors?
Yes. The micro-prism face reflects both red LED and infrared wavelengths, so the reflector matches every Omron retro-reflective sensor in the E3F2, E3FA, E3Z and E3JM families regardless of the light source colour.
