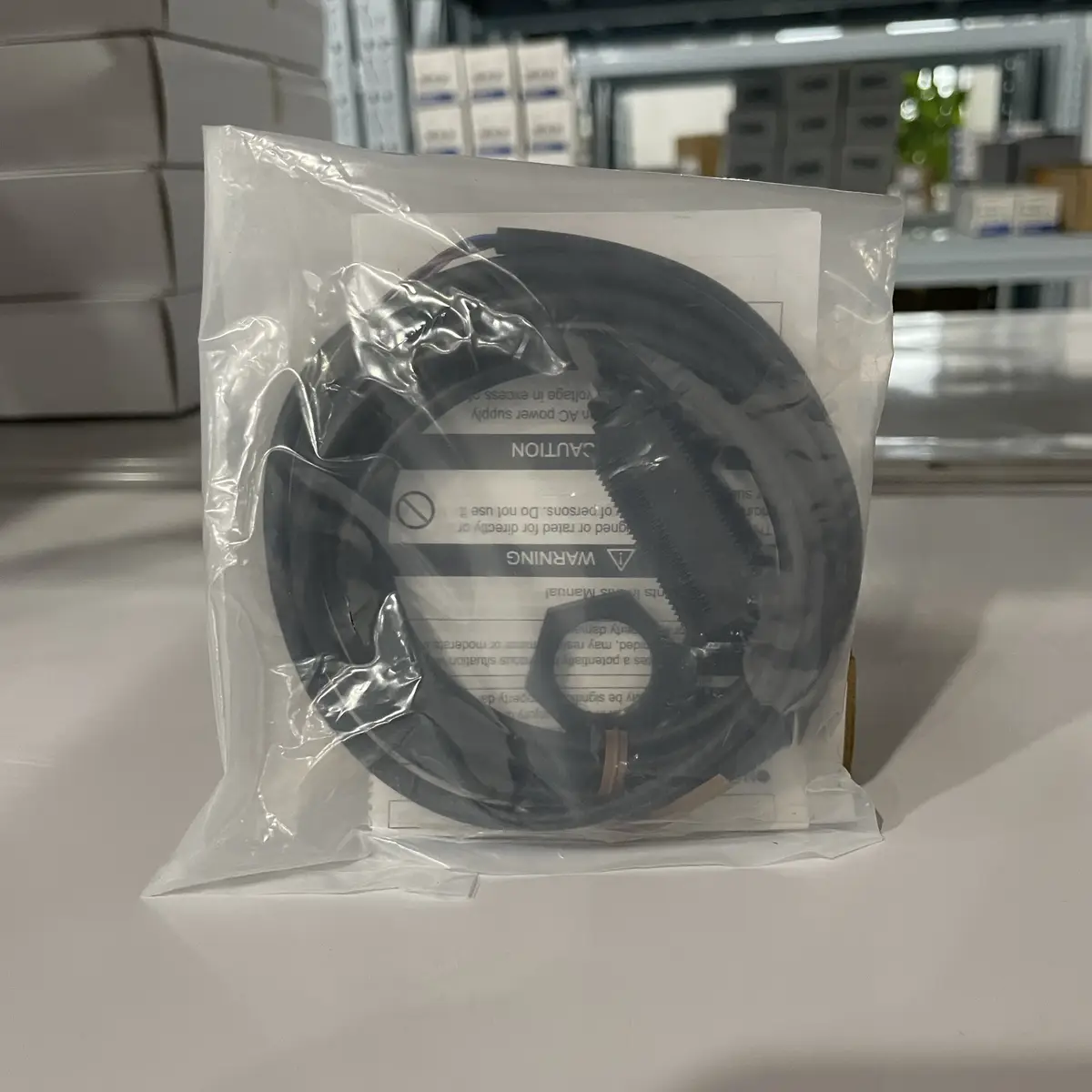

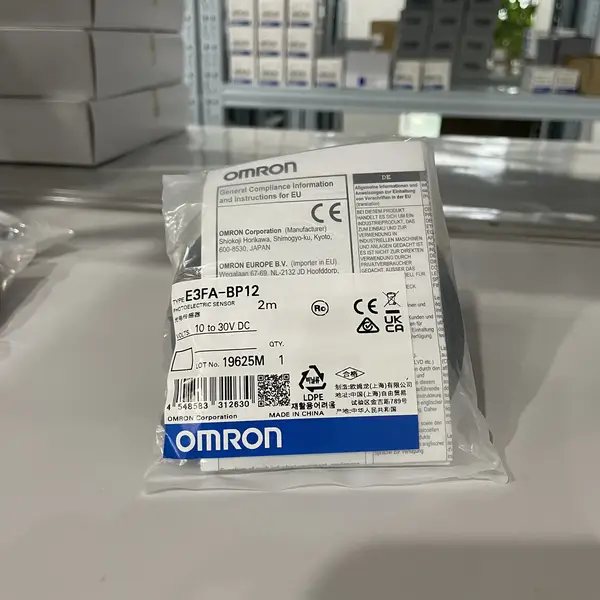

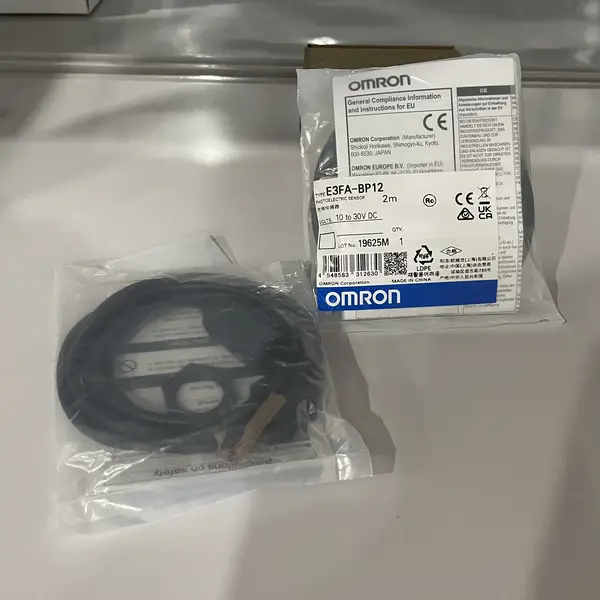

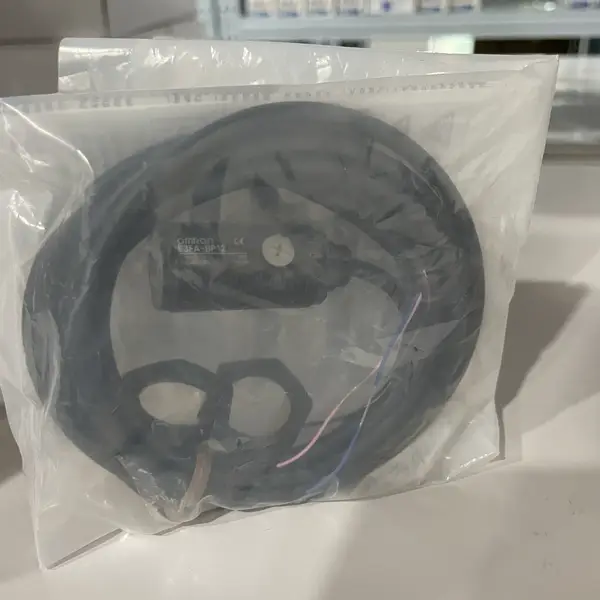

E3FA-BP12 2M sensors in sealed Omron-branded bags, with the M18 ABS body and 2 m cable visible through the packaging

Omron E3FA-BP12 2M — 100 mm BGS Sensor, PNP, 2 m Cable

SKU: E3FA-BP12 2M

USD 20.00

M18 cylindrical background-suppression photoelectric sensor, 100 mm, PNP, 10-30 VDC, red LED, 2 m pre-wired PVC cable, IP67/IP69K.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron E3FA-BP12 2M is a compact M18 cylindrical background-suppression (BGS) photoelectric sensor with a 100 mm sensing distance, PNP output, and a 2 m pre-wired cable. The "2M" in the part number means a 2-metre oil-resistant PVC cable — no connector at the cable end. The ABS plastic body is rated IP67/IP69K for washdown environments.

What background suppression actually does

A standard diffuse-reflective sensor (E3FA-DP12) sees anything that reflects enough light back, at any distance — including a conveyor frame or background wall sitting behind the target, which can latch the output ON. A BGS sensor only "sees" objects inside its set window (5 to 100 mm on this model). Anything beyond the cutoff is ignored. That makes BGS the right pick when the target is small or low-reflectivity and a fixed background sits behind it.

E3FA family: ABS plastic or nickel-plated brass

The E3FA line is the ABS plastic housing for general-purpose washdown. For a metal (nickel-plated brass) body in harsher mechanical or chemical environments, pick the E3FB series with the same sensing options. The BP12 uses a visible red LED, which makes alignment fast because you can see the spot on the target.

Before ordering

The cable is 2 m of oil-resistant PVC, hard-wired to the sensor. For a detachable M8 or M12 pigtail or a longer cable, look at the E3FA-[]M1J (M12 4-pin) or E3FA-[]M3J (M8 4-pin) connector variants. Plan a 10-30 VDC supply capable of 30 mA plus the 100 mA output load.

Key Features

  • M18 cylindrical BGS photoelectric sensor, 100 mm short range
  • PNP open-collector output, 100 mA max load
  • ABS plastic housing, IP67/IP69K washdown-rated
  • Visible red LED emitter for easy alignment
  • Pre-wired 2 m oil-resistant PVC cable (no connector)
  • 10 to 30 VDC supply, 30 mA current draw
  • 0.5 ms response time
  • SKU: E3FA-BP12 2M
  • Series: E3FA compact M18 photoelectric sensor
  • Voltage: 10 TO 30 VDC
  • I/O: 100 I/O

Best-Fit Applications

  • Carton-presence check on a short conveyor where a fixed background sits behind the target
  • Label detection on a packaging line where the label reflects less than the bottle surface
  • Tray detection at the infeed of a pick-and-place station with a 50-100 mm drop
  • Bottle-fill verification on a small-bottle line where a 300 mm diffuse sensor would over-trigger
  • Part-present check at a feeder bowl where the bowl surface is too reflective for a plain diffuse sensor

Buying Checklist

  • Choose E3FA-BP12 2M for a 100 mm PNP BGS sensor in ABS plastic with a 2 m pre-wired cable.
  • Pick the diffuse-reflective E3FA-DP12 2M instead if the target has no background behind it — diffuse is cheaper.
  • Pick the retro-reflective E3FA-RP11 2M for longer range (4 m) on shiny or wrap-around targets.
  • Pick the E3FA-BP22 2M if you need an adjustable BGS window from 100 mm to 2 m, not a fixed 100 mm.
  • Pick the E3FB-BP12 2M if you need a nickel-plated brass body for harsh mechanical or chemical environments.

Technical Specifications

Model E3FA-BP12 2M
Series E3FA compact M18 photoelectric sensor
Sensing Method Background-suppression (BGS), fixed 100 mm
Sensing Distance 100 mm on 100 × 100 mm white paper (5 to 100 mm working range)
Light Source Red LED, 624 nm, modulated
Output Type PNP open-collector transistor (sourcing)
Output Current 100 mA max load
Operating Voltage 10 to 30 VDC (10% ripple max)
Current Consumption 30 mA max
Response Time 0.5 ms max
Connection Pre-wired 2 m oil-resistant PVC cable
Housing Material ABS plastic
Protection IP67 / IP69K (IEC 60529)
Operating Temperature -25 to +55 °C

FAQ for E3FA-BP12 2M

What is the difference between E3FA-BP12 2M and E3FA-DP12 2M?
BP12 is background-suppression — it ignores anything beyond 100 mm, so a fixed background wall cannot latch the output. DP12 is plain diffuse-reflective — it sees anything that reflects light at any distance, including a background, and can false-trigger on a fixed wall. Pick BGS when the target is small or low-reflectivity and a background sits behind it.
What does the "2M" in the part number mean?
2M means a 2-metre pre-wired oil-resistant PVC cable. The sensor has no connector at the cable end — the wires are stripped and tinned, ready to land on a terminal block. For a detachable M8 or M12 connector, look at the E3FA-[]M1J or E3FA-[]M3J variants instead.
Can the E3FA-BP12 2M detect black or transparent objects?
BGS sensors depend on the target reflecting light back to the receiver. Dark or transparent targets reflect less light, and detection may be unreliable at the full 100 mm range. Shorten the working distance to 20-50 mm for dark surfaces, or switch to a retro-reflective sensor (E3FA-RP11 2M) with an MSR filter for transparent film.
Is the E3FA-BP12 2M the same sensor with or without a connector?
The 2M suffix is the pre-wired 2 m cable version. The same sensor in a connectorised body is the E3FA-BP12-M1J (M12 4-pin pigtail) or E3FA-BP12-M3J (M8 4-pin pigtail). All three have the same 100 mm BGS sensing and PNP output — only the cable end differs.
