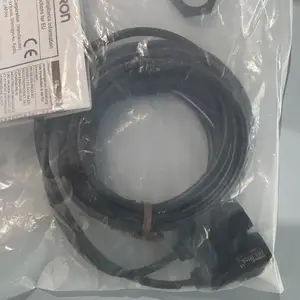

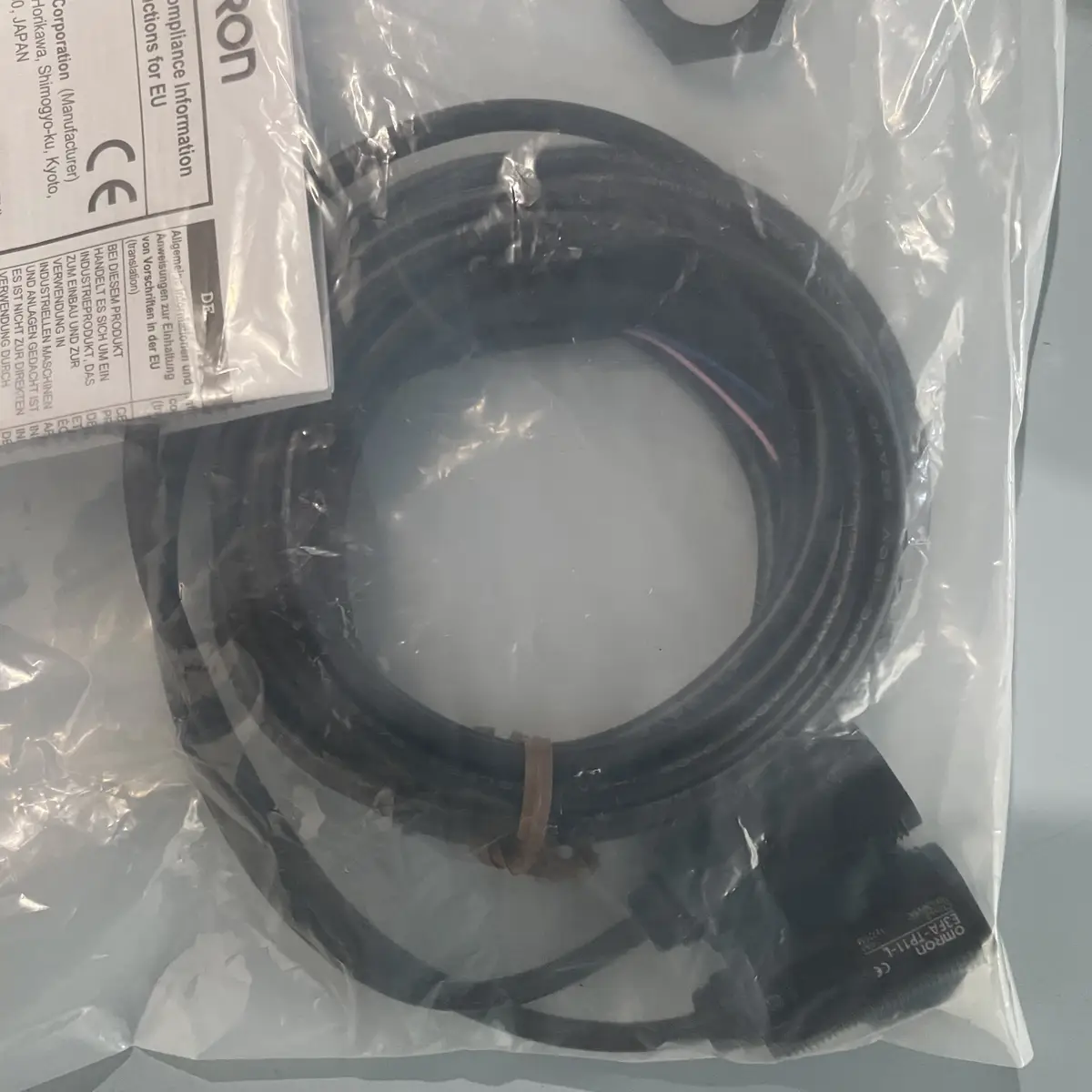

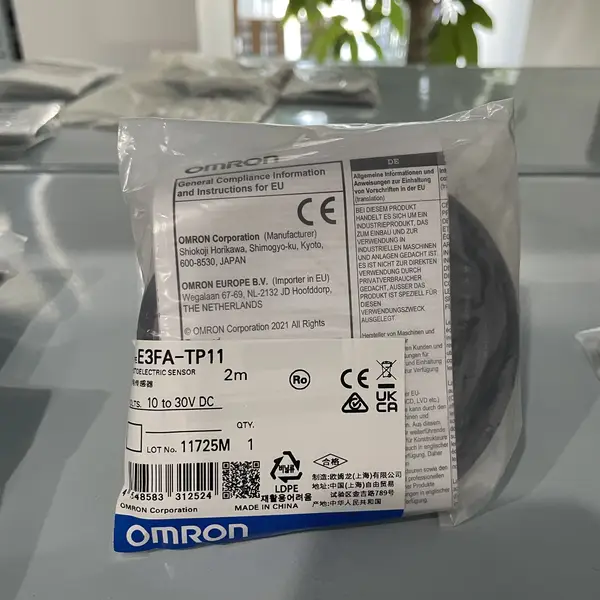

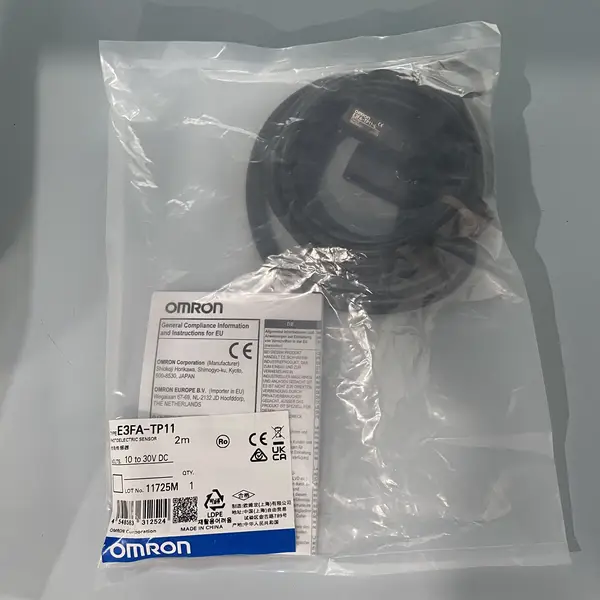

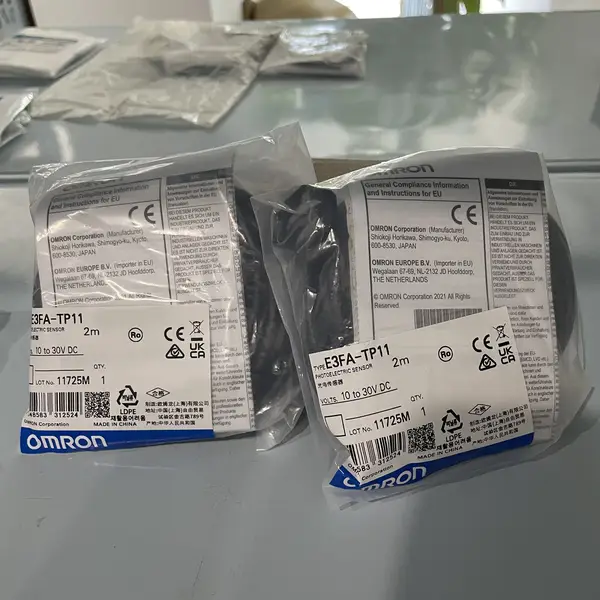

Omron E3FA-TP11 2M through-beam photoelectric sensor pair in the shipping carton with the type label visible

Omron E3FA-TP11 2M — 15 m Through-Beam, PNP, Pre-Wired

SKU: E3FA-TP11 2M

USD 16.00

15 m through-beam photoelectric pair, M18 ABS body, PNP output, red LED, pre-wired 2 m cable, IP67/IP69K.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron E3FA-TP11 2M is the PNP version of Omron's 15 m through-beam sensor pair, sold as a matched set in M18 ABS plastic housings with 2 m cables already attached. One unit is the emitter, the other is the receiver with a PNP open-collector output that pulls high to the supply when the beam is unbroken (Light-ON, the factory default). The 2M suffix marks the pre-wired 2 m cable — the M12-connector sibling at the same 15 m family adds a quick-disconnect lead at higher cost.

Why pick the PNP through-beam pair

Pick the TP11 2M when the cabinet PLC has sourcing (PNP) inputs — most European and many Asian PLCs default to PNP, so a PNP sensor wires straight to the input without a resistor-divider or relay interface. If the PLC expects sinking inputs (typical of older Omron CJ-series built-in inputs with the NPN / PNP switch in the wrong position), pick the NPN sibling E3FA-TN11 2M instead — same housing, same cable, just the opposite output polarity. Through-beam beats diffuse-reflective for any application where the target is small, shiny, or unpredictable — the beam-break trigger does not depend on the surface colour or angle.

Where the E3FA-TP11 2M fits among other Omron 15 m sensors

Same 15 m range as the NPN E3FA-TN11 2M and the Light-ON M12-connector E3FA-TP21 (also 20 m range with the M12 lead). For glossy or transparent targets where a through-beam might give a false stable signal on a wet or wrapped surface, swap to a polarised retro-reflective sensor like the E3FA-RP11 2M paired with an E39-R1S reflector (4 m range, also PNP, also ABS body). For washdown environments where the ABS body is at risk, the E3FB series is the same form factor in nickel-plated brass.

Before ordering

Order one SKU and you get a matched emitter and receiver pair — both halves come already aligned. Confirm the supply is regulated 12-24 VDC ±10 %, the load does not exceed 100 mA at 30 VDC, and the cable run fits the layout — both leads are 2 m. For longer runs or detachable leads, the M12-connector E3FA-TP21 is the same sensor with a 4-pin quick-disconnect pigtail.

Key Features

  • 15 m through-beam sensing range (matched emitter + receiver pair)
  • PNP open-collector output (NO, Light-ON / Dark-ON wire-selectable)
  • Red 624 nm LED light source for visible alignment
  • 12-24 VDC ±10 % supply
  • 100 mA load current at 30 VDC max
  • 0.5 ms response time
  • Pre-wired 2 m cable set (4-core receiver, 2-core emitter)
  • ABS M18 threaded barrel housing
  • IP67 / IP69K ingress rating
  • -25 to +55 °C operating temperature
  • SKU: E3FA-TP11 2M
  • Series: E3FA M18 cylindrical ABS photoelectric sensor
  • Voltage: 12-24 VDC

Best-Fit Applications

  • Wide-conveyor carton presence detection at 10-12 m ranges on packaging lines
  • Door / gate beam on automatic storage and retrieval aisles
  • Trigger generation at the exit of a vibratory bowl feeder into the next station
  • Stack-height verification just before pallet stretch-wrapping
  • Long-distance detection through a clear zone where a diffuse sensor would false-trigger on the floor

Buying Checklist

  • Pick E3FA-TP11 2M when the PLC expects PNP sourcing inputs and the cabinet is within 2 m of the sensor.
  • Pick E3FA-TN11 2M instead when the PLC expects NPN sinking — same housing, same cable, opposite output polarity.
  • Pick E3FA-TP21 (no 2M) when you need 20 m range or want a detachable M12 lead.
  • Pick E3FA-RP11 2M with an E39-R1S reflector for glossy targets where the beam might reflect off the surface itself.
  • Mount both halves on a rigid bracket so the beam does not drift — through-beam sensors mis-trigger when alignment slips.

Technical Specifications

Model E3FA-TP11 2M (matched emitter + receiver pair)
Series E3FA M18 cylindrical ABS photoelectric sensor
Sensing Method Through-beam (separate emitter and receiver)
Sensing Distance 15 m
Light Source Red LED, 624 nm
Output Type PNP open-collector, NO (Light-ON / Dark-ON wire-selectable)
Supply Voltage 12-24 VDC ±10 %
Load Current 100 mA max at 30 VDC
Response Time 0.5 ms
Connection Pre-wired 2 m cable (4-core receiver, 2-core emitter)
Housing ABS plastic, M18 threaded barrel
Protection IP67 / IP69K

FAQ for E3FA-TP11 2M

What is the difference between E3FA-TP11 2M and E3FA-TN11 2M?
Both are 15 m through-beam pairs in M18 ABS housings with pre-wired 2 m cables. The TP11 is the PNP (sourcing) output version; the TN11 is the NPN (sinking) output version. Pick the one that matches the PLC input type — most European and Asian PLCs default to PNP, but many Omron CJ-series built-in inputs default to NPN unless explicitly switched. The TP11 wires straight into a sourcing input; the TN11 needs a sinking input or a relay interface.
Does E3FA-TP11 2M come as a pair or just one sensor?
Each order of the E3FA-TP11 2M is sold as a matched pair — one emitter and one receiver in the same M18 ABS housing. The emitter has no output lead; the receiver has the 4-core cable (power, output, light-on / dark-on, ground). For matched sets at longer range or with M12 leads, see E3FA-TP21 (20 m set, M12) or E3FA-TN21 2M (15 m set, NPN).
Can the E3FA-TP11 2M detect clear bottles or shiny film?
Not reliably. A standard through-beam sensor requires the target to actually break the beam — clear glass or PET, wet film, and shiny metal may pass the beam by refracting it around the target rather than blocking it. For those applications, use a polarised retro-reflective sensor (the E3FA-RP11 2M with an E39-R1S reflector) or a clear-bottle sensor from the E3FB family.
How is Light-ON / Dark-ON selected on the E3FA-TP11?
By wiring — the white or pink control wire (depending on the Omron drawing for that generation) is tied to either +V or 0 V to pick Light-ON (output ON when beam is unbroken) or Dark-ON (output ON when beam is broken). The mechanical switch on the back of some E3FA generations selects the same pair via a knob; for the pre-wired 2M set, the wire is the only control. The factory default is Light-ON.
