Omron E3FA-TP21 — 20 m M18 Through-Beam Sensor, PNP
SKU: E3FA-TP21USD 16.00
Omron E3FA-TP21 M18 through-beam photoelectric sensor set, 20 m red LED, PNP, M12 connector, IP67 / IP69K, 10-30 VDC.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

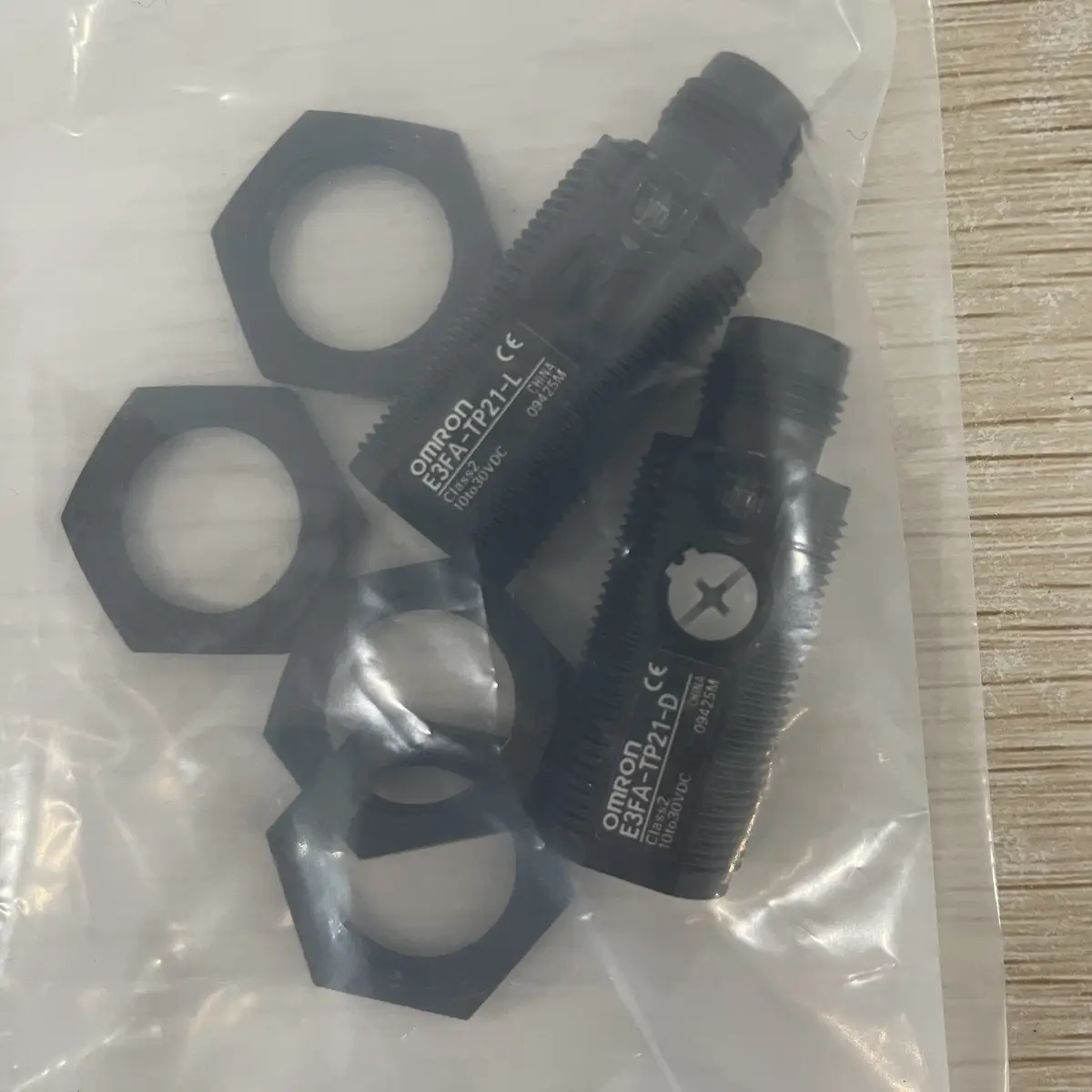

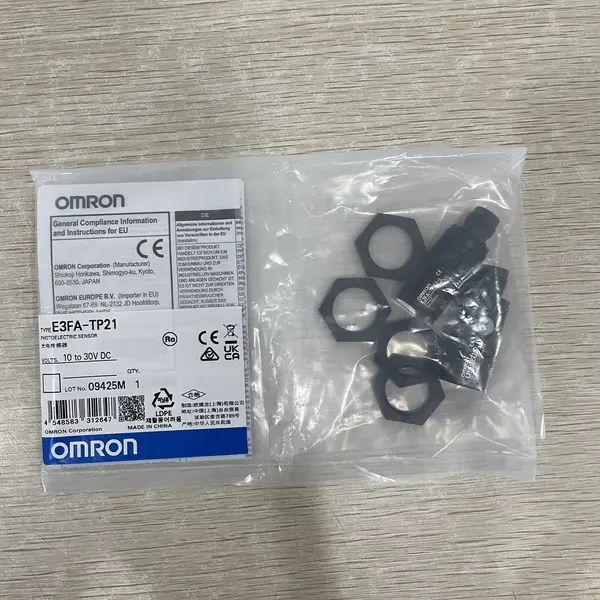

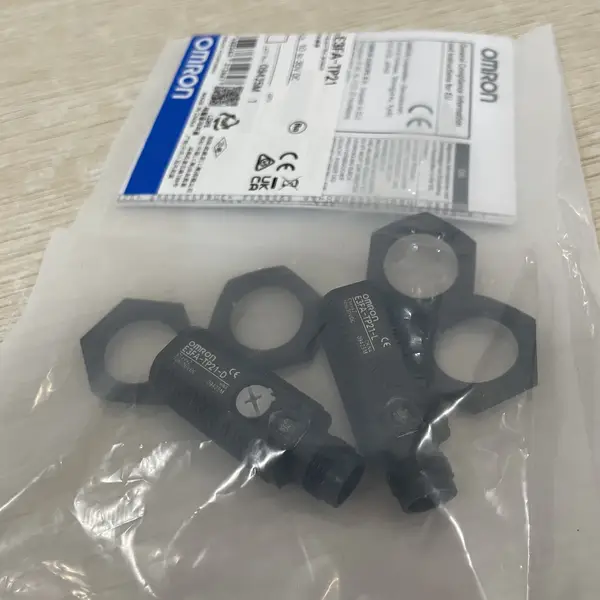

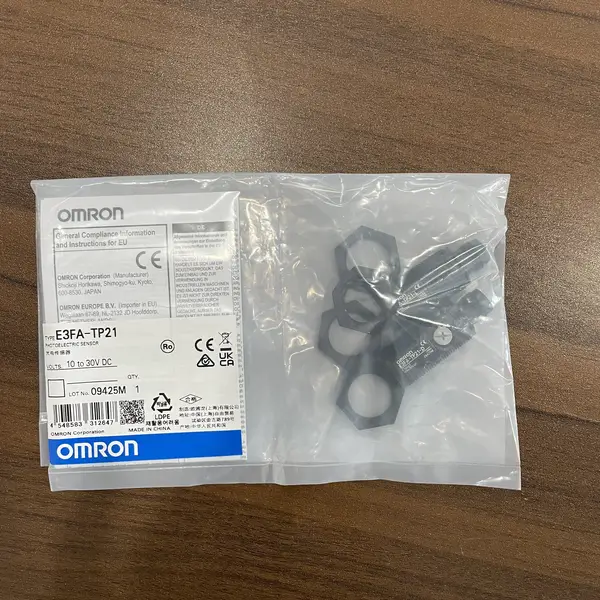

The Omron E3FA-TP21 is a through-beam photoelectric sensor set in the E3FA cylindrical family, manufactured by Omron Corporation. It ships as a paired emitter and receiver in M18 ABS housings with M12 4-pin connectors. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The set detects any opaque object at least 7 mm across between the two heads at up to 20 m. The light source is a polarity-free red LED at 624 nm. The receiver switches one PNP open-collector output at 100 mA, selectable Light-ON or Dark-ON. Supply is 10 to 30 VDC; response time is 0.5 ms.
Both heads are IP67 / IP69K and run from -25 to +55 degC. For the same head with a 2 m cable instead of M12, pick the E3FA-TP11 2M. For an NPN twin, pick the E3FA-TN21 2M. For a polarised retro-reflective sensor in the same M12 housing, pick the E3FA-RP21.
Key Features
- Through-beam photoelectric sensor set, 20 m range, opaque objects 7 mm dia. min.
- PNP open-collector output, 30 VDC at 100 mA max, Light-ON / Dark-ON selectable
- M18 threaded-barrel ABS housings, red 624 nm LED, IP67 / IP69K, 10-30 VDC supply
- 0.5 ms response time, paired emitter and receiver, M12 4-pin connector on each head
- SKU: E3FA-TP21
- Series: Omron E3FA cylindrical photoelectric sensor
- Voltage: 10 TO 30 VDC
Best-Fit Applications
- Detecting cardboard cartons at the discharge of a wide-belt conveyor where 20 m range covers the lane and IP69K survives washdown cleaning
- Counting vehicle bodies on a transfer line between two paint booths where the red LED stays visible through steam and humidity
- Detecting pallets crossing an AGV pickup lane where the M12 connector lets a service tech swap a head in under a minute
Buying Checklist
- Pick the E3FA-TP21 for an M18 PNP through-beam set with a 20 m range and M12 connectors on both heads.
- Pick the E3FA-TP11 2M instead when the cabinet is close and you want a fixed 2 m cable on each head instead of M12.
- Pick the E3FA-TN21 instead when the PLC input expects an NPN signal in the same M18 housing.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron E3FA cylindrical photoelectric sensor |
| Model / SKU | E3FA-TP21 (set = emitter E3FA-TP21-L + receiver E3FA-TP21-D) |
| Sensing Method | Through-beam (separate emitter and receiver) |
| Sensing Distance | 20 m |
| Standard Target | Opaque object, 7 mm dia. min. |
| Light Source | Red LED, 624 nm, polarity-free |
| Output Type | PNP open collector, Light-ON / Dark-ON selectable |
| Load Current | 100 mA max at 30 VDC |
| Supply Voltage / Current | 10 to 30 VDC; 40 mA max (set) |
| Response Time | 0.5 ms operate / reset |
| Connection / Housing / IP / Temp | M12 4-pin connector; M18 ABS nut-mount; IP67 / IP69K; -25 to +55 degC |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for E3FA-TP21
What is the Omron E3FA-TP21 used for?
It is a paired emitter and receiver set that detects any opaque object between the two heads at up to 20 m. The receiver switches a PNP output when the beam is broken, typically into a PLC fast input for conveyor counting or end-of-line detection.
Is the E3FA-TP21 PNP or NPN?
PNP open collector. The TP in the part number marks the PNP variant; the TN versions are the NPN twin. PNP means the output sources positive voltage to the PLC input when the beam is broken in Dark-ON mode.
What is the difference between E3FA-TP21 and E3FA-TP11 2M?
Connection. The TP21 has an M12 4-pin connector on each head and is easier to swap in the field. The TP11 2M has a fixed 2 m cable on each head and is simpler when the cabinet is close to the conveyor.
What supply voltage does the E3FA-TP21 need?
10 to 30 VDC on pin 1 (brown) of each head, with 0 V on pin 3 (blue). The emitter draws about 25 mA, the receiver about 15 mA, for 40 mA total. Pin 4 (black) on the receiver is the PNP output.
Can the E3FA-TP21 detect clear or shiny objects?
Not reliably. A standard through-beam set needs an opaque target at least 7 mm across. For clear PET bottles or polished metal, pick the E3FA-BP21 (P-opaquing retro-reflective) or the E3FA-RP21 (MSR polarised retro-reflective) instead.
