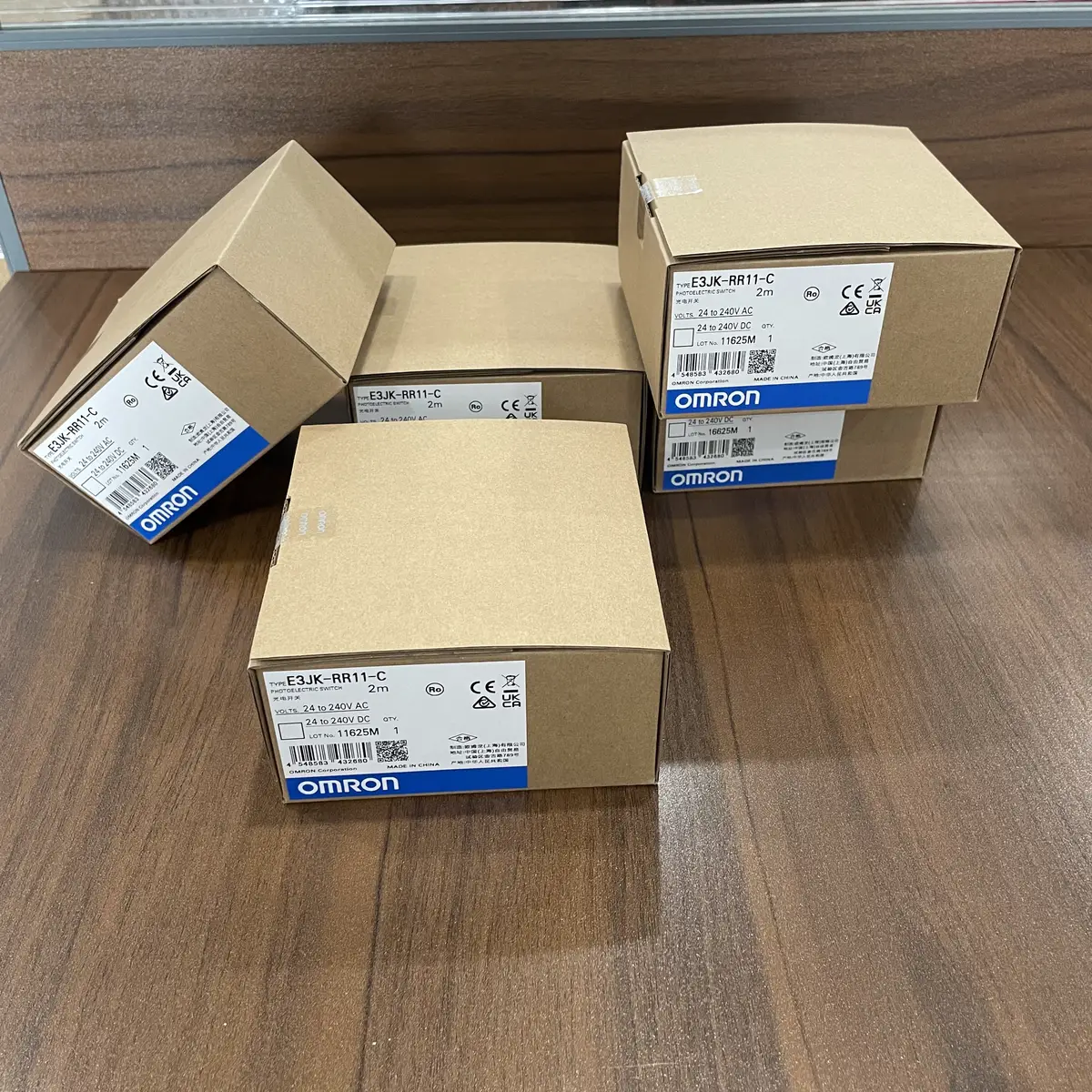

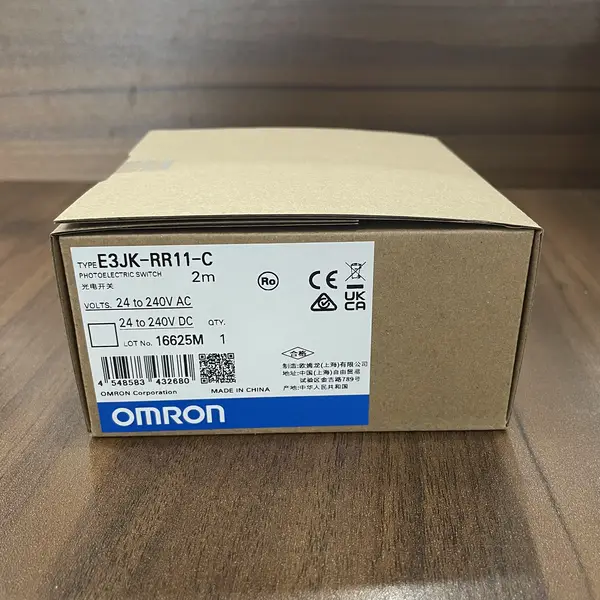

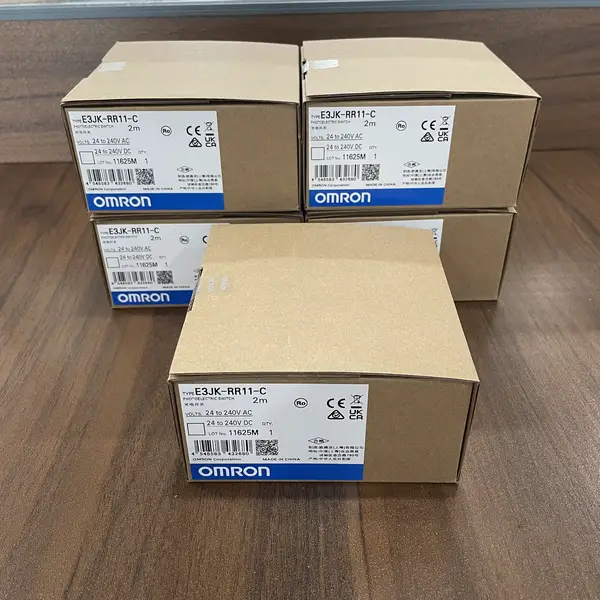

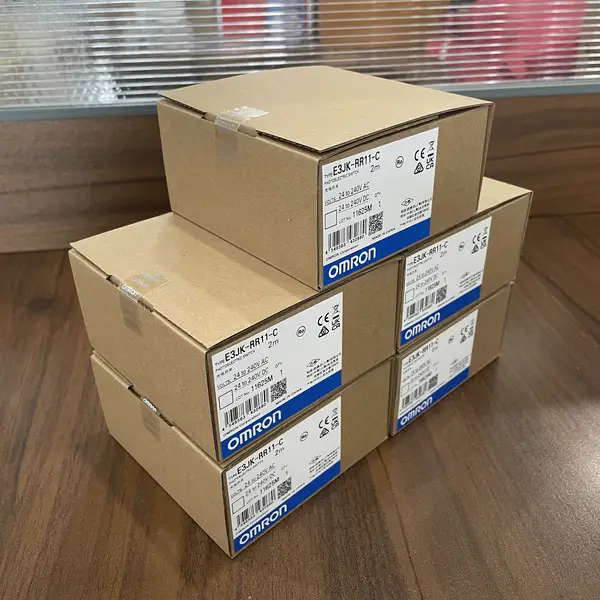

Omron E3JK-RR11-C — 7 m Retro-Reflective Sensor
SKU: E3JK-RR11-CUSD 15.50
retro-reflective photo sensor, 7 m with E39-R1, 24-240 VAC/DC, SPDT relay. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E3JK-RR11-C is a cuboid retro-reflective photoelectric sensor with a 7 m sensing range and a built-in universal AC/DC power supply It is manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box. Sensing range is 0.1 to 7 m with the E39-R1 reflector or 0.1 to 11 m with the larger E39-R2 reflector. Output is a SPDT relay contact rated 250 VAC at 3 A (cos phi = 1). The package includes a 2 m pre-wired PVC cable, the E39-R1 reflector, and the E39-L40 mounting bracket. Key specs: Sensing Method Retro-reflective (no MSR function); with E39-R1 or E39-R2 reflector; Sensing Distance 0.1 to 7 m with E39-R1; 0.1 to 11 m with E39-R2; Standard Target Opaque, 75 mm min with E39-R1 / 100 mm min with E39-R2; Light Source Red LED, 624 nm; Supply Voltage 24 to 240 VAC +/- 10 percent 50/60 Hz or 24 to 240 VDC +/- 10 percent; Power Consumption 2 W max DC, 2 VA max AC; Control Output SPDT relay, 250 VAC 3 A (cos phi.
Key Features
- Retro-reflective photoelectric sensor with 0.1 to 7 m range using the E39-R1 reflector
- 24 to 240 VAC or 24 to 240 VDC universal supply, +/- 10 percent, no re-order per voltage
- SPDT relay output, 250 VAC at 3 A, 20 ms response, Light-ON / Dark-ON selectable
- ABS IP64 housing, methacrylate lens, red 624 nm LED spot, 2 m pre-wired PVC cable
- SKU: E3JK-RR11-C
- Series: E3JK cuboid retro-reflective photoelectric sensor
- Voltage: 24 TO 240 VAC
Best-Fit Applications
- Spare replacement on a panel that was originally wired around an E3JK-RR11-C with MSR but the new install does not need MSR
- Roll-up door safety control on a warehouse door where the SPDT relay switches the safety circuit directly without an extra coupling relay
- Box-presence check on a packaging line where the 7 m retro-reflective range covers wide conveyors between array holes
Buying Checklist
- Choose the E3JK-RR11-C when the cabinet voltage varies between 24 VDC and 240 VAC and you need a single SKU that covers both.
- Choose the E3JK-DR11-C instead when the target is short-range (up to 0.1 m) and you want diffuse-reflective instead of a reflector.
- Choose the E3Z-D81 instead when you need a sub-1 ms response, a DC-only NPN output, and IP67 for washdown areas.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | E3JK cuboid retro-reflective photoelectric sensor |
| Model / SKU | E3JK-RR11-C (2 m pre-wired cable) |
| Sensing Method | Retro-reflective (no MSR function); with E39-R1 or E39-R2 reflector |
| Sensing Distance | 0.1 to 7 m with E39-R1; 0.1 to 11 m with E39-R2 |
| Standard Target | Opaque, 75 mm min with E39-R1 / 100 mm min with E39-R2 |
| Light Source | Red LED, 624 nm |
| Supply Voltage | 24 to 240 VAC +/- 10 percent 50/60 Hz or 24 to 240 VDC +/- 10 percent |
| Power Consumption | 2 W max DC, 2 VA max AC |
| Control Output | SPDT relay, 250 VAC 3 A (cos phi = 1); Light-ON / Dark-ON switch |
| Response Time | 20 ms max operate / reset |
| Protection / Connection | IP64 IEC; ABS housing; 2 m PVC pre-wired cable |
FAQ for E3JK-RR11-C
What is the difference between E3JK-RR11-C and E3JK-RR12-C?
Both are E3JK retro-reflective sensors with the same 7 m range and SPDT relay output. The RR11-C has a 2 m pre-wired PVC cable; the RR12-C has a 5 m cable. Pick RR11-C for the standard cabinet layout and RR12-C when the sensor sits far from the PLC and the longer cable saves a junction box.
What is the maximum sensing distance of E3JK-RR11-C?
0.1 to 7 m with the bundled E39-R1 reflector, or 0.1 to 11 m with the larger E39-R2 reflector. The spec is for an opaque target of 75 mm (E39-R1) or 100 mm (E39-R2) diameter. Smaller or transparent targets will read shorter in the field.
Does the E3JK-RR11-C include a reflector in the box?
Yes. The package includes the E39-R1 36 x 60 mm reflector and the E39-L40 mounting bracket. The sensor itself is the head only - the reflector is what the head aims at across the 7 m gap to detect objects passing between the two.
Can the E3JK-RR11-C switch a 24 VDC PLC input directly?
No - the output is a SPDT mechanical relay, not a transistor. Wire the relay contacts to the PLC input and provide the 24 VDC from the PLC supply. For a DC-only NPN output, look at the E3Z-D61 (diffuse) or E3Z-B61 (retro-reflective) instead.
