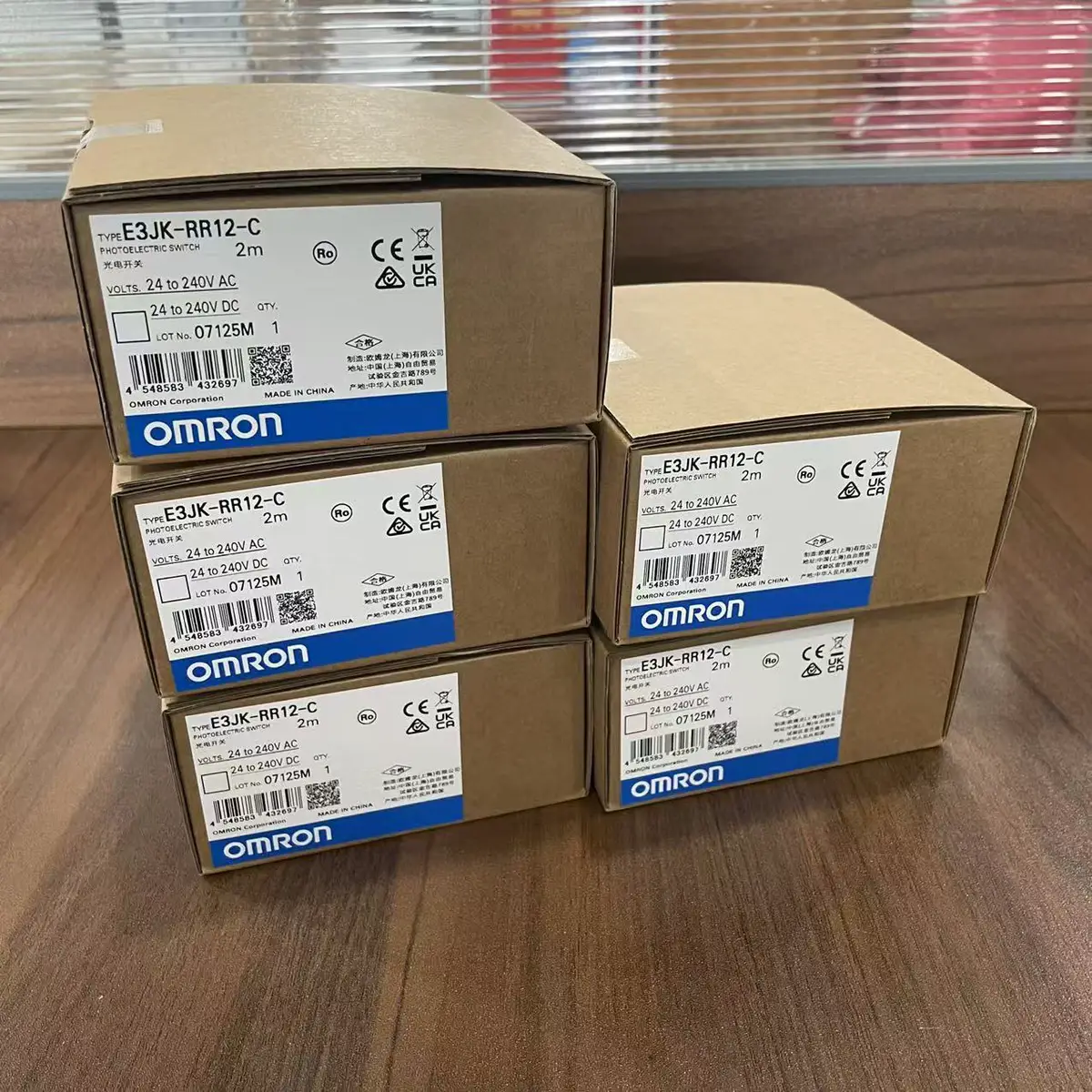

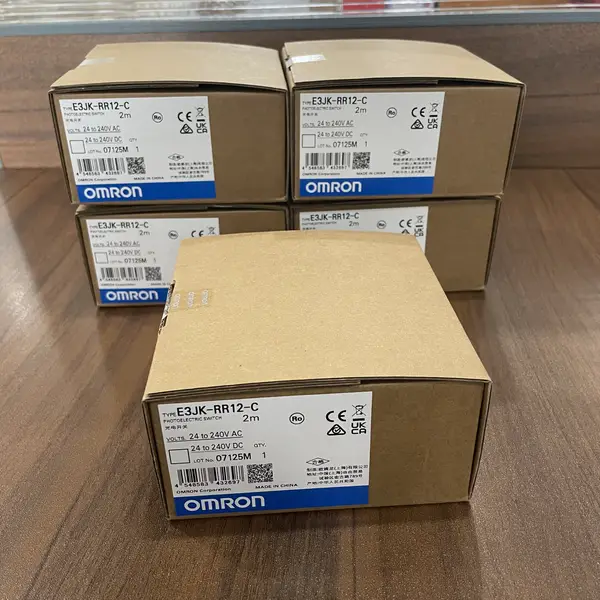

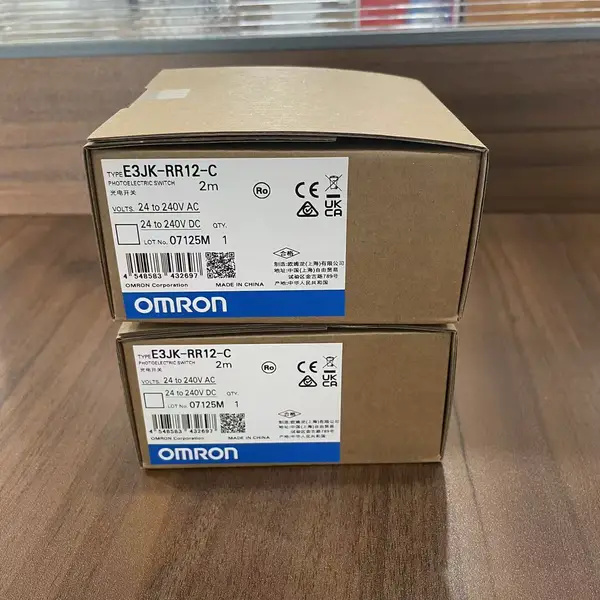

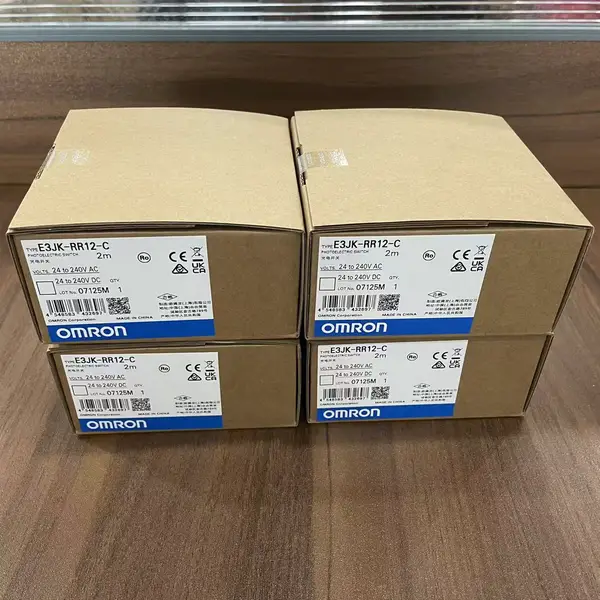

Omron E3JK-RR12-C — Retro-Reflective Sensor, 6 m, AC/DC
SKU: E3JK-RR12-CUSD 16.00
Omron E3JK-RR12-C square retro-reflective photo sensor, 6 m range, MSR, 24-240 VAC/VDC, SPDT relay. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E3JK-RR12-C is a square-body retro-reflective photoelectric sensor with built-in mutual-interference prevention (MSR), manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The sensor detects opaque objects at 100 mm to 6 m when used with the supplied E39-R1 reflector, or 100 mm to 10 m with the larger E39-R2. Light source is a red LED at 624 nm. Output is an SPDT relay contact rated 3 A at 250 VAC, selectable Light-ON or Dark-ON. Response time is 20 ms.
Supply is universal 24 to 240 VAC or 24 to 240 VDC. The ABS housing is IP64 and the unit ships pre-wired with a 2 m cable, an E39-L40 mounting bracket and the E39-R1 reflector. For a through-beam sensor at the same 10 m range, pick the E3JK-TR11-C.
Key Features
- Square retro-reflective photo sensor with MSR mutual-interference prevention
- 6 m range with E39-R1 reflector, 10 m with E39-R2; red LED 624 nm
- Universal 24-240 VAC/VDC supply, SPDT relay 3 A at 250 VAC, Light-ON/Dark-ON
- ABS IP64 housing, 20 ms response, ships with bracket and E39-R1 reflector
- SKU: E3JK-RR12-C
- Series: Omron E3JK-series compact photoelectric sensor
- Voltage: 24 TO 240 VAC
Best-Fit Applications
- Box detection on a conveyor at a distribution centre where the E39-R1 reflector sits across the belt at 4 m range
- Car presence check at a parking entry where the wide AC/DC supply matches the existing gate controller without rewiring
- Spare drop-in for an existing E3JK cell where the previous photo sensor failed and the bracket and reflector are already mounted
Buying Checklist
- Pick the E3JK-RR12-C for a retro-reflective AC/DC photo sensor with a built-in relay output and MSR.
- Pick the E3JK-5DCN 2M instead when a through-beam sensor at 5 m range is needed instead of retro-reflective.
- Pick the E3FA-RP11 2M instead when the cabinet runs on 24 VDC only and a PNP output is preferred over a relay.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron E3JK-series compact photoelectric sensor |
| Model / SKU | E3JK-RR12-C |
| Sensing Method | Retro-reflective with MSR function |
| Sensing Distance | 100 mm to 6 m with E39-R1; up to 10 m with E39-R2 |
| Light Source | Red LED, 624 nm |
| Power Supply Voltage | 24 to 240 VAC +/-10% 50/60 Hz / 24 to 240 VDC +/-10% |
| Power Consumption | 2 W max |
| Control Output | SPDT relay, 250 VAC 3 A max; 5 VDC 10 mA min |
| Operation Mode | Light-ON / Dark-ON selectable |
| Response Time | 20 ms max |
| Protection / Connection | IP64 (IEC 60529); pre-wired 2 m PVC cable |
FAQ for E3JK-RR12-C
What is the difference between E39-R1 and E39-R2 reflectors?
E39-R1 is the small reflector that ships with the E3JK-RR12-C; it gives a 6 m sensing range. E39-R2 is the larger reflector and extends the range to 10 m. Both reflectors work on the same sensor.
Does the E3JK-RR12-C work on 24 VDC and 240 VAC?
Yes. The supply is universal 24 to 240 VAC or 24 to 240 VDC at 50/60 Hz, so the same sensor drops into either a 24 VDC PLC cabinet or a 240 VAC relay panel.
What does the MSR function do?
MSR (mutual-interference prevention) modulates the light pulse so that two E3JK sensors facing the same reflector do not interfere with each other. Up to four sensors can be mounted close together without cross-talk.
Can the relay output drive a contactor directly?
Yes. The SPDT relay is rated 3 A at 250 VAC, which covers most small contactor coils. For a contactor above 3 A or a solenoid with high inrush, route the relay through an interposing relay such as the G2R-2-SND DC24V.
