Omron E3Z-B86 clear-bottle photoelectric sensor — front view showing the red LED lens, the operation indicator, and the M8 4-pin connector at the back

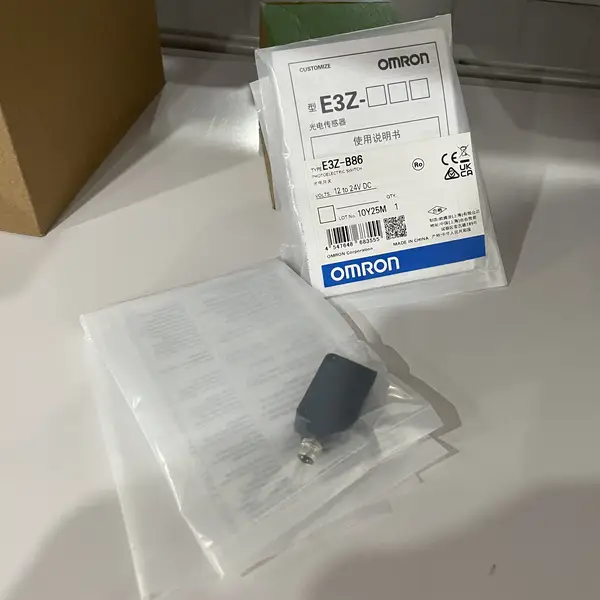

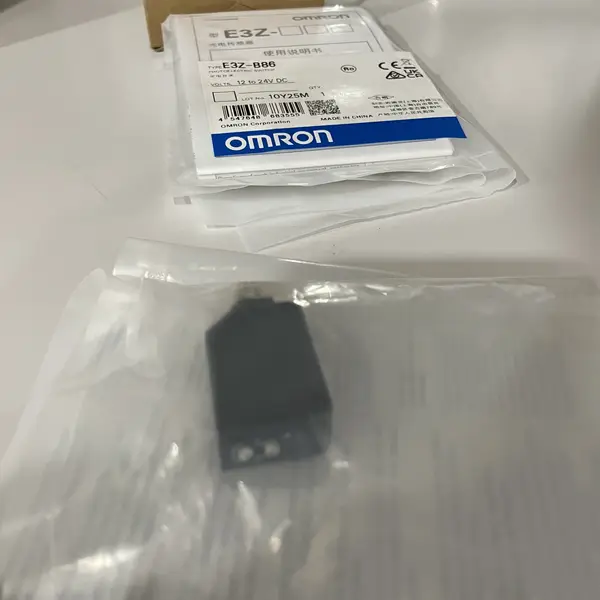

Omron E3Z-B86 — 500 mm Clear-Bottle Sensor, PNP, M8

SKU: E3Z-B86

USD 45.00

Retro-reflective photoelectric sensor for clear PET bottles. 500 mm range with E39-R1S, PNP output, M8 4-pin connector, IP67.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron E3Z-B86 is a compact retro-reflective photoelectric sensor built to detect clear, thin-walled PET bottles on a conveyor or at a filler. It uses Omron's Inner View optical system, so it does not need a polarising filter to ignore reflections from shiny plastic. The set detects a 500 ml bottle (65 mm diameter) at 500 mm when paired with the E39-R1S reflector, which is sold separately. The PNP open-collector output switches on the control line when the beam is broken, which matches the input style of most modern PLCs. A pre-fitted 4-pin M8 connector accepts any standard XS3F cordset.

Why the B family is different from a normal retro sensor

Standard retro-reflective sensors miss clear bottles because the light passes through the target instead of breaking the beam. The E3Z-B series handles that with a tilted optical geometry that watches for the small change in returned light, without relying on polarisation. A second pair, the E3Z-B82 / E3Z-B87, uses the same optical head for a 2 m range. If a clear bottle can pass within 500 mm of the sensor head, the B86 is enough. If bottles pass further away, look at B82 / B87 or move to a longer reflector distance.

Picking the right variant

E3Z-B86 is the PNP version on an M8 4-pin connector. Choose E3Z-B81 2M for a 2 m pre-wired NPN lead, E3Z-B66 for a 2 m pre-wired PNP, or E3Z-B67 for an NPN M8 connector. For shiny, non-clear objects, the MSR-equipped E3Z-R86 is the better pick because its polarised beam ignores mirror-like reflections.

Before ordering

Order an E39-R1S reflector (40 × 60 mm) for the 500 mm range. Allow at least 80 mm between the sensor and the reflector to stay above the minimum sensing distance. Bottles must pass at least 500 mm from the sensor face. Pick a light-on or dark-on mode with the L/D selector on the back, and use the one-turn sensitivity adjuster to fine-tune at commissioning.

Key Features

  • Retro-reflective sensor designed for clear PET bottles
  • 500 mm range with the E39-R1S reflector
  • PNP open-collector output, Light-ON / Dark-ON switch
  • Standard 4-pin M8 connector
  • Red LED 660 nm light source
  • IP67 housing in PBT, 10.8 × 31 × 20 mm cuboid
  • 1 ms response, 100 mA load current
  • SKU: E3Z-B86
  • Series: E3Z-B (clear-bottle retro-reflective)
  • Voltage: 12-24 VDC

Best-Fit Applications

  • Clear PET bottle detection on beverage filling lines
  • Bottle-presence checks at the rinser and capper stations
  • Empty-container checks before the labeler and shrink-wrapper stations
  • Clear-tray and transparent-part detection in packaging machine cells
  • Bottle-jam detection at the transfer points of conveyors

Buying Checklist

  • Choose E3Z-B86 for a PNP M8-connector retro sensor at a 500 mm range.
  • Choose E3Z-B82 or E3Z-B87 when bottles pass further than 500 mm from the sensor.
  • Choose E3Z-B81 2M (NPN) or E3Z-B66 (PNP pre-wired) for a 2 m pigtail instead.
  • Choose E3Z-R86 for shiny, mirror-like objects that need an MSR sensor.
  • Confirm an E39-R1S reflector and an XS3F-M42@-402-A M8 cordset are on the order.
  • Confirm at least 80 mm between the sensor face and the reflector.

Technical Specifications

Series E3Z-B (clear-bottle retro-reflective)
Sensing Method Retro-reflective (without MSR)
Sensing Distance 500 mm (80 mm min.) with E39-R1S
Light Source Red LED, 660 nm
Output Type PNP open collector, Light-ON / Dark-ON
Connection M8 4-pin connector
Supply Voltage 12-24 VDC ±10 %, ripple 10 % p-p max.
Load Current 100 mA max. at 26.4 VDC
Response Time 1 ms operate / reset
Current Consumption 30 mA max.
Protection Rating IP67 (IEC 60529)
Housing / Lens PBT case, modified-polyarylate lens

FAQ for E3Z-B86

What is the difference between E3Z-B86 and E3Z-R86?
Both are cuboid E3Z retro-reflective sensors on an M8 4-pin connector, but they detect different targets. E3Z-B86 is the clear-bottle model without MSR, so it ignores internal reflections from thin PET. E3Z-R86 has MSR (polarised red light) and a 4 m range, so it suits shiny, mirror-like objects. Pick the B family for clear plastic; pick the R family for shiny surfaces.
What reflector and cable does the E3Z-B86 need?
The reflector is sold separately. Use the E39-R1S (40 × 60 mm) for the 500 mm range stated in the datasheet. For the M8 connector, add an XS3F-M421-402-A straight cordset or XS3F-M422-402-A right-angle cordset, both 2 m PVC. A 5 m PUR version (XS3F-M421-405-L) is available for low-temperature or washdown areas.
Can the E3Z-B86 detect coloured or opaque bottles too?
Yes, but it is tuned for clear plastic. A 500 ml clear round bottle is the standard test object, and the E3Z-B82 / E3Z-B87 pair gives 2 m for larger or further-away objects. For coloured glass or opaque containers, a standard E3Z-R retro-reflective sensor is usually a cheaper, longer-range choice.
