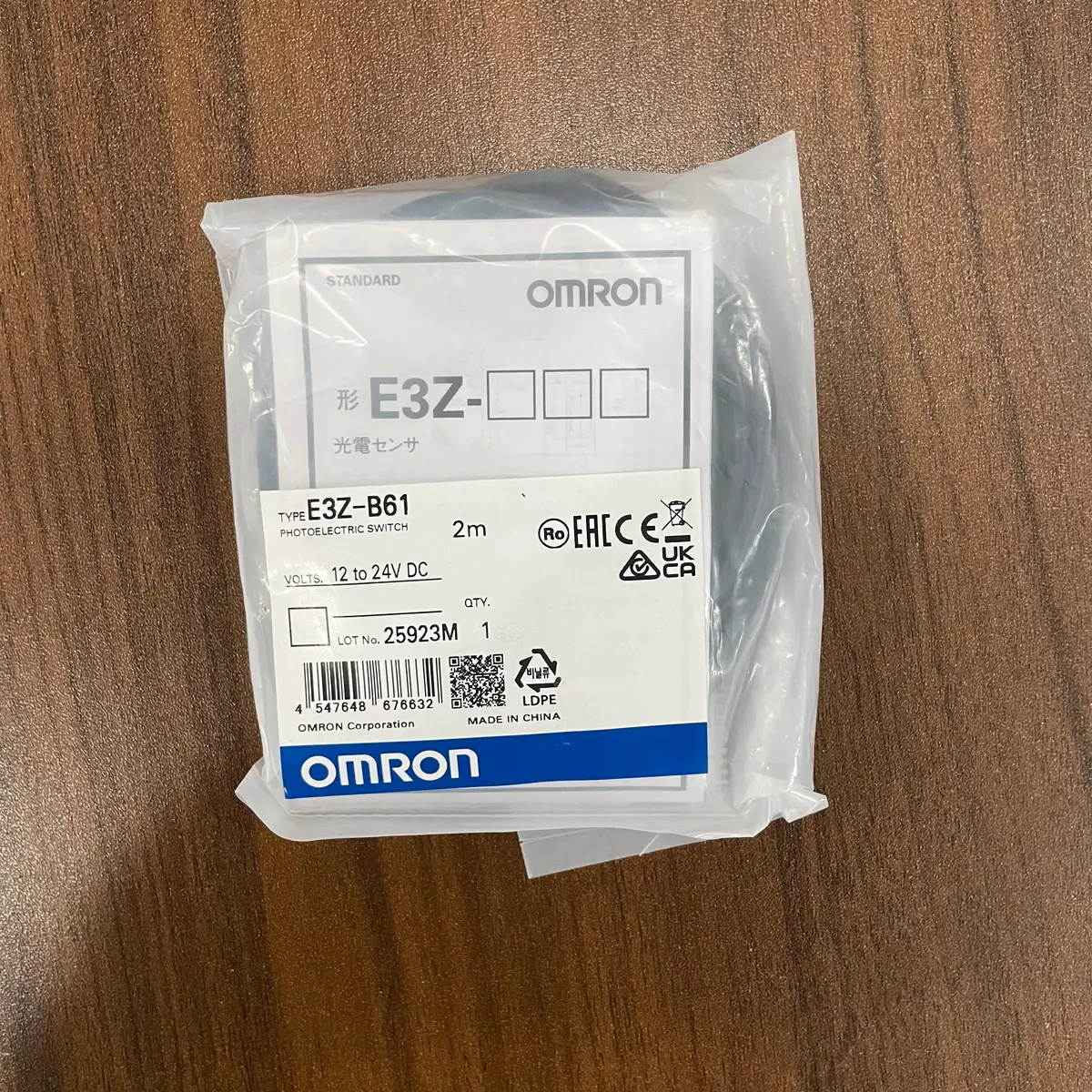

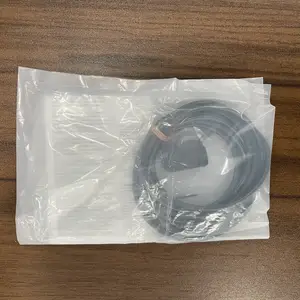

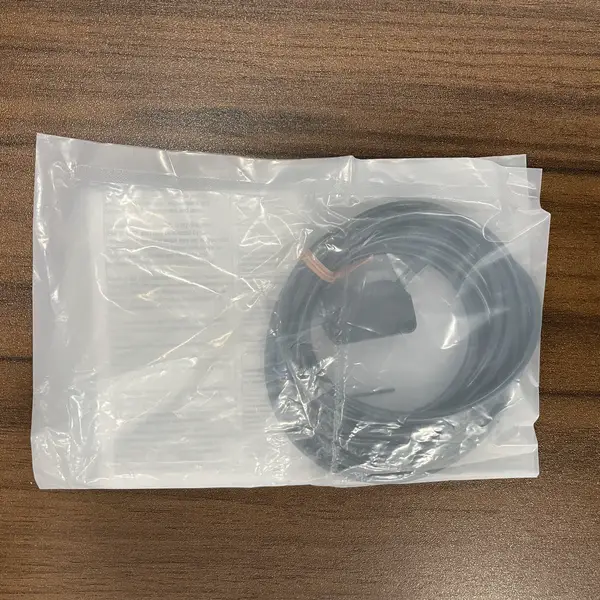

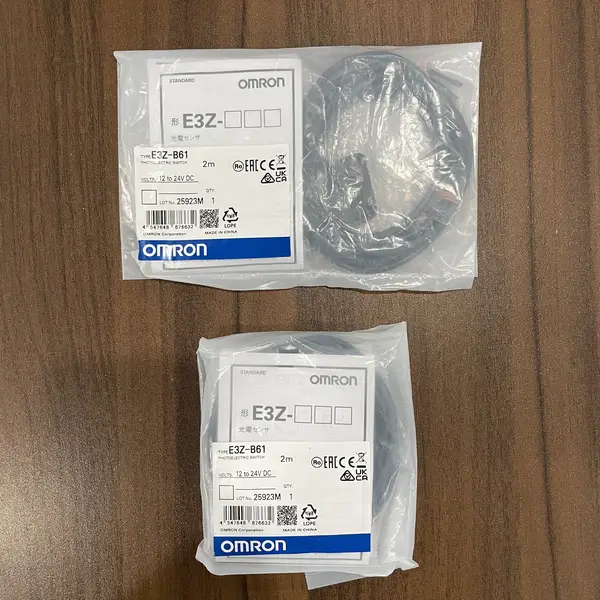

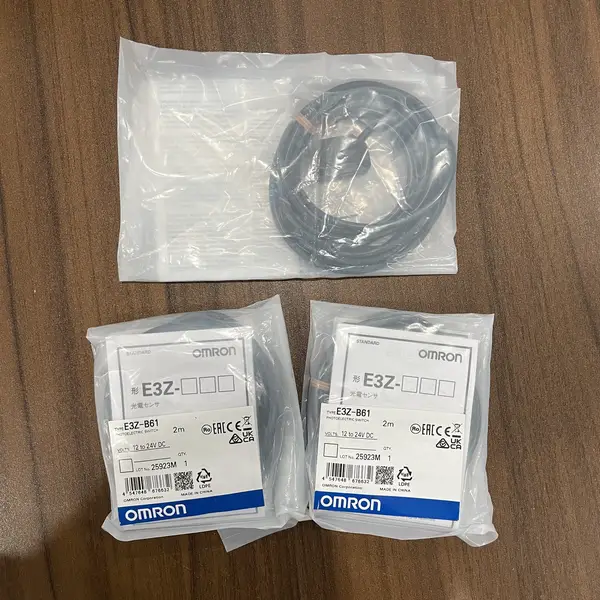

Omron E3Z-B61 2M — PET-Bottle Retro Sensor, 500 mm, NPN
SKU: E3Z-B61 2MUSD 16.00
E3Z-B retro-reflective sensor tuned for clear PET bottle detection, 500 mm with E39-R1S, NPN, pre-wired 2 m cable, IP67.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E3Z-B61 2M is a compact retro-reflective photoelectric sensor tuned to detect clear PET bottles and other thin transparent objects that a standard retro sensor would miss. It works with the E39-R1S reflector at a 500 mm range and uses a red LED for a visible aiming spot. The NPN open-collector output drops current on detect, with Light-ON / Dark-ON selectable on the rear switch. The 2 m pre-wired oil-resistant PVC cable lands directly on a terminal block or PLC input module without needing a separate patch cord. It is the standard pick on bottling, dairy, and pharmaceutical lines where a clear bottle on a conveyor needs to be counted or position-checked without a polarised filter interfering with the read.
Where it fits in the E3Z family
The E3Z compact photoelectric family splits by function. E3Z-D is diffuse-reflective up to 1 m. E3Z-T is through-beam up to 30 m. E3Z-R is polarised retro-reflective with MSR (mirror-surface rejection) up to 4 m. E3Z-B is the special clear-PET retro-reflective range tuned for transparent bottle detection. E3Z-LL is BGS laser. E3Z-LT is through-beam laser. E3Z-LS is distance-settable LED. Within E3Z-B, the '61' suffix is NPN pre-wired 2 m and the '86' suffix is PNP M8 connector. Pick the E3Z-B61 2M when a clear-PET sensor and direct panel wiring on an NPN input are the goal.
Why E3Z-B rather than E3Z-R for PET bottles
A polarised retro sensor (E3Z-R) uses a polarising filter to ignore mirror reflection from shiny surfaces — but that filter also lowers sensitivity on a clear bottle, where the small amount of light that makes it back through the wall is the signal. The E3Z-B uses no polarising filter and is tuned to the small refractive change that a clear PET wall produces, so it detects reliably without being fooled by a background reflector.
Before ordering
Pair with an E39-R1S reflector for 500 mm range. Confirm the cable gland accepts the 4-wire 2 m oil-resistant PVC cable, or pick the M8-connector sibling E3Z-B86. Allow 100 mm minimum reflector distance for stable PET detection. For shiny labels, the E3Z-R MSR sensor is a better fit.
Key Features
- E3Z-B series retro-reflective sensor tuned for PET / clear-bottle detection
- 500 mm sensing distance with E39-R1S reflector
- Red LED emitter, visible aiming spot
- NPN open-collector output, 100 mA at 26.4 VDC max.
- Light-ON / Dark-ON selectable on rear switch
- Pre-wired 2 m oil-resistant PVC cable
- 12-24 VDC ±10 % supply, 30 mA current draw
- IP67 ABS housing, -25 to +55 °C operating
- SKU: E3Z-B61 2M
- Series: E3Z-B clear-PET retro-reflective sensor
- Voltage: 12-24 VDC
- I/O: 100 I/O
Best-Fit Applications
- Clear PET bottle counting and position check on a bottling line
- Transparent container detection on a dairy or beverage conveyor
- Vial and ampoule presence check on a pharmaceutical line
- Trigger signal before a fill or cap station for clear bottles
- Glass jar inspection at a low-speed packaging infeed
Buying Checklist
- Choose E3Z-B61 2M for NPN output and a pre-wired 2 m cable.
- Choose E3Z-B86 for PNP output and an M8 4-pin connector on the same sensor.
- Choose E3Z-D62 2M for 1 m diffuse-reflective if a reflector is not workable.
- Choose E3Z-R61 2M for shiny or foiled targets where MSR polarised retro helps.
- Choose E3Z-T81 for a long-distance through-beam pair on a wider line.
- Confirm the E39-R1S reflector is mounted within 500 mm range.
Technical Specifications
| Series | E3Z-B clear-PET retro-reflective sensor |
|---|---|
| Sensing Method | Retro-reflective (with E39-R1S reflector) |
| Sensing Distance | 500 mm with E39-R1S reflector |
| Light Source | Red LED, 660 nm |
| Standard Target | Clear PET bottle, 50 mm minimum diameter |
| Supply Voltage | 12-24 VDC ±10 %, ripple 10 % p-p max. |
| Current Consumption | 30 mA max. |
| Output | NPN open collector, Light-ON / Dark-ON selectable, 100 mA |
| Response Time | 1 ms operate / 1 ms release |
| Connection | Pre-wired oil-resistant PVC cable, 2 m |
| Operating Temperature | -25 to +55 °C (no condensation or icing) |
| Protection Rating | IEC IP67 |
Resources & Downloads
FAQ for E3Z-B61 2M
What is the difference between E3Z-B61 2M and E3Z-B86?
Both are the same E3Z-B clear-PET sensor with a 500 mm range on the E39-R1S reflector. E3Z-B61 2M is the NPN pre-wired 2 m version. E3Z-B86 is the PNP M8 4-pin connector version. Pick the B61 2M for direct panel wiring and an NPN sinking input; pick the B86 for a sourcing PLC input and a quick-disconnect patch cord.
Why is the E3Z-B special for PET bottles?
A standard retro-reflective sensor relies on the target blocking the beam from the reflector. A clear PET wall lets most of the light through, so a standard retro treats it as 'no object'. The E3Z-B uses a special optical filter and threshold that responds to the small refractive change at the bottle wall, so it consistently detects a clear PET bottle without being fooled by the reflector behind it.
What reflector does the E3Z-B61 2M need?
Use the standard E39-R1S reflector (or E39-R1) for a 500 mm range. The 'B' series is factory-tuned against the standard E39-R1S spectral response. Allow at least 100 mm between the sensor and the reflector for stable PET detection, and clean the reflector face on the same schedule as the line belt to avoid false drops from contamination.
