Omron E3Z-R86 — 4 m Retro-Reflective Sensor, PNP, M8
SKU: E3Z-R86USD 19.00
Polarised retro-reflective photoelectric sensor with MSR. 4 m range with E39-R1S, PNP output, M8 4-pin connector, IP67.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

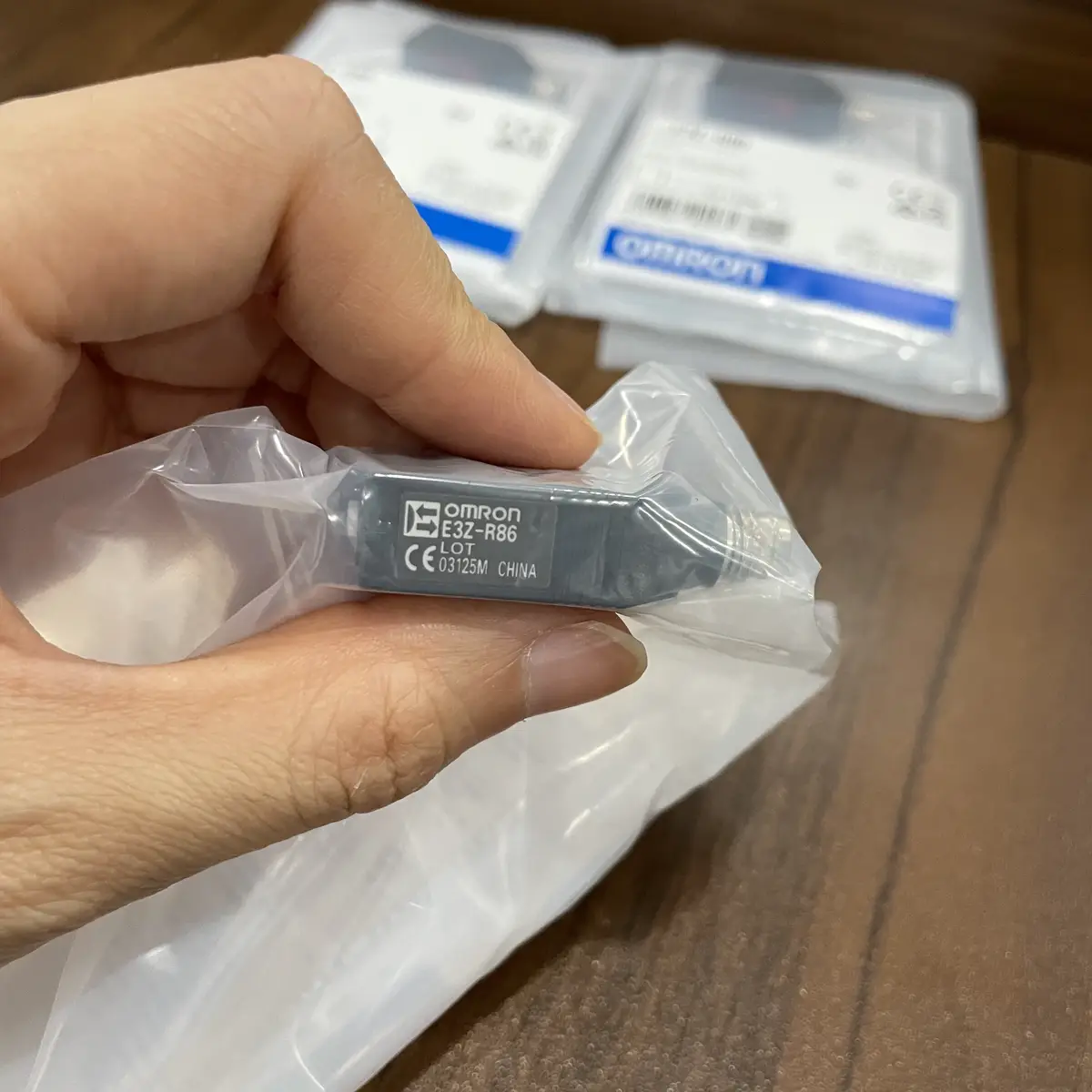

The Omron E3Z-R86 is a compact retro-reflective photoelectric sensor with mirror-surface rejection (MSR). It pairs a red LED with a polarising filter, so the receiver only accepts light that returns with the same twist it sent out. That stops shiny metal, glossy plastic, and shrink-wrap from triggering the sensor. With the E39-R1S reflector, the rated range is 4 m. The reflector is sold separately. A 4-pin M8 connector on the back accepts any standard XS3F cordset, and the PNP open-collector output drops high when the beam is broken.
When MSR matters
Plain retro-reflective sensors mistake a polished stainless surface or a printed shrink-wrap for the reflector, so the output stays on. MSR solves that, which makes the E3Z-R86 a strong pick on bottling lines, mirror-finished panels, and bright metal feeders. For clear PET bottles, the E3Z-B family is the better pick because polarised light does not work well on transparent plastic. For a longer 30 m range where space allows a separate emitter and receiver, use the E3Z-T through-beam family.
Choosing the right version
E3Z-R86 is the PNP, M8-connector version at 4 m. Pick E3Z-R81 2M for the same 4 m range on a 2 m pre-wired PNP cable, or E3Z-R61 2M for NPN pre-wired. The M8 NPN version is E3Z-R66. If the application only needs 3 m, the E3Z-R8 sensor on the E39-R1 reflector reaches that range at a lower cost.
Before ordering

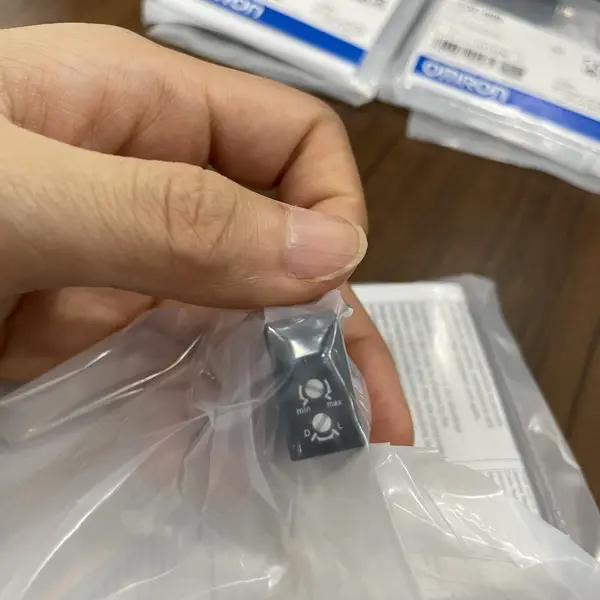

Add an E39-R1S reflector (40 × 60 mm) and an XS3F-M421-402-A M8 cordset to the basket; neither ships with the sensor. Mount the sensor and reflector at least 100 mm apart to stay above the minimum sensing distance. Use the L/D selector on the rear to pick Light-ON or Dark-ON, and the one-turn sensitivity adjuster to trim the gain against a real target.
Key Features
- Retro-reflective sensor with MSR (polarised red light)
- 4 m range with the E39-R1S reflector
- PNP open-collector output, Light-ON / Dark-ON switch
- Standard 4-pin M8 connector
- Red LED 660 nm light source
- IP67 housing in PBT, 10.8 × 31 × 20 mm cuboid
- 1 ms response, 100 mA load current
- SKU: E3Z-R86
- Series: E3Z retro-reflective with MSR
- Voltage: 12-24 VDC
Best-Fit Applications
- Detection of shiny metal panels on transfer lines
- Bottle and can detection on shrink-wrap infeed conveyors
- Trigger generation at a labeler or printer station
- Workpiece detection on assembly cells with glossy parts
- Stack-height and roll-diameter checks on packaging machinery lines
Buying Checklist
- Choose E3Z-R86 for a PNP M8-connector MSR sensor at a 4 m range.
- Choose E3Z-R81 2M (PNP) or E3Z-R61 2M (NPN) for a 2 m pre-wired lead instead.
- Choose E3Z-R66 (NPN) or E3Z-R8 (3 m) for different output or range options.
- Choose E3Z-B86 for clear PET bottles; polarised light does not work on transparent plastic.
- Confirm an E39-R1S reflector and an XS3F-M42@-402-A M8 cordset are on the order.
- Confirm at least 100 mm between the sensor face and the reflector.
Technical Specifications
| Series | E3Z retro-reflective with MSR |
|---|---|
| Sensing Method | Retro-reflective with MSR (polarised) |
| Sensing Distance | 4 m (100 mm min.) with E39-R1S |
| Light Source | Red LED, 660 nm |
| Output Type | PNP open collector, Light-ON / Dark-ON |
| Connection | M8 4-pin connector |
| Supply Voltage | 12-24 VDC ±10 %, ripple 10 % p-p max. |
| Load Current | 100 mA max. at 26.4 VDC |
| Response Time | 1 ms operate / reset |
| Current Consumption | 30 mA max. |
| Protection Rating | IP67 (IEC 60529) |
| Housing / Lens | PBT case, methacrylic-resin lens |
Resources & Downloads
FAQ for E3Z-R86
What is the difference between E3Z-R86 and E3Z-B86?
Both are cuboid E3Z retro-reflective sensors on an M8 4-pin connector, but they handle different targets. E3Z-R86 has MSR polarised red light at 4 m, which is ideal for shiny, mirror-like surfaces. E3Z-B86 is the clear-bottle sensor without MSR at 500 mm, tuned for thin PET. Pick the R family for shiny surfaces; pick the B family for clear plastic.
What reflector and cable does the E3Z-R86 need?
The reflector is sold separately. Use the E39-R1S (40 × 60 mm) for the 4 m range; the smaller E39-R3 reflector drops the range to about 1.5 m. For the M8 connector, add an XS3F-M421-402-A straight cordset or XS3F-M422-402-A right-angle cordset, both 2 m PVC. Use a PUR-cable XS3F cordset for sub-zero or washdown areas.
Why is the rated range on the E3Z-R86 only 4 m, not 10 m?
The MSR polarising filter blocks about half of the returned light, so the maximum reliable range is shorter than a non-MSR retro sensor. Omron's plain E3Z-R61 / R81 with the E39-R1S reaches 4 m as well, and the through-beam E3Z-T family reaches 15 m or 30 m when a longer range is needed. The 4 m figure is the worst-case with the standard E39-R1S reflector and the datasheet's reference target.
