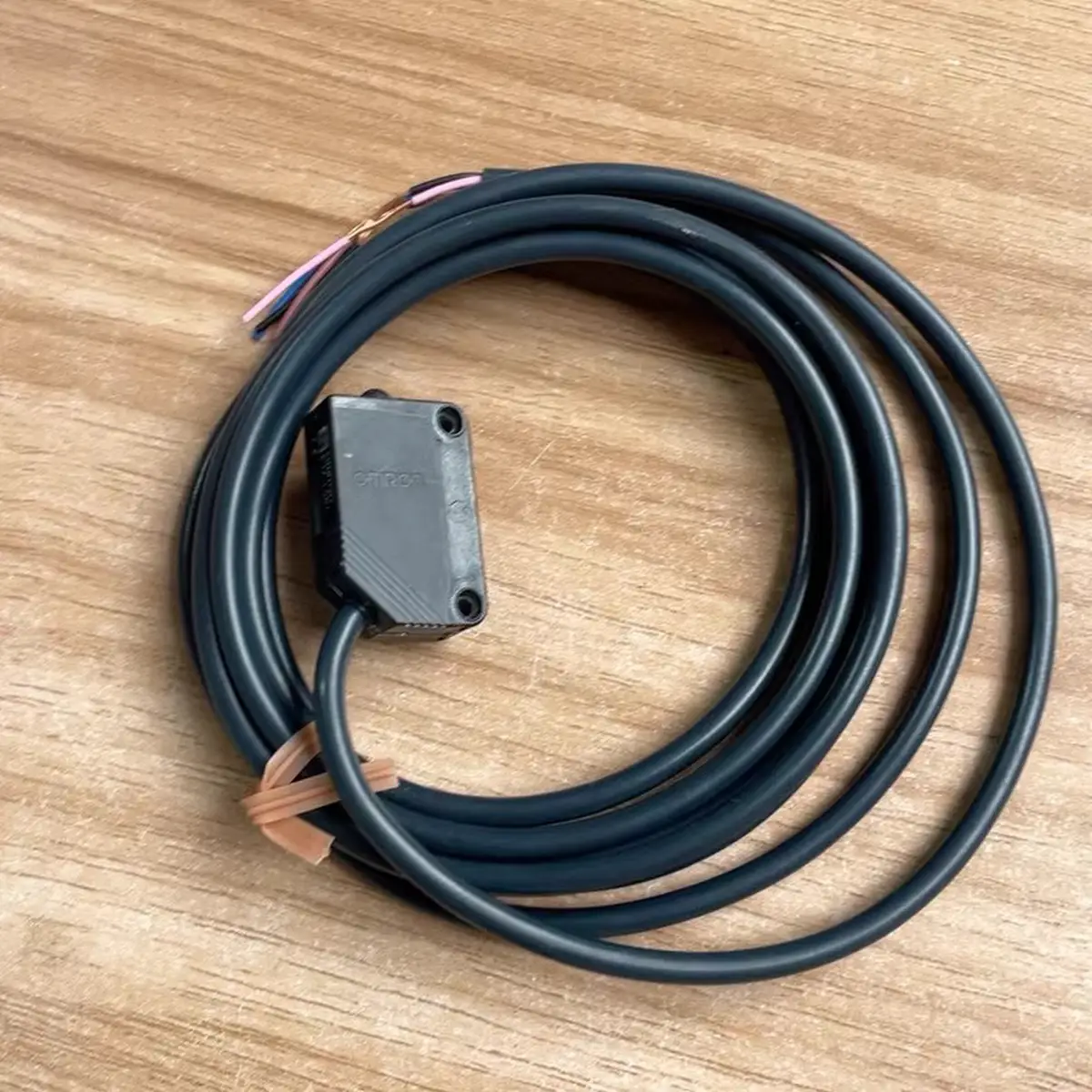

Omron E3Z-LS61 — small black ABS rectangular BGS photo sensor with OMRON wordmark and a 2 m oil-resistant cable coiled beside it on a wooden surface

Omron E3Z-LS61 — 200 mm BGS Photo Sensor, NPN, 2 m

SKU: E3Z-LS61

USD 13.00

200 mm BGS-reflective photo sensor, red LED, NPN open-collector, 12-24 VDC, IP67, pre-wired 2 m cable.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron E3Z-LS61 is a compact BGS-reflective (background-suppression) photoelectric sensor with a built-in amplifier. A 5-turn endless pot behind the side cover sets the detection distance anywhere from 20 mm to 200 mm on white paper; once set, the sensor ignores anything behind the set point, including shiny machine surfaces or moving operators. The light source is a visible red 680 nm LED (NOT a laser) — the LS sub-family name refers to the distance-settable ("L-set") BGS behaviour, not to a laser emitter. The sensing window is small enough to ignore colour variations between the target and the background, which is the main reason to pick BGS over a regular diffuse-reflective sensor like the E3Z-D61.

The LS61 is the NPN open-collector sibling in the E3Z-LS family, supplied with a 4-core pre-wired 2 m oil-resistant cable. Use it with any NPN-sinking PLC input, including the CJ / CS / CP1L / CP2E / NX input modules. Output is NPN open-collector, 100 mA max at 26.4 VDC, with a Light-ON / Dark-ON slide switch on the back for the right logic per cabinet. The housing is IP67 ABS plastic with a 1 ms response time, making it a fit for conveyor detection, stack-height confirmation, and small-parts presence checks on packaging and assembly lines.

Choosing the right E3Z-LS variant

The last two digits of the model code pick the cable: 1 = pre-wired 2 m, 3 = M8 pigtail 0.3 m, 6 = M8 4-pin connector, 8 = M12 4-pin connector. The middle digit 6 means NPN output polarity (PNP is the LS8x code). So E3Z-LS61 is pre-wired NPN; pick E3Z-LS66 for M8 NPN, E3Z-LS86 for M8 PNP, or E3Z-LS81 for pre-wired PNP. The LS6x / LS8x are the LED BGS-reflective family — not lasers. The laser BGS sensor in the same housing is the E3Z-LL61 / E3Z-LL86.

Before ordering

Set the detection distance before mounting. White paper reaches the full 200 mm; black paper shortens the practical range to 40-160 mm. Mounting height should be 20-200 mm above the target, with the 5-turn pot turning clockwise to increase range and counter-clockwise to decrease. If your PLC expects a sourcing input, switch to the E3Z-LS81 PNP model — the LS61 will not pull up the input. For dust, oil, or washdown, switch to the E3FA-RN11 or E3FB-B61 in a stainless / nickel-plated brass housing instead.

Key Features

  • Compact BGS-reflective sensor with built-in amplifier
  • 20-200 mm adjustable detection distance on white paper
  • 40-160 mm on black paper, 10% hysteresis
  • Visible red 680 nm LED, NOT a laser
  • NPN open-collector, 100 mA max at 26.4 VDC
  • 12-24 VDC ±10% supply, 30 mA max
  • 1 ms or less response time, 5-turn sensitivity pot
  • Light-ON / Dark-ON slide switch on the back
  • IP67 ABS housing, -25 to +55 °C operating
  • Pre-wired 2 m oil-resistant 4-core cable
  • SKU: E3Z-LS61
  • Series: E3Z-LS61
  • Voltage: 12-24 VDC
  • I/O: 100 I/O

Best-Fit Applications

  • Detecting boxes on a conveyor at a fixed stand-off where colour varies
  • Confirming the position of a stack of cardboard sheets on a feeder
  • Detecting dark objects (rubber, foam) on a darker background inside an enclosure
  • Stack-height check at a fixed reference plane on a packaging machine
  • Ignoring background machine panels when confirming a workpiece is in front of the head

Buying Checklist

  • Choose E3Z-LS61 for 20-200 mm BGS-reflective NPN with a pre-wired 2 m cable.
  • Pick E3Z-LS66 when you need M8 4-pin connector on the housing instead of a lead.
  • Pick E3Z-LS81 (PNP pre-wired) or E3Z-LS86 (PNP M8) for sourcing PLC inputs.
  • Pick E3Z-LL61 (laser BGS) for a smaller spot on a similar target.
  • Mount the sensor 20-200 mm above the target — anything outside that range will not detect.
  • Switch to E3FA-RN11 or E3FB-B61 for washdown or oily environments.

Technical Specifications

Sensing Principle BGS-reflective (distance-settable)
Sensing Distance 20-200 mm (white paper 100×100 mm)
Black-Paper Range 40-160 mm
Light Source Red LED, 680 nm wavelength
Output Type NPN open-collector, 100 mA max
Supply Voltage 12-24 VDC ±10%, 30 mA max
Response Time 1 ms or less
Sensitivity Setting 5-turn endless pot
Output Mode Light-ON or Dark-ON slide switch
Protection IP67 ABS housing, mutual-interference prevention
Cable Pre-wired 2 m oil-resistant 4-core
Operating Temperature -25 to +55 °C

FAQ for E3Z-LS61

Is the E3Z-LS61 a laser sensor?
No. The "L" in the model code stands for "distance-settable" ("L-set"), not "laser". The light source is a visible red 680 nm LED. The laser BGS sensor in the same E3Z housing is the E3Z-LL61 (NPN) / E3Z-LL86 (PNP). Pick the LL family only when you need the tiny laser spot for precise positioning.
What does the "1" at the end of E3Z-LS61 mean?
The last two digits pick the cable type: 1 = pre-wired 2 m, 3 = M8 pigtail 0.3 m, 6 = M8 4-pin connector, 8 = M12 4-pin connector. E3Z-LS61 is therefore the NPN, BGS-reflective, pre-wired 2 m version. For an M8 connector on the housing instead of a fixed cable, switch to E3Z-LS66.
How far can the E3Z-LS61 detect a target?
On white paper 100×100 mm the detection range is 20-200 mm with the 5-turn pot set anywhere in the band. On black 100×100 mm paper the practical range drops to 40-160 mm because dark surfaces reflect less light back to the sensor. Anything beyond 200 mm is ignored as background, which is the point of BGS.
Can the E3Z-LS61 connect to a PNP / sourcing PLC input?
No. The LS61 has an NPN (sinking) output, so it pulls the load to 0 V on detection. For PNP sourcing inputs, use the E3Z-LS81 (pre-wired 2 m) or E3Z-LS86 (M8 connector). The output mode slide switch on the back of the LS61 selects Light-ON or Dark-ON — that is the only setting that toggles the output logic, not the polarity.
