Omron E52-CA1GTY — Type K TC, Y-Crimp Terminal, M4
SKU: E52-CA1GTYUSD 33.00
Omron E52-CA1GTY Type K thermocouple probe, 0-300 degC, M4 thread, SUS304 sheath, Y-crimp fork terminal. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

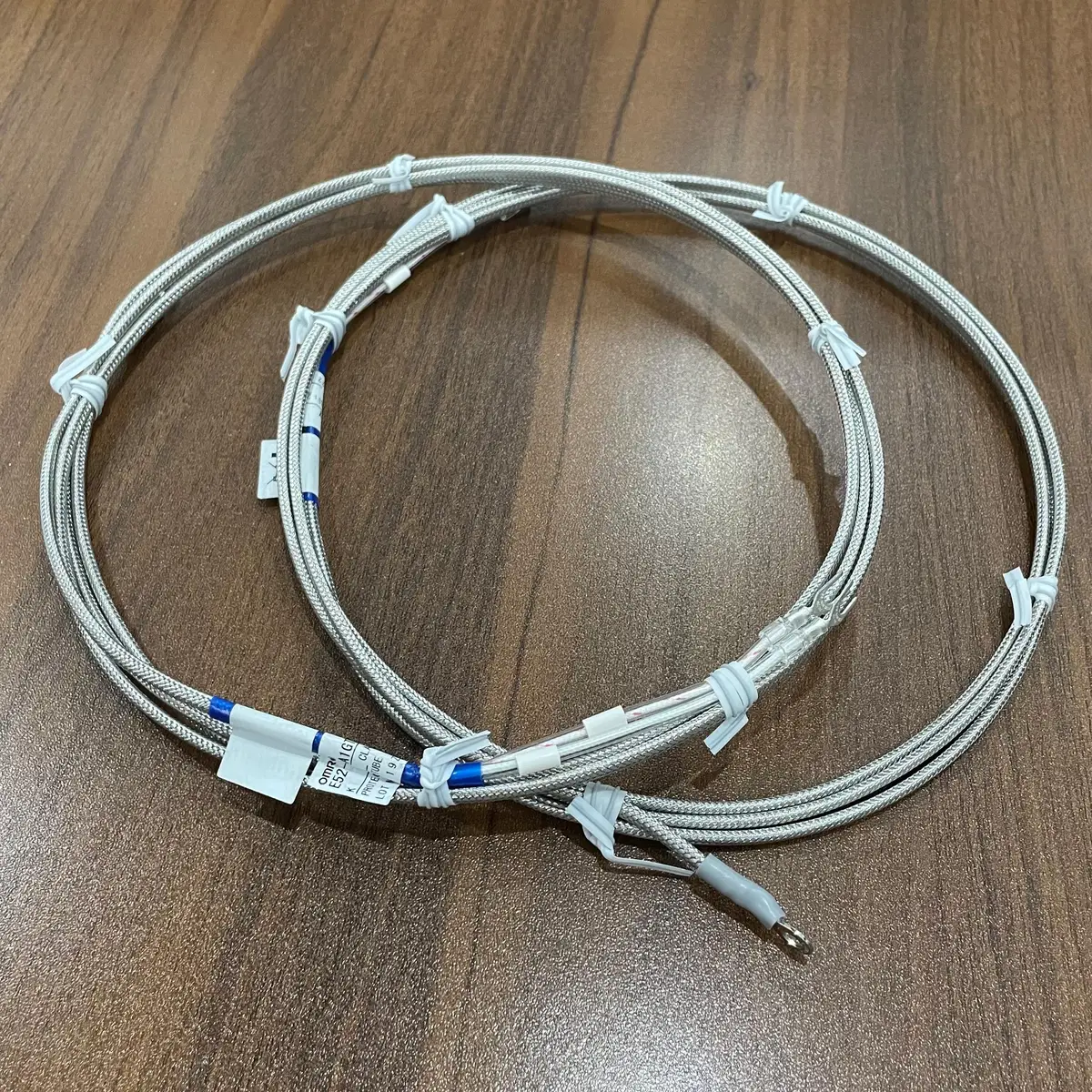

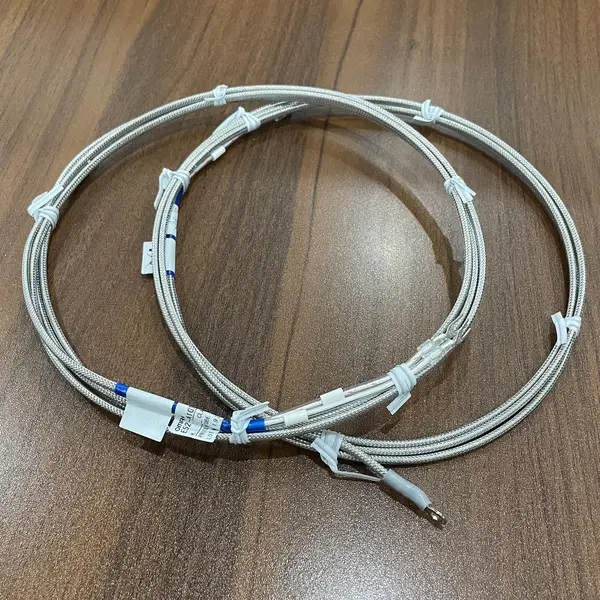

The Omron E52-CA1GTY is a Type K thermocouple temperature probe from the E52 exclusive family, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The element is a single-wire 0.65 mm Type K thermocouple, Class 2 (0.75), grounded junction. The protective tube is SUS304 stainless steel with an M4 thread for panel mounting. Element range is 0 to +300 degC; lead-wire range is 0 to +150 degC.

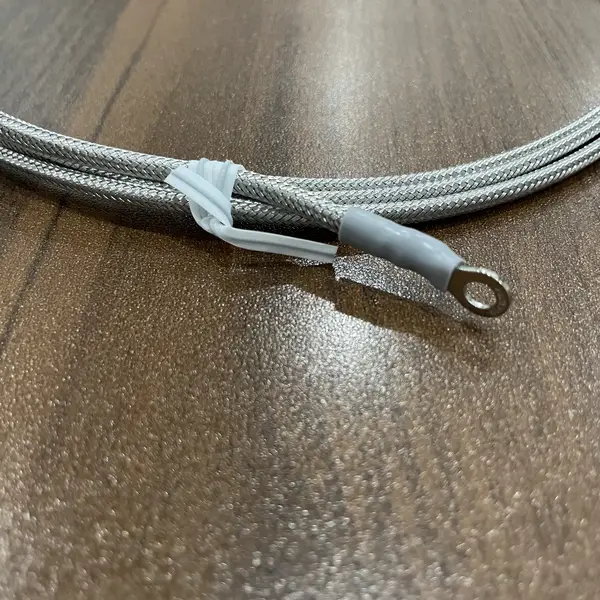

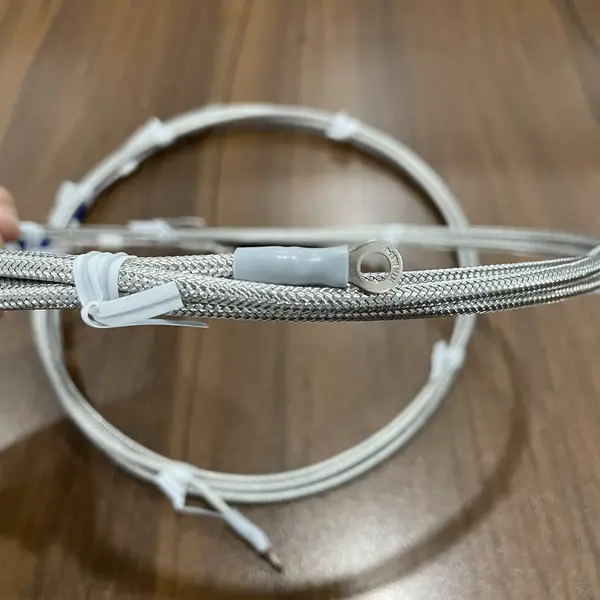

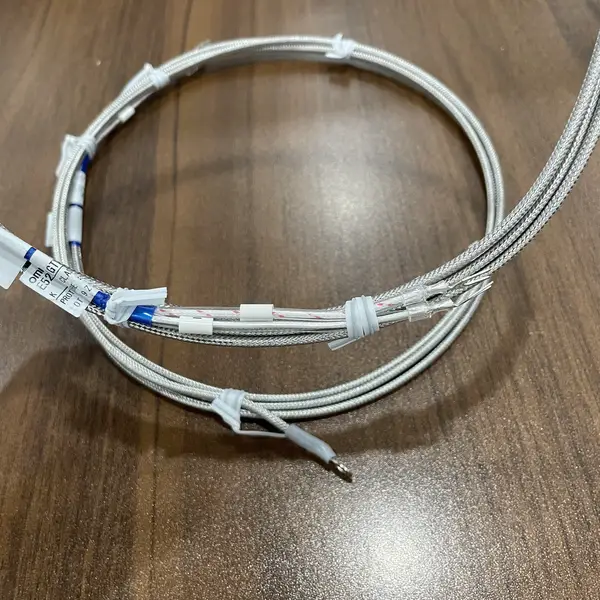

The lead exits as a glass-covered stainless-steel shielded wire and ends in a Y-type crimp fork lug for an M3.5 screw. Wiring is 2-wire. The probe drops onto any temperature controller with a Type K input from the E5CC, E5EC or E5AC families. For the 2 m lead length variant on the same probe, pick the E52-CA1GTY 2M. For a Pt100 RTD version on the same E52 family, look at the E52-P series.
Key Features
- E52 Type K (CA) thermocouple probe, Class 2 (0.75)
- SUS304 protective tube, M4 thread, grounded junction
- 0 to +300 degC element, 0 to +150 degC lead
- Glass-covered stainless steel shielded wire, Y-crimp fork lug for M3.5
- SKU: E52-CA1GTY
- Series: Omron E52 exclusive series temperature sensor
Best-Fit Applications
- Heater-block sensing on a packaging machine where the M4 thread mounts the probe and the Type K lead lands on the E5CC input
- Surface-temperature feedback on a heat-seal jaw where the grounded junction gives fast response and the Y-crimp lug lands on the M3.5 terminal
- Spare replacement on a temperature-controlled tank where the original probe failed and the E52-CA1GTY matches the M4 port and range
Buying Checklist
- Pick the E52-CA1GTY for a Type K thermocouple probe with M4 thread, SUS304 sheath, and a Y-crimp fork terminal.
- Pick the E52-P10GRY instead when the controller needs a Pt100 RTD input on the same E52 family.
- Pick the E52-CA1GTY 1M instead when the panel layout fits a 1 m lead instead of the 2 m lead.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron E52 exclusive series temperature sensor |
| Model / SKU | E52-CA1GTY |
| Element Type | K (CA) thermocouple, single wire 0.65 mm |
| Class | Class 2 (0.75) |
| Thermal Contact | Grounded junction |
| Element Temperature Range | 0 to +300 degC |
| Lead Wire Range | 0 to +150 degC |
| Protective Tube | SUS304 stainless steel, M4 thread |
| Lead Wire | Glass-covered stainless-steel shielded, 4 mm outer diameter, 1/1.0 conductor |
| Terminal | Y-type crimp fork lug for M3.5 screw |
| Wiring | 2-wire |
FAQ for E52-CA1GTY
Is the E52-CA1GTY a thermocouple or an RTD?
It is a Type K (CA) thermocouple. For Pt100 RTD probes on the same E52 family, use the E52-P10GRY (room air) or E52-P10GPY (waterproof).
What controller works with this probe?
Any Omron temperature controller with a Type K input. The E5CC, E5EC, E5AC, E5CN and E5_AN families all accept the two lead wires at the TC terminal block.
What does the CA in the part number mean?
CA = K-type (chromel / alumel). The matching J-type probe uses IC (iron / constantan). The grounded junction is faster than an exposed junction but is not isolated from the sheath.
What is the accuracy of the E52-CA1GTY?
Class 2 (0.75), which is about +/- 2.5 degC or +/- 0.0075 times the reading temperature, whichever is larger. For tighter accuracy, use the Class 1 E52-exclusive family.
