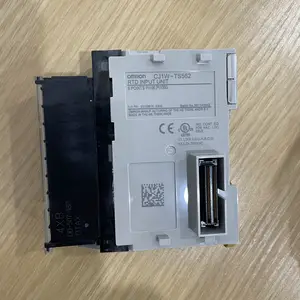

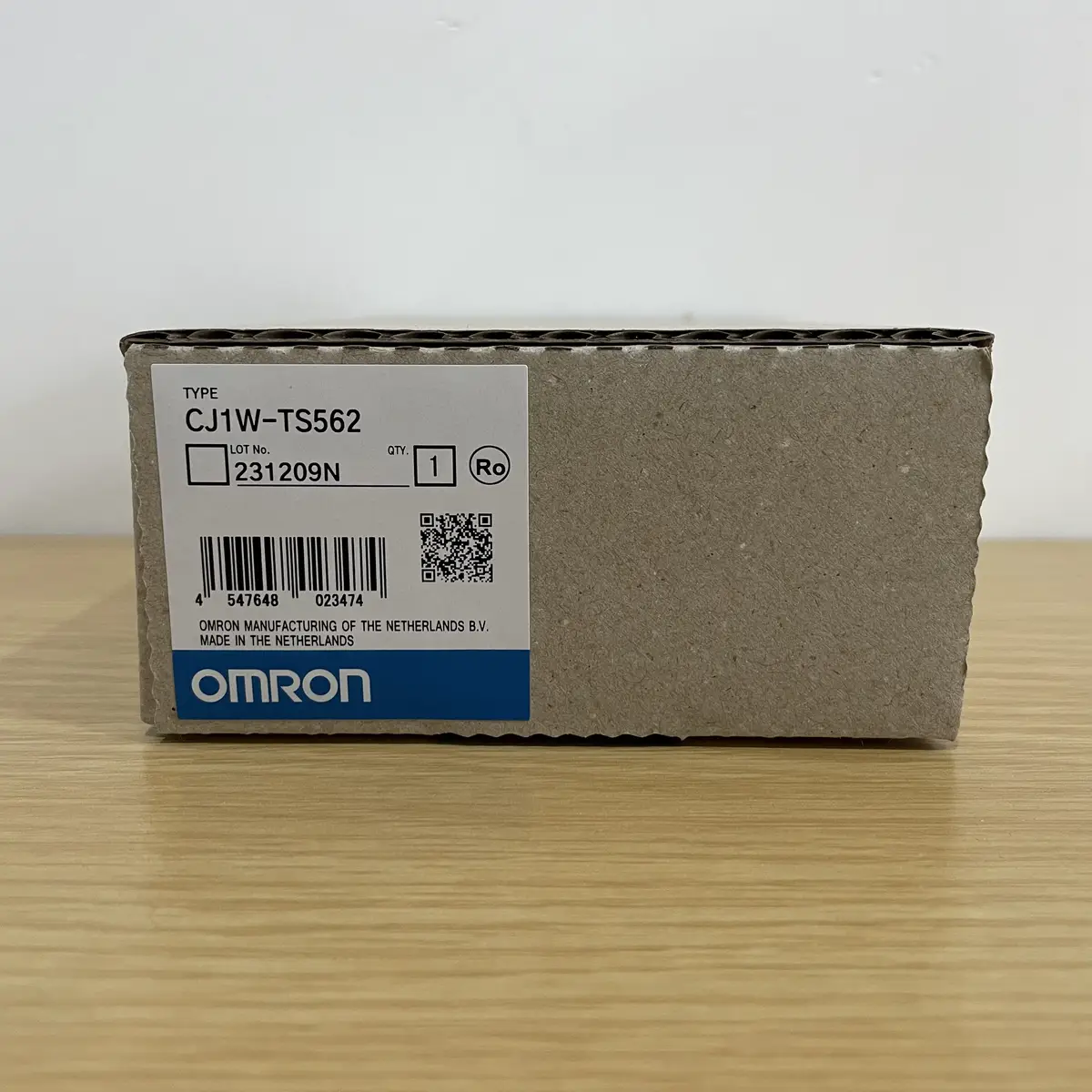

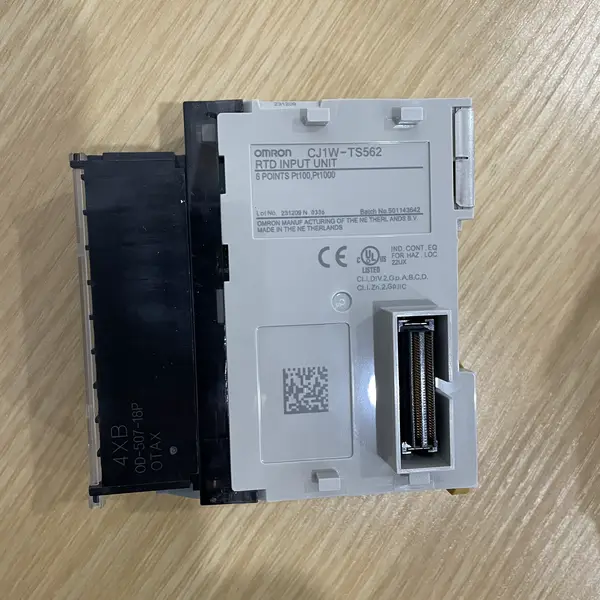

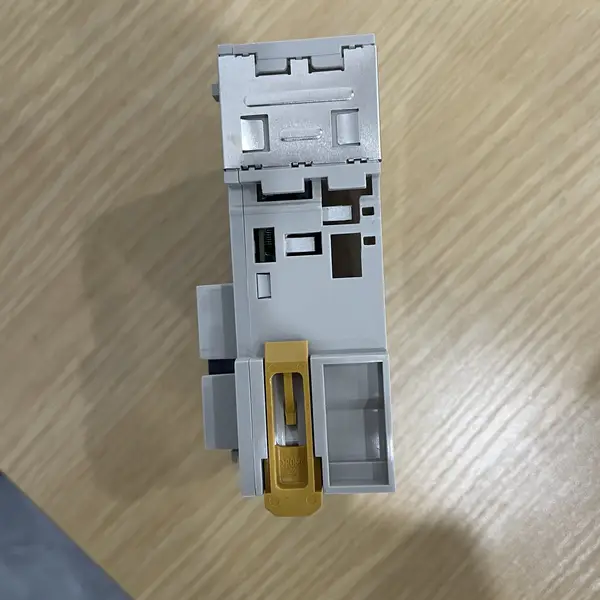

Omron CJ1W-TS562 — CJ1 RTD Input, 6-Channel, Pt100
SKU: CJ1W-TS562USD 415.00
Omron CJ1W-TS562 CJ1 Basic I/O 6-channel Pt100/Pt1000 RTD input unit, 3-wire, 0.1 degC, screw terminal. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CJ1W-TS562 is a 6-channel Pt100 and Pt1000 RTD input unit for CJ1-series PLCs, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. All specs verified against the CJ1W-TS562 instruction sheet at ia.omron.com and the industrial.omron.eu CJ1 Basic I/O page.
The unit takes 1 to 6 RTD probes on a 3-wire connection. Range is -200 to +650 degC with 0.1 degC resolution and 13-bit conversion. Accuracy is +/- 0.5 percent of the reading or +/- 0.8 degC (whichever is larger) plus one digit. DIP switches on the front pick Pt100 or Pt1000, the filter setting, and how many inputs are active.
The unit pulls 250 mA at 5 VDC from the CJ1 bus and fits the 31 x 90 x 89 mm Basic I/O footprint at 176 g. Data comes back as a 16-bit signed integer in the CIO area. For a thermocouple version, pick the CJ1W-TS562 thermocouple family. For a CP-series 4-input RTD sensor unit without PID, pick the CP1W-TS102.
Key Features
- CJ1 Basic I/O 6-channel Pt100 / Pt1000 RTD input unit
- 3-wire connection, -200 to +650 degC, 0.1 degC resolution
- DIP-switch selectable Pt100 / Pt1000 and active input count
- 250 mA at 5 VDC, 31 x 90 x 89 mm, 176 g
- SKU: CJ1W-TS562
- Series: Omron CJ1W-series Basic I/O analog input
- I/O: 48 I/O
Best-Fit Applications
- Six-zone HVAC supply-air monitoring where each Pt100 probe lands in a duct and the CIO words feed the CJ2 trend log
- Tank-wall temperature map in a dairy where six Pt100 probes strap to the vessel and 0.1 degC resolution catches the CIP cycle
- Spare drop-in for a CJ1 panel where the old CJ1W-TS562 RTD unit failed and the new one fits the same slot and wiring
Buying Checklist
- Pick the CJ1W-TS562 for a CJ1 Basic I/O 6-channel Pt100 / Pt1000 RTD input unit on screw terminals.
- Pick the CJ1W-TS562-SL instead when the cabinet needs the screwless-clamp connector on the same 6-channel spec.
- Pick the CP1W-TS102 instead when the panel uses a CP1L / CP1H PLC and only needs 4 RTD inputs without PID.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron CJ1W-series Basic I/O analog input |
| Model / SKU | CJ1W-TS562 |
| I/O System | CJ1 I/O Bus (Basic I/O Unit) |
| Input Channels | 1 to 6 (DIP-switch selectable) |
| Sensor Type | Pt100 or Pt1000 RTD, 3-wire |
| Measurement Range | -200.0 to +650.0 degC |
| Resolution | 0.1 degC, 13-bit |
| Indication Accuracy | +/- 0.5% of PV or +/- 0.8 degC, plus 1 digit |
| Response Time | 40 ms (100 Hz) to 400 ms (50 + 60 Hz filter) |
| I/O Points | 48 / 64 / 96 depending on active inputs |
| Dimensions (W x H x D) | 31 × 90 × 89 mm; 176 g |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for CJ1W-TS562
Does the CJ1W-TS562 take thermocouple inputs?
No. The TS562 is Pt100 / Pt1000 RTD only. For thermocouple inputs (K, J, T, etc.) on the same CJ1 Basic I/O footprint, use the CJ1W-TC001 or CJ1W-TC102 family.
Can I use 2-wire RTDs with the CJ1W-TS562?

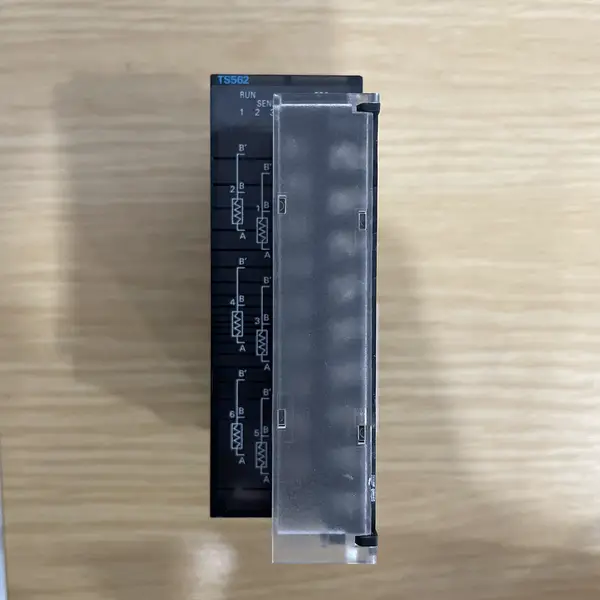

You can short B to B-prime for 2-wire use, but the spec sheet notes that the published accuracy no longer applies. For full accuracy always run 3-wire probes with matched lead lengths.
How many I/O points does the CJ1W-TS562 use?
It uses 48 I/O points for 1 to 3 active inputs, 64 points for 4 inputs, and 96 points for 5 to 6 inputs. Set the active input count on the DIP switches before powering the PLC.
What PLCs work with the CJ1W-TS562?
Any CJ-series CPU rack (CJ1G, CJ1H, CJ1M, CJ2H, CJ2M) or CJ expansion rack. CJ1G or CJ1H is required to fit 10 units per rack.
