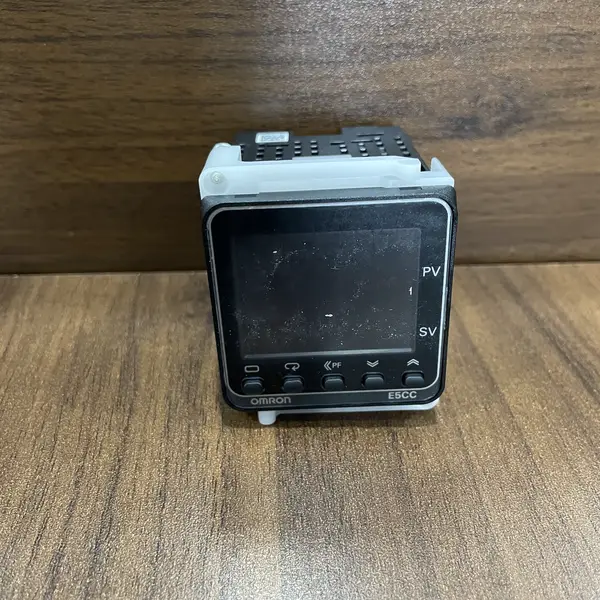

Omron E5CC-QX2ASM-800 temperature controller — front face with white PV display and SV showing setpoint

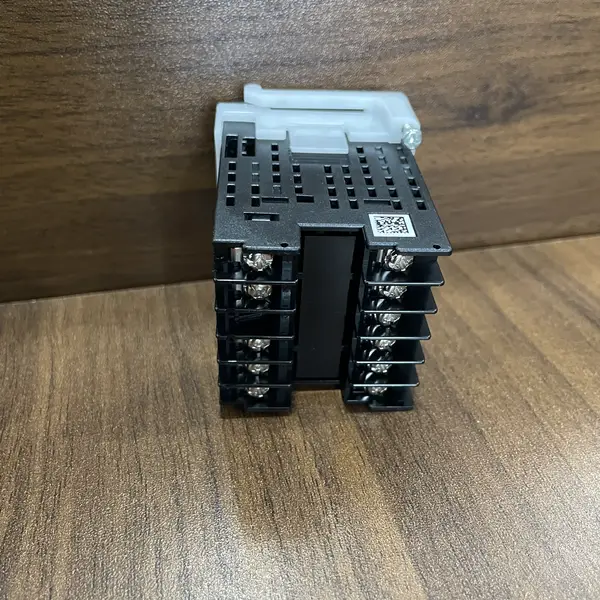

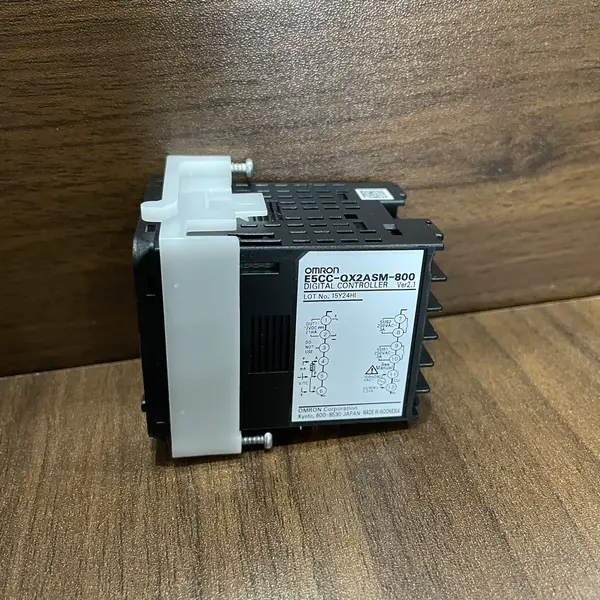

Omron E5CC-QX2ASM-800 — 48×48 PID, SSR Output

SKU: E5CC-QX2ASM-800

USD 35.00

1/16 DIN 48×48 mm E5CC-800 digital PID temperature controller with universal thermocouple/RTD input, 12 VDC output for driving external SSR, 100 to 240 VAC supply, screw terminals.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The E5CC-QX2ASM-800 is a 1/16 DIN (48 × 48 mm) digital temperature controller from the current E5CC-800 generation — Omron's fastest-selling panel-mount PID controller for general industrial temperature loops.

Why 'voltage for driving SSR' vs direct relay output

The Q-suffix E5CC drives a solid-state relay as the actuator — either an Omron G3PE series panel-mount SSR (heater loads up to 200 A) or a board-mount G3NA-D series. The benefit of this configuration: the controller's output is a dry 12 VDC signal (20 mA max) and the actual mains current is switched by the SSR outside the panel. This means no contact wear inside the controller (a relay-output controller like the E5CC-RX2ASM-800 can only switch up to 3 A before the relay bakes), zero arc noise on low-voltage control signals, and zero-cycle-zero-cross switching for proportional-band heater control.

E5CC family positioning

The E5CC sits between the cost-reduced E5CSV (DIP-switch only, no menu) and the larger E5CN (1/8 DIN 48 × 96 mm with dual display and event recording). Pick the E5CC-QX2ASM-800 (this SKU) for the most common configuration — single-loop heater control via SSR with two user-configured alarms. Pick the E5CC-CX2ASM-800 (C suffix) when the actuator is a 4 to 20 mA proportional valve or process meter — the controller outputs 4 to 20 mA current directly without an SSR in the loop.

Key Features

  • 1/16 DIN front panel — slim cutout fits standard 45 × 45 mm hole
  • E5CC-800 generation: reduced 5.2 VA power consumption vs older E5CC's 6.5 VA
  • Universal process input: thermocouple K/J/T/E/L/U/N/R/S/B, Pt100, JPt100, IR sensor, 4 to 20 mA / 0 to 10 V
  • PID control with auto-tuning, self-tuning, and 2-PID control modes
  • ON/OFF control mode selectable for heating-only loops with large hysteresis
  • 12 VDC voltage output for driving external SSR
  • 2 × SPST-N/O 3 A auxiliary outputs — freely assignable to alarms or control stages
  • 100 to 240 VAC supply, 50/60 Hz, with operating range 85 to 110 %
  • SKU: E5CC-QX2ASM-800
  • Series: E5CC-800 (current generation digital PID controller)
  • Voltage: 100 TO 240 VAC
  • I/O: 5 I/O

Best-Fit Applications

  • Heat-seal band temperature control on packaging machinery via SSR-driven band heaters
  • Plastic-extrusion barrel zone control — single-loop PID with SSR-driven band heater, alarm on runaway temperature
  • Hot-melt glue tank temperature on label applicators — auto-tuning handles the slow thermal mass
  • Industrial oven and bakery-proofer temperature — 2-PID control for heat-up rate and soak phase

Buying Checklist

  • Pick the E5CC-QX2ASM-800 for general 1/16 DIN PID heater control with SSR drive and 100 to 240 VAC supply
  • Pick the E5CC-RX2ASM-800 when the heater is under 1 kW and direct 3 A relay switching is acceptable
  • Pick the E5CC-CX2ASM-800 when the actuator is a 4 to 20 mA proportional valve or thyristor power controller
  • Pick the E5CC-QX2DSM-800 when panel supply is 24 VDC instead of 100 to 240 VAC
  • Pick the E5CSV-QT1 when you only need ON/OFF control from DIP switches
  • Pick the E5CN when you need a larger 1/8 DIN 48 × 96 mm display with remote setpoint input or logic outputs

Technical Specifications

Model E5CC-QX2ASM-800
Series E5CC-800 (current generation digital PID controller)
Size 48 × 48 × 70 mm (W × H × D, panel cutout 45 × 45 mm)
Supply Voltage 100 to 240 VAC, 50/60 Hz
Operating Voltage Range 85 to 110 % of rated supply voltage
Power Consumption 5.2 VA max at 100 to 240 VAC
Input Type Universal — thermocouple, RTD, IR sensor, analogue
Thermocouple Inputs K, J, T, E, L, U, N, R, S, B, C/WRe5-26
RTD Inputs Pt100, JPt100 (3-wire)
Linear Inputs 0 to 20 mA, 4 to 20 mA, 0 to 5 V, 1 to 5 V, 0 to 10 V
Control Output 1 12 VDC voltage pulse for SSR drive, 20 mA max, short-circuit protected
Auxiliary Outputs 2 × SPST-N/O, 3 A resistive at 250 VAC / 30 VDC
Display 4-digit white PV display (14.5 mm character) + 3-digit SV display (7.8 mm)
Set Value Resolution 1 °C (°) or 0.1 °C (°) — thermocouple dependent
Operating Temperature -10 to +55 °C

FAQ for E5CC-QX2ASM-800

What is the difference between the E5CC-QX2ASM-800 and the older E5CC-QX2ASM-802?
The -800 suffix designates the current E5CC-800 generation with reduced power consumption (5.2 VA vs 6.5 VA on the older -802 version), updated firmware for improved PID auto-tune, and CE certification to the EN 61812 standard. The functional specifications are unchanged: same 1/16 DIN body, same universal input, same SSR-drive output, same 2-event outputs.
Can the E5CC-QX2ASM-800 drive a 25 A solid-state relay directly?
Yes — the 12 VDC output is short-circuit protected at 20 mA, which is plenty to switch the input stage of any Omron G3PE series panel-mount SSR (input current draw 7–30 mA depending on model). For an external board-mount SSR like the G3PE-225B-VD DC12-24, wire terminal 6 (out) on the controller directly to the +12 V input on the SSR and jumper the SSR's 0 V to the controller's 0 V.
How accurate is the E5CC-QX2ASM-800 over its full range?
Indicated accuracy is ±0.3 % of input span or ±1 °C (whichever is greater), with cold-junction compensation of ±1 °C. For a 0 to 1372 °C type-K thermocouple range that means ±1 °C; for a -200 to +500 °C Pt100 range it's ±1.65 °C. The 2-PID auto-tuning can drive the controlling process within ±0.5 °C of setpoint on a well-tuned electric heater; mechanical gas-fired burners typically hold ±2 to 5 °C.
Can I configure one of the auxiliary outputs for a heater-burnout alarm?
The E5CC-QX2ASM-800 has 2 auxiliary event outputs that are freely assignable. Common assignments: OUT2 = upper alarm (triggers when PV > SV + offset), OUT3 = lower alarm (triggers when PV < SV - offset). For heater-burnout detection (an open thermocouple or stuck relay), configure OUT2 to the HB alarm mode — this monitors the SSR drive duty cycle and the PV deviation over 3 heating cycles. Alternative: use a dedicated K8DS-PM heater-burnout monitoring relay downstream of the E5CC SSR drive.
