Omron EE-SX771A — 5 mm Slot Sensor, L Shape, NPN Dark ON
SKU: EE-SX771AUSD 13.80

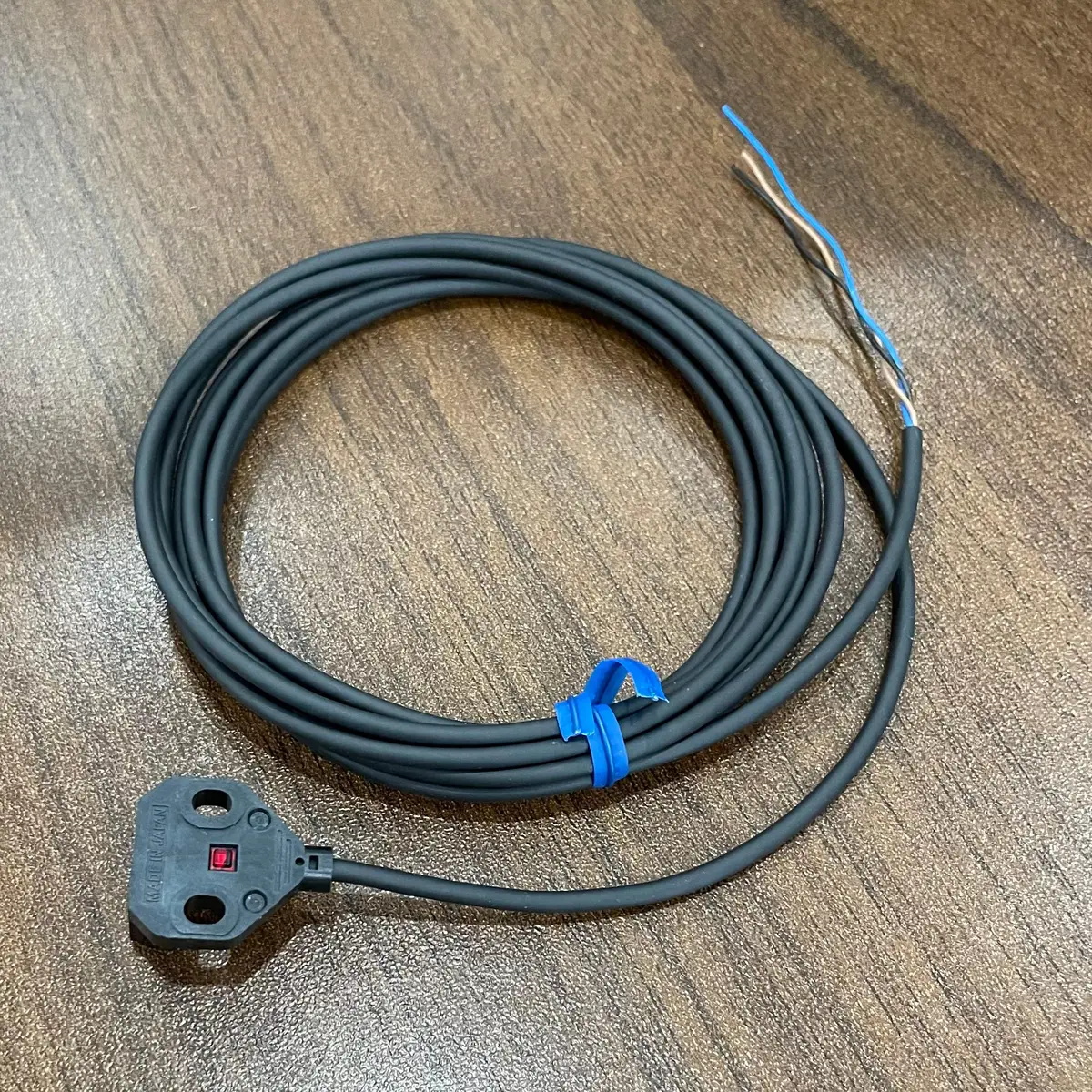

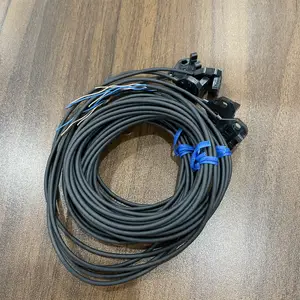

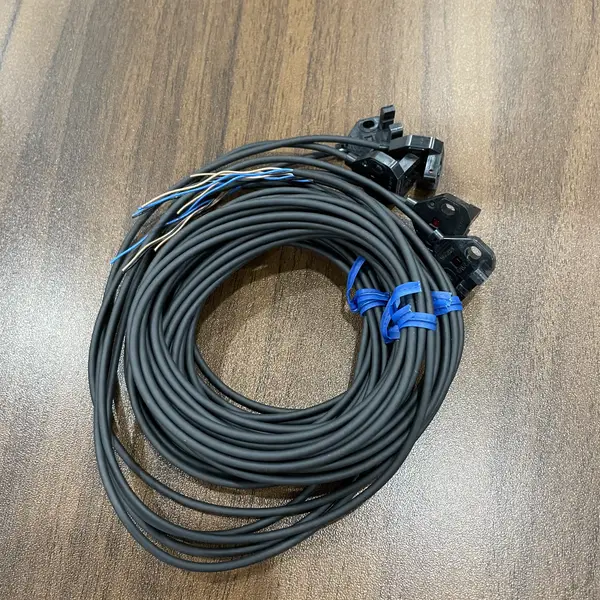

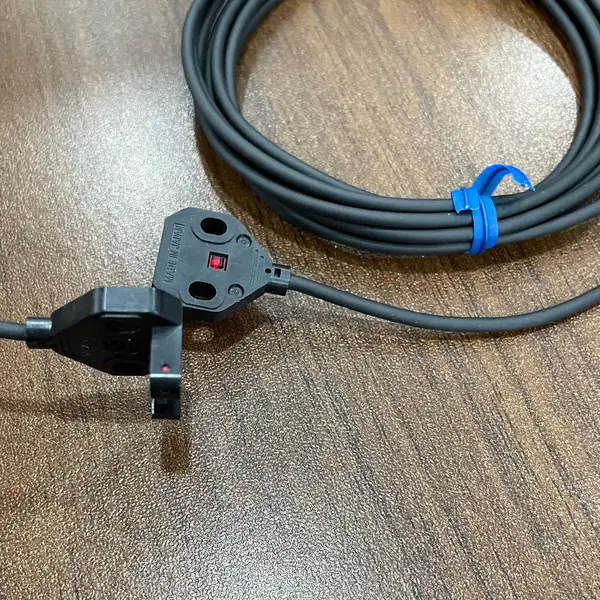

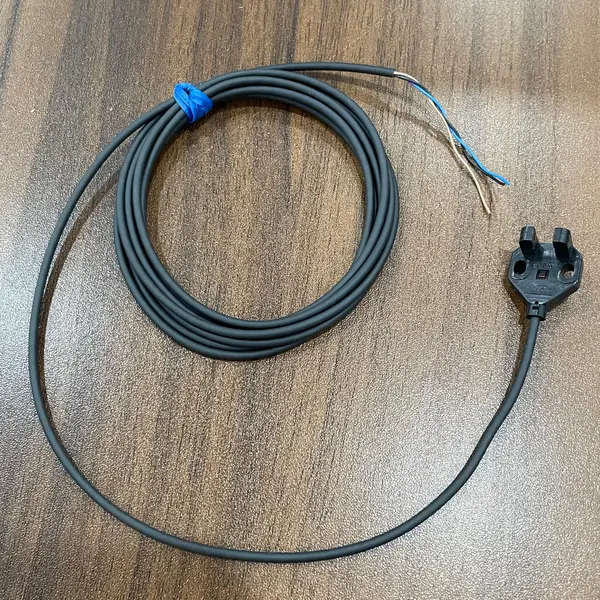

Omron EE-SX771A is an L-shaped 5 mm slot photomicrosensor, NPN Dark-ON, 5 to 24 VDC, infrared LED, M3 screw mount, 2 m cable.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron EE-SX771A is an L-shaped photomicrosensor (slot type) with a 5 mm slot width, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The set is one head with the emitter and receiver facing across a 5 mm slot. Output is NPN open-collector, Dark-ON, turning ON when the beam is broken. A red indicator lights when there is no incident light (output ON). Power is 5 to 24 VDC, load current up to 100 mA, and the GaAs infrared LED runs at 940 nm. The PBT case is IP64; the head fixes with two M3 screws.
The cable is 2 m, pre-wired. Minimum sensing object is opaque, 2 x 0.8 mm; differential distance is 0.025 mm. For the Light-ON twin of this L-shaped sensor, pick the EE-SX772A. For the T-shaped Dark-ON version, pick the EE-SX871A.
Key Features
- L-shaped 5 mm slot photomicrosensor, NPN open-collector Dark-ON
- 5 to 24 VDC supply, 35 mA max, 100 mA load, GaAs infrared LED 940 nm
- Red indicator that lights when there is no incident light (output ON)
- M3 screw mount, PBT case, IP64, 2 m pre-wired cable
- SKU: EE-SX771A
- Series: Omron EE-SX77 / EE-SX87 photomicrosensor
- Voltage: 5 TO 24 VDC
Best-Fit Applications
- Detecting a small registration mark on a label as it passes through a 5 mm slot on a labelling head
- Counting thin plastic shims dropping through a slot on a feeder bowl, where the L-shape keeps the head flat against the bowl wall
- Verifying a tab is present on a connector as it leaves the press, with the red indicator visible at a glance
Buying Checklist
- Pick the EE-SX771A for an L-shaped 5 mm slot sensor with NPN Dark-ON output.
- Pick the EE-SX772A instead when the PLC logic needs the Light-ON variant of the same L-shaped sensor.
- Pick the EE-SX870A instead when the sensor must be T-shaped rather than L-shaped.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron EE-SX77 / EE-SX87 photomicrosensor |
| Model / SKU | EE-SX771A |
| Sensing Method | Slot type, through-beam (non-modulated) |
| Slot Width | 5 mm |
| Light Source | GaAs infrared LED, peak wavelength 940 nm |
| Output Type | NPN open collector, Dark-ON |
| Standard Sensing Object | Opaque, 2 x 0.8 mm min |
| Supply Voltage | 5 to 24 VDC +/-10%, ripple 10% p-p max |
| Current Consumption | 35 mA max |
| Load Current | 100 mA max |
| Indicator / Mounting / IP | Red (no incident light); M3 screw; IP64 |
FAQ for EE-SX771A
What does the Omron EE-SX771A detect?
Anything opaque that fits through a 5 mm slot. The minimum sensing object is 2 x 0.8 mm. The output is Dark-ON, so it turns ON when the beam is broken (i.e. when a part is in the slot).
EE-SX771A vs EE-SX772A -- what is the difference?
Output logic. Both are L-shaped 5 mm slot sensors with NPN open-collector output. The SX771A is Dark-ON (output ON when the beam is broken); the SX772A is Light-ON (output ON when the beam is received). Pick by what the PLC input expects.
Does the EE-SX771A need an amplifier?
No. The amplifier is built into the head. Wire the 2 m cable straight to a 5 to 24 VDC supply and a DC input; no separate amplifier unit is needed.
