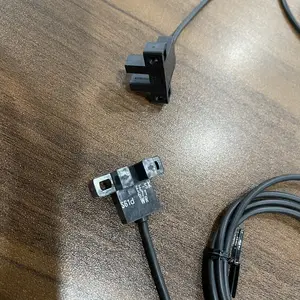

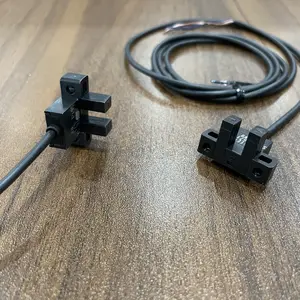

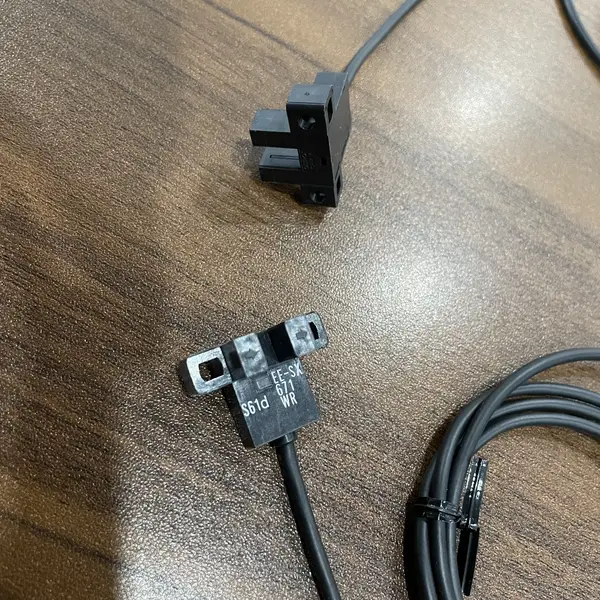

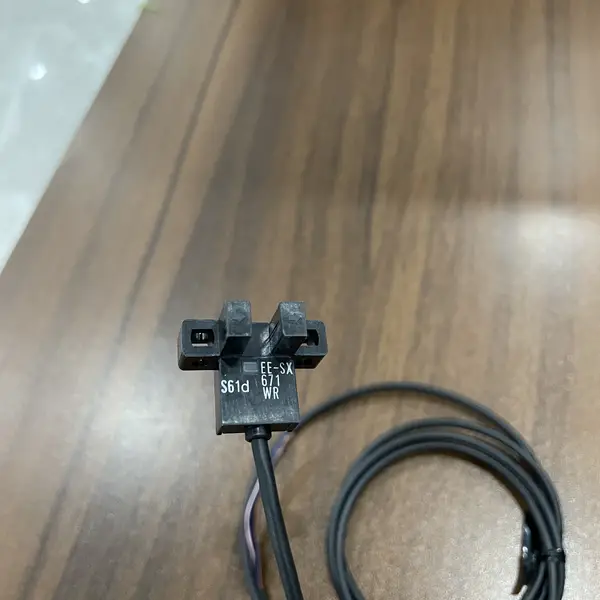

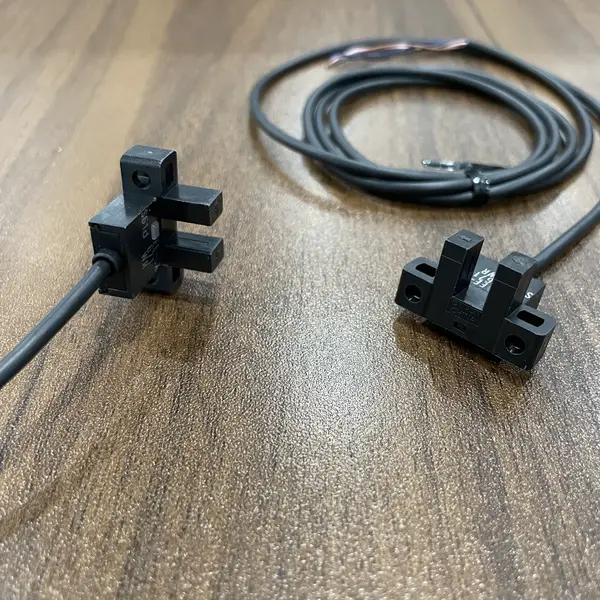

Omron EE-SX671-WR 1M — Slot Sensor, L-Shape, 5 mm, NPN
SKU: EE-SX671-WR 1MUSD 7.00

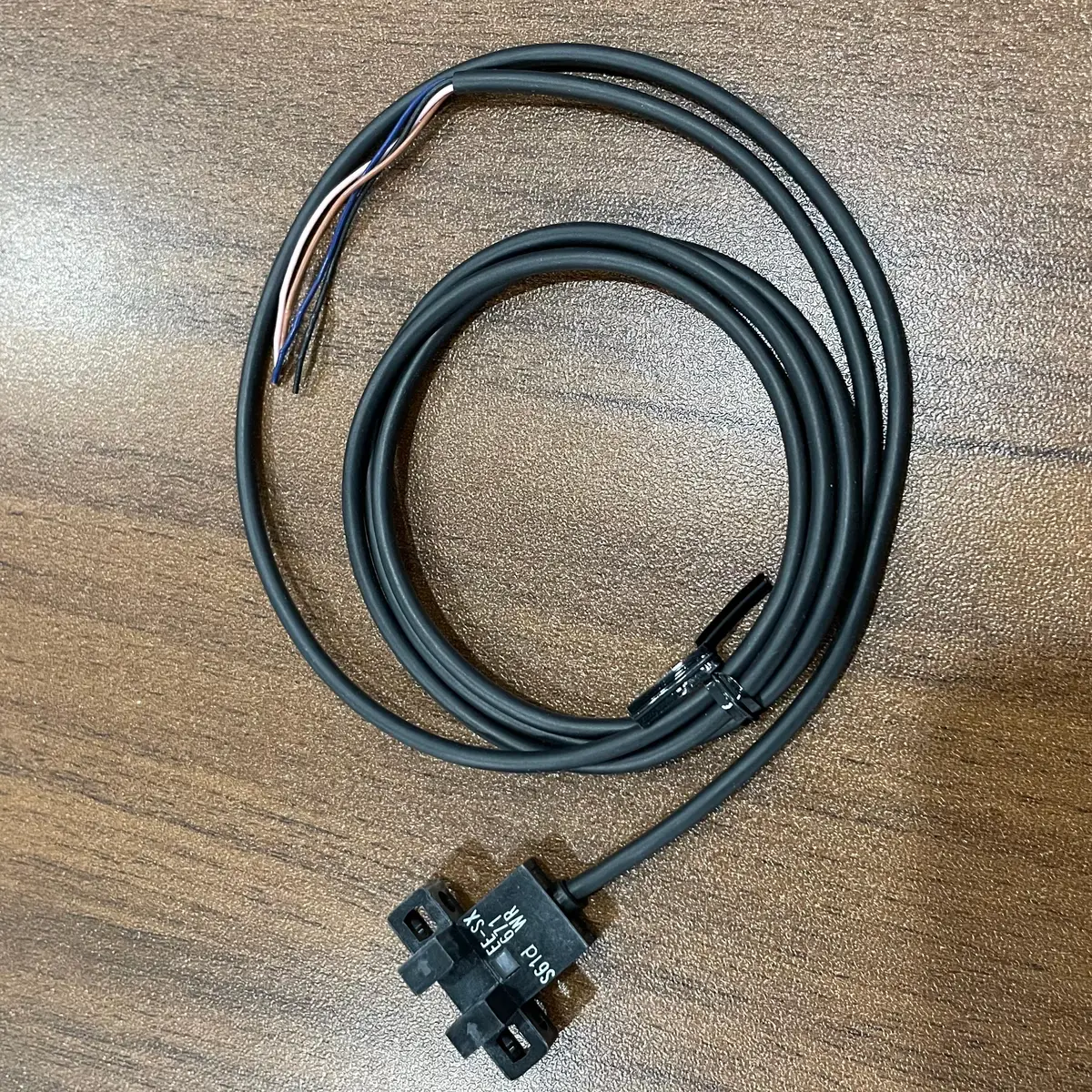

EE-SX L-shaped slot photo microsensor, 5 mm slot, NPN L-ON/D-ON, 1 m robotic cable. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron EE-SX671-WR 1M is an L-shaped slot photo microsensor from the EE-SX47/67 series It is manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The emitter and receiver face each other across a 5 mm slot. The minimum detectable object is an opaque shape 2 x 0.8 mm.
For the through-hole T-shape body in the same family, pick the EE-SX674-WR 1M. Key specs: Sensing Method Through-beam with slot (slot width 5 mm); Minimum Sensing Object Opaque, 2 x 0.8 mm min; Light Source GaAs infrared LED, 940 nm peak; Output Type NPN open collector, 26.4 VDC max, 100 mA max; Operation Mode Dark-ON or Light-ON (selectable via L terminal); Supply Voltage 5 to 24 VDC +/-10%, ripple 10% max; Current Consumption 35 mA max; Response Time 0.17 ms max operate or reset.
Key Features
- EE-SX671 L-shaped slot photo microsensor with 5 mm slot width
- NPN open-collector output, Dark-ON/Light-ON selectable via L terminal
- 5 to 24 VDC supply, 100 mA switching, 0.17 ms response, GaAs 940 nm infrared LED
- PBT/PC IP50 housing, 1 m four-core robotic cable, 26.2 x 20.7 x 15.5 mm
- SKU: EE-SX671-WR 1M
- Series: Omron EE-SX47/67-series slot photo microsensor
- Voltage: 5 TO 24 VDC
Best-Fit Applications
- Coin or token detection on a vending machine where the 5 mm slot clears the coin diameter and the 0.17 ms response handles high-throughput
- Tab-position check on a small assembly line where the L-shape body fits next to the moving tab and the NPN output feeds a CP1W-ID211 input
- Spare drop-in for an existing EE-SX cell where the previous slot sensor failed and the field wiring is NPN with the same 4-core cable colours
Buying Checklist
- Pick the EE-SX671-WR 1M for an L-shaped slot photo microsensor with a 5 mm slot and NPN output.
- Pick the EE-SX674-WR 1M instead when the cabinet needs a T-shape through-hole body at the same 5 mm slot width.
- Pick the EE-SX672-WR 1M instead when a narrower 3 mm slot width is needed for thinner targets.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron EE-SX47/67-series slot photo microsensor |
| Model / SKU | EE-SX671-WR 1M |
| Sensing Method | Through-beam with slot (slot width 5 mm) |
| Minimum Sensing Object | Opaque, 2 x 0.8 mm min |
| Light Source | GaAs infrared LED, 940 nm peak |
| Output Type | NPN open collector, 26.4 VDC max, 100 mA max |
| Operation Mode | Dark-ON or Light-ON (selectable via L terminal) |
| Supply Voltage | 5 to 24 VDC +/-10%, ripple 10% max |
| Current Consumption | 35 mA max |
| Response Time | 0.17 ms max operate or reset |
| Protection / Cable | IP50; 1 m four-core robotic cable; PBT/PC housing |
FAQ for EE-SX671-WR 1M
What are the wire colours on the EE-SX671-WR 1M?
Brown is +V (5 to 24 VDC), blue is 0 V (GND), black is the NPN output and pink is the L terminal for Light-ON / Dark-ON selection. Tie pink to brown for Light-ON or leave it open for Dark-ON.
Can the EE-SX671-WR 1M drive a relay directly?
Yes. The NPN output switches up to 100 mA at 26.4 VDC, which covers most small 24 VDC relay coils such as the G2R-2-SND DC24V or the G6B-4BND DC24V. For larger contactors, use an interposing relay.
Is the EE-SX671-WR 1M waterproof?
No. The PBT/PC housing is IP50, which protects against dust but not against water jets. For wet or wash-down environments, pick the EE-SX67 with a connector variant and add a sealed housing.
