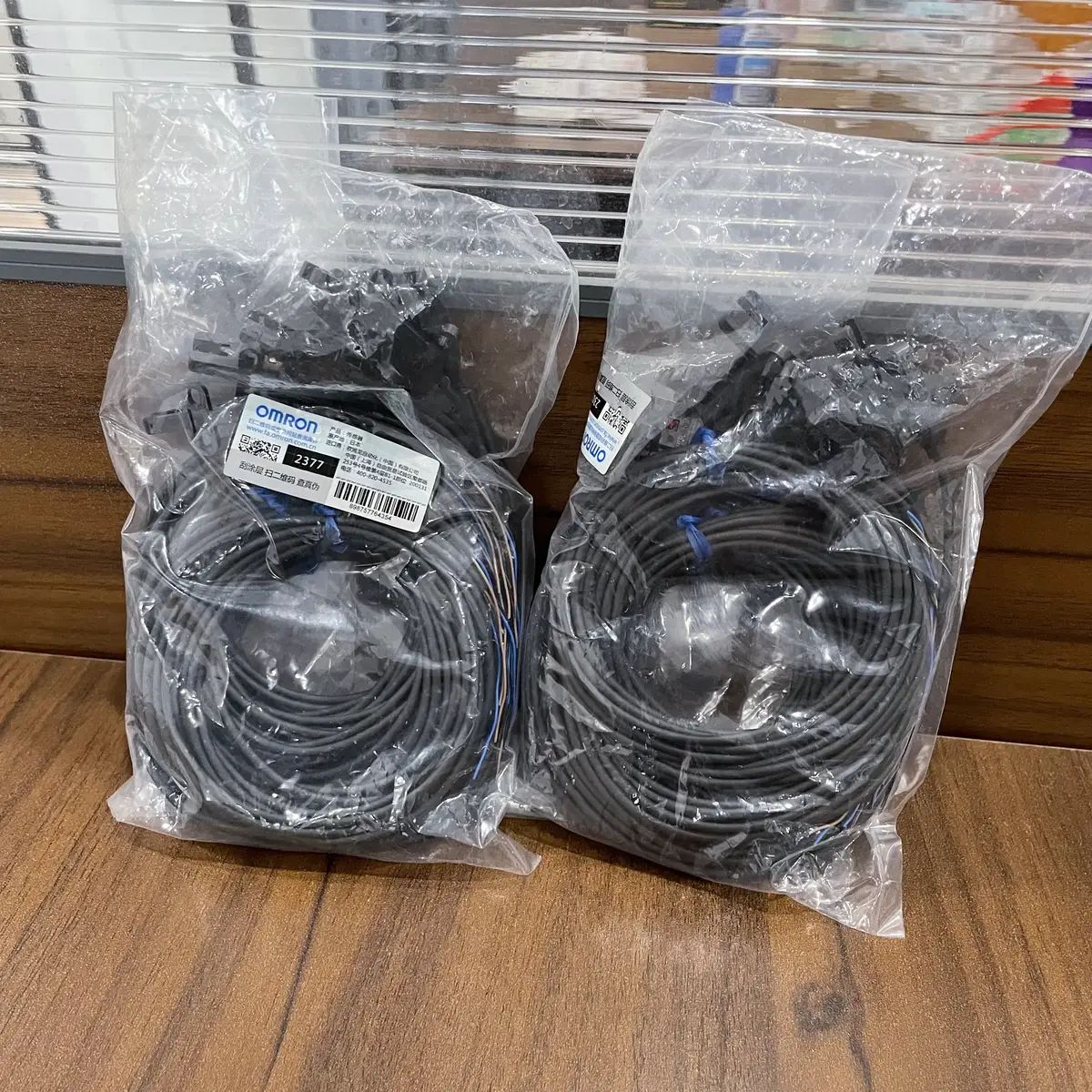

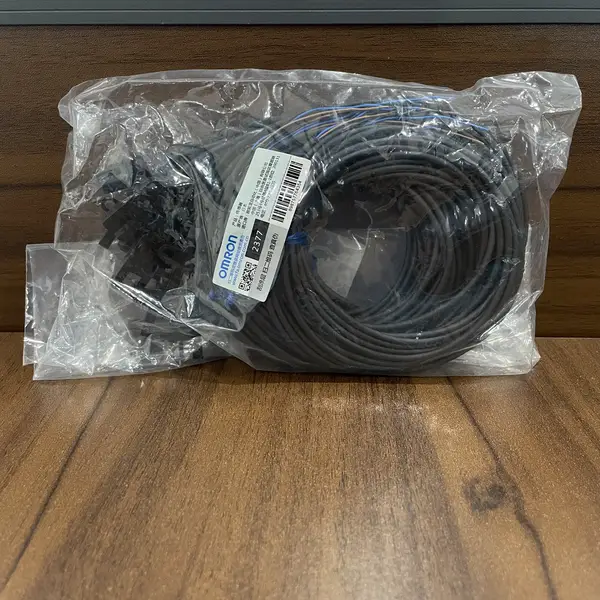

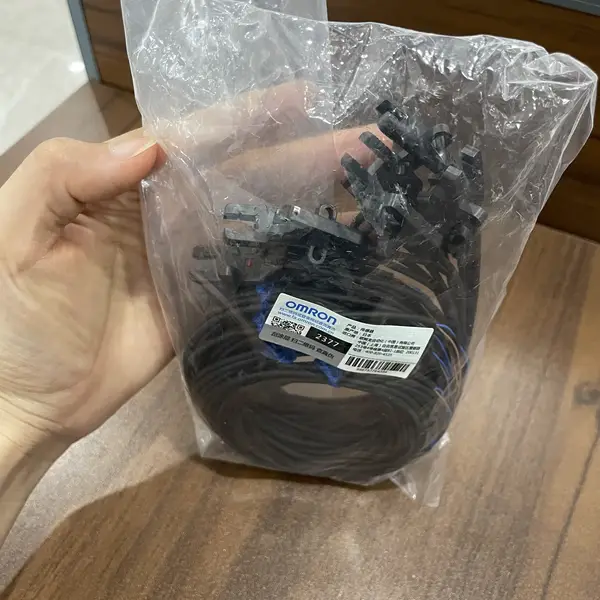

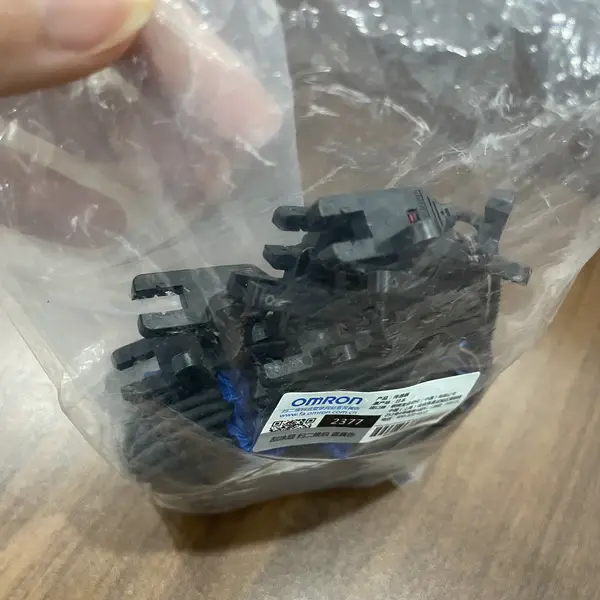

Omron EE-SX772A — T-Shaped Slot Sensor, Dark-ON
SKU: EE-SX772AUSD 15.00
EE-SX77/87 slim photomicrosensor, T-shape, 5 mm slot width, NPN open collector, Dark-ON, 5 to 24 VDC, pre-wired 2 m cable.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron EE-SX772A is the T-shaped Dark-ON variant of the EE-SX77/87-series slim photomicrosensor family. It is manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The 5 mm slot sits through one arm of the T, with the emitter and receiver on opposite sides of the slot. The A-suffix means the indicator LED turns on when the beam is interrupted (Dark-ON logic with reversed indicator).
Operating humidity is 5 to 85 percent RH with no condensation. Key specs: Model EE-SX772A; Slot Width 5 mm; Shape T-shaped (slot through one arm, emitter and receiver on opposite sides); Operating Mode Dark-ON (output ON when beam is interrupted), indicator LED also ON when interrupted; Output Type NPN open collector, 100 mA max; Supply Voltage 5 to 24 VDC +/- 10%, ripple 10% max; Current Consumption 35 mA max; Light Source GaAs infrared LED, 940 nm peak wavelength.
Key Features
- EE-SX77/87-series slim photomicrosensor, T-shape, 5 mm slot width
- 5 to 24 VDC supply, 35 mA current consumption
- Response time 0.17 ms max, suitable for parts counting
- NPN open-collector output, 100 mA max at 5 to 24 VDC
- SKU: EE-SX772A
- Series: EE-SX77/87 slim photomicrosensor (non-modulated)
- Voltage: 5 TO 24 VDC
Best-Fit Applications
- PCB conveyor stop-position verification where the board edge breaks the beam.
- Tape-and-reel feeder verification where cover tape must be absent at the pick point.
- Detecting missing parts on a parts feeder with each part interrupting the slot.
Buying Checklist
- Choose EE-SX772P (PNP) when the downstream counter or PLC needs sourcing outputs instead of sinking NPN.
- Confirm Dark-ON is the right logic - for Light-ON (output on when beam is clear), choose EE-SX772 instead.
- Choose EE-SX771A for the same Dark-ON with reversed indicator on the L-shape, where the optical axis turns 90 degrees.
Technical Specifications
| Model | EE-SX772A |
|---|---|
| Series | EE-SX77/87 slim photomicrosensor (non-modulated) |
| Slot Width | 5 mm |
| Shape | T-shaped (slot through one arm, emitter and receiver on opposite sides) |
| Operating Mode | Dark-ON (output ON when beam is interrupted), indicator LED also ON when interrupted |
| Output Type | NPN open collector, 100 mA max |
| Supply Voltage | 5 to 24 VDC +/- 10%, ripple 10% max |
| Current Consumption | 35 mA max |
| Light Source | GaAs infrared LED, 940 nm peak wavelength |
| Response Time | 0.17 ms max |
| Connection | Pre-wired 2 m vinyl-insulated round cable, 3 cores |
| Dimensions / Rating | 19.1 x 31.1 x 12.3 mm, IP64, -25 to +55 degC operating |
FAQ for EE-SX772A
What does the 'A' suffix mean on the EE-SX772A?
The A suffix reverses the indicator LED logic so that the red LED on top of the case lights up when the beam is interrupted - matching the Dark-ON output state. The non-A EE-SX772 is Dark-ON too, but the indicator lights up when the beam is clear. Pick the A suffix when the operator needs visual confirmation that the sensor has detected the part.
What is the difference between EE-SX772 and EE-SX772A?
Both are T-shape, 5 mm slot, Dark-ON NPN output. The non-A SX772 has the indicator LED ON when the beam is clear (Light-ON indicator logic with Dark-ON output); the SX772A has the indicator LED ON when the beam is interrupted (Dark-ON indicator logic, matching the output). The output transistor behaviour is the same in both.
Can the EE-SX772A be wired directly to a 24 VDC PLC input?
Yes - the NPN open-collector output pulls to near 0 V (less than 0.8 V at 100 mA) when the beam is interrupted, which a sinking 24 VDC PLC input reads as ON. Wire the brown lead to the PLC's 24 V supply, blue to the common, and black to the input terminal. The 35 mA supply current plus the input current must stay within the PLC's 24 V budget.
Is the EE-SX772A IP-rated for food-grade wash-down?
The EE-SX772A is rated IP64 - dust-tight and protected against splashing water from any direction. It is suitable for light wash-down in packaging lines and food processing. For full high-pressure wash-down with hot water or caustic cleaners, step up to an IP67 / IP69K sensor such as the E3ZM or the SUS316L-bodied E3FA.
