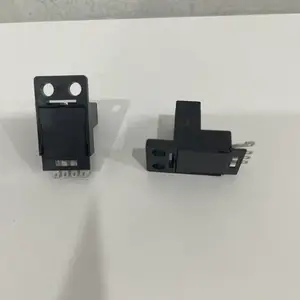

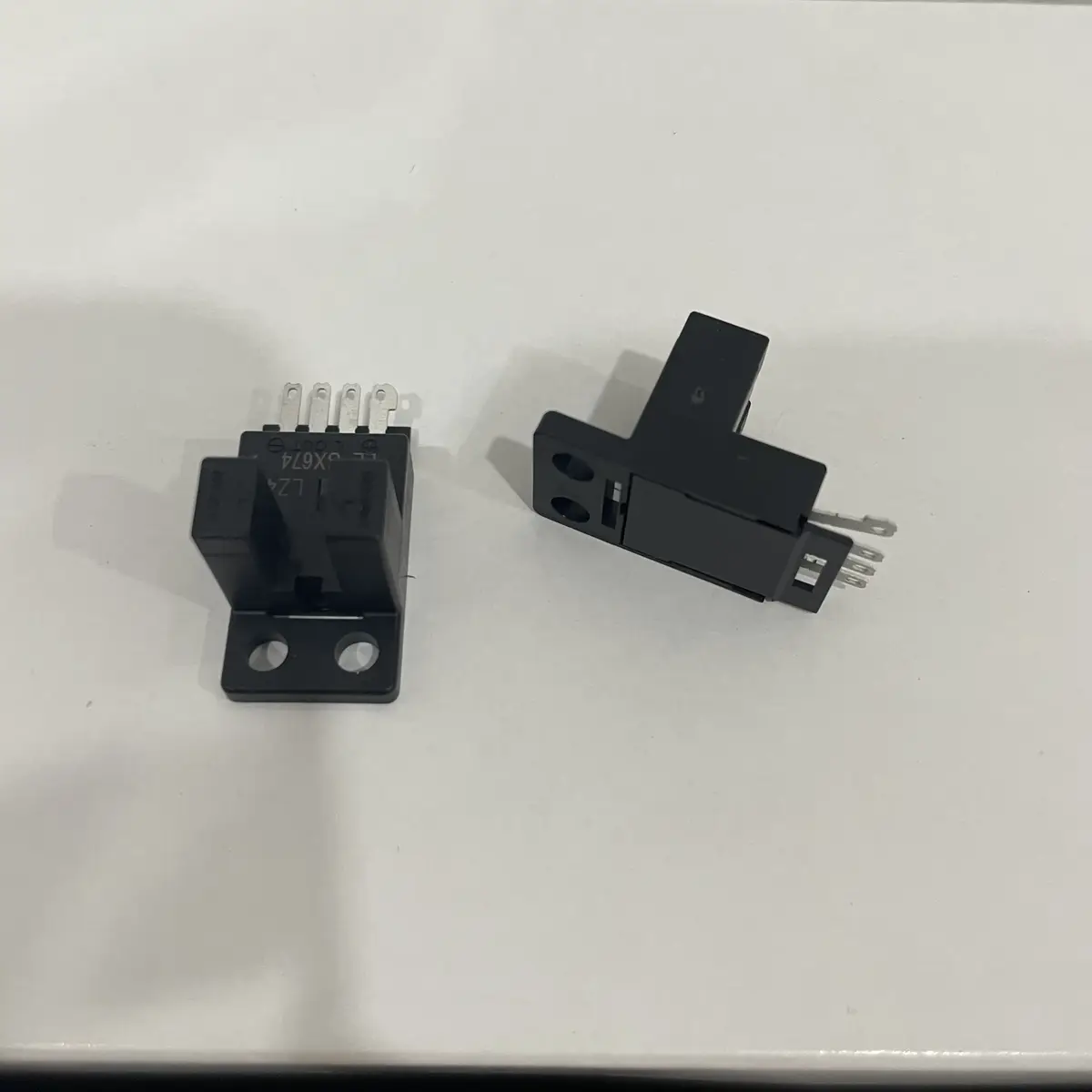

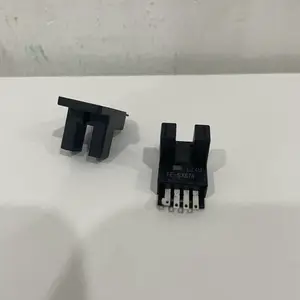

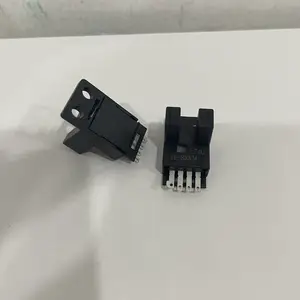

Omron EE-SX674 — Slot Sensor, T-Shape 10 mm, NPN, Connector
SKU: EE-SX674USD 4.00
T-shaped close-mounting slot photomicrosensor, 5 mm slot width / 9 mm depth, NPN open-collector output (100 mA), Dark-ON/Light-ON selectable via L terminal, 4-pin system connector (EE-1006 / EE-1010 harness), 0.17 ms response, 5-24 VDC supply.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The EE-SX674 is a T-shaped close-mounting slot photomicrosensor with a 5 mm slot width and 9 mm slot depth, from Omron's EE-SX47 / SX67 family of amplified through-beam sensors with built-in connector. The "T-shape, slot center 10 mm" profile (Omron calls this "close-mounting" because the slot is set back from the front face for close-coupling to a moving target) gives the SX674 a slightly deeper sensing throat than the SX672 (slot center 7 mm) — making the SX674 the right pick when the target arm or flag is 10 mm or wider, while the SX672 is better for narrower 7 mm arms.
Where the EE-SX674 fits in the EE-SX67 family
The EE-SX47 / SX67 family splits along three axes: profile (standard / L-shaped / T-shaped 7 mm / T-shaped 10 mm / F-shaped / R-shaped), output (NPN or PNP), and connection (connector model or pre-wired -WR). The "674" is the T-shaped close-mounting profile with slot center 10 mm, NPN output, connector model. The full T-shaped 10 mm lineup: EE-SX674 (NPN connector, this SKU), EE-SX674A (Dark-ON fixed), EE-SX674R (Light-ON fixed), EE-SX674P (PNP), EE-SX674-WR (NPN pre-wired), EE-SX674-WR 1M (pre-wired 1 m cable), EE-SX676-WR (pre-wired 5 mm slot different profile). Pick the EE-SX674 when you need NPN output, a 4-pin connector, and Dark/Light-ON selectable logic.
Connector, L terminal, and wiring the EE-1006 harness
The EE-SX674 ships as a bare sensor body with 4 PCB pins on the rear — you must purchase an EE-1006 (1 m / 2 m) or EE-1010 (1 m / 2 m) connector harness separately (the EE-1006A hold-down clip is optional). The harness has 4 colour-coded wires: brown = +V, blue = 0 V, black = OUT (NPN open-collector), pink = L terminal. For Dark-ON (output ON when beam is broken), leave the pink wire disconnected or connect it to 0 V. For Light-ON (output ON when beam is unblocked), short the pink wire to the brown +V wire with a small jumper.
Application fit and mounting
The EE-SX674 is the workhorse slot sensor for limit-switch-replacement applications on packaging machines, conveyor lines, and assembly automation — wherever a metal flag or plastic tab passes through a 5 mm slot. Common uses: end-of-stroke detection on a pneumatic cylinder rod, label-presence detection on a packaging line, pulse counting from a rotating shaft with a slotted disc (up to 1 kHz), home-position detection on a linear slide, cam-position verification on a rotary indexing table, and door open/closed detection on a control cabinet. Mount with two M3 screws through the 9.5 mm clearance holes in the sensor body, tightened to 0.4-0.5 N·m torque.
Key Features
- T-shaped close-mounting slot photomicrosensor, slot center 10 mm
- 5 mm slot width, 9 mm slot depth
- NPN open-collector output, 100 mA switching current
- Dark-ON / Light-ON logic selectable via L terminal
- 4-pin system connector
- Operating voltage 5 to 24 VDC ±10 %
- Current consumption 15 mA max
- Response time 0.17 ms
- SKU: EE-SX674
- Series: EE-SX47 / SX67 (Slot-type photomicrosensor, non-modulated)
- Voltage: 24 VDC
- I/O: 100 I/O
Best-Fit Applications
- End-of-stroke detection on a pneumatic cylinder — the rod flag passes through the 5 mm slot
- Label-presence detection on a packaging line — the label edge breaks the beam
- Pulse counting from a rotating shaft with a slotted disc — counts encoder pulses up to 1 kHz
- Home-position detection on a linear slide — flags the slide at the home position
Buying Checklist
- Pick EE-SX674 for T-shaped close-mounting slot sensor with selectable Dark/Light-ON, NPN output, connector
- Pick EE-SX674-WR for pre-wired version
- Pick EE-SX674A for Dark-ON fixed
- Pick EE-SX674R for Light-ON fixed
- Pick EE-SX674P for PNP sourcing output
- Pick EE-SX672 for narrower target arms — slot center 7 mm
Technical Specifications
| Model | EE-SX674 |
|---|---|
| Series | EE-SX47 / SX67 (Slot-type photomicrosensor, non-modulated) |
| Type | T-shaped close-mounting slot sensor |
| Sensing Method | Through-beam (with 5 mm slot) |
| Slot Width | 5 mm |
| Slot Depth | 9 mm |
| Slot Center Position | 10 mm from mounting face (close-mounting) |
| Light Source | Red LED (660 nm), non-modulated |
| Output Type | NPN open-collector transistor |
| Output Current | 100 mA max (sink) |
| Output Voltage Rating | 24 VDC max |
| Residual Voltage | 0.8 V max (at 100 mA load) |
| Leakage Current | 0.1 mA max |
| Operating Voltage | 5 to 24 VDC ±10 % |
| Current Consumption | 15 mA max (NPN version) |
Resources & Downloads
FAQ for EE-SX674
What's the difference between EE-SX674 and EE-SX672?
Both are T-shaped close-mounting slot sensors with NPN open-collector output and selectable Dark/Light-ON logic. The only difference is the slot center position: EE-SX674 (this SKU) has a slot center 10 mm from the mounting face (deeper sensing throat, suited for targets 10 mm or wider), while EE-SX672 has a slot center 7 mm from the mounting face (shallower throat, suited for narrower targets 7-9 mm wide).
Do I need to buy a connector harness for the EE-SX674?
Yes — the EE-SX674 ships as a bare sensor body with 4 PCB pins on the rear. You must purchase a connector harness separately. The compatible harnesses are: EE-1006 1M (1 m PVC cable, 4 conductors), EE-1006 2M (2 m PVC cable), EE-1010 1M (1 m PVC cable, 4 conductors, equivalent to EE-1006), EE-1010 2M (2 m PVC cable), and EE-1010-R 1M / 2M (robot cable for high-flex applications). The EE-1006A hold-down clip is optional and recommended for vibration-prone installations.
How do I wire the EE-SX674 for Dark-ON vs Light-ON operation?
The 4 wires on the EE-1006 harness are colour-coded: brown = +V (5 to 24 VDC supply), blue = 0 V (ground), black = OUT (NPN open-collector output), pink = L terminal (Light/Dark select).
Can the EE-SX674 be used to count pulses from a rotating shaft?
Yes — the EE-SX674 has a response time of 0.17 ms, which translates to a maximum counting frequency of about 1 kHz (500 pulses per second in each direction, since each pulse requires a transition). For a single-channel pulse-counting application, mount a slotted disc on the rotating shaft with the slot pattern passing through the EE-SX674's 5 mm slot.
