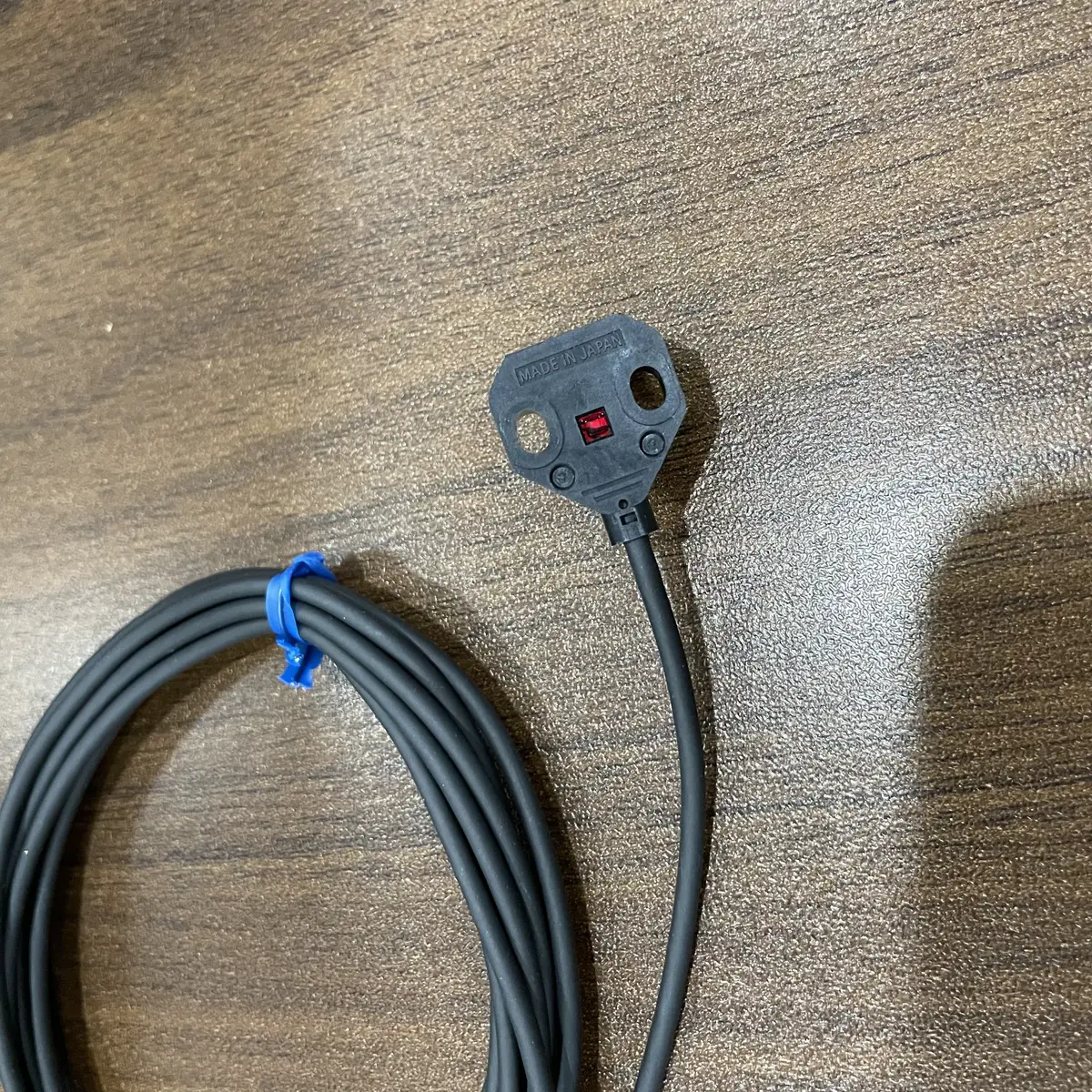

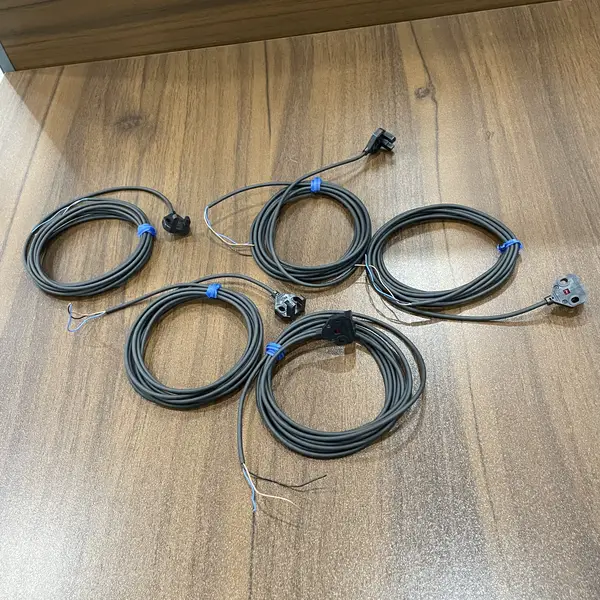

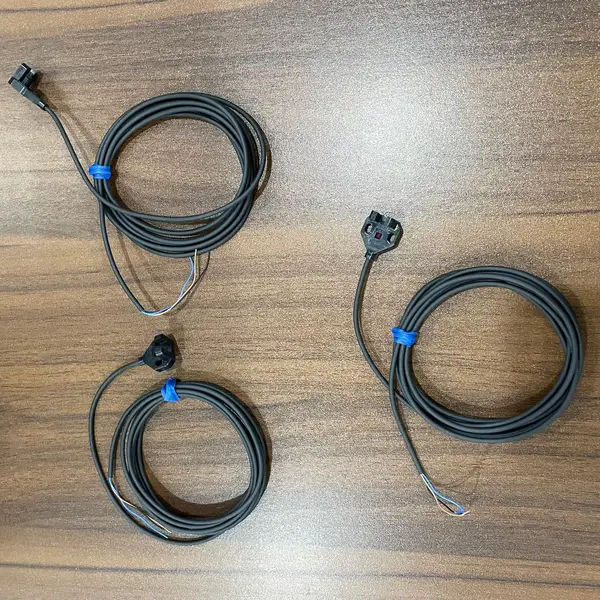

Omron EE-SX871 — L-Shaped Slot Sensor, Light-ON
SKU: EE-SX871USD 15.00
EE-SX77/87 slim photomicrosensor, L-shape, 5 mm slot width, NPN open collector, Light-ON, 5 to 24 VDC, pre-wired 2 m cable.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron EE-SX871 is the L-shaped Light-ON variant of the EE-SX77/87-series slim photomicrosensor family. It is manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The 5 mm slot, GaAs 940 nm infrared LED emitter and phototransistor receiver sit on the two arms of an L-shape, with the optical axis on the inside of the corner. Light-ON means the output transistor turns on (pulls to 0 V for NPN) when the beam is uninterrupted - the indicator LED on top of the case also lights up in this state.
Differential distance is 0.025 mm max - the sensor sees the same target position to within 25 micrometres run-to-run. Key specs: Model EE-SX871; Slot Width 5 mm; Shape L-shaped (emitter on one arm, receiver on the perpendicular arm); Operating Mode Light-ON (output ON when beam is uninterrupted); Output Type NPN open collector, 100 mA max; Supply Voltage 5 to 24 VDC +/- 10%, ripple 10% max; Current Consumption 35 mA max; Light Source GaAs infrared LED, 940 nm peak wavelength.
Key Features
- EE-SX77/87-series slim photomicrosensor, L-shape, 5 mm slot width
- 5 to 24 VDC supply, 35 mA current consumption
- Response frequency 1 kHz min, averaging 3 kHz typical
- NPN open-collector output, 100 mA max at 5 to 24 VDC
- SKU: EE-SX871
- Series: EE-SX77/87 slim photomicrosensor (non-modulated)
- Voltage: 5 TO 24 VDC
Best-Fit Applications
- Toner cartridge or label position verification on a small printer.
- Tape-and-reel parts counting as each carrier passes through the slot.
- Detecting small opaque parts on an indexing dial or parts feeder.
Buying Checklist
- Confirm the operating mode is Light-ON - for Dark-ON on the same L-shape, choose EE-SX870 instead.
- Choose EE-SX871P (PNP) when the downstream counter or PLC needs a sourcing output instead of NPN.
- Choose EE-SX872 for the same Light-ON logic but a T-shape, where the optical axis is straight through one arm.
Technical Specifications
| Model | EE-SX871 |
|---|---|
| Series | EE-SX77/87 slim photomicrosensor (non-modulated) |
| Slot Width | 5 mm |
| Shape | L-shaped (emitter on one arm, receiver on the perpendicular arm) |
| Operating Mode | Light-ON (output ON when beam is uninterrupted) |
| Output Type | NPN open collector, 100 mA max |
| Supply Voltage | 5 to 24 VDC +/- 10%, ripple 10% max |
| Current Consumption | 35 mA max |
| Light Source | GaAs infrared LED, 940 nm peak wavelength |
| Response Frequency | 1 kHz min, averaging 3 kHz typical |
| Connection | Pre-wired 2 m vinyl-insulated round cable, 3 cores |
| Dimensions / Rating | PBT housing, IP60, -25 to +55 degC operating, approx 20 g |
FAQ for EE-SX871
What is the difference between EE-SX870 and EE-SX871?
Both are L-shaped 5 mm slot photomicrosensors in the EE-SX77/87 family. The SX870 is Dark-ON (output ON when the beam is interrupted); the SX871 is Light-ON (output ON when the beam is uninterrupted). The SX870A reverses the indicator logic - the LED turns on when the beam is interrupted. Pick SX870 for through-beam missing-part detection; pick SX871 for through-beam present-part detection.
What are the wire colours on the EE-SX871?
The pre-wired 2 m cable has three cores: brown for Vcc (5 to 24 VDC), blue for GND (0 V), and black for the NPN output (open collector, 100 mA max). The black wire pulls to near 0 V when the beam is uninterrupted and floats (high impedance) when interrupted. Tie the black wire to the PLC's DC input through a 4.7 kohm pull-up if the PLC needs an active-high signal.
Can the EE-SX871 be panel-mounted?

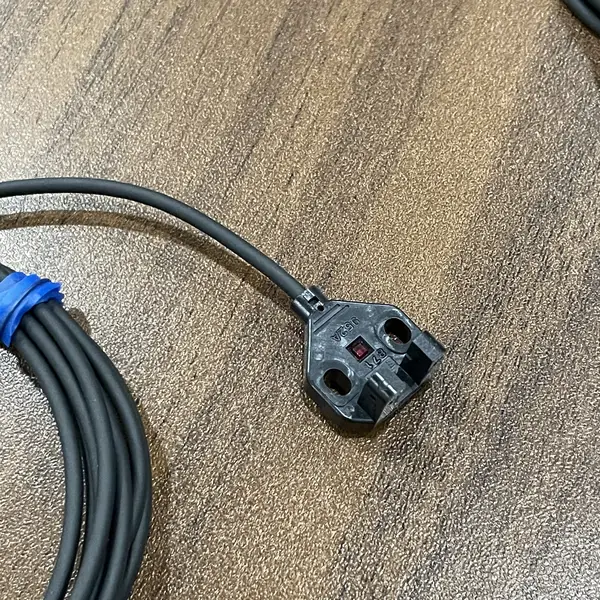

Yes - the EE-SX871 has two M3 mounting holes on the L-shape body, one on each arm, plus the slim PBT housing slides into a 5 mm slot cut into a panel for through-panel mounting. Tighten the M3 screws to 0.49 N.m max. Do not overtighten - the PBT case can crack under high torque.
How small an object can the EE-SX871 detect?
The minimum detectable object is 2 x 0.8 mm opaque - a small rectangle that fully blocks the 5 mm slot. For sub-millimetre detection, use an EE-SX674 slot sensor with the WR (robotic cable) suffix or a fibre-optic E32 amplifier. The differential distance is 0.025 mm max, so the sensor sees the same position to within 25 micrometres run-to-run.
