Omron EE-SX872 — T-Slot Sensor, 5 mm, Light-ON, NPN
SKU: EE-SX872USD 15.50

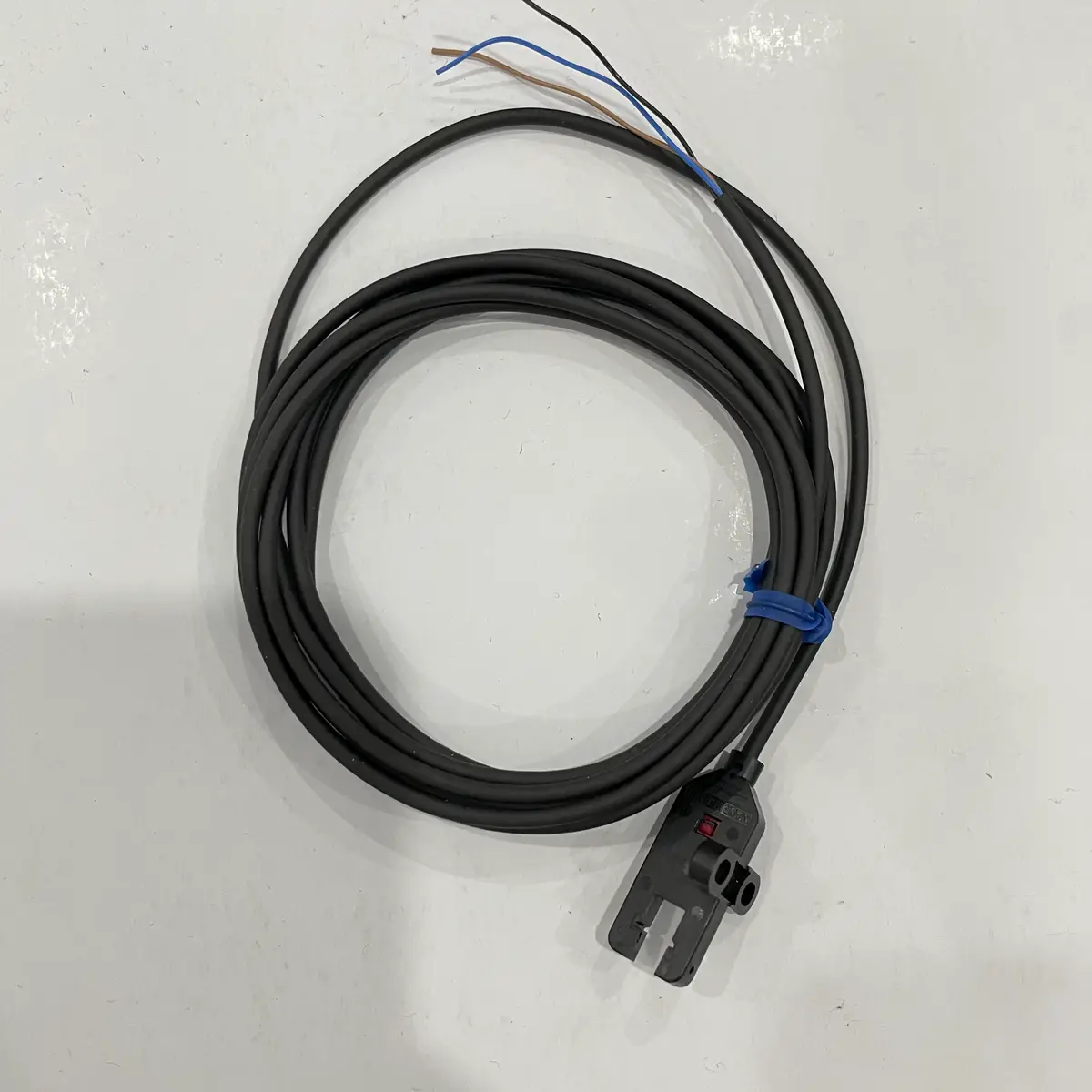

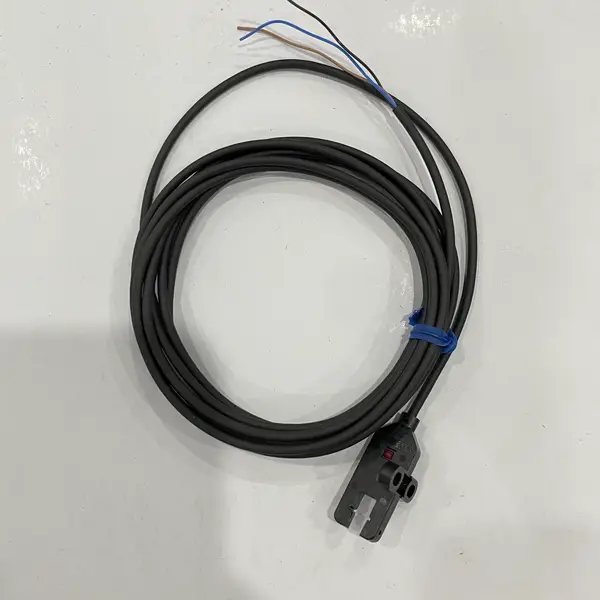

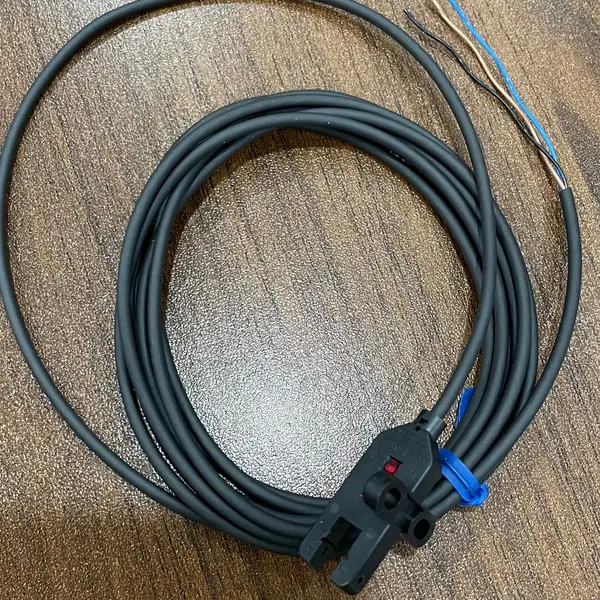

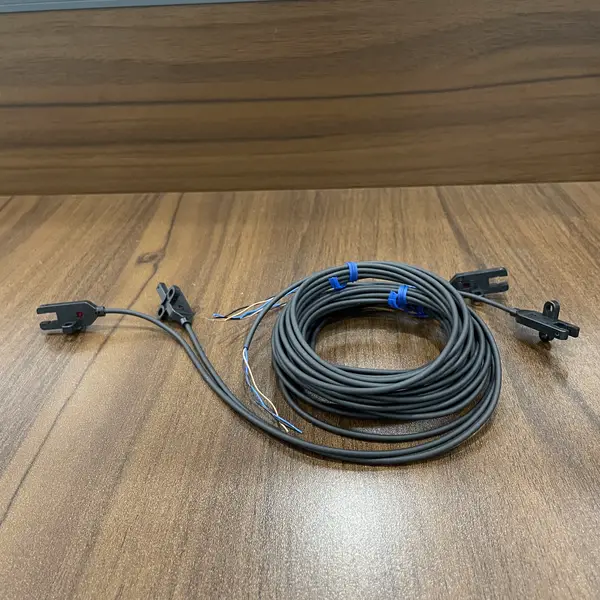

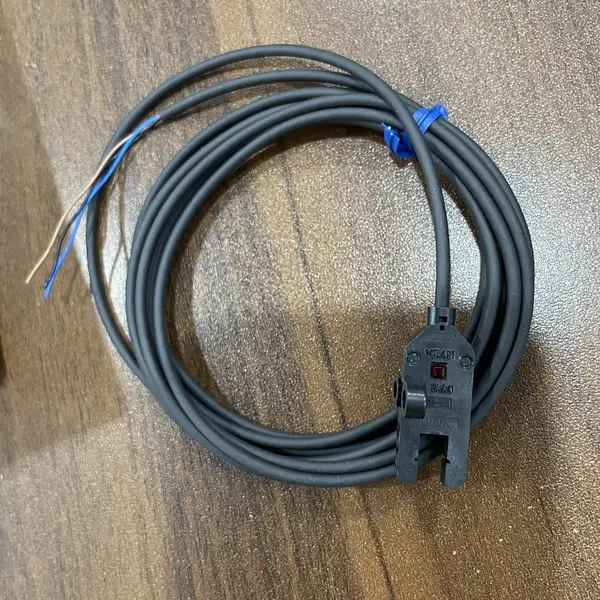

Omron EE-SX872 T-shape slot photomicrosensor, 5 mm slot, Light-ON NPN, 5-24 VDC, 2 m prewired cable. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron EE-SX872 is a T-shape slot photomicro-sensor from the EE-SX77 / SX87 family, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The emitter and receiver face each other across a 5 mm slot. The T-shape body sits at the centre line of the optical path so the flag or tab passes through the slot. The output is NPN open-collector, Light-ON, which means the output is ON when the receiver sees the emitter beam. Sensing object minimum is 2 x 0.8 mm opaque.
Supply is 5 to 24 VDC at 35 mA consumption with a 100 mA load limit. Response is 1 kHz minimum, 3 kHz average. A 2 m prewired cable exits the body. The case is PBT, weight about 20 g, IP60. Operating temperature is -25 to +55 degC. For the Dark-ON version on the same body, pick the EE-SX870. For the standard L-shape body, pick the EE-SX674.
Key Features
- EE-SX87 T-shape slot photomicrosensor, 5 mm slot width
- Light-ON NPN open-collector output, 5-24 VDC, 100 mA max load
- 5 to 24 VDC supply, 35 mA consumption, 2 m prewired cable
- PBT housing, 19.1 x 12.3 x 31.1 mm, IP60, -25 to +55 degC
- SKU: EE-SX872
- Series: Omron EE-SX87-series photomicrosensor (slot, T-shape)
- Voltage: 5 TO 24 VDC
Best-Fit Applications
- Label-edge detection on a print-and-apply head where the 5 mm slot accepts the label web and the 1 kHz response catches the printed edge
- Tab-presence check on a feeder track where the T-shape body sits inside the bracket and the NPN output drives a CP1W high-speed input
- Spare replacement on a packaging line where the old EE-SX872 T-slot sensor failed and the new one drops onto the same bracket and cable
Buying Checklist
- Pick the EE-SX872 for a T-shape 5 mm slot sensor with Light-ON NPN output and a 2 m prewired cable.
- Pick the EE-SX870 instead when the bracket needs the Dark-ON output on the same T-shape body.
- Pick the EE-SX674 instead when the bracket needs the standard L-shape body on the same electrical spec.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron EE-SX87-series photomicrosensor (slot, T-shape) |
| Model / SKU | EE-SX872 |
| Sensing Method | Through-beam slot, T-shape body |
| Slot Width | 5 mm |
| Output | NPN open-collector, Light-ON |
| Response Frequency | 1 kHz min, 3 kHz average |
| Light Source | GaAs infrared LED, 940 nm |
| Supply Voltage | 5 to 24 VDC |
| Load Current | 100 mA max |
| Connection | 2 m prewired cable |
| Protection / Material | IP60; PBT case; -25 to +55 degC; about 20 g |
FAQ for EE-SX872
What is the difference between EE-SX872 and EE-SX872A?
The EE-SX872 is Light-ON (output ON when the beam is received). The EE-SX872A is Dark-ON (output ON when the beam is broken). The body, cable, and electrical spec are the same.
How small a target can the EE-SX872 detect?
Down to 2 x 0.8 mm opaque at the optical centre. Thin wires and transparent objects will not trigger the sensor. For 0.5 mm targets, use a smaller-slot model such as the EE-SX674 family.
Can the EE-SX872 run on 5 VDC logic?
Yes. The unit runs on 5 to 24 VDC, so it can sit directly on a 5 V logic supply or a 24 V PLC input. Residual voltage is 0.4 V max at 40 mA and 0.8 V max at 100 mA load.
