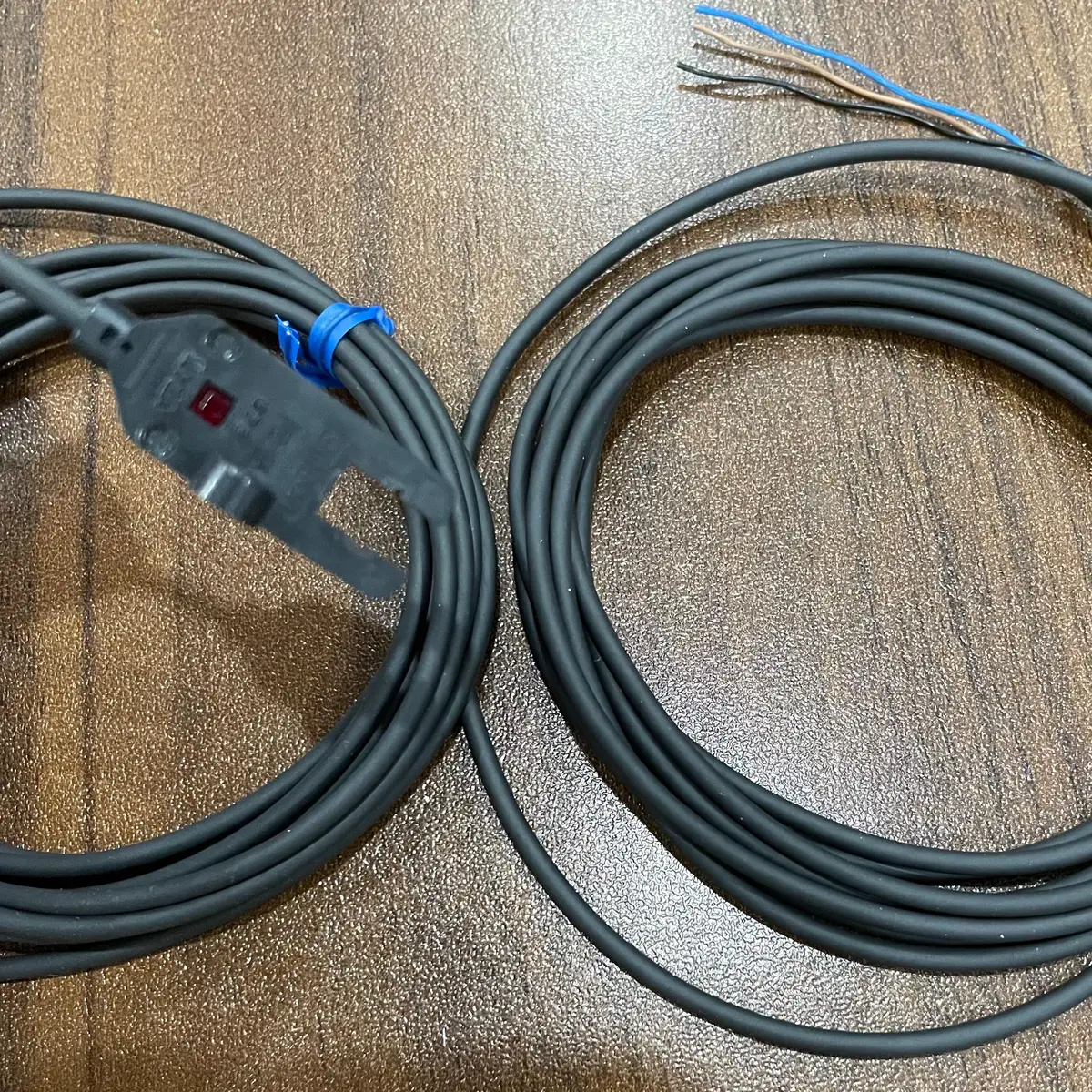

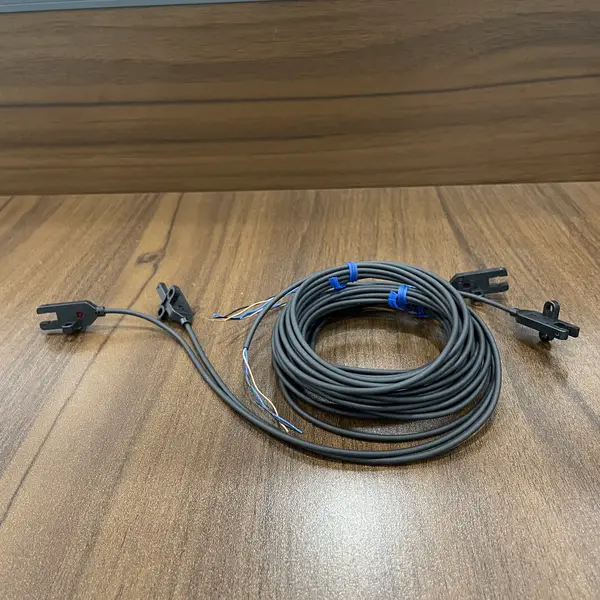

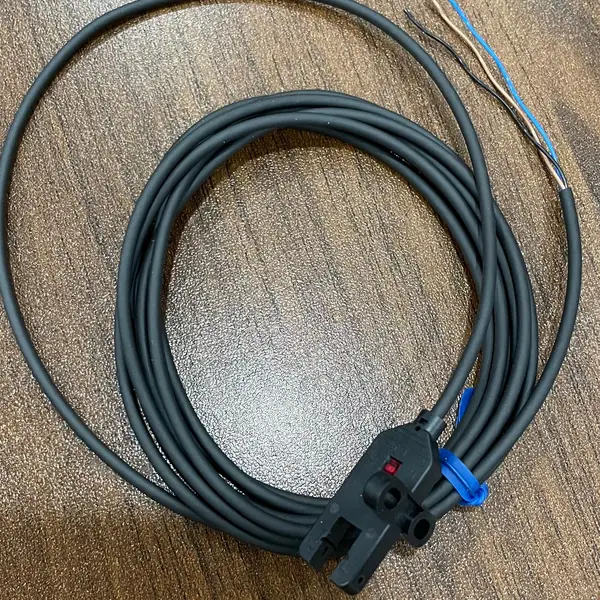

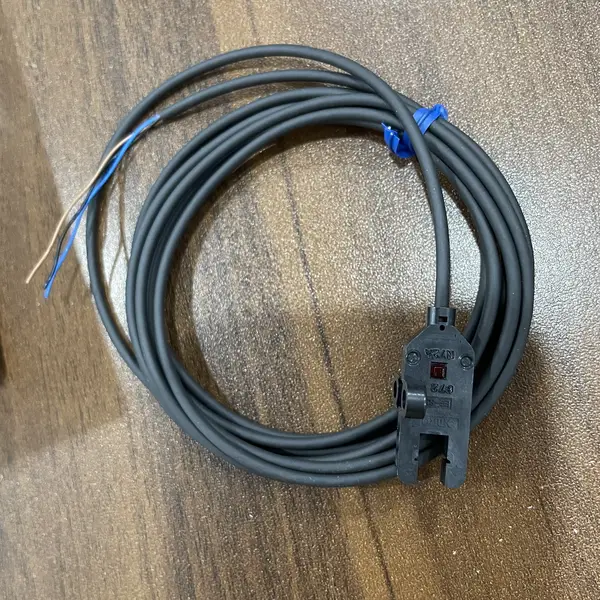

Omron EE-SX872 2M — T-Shaped Slot Sensor, NPN, 2 m
SKU: EE-SX872 2MUSD 14.00
Omron EE-SX872 2M T-shaped slot photomicrosensor, 5 mm slot, NPN open-collector Light-ON, 2 m cable. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron EE-SX872 2M is a T-shaped slot photomicrosensor from the EE-SX87 series, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The sensor has a T-shaped body with a 5 mm slot that runs through-beam with a GaAs infrared LED on one side and the phototransistor on the other. Output is NPN open-collector, Light-ON as wired. Maximum load is 100 mA at up to 24 VDC. Supply is 5 to 24 VDC and current draw is 35 mA max. Response frequency is 1 kHz, giving 0.17 ms per detection.
The 2 m cable is a flexible PVC lead wire, oil-resistant. Body size is 19.1 x 31.1 x 12.3 mm in a PBT thermoplastic case, IP50, -25 to +55 degC operating. The standard sensing object is opaque, 2 x 0.8 mm min. For the L-shaped sibling, pick the EE-SX870. For the F-shaped sibling, pick the EE-SX871.
Key Features
- T-shaped slot photomicrosensor with 5 mm slot width and GaAs infrared LED
- NPN open-collector output, Light-ON operation, 100 mA load, 0.17 ms response
- Pre-wired with 2 m flexible PVC cable, oil-resistant jacket
- 5 to 24 VDC supply, 35 mA current, PBT housing, IP50, -25 to +55 degC operating
- SKU: EE-SX872 2M
- Series: Omron EE-SX87 slim compact photomicrosensor
- Voltage: 5 TO 24 VDC
Best-Fit Applications
- End-of-stroke flag detection on a small pneumatic cylinder where the 5 mm slot reads the rod position
- Print-mark registration on a label applicator where the mark breaks the beam at the peel roller
- Pulse counting on a small encoder disc at one pulse per revolution up to 6000 rpm
Buying Checklist
- Pick the EE-SX872 2M for a T-shaped 5 mm slot sensor with NPN output and a 2 m cable.
- Pick the EE-SX870 instead when the bracket geometry calls for an L-shaped body rather than T-shaped.
- Pick the EE-SX872P 2M instead when the cabinet is wired PNP and the slot dimensions match.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron EE-SX87 slim compact photomicrosensor |
| Model / SKU | EE-SX872 2M |
| Sensing Method | Through-beam with 5 mm slot, GaAs infrared LED 940 nm |
| Body / Mounting | T-shaped, surface with through-holes |
| Output Type | NPN open-collector, Light-ON |
| Load Current | 100 mA max |
| Response Time | 0.17 ms (1 kHz min) |
| Supply Voltage | 5 to 24 VDC +/-10 % |
| Connection | Pre-wired 2 m flexible PVC cable, oil-resistant |
| Dimensions / Material | 19.1 (W) x 31.1 (H) x 12.3 (D) mm; PBT thermoplastic |
| Protection / Climate | IP50; -25 to +55 degC operating; CE / cULus marked |
FAQ for EE-SX872 2M
What is the Omron EE-SX872 2M used for?
It detects when an object breaks the 5 mm slot on a machine. Typical fits are end-of-stroke detection on a cylinder, label-presence detection on a packaging line, and pulse counting from a small slotted disc on an encoder.
What is the difference between EE-SX872 and EE-SX872A?
Both are T-shaped, 5 mm slot, NPN Light-ON. The -A suffix flips the indicator LED so it lights when the beam is interrupted, not when it is clear. The bare EE-SX872 (and this EE-SX872 2M) lights the LED on incident light.
Does the EE-SX872 2M work with a PNP PLC input?
Not directly -- it is NPN open-collector. For a PNP sibling in the same EE-SX87 series with the same T-shaped body, pick the EE-SX872P 2M.
What is the minimum object the EE-SX872 2M can detect?
An opaque object at least 2 x 0.8 mm. Smaller or translucent flags may not break the beam cleanly and should be tested on the actual line before committing.
