Omron ES1B 60-120C — IR Thermosensor, 60-120°C
SKU: ES1B 60-120CUSD 270.00
Omron ES1B 60-120C M18 IR thermosensor, 60 to 120 °C, K-type thermocouple output, 3 m PVC cable. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron ES1B 60-120C is an M18 threaded infrared thermosensor for non-contact temperature measurement from 60 to 120 °C, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The sensor outputs a thermocouple-grade millivolt signal and lands directly on the K-type thermocouple input terminals of any Omron Temperature Controller. Operating voltage is 12 or 24 VDC at 20 mA current draw. The 1:1 distance-to-spot ratio reads a 10 mm spot at 10 mm working distance. Response speed is 300 ms at 63 percent. Reproducibility is ±1 percent PV or ±1 °C. Measurement wavelength is 6.5 to 14 µm.

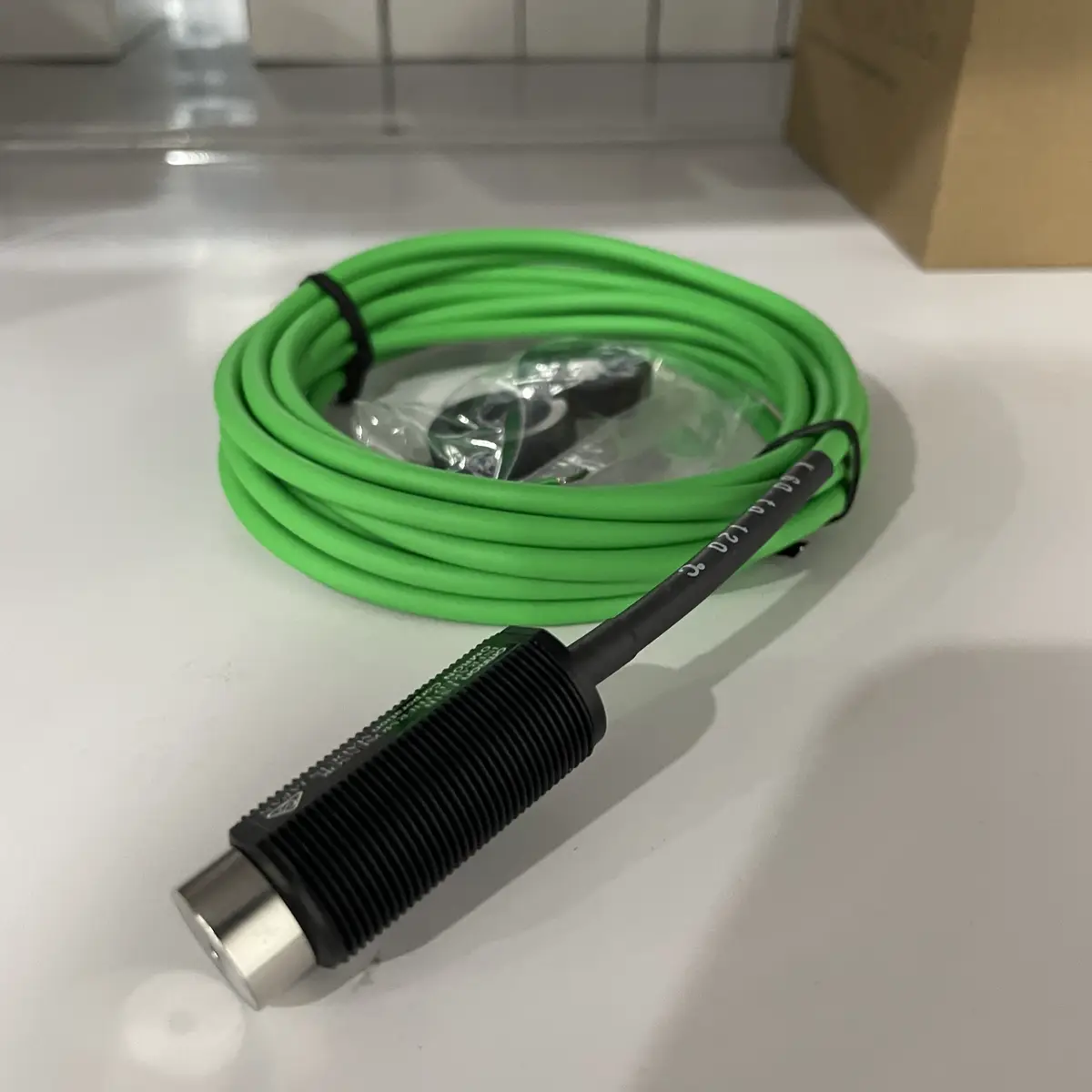

The M18 ABS tube is 44.5 mm long with a 3 m PVC shielded cable and open ends. IP65 rated. Operating temperature -25 to +70 C. Note the ES1B cannot be used with the E5ZE Multi-point Temperature Controller. For a controller to read the signal and drive the heater SSR, see the E5CC-RX2ASM-802 PID controller.
Key Features
- M18 threaded IR thermosensor, 60 to 120 °C measuring range, behaves like a K-type thermocouple on the input terminals
- 1:1 distance-to-spot ratio, 300 ms 63 percent response, 6.5 to 14 µm measurement wavelength, ±1 percent PV reproducibility
- 12 / 24 VDC supply, 20 mA current draw, ABS tube body 44.5 mm long, 3 m PVC shielded cable with open ends
- IP65 rated, -25 to +70 C operating, 120 g, lands directly on Omron E5ZN / E5AR / E5ER temperature controllers
- SKU: ES1B 60-120C
- Series: Omron ES1B infrared thermosensor family
- Voltage: 24 VDC
Best-Fit Applications
- Non-contact surface temperature of heated rollers on a packaging line where the 1:1 spot size fits the 60 to 120 °C working window
- Infrared body temperature of moulds on an injection-moulding machine where contact thermocouples wear out within weeks of use
- Spare replacement on a food-pasteuriser control loop where the previous ES1B has lost accuracy and the same K-type controller input must remain
Buying Checklist
- Pick the ES1B 60-120C for an M18 threaded non-contact IR thermosensor that reads 60 to 120 °C and outputs a K-type thermocouple signal.
- Pick a single-loop PID controller such as the E5CC-RX2ASM-802 instead when the cabinet needs a controller to read the ES1B signal and drive the heater SSR.
- Pick a contact Type-K thermocouple such as the E52-CA1GTY 2M instead when probe contact is acceptable and non-contact sensing is not required.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron ES1B infrared thermosensor family |
| Model / SKU | ES1B 60-120C |
| Measuring Range | 60 to 120 °C |
| Output Signal | K-type thermocouple-equivalent millivolt, 1 to 4 kΩ output impedance |
| Distance-to-Spot | 1:1 (10 mm spot at 10 mm working distance) |
| Response Time | Approximately 300 ms at 63 percent response |
| Accuracy | ±2 percent PV or ±2 °C at the reference temperature, ±4 percent PV or ±4 °C at +10 °C from reference |
| Supply Voltage | 12 / 24 VDC, 90 to 110 percent of rated voltage allowable, 20 mA max current draw |
| Wavelength / Receiver | 6.5 to 14.0 µm, thermopile receiver |

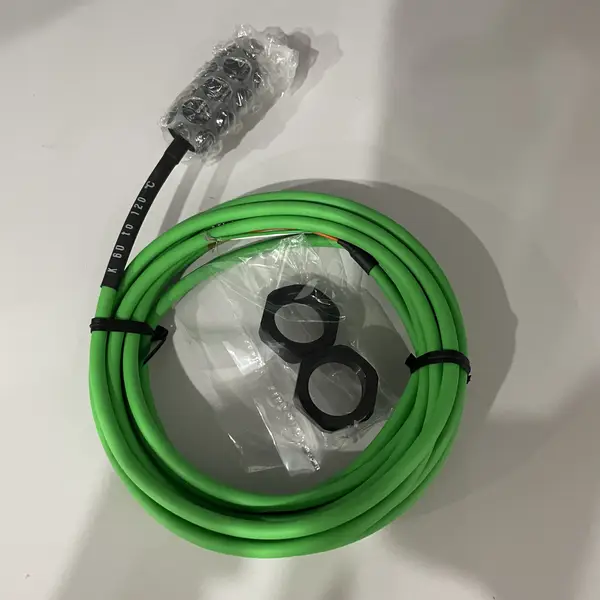

| Body / Cable | M18 threaded ABS tube 44.5 mm long, 3 m PVC shielded compensating cable with open ends |
| Environment | IP65, -25 to +70 C operating (no icing or condensation), 35 to 85 percent humidity, approximately 120 g, CE marked (EN 61326-1) |
FAQ for ES1B 60-120C
What is the Omron ES1B 60-120C used for?
It is the M18 threaded infrared thermosensor for non-contact surface-temperature measurement from 60 to 120 °C. The output looks like a K-type thermocouple, so it lands on the same input terminals as a wired probe and works with any Omron Temperature Controller that accepts K-type signals.
ES1B 60-120C vs ES1B 140-260C - what is the difference?
Both are M18 threaded IR thermosensors with the same body, 3 m cable, and K-type signal. The 60-120C reads 60 to 120 °C; the 140-260C reads 140 to 260 °C. Pick the 60-120C for heated-roller and pasteuriser work; pick the 140-260C for ironing presses and resin extrusion lines.
Does the ES1B 60-120C work with the E5ZE temperature controller?
No. The ES1B cannot be used with the E5ZE Multi-point Temperature Controller because the E5ZE expects a different input stage. It is compatible with the E5ZN, E5AR, and E5ER controller families.
