Omron E5CC-RX2ASM-802 — 48x48 mm PID, RS-485
SKU: E5CC-RX2ASM-802USD 42.00
E5CC 48x48 mm digital PID temperature controller, 1 relay control output + 2 aux outputs, RS-485, 2 event inputs, AC 100-240 V supply.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

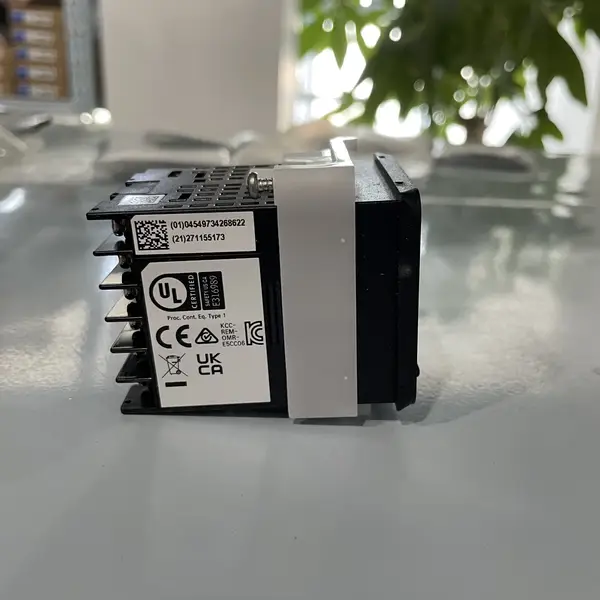

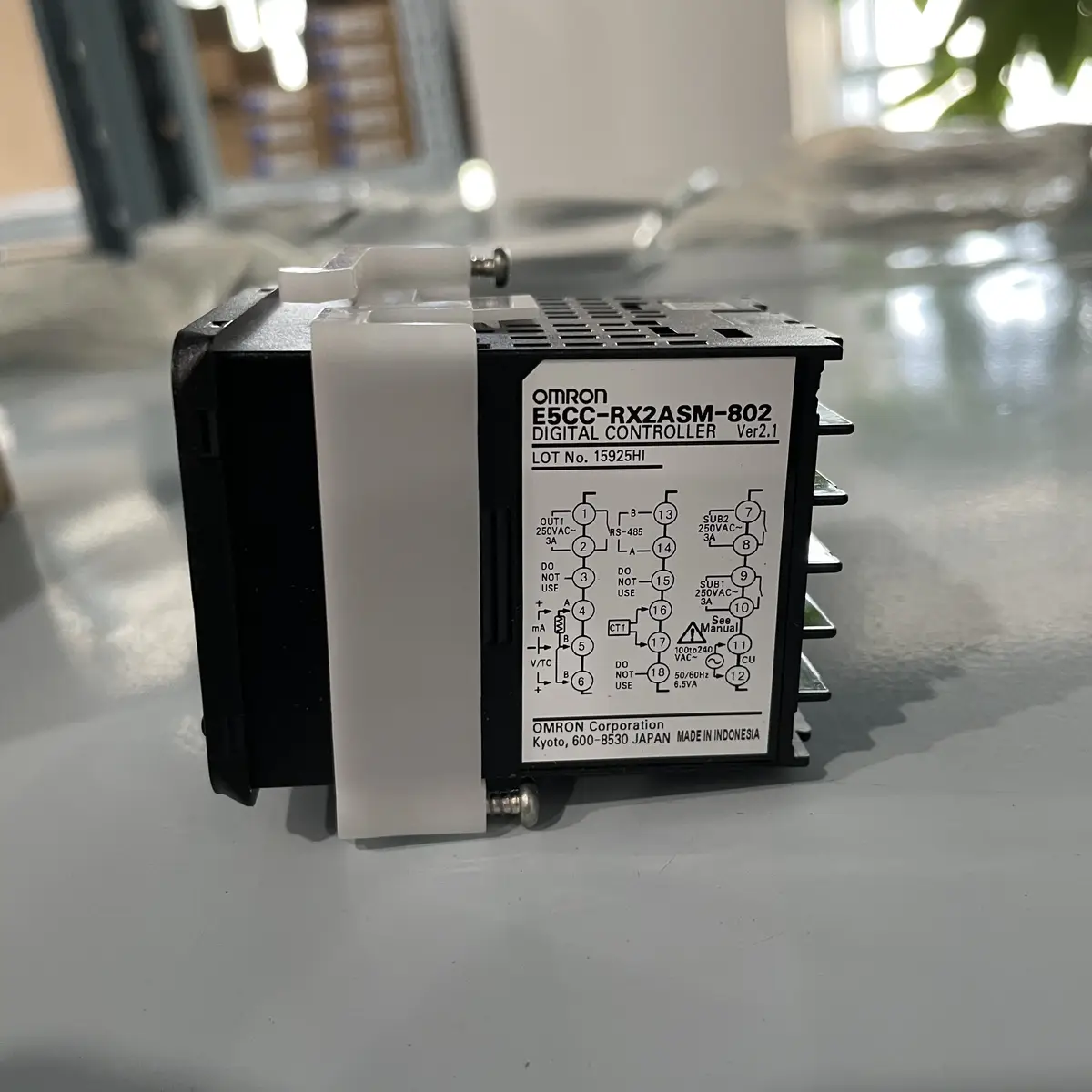

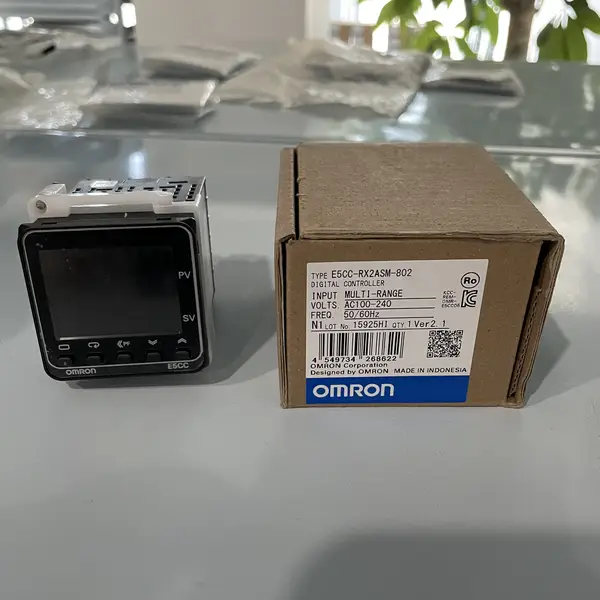

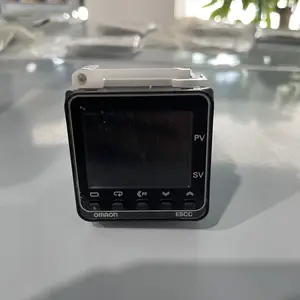

The Omron E5CC-RX2ASM-802 is the 48x48 mm (1/16 DIN) PID temperature controller in the E5CC lineup. The face is 48 x 48 mm with a 15.2 mm-tall white PV display, four front buttons, and an IP66 panel seal; the body is 60 mm deep and fits the standard 45 x 45 mm panel cutout. The bare R suffix means a single SPDT relay control output -- this is the SKU for ON/OFF or PID switching of a contactor, SSR, or alarm horn, NOT a linear 4-20 mA valve actuator. The X2 suffix adds two independent relay aux outputs, and the 802 suffix adds RS-485 CompoWay/F communication plus two event inputs plus one heater-burnout CT input.
What the -802 options actually do
RS-485 CompoWay/F serial ties the controller into a Modbus-friendly polling network with other E5_C / E5_C-T / EJ1 units, an NJ/NX PLC, or a SCADA package. The two event inputs let an external dry contact or PNP signal switch the controller between RUN and STOP, between auto and manual, or between two stored setpoints -- useful for day / night setpoint switching on a packaging line. The one heater-burnout CT input watches the current through a 1-phase heater and trips an alarm if the SSR or the heater element fails open.
Choosing the right output type
Pick the E5CC-RX2ASM-802 (this SKU) when the load is a mechanical relay or contactor coil, an SSR driven by the relay's dry contact, or a low-voltage alarm horn. Pick the E5CC-QX2ASM-802 (voltage output for SSR drive) when the load is a solid-state relay with a DC logic input and the cycle time is faster than the relay's 100,000-operation life allows. Pick the E5CC-CX2ASM-802 (current 4-20 mA output) when the load is a proportional valve or a phase-angle-fired thyristor that needs a linear setpoint signal.
Before ordering
Confirm the supply is AC 100-240 V -- for an AC/DC 24 V cabinet, order the matching E5CC-RX2DSM-802 instead. Confirm the panel cutout is 45 x 45 mm -- a 48 x 96 mm cutout needs the E5EC, and a 96 x 96 mm cutout needs the E5AC. Add the E58-CIFQ1 USB-serial conversion cable for CX-Thermo programming from a PC.
Key Features
- E5CC-series 48x48 mm (1/16 DIN) digital PID temperature controller
- Full-range multi-input: TC K/J/T/E/L/U/N/R/S/B/W or Pt100 / JPt100 RTD or analog 4-20 mA / 0-20 mA / 1-5 V / 0-5 V / 0-10 V
- 50 ms high-speed sampling, 15.2 mm-tall white PV LCD display, +/- 0.3 % FS accuracy at 25 C
- ON/OFF or 2-PID control with auto-tuning
- One SPDT relay control output (R) + TWO independent aux relay outputs (X2) for alarm / event
- RS-485 CompoWay/F serial + 2-point event input + 1-point heater-burnout CT input (the -802 set)
- AC 100-240 V supply at 5.2 VA (D suffix is the 24 V sibling)
- M3 screw terminal block, IP66 front panel, -10 to +55 C operating
- SKU: E5CC-RX2ASM-802
- Series: E5CC-RX2ASM-802
- Voltage: 100-240 V
- I/O: 100 I/O
Best-Fit Applications
- Heater-band temperature control on plastic-extrusion dies with SSR drive via the aux output
- Packaging-line heat-seal jaw regulation with auto-tuning PID
- Oven / furnace temperature control with alarm and event-based setpoint switching
- Day / night setpoint switching on a climate chamber via the event input
- Heater-burnout detection on a sealing bar with the CT input feeding an alarm
- Multi-controller polling on a Modbus network with CX-Thermo setpoint download from a PC
Buying Checklist
- Pick E5CC-RX2ASM-802 for a 48x48 mm PID controller with relay output, RS-485, event input, and heater CT on AC 100-240 V.
- Pick E5CC-QX2ASM-802 instead when the load is a DC-logic SSR (the voltage output is faster cycling than the relay's 100,000-operation life).
- Pick E5CC-CX2ASM-802 instead when the load is a 4-20 mA proportional valve or phase-angle thyristor.
- Pick E5CC-RX2DSM-802 for AC/DC 24 V cabinet supply (the D suffix swaps the 100-240 V supply for 24 V).
- Pick E5EC-PR2ASM-804 when the panel cutout is 48 x 96 mm, and E5AC-CX3ASM-804 for 96 x 96 mm.
- Add the E58-CIFQ1 USB-serial cable for CX-Thermo PC configuration and parameter cloning between controllers.
Technical Specifications
| Size | 48 x 48 x 60 mm body, 45 x 45 mm panel cutout |
|---|---|
| Display | 15.2 mm-tall white PV LCD, 4-digit |
| Input Type | TC (K/J/T/E/L/U/N/R/S/B/W) / Pt100 / JPt100 / analog 4-20 mA / 0-20 mA / 1-5 V / 0-5 V / 0-10 V |
| Sampling / Accuracy | 50 ms sampling / +/- 0.3 % FS at 25 C |
| Control Output | SPDT relay, 250 VAC 3 A / 30 VDC 3 A resistive |
| Aux Outputs | 2 independent SPDT relay aux outputs, 250 VAC 2 A |
| Communication | RS-485 CompoWay/F serial |
| Event Input | 2 points (RUN/STOP, auto/manual, setpoint switching) |
| Heater CT | 1 point (1-phase heater burnout or SSR failure detection) |
| Supply Voltage | AC 100-240 V, 5.2 VA (D suffix is 24 V) |
| Front Protection | IP66 panel face only |
| Operating Temperature | -10 to +55 C |
Resources & Downloads
FAQ for E5CC-RX2ASM-802
What is the difference between the E5CC, E5EC, and E5AC?
Body size. E5CC is 48 x 48 mm (1/16 DIN) and the most common pick. E5EC is 48 x 96 mm (1/8 DIN) for taller cabinets with a larger display. E5AC is 96 x 96 mm (1/4 DIN) for big process panels. All three share the same PID algorithm, the same RS-485 CompoWay/F protocol on the -800 / -802 / -804 suffix SKUs, and the same CX-Thermo configuration tool. The electronic specs are identical -- the only difference is the front face and the depth.
What does the -802 suffix add over the bare E5CC-RX2ASM-000?
Three things. RS-485 CompoWay/F serial for SCADA / PLC polling. Two event inputs for external RUN/STOP, auto/manual, or setpoint switching. One heater-burnout CT input for 1-phase heater or SSR failure detection. The bare -000 has none of these. The intermediate -801 adds comm only; the -802 is the full set.
Can the relay output drive a 4-20 mA proportional valve?
No. The R suffix means SPDT relay dry contact -- it switches ON or OFF, it does not output a linear 4-20 mA signal. For a proportional valve, step up to the E5CC-CX2ASM-802 (current 4-20 mA output) or the E5CC-CX2ASM-804. For a fast-cycling SSR with a DC logic input, the E5CC-QX2ASM-802 (voltage output for SSR drive) is the faster pick -- the relay's 100,000-operation mechanical life is the limit on cycle speed.
Does the controller need a separate 24 VDC supply for the event inputs?
No. The E5CC powers the event inputs from its own internal supply -- dry-contact or PNP signals from the field land directly on the event-input terminals. The CT input likewise is a passive current transformer input -- the controller reads the AC current through the heater wire without needing a separate 24 VDC rail.
