Omron F5-2051 — Compact Vision Sensor, 768 x 484
SKU: F5-2051USD 1900.00
compact vision sensor, 768 x 484 pixels, Ethernet, RS-232C, F-series setup tool. In stock, China.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron F5-2051 is an F-series compact vision sensor designed for presence, position, dimension, and defect inspection on production equipment It is manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The sensor combines a 768 x 484 pixel CMOS imager with a built-in LED light source in a single housing, so there is no separate camera or controller to wire. Inspection set-up runs over Ethernet using the F-series setup tool; results stream out over Ethernet or RS-232C into a PLC.
The F5-2051 belongs to the earlier F-series generation that Omron has since replaced with the FZ5-600 / FZ5-1100 / FH-2051 platform. Key specs: Imager 768 x 484 pixel CMOS; Light Source Built-in LED ring; Inspection Types Presence, position, dimension, defect; Response Time 50 ms typical per inspection; Interface Ethernet, RS-232C; Setup Software F-series setup tool over Ethernet; Supply / Environment 24 VDC; IP40; 0 to +45 C operating; Status Earlier-generation F-series; superseded by FZ5-600 / FZ5-1100 / FH-2051.
Key Features
- F-series compact vision sensor with 768 x 484 pixel CMOS imager and built-in LED light source
- Ethernet and RS-232C interfaces for setup and result streaming, F-series setup tool software
- Presence, position, dimension, defect inspection types; typical 50 ms inspection cycle
- 24 VDC supply, IP40 housing, 0 to +45 C operating; superseded by FZ5 / FH-2051 in current catalogs
- SKU: F5-2051
- Series: Omron F-series compact vision sensor
Best-Fit Applications
- Spare replacement on an existing F-series line where the FZ5-605 retrofit is not yet scheduled
- Position verification of a label on a pharmaceutical carton where the 768 x 484 imager reads OCR codes at line speed
- Inline presence check on a bottling line where the F5-2051 verifies cap fitment before the shrink-wrap station
Buying Checklist
- Choose the F5-2051 when the cabinet already runs F-series vision sensors and a like-for-like spare is required.
- Choose the FZ5-605 instead when the new install needs a current-generation vision sensor with Ethernet/IP and EtherCAT.
- Choose the FH-2051 instead when the application needs two cameras, 2448 x 2044 resolution, and AI fine-matching.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron F-series compact vision sensor |
| Model / SKU | F5-2051 |
| Imager | 768 x 484 pixel CMOS |
| Light Source | Built-in LED ring |
| Inspection Types | Presence, position, dimension, defect |
| Response Time | 50 ms typical per inspection |
| Interface | Ethernet, RS-232C |
| Setup Software | F-series setup tool over Ethernet |
| Supply / Environment | 24 VDC; IP40; 0 to +45 C operating |
| Status | Earlier-generation F-series; superseded by FZ5-600 / FZ5-1100 / FH-2051 |
FAQ for F5-2051
Is the Omron F5-2051 still in production?
The F5-2051 belongs to the earlier F-series generation that Omron replaced with the FZ5 / FH platform. New production lines should choose the FZ5-605; the F5-2051 is sourced as a spare for existing installations and may sit on allocation for several weeks.
What inspections can the F5-2051 perform?
Presence, absence, position, dimension, and defect inspection on a 768 x 484 pixel imager. The F-series setup tool runs over Ethernet and supports OCR reading. Typical cycle is 50 ms per inspection, suitable for most non-ultra-high-speed bottling and assembly lines.
F5-2051 vs FH-2051 - what is the difference?

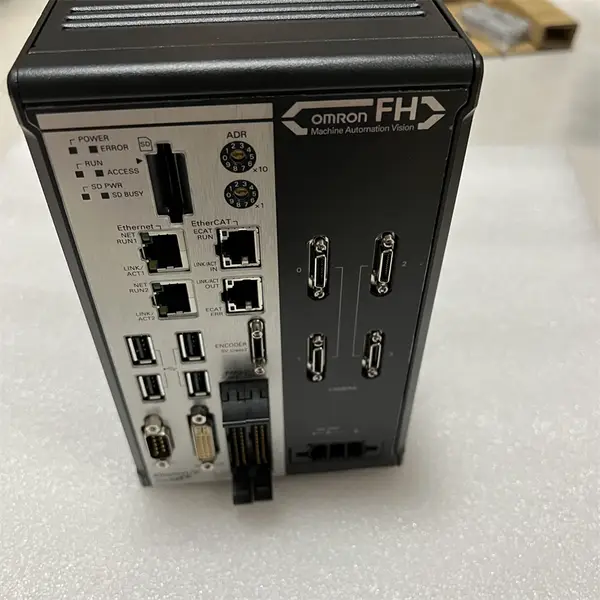

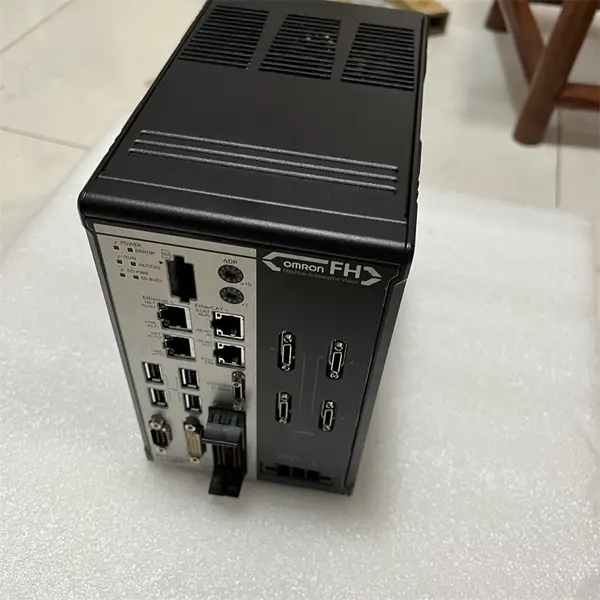

The F5-2051 is a compact all-in-one sensor with built-in camera and lighting. The FH-2051 is a vision system controller that connects to separate cameras, supports two cameras, and runs up to 2448 x 2044 resolution with AI fine-matching on an Intel Celeron CPU.
How is the F5-2051 programmed?
Over Ethernet using the F-series setup tool. The tool captures a reference image, lets the user draw inspection areas, sets thresholds, and saves the configuration back to the sensor. No PLC programming is required for the inspection logic itself; results stream out via Ethernet or RS-232C.
