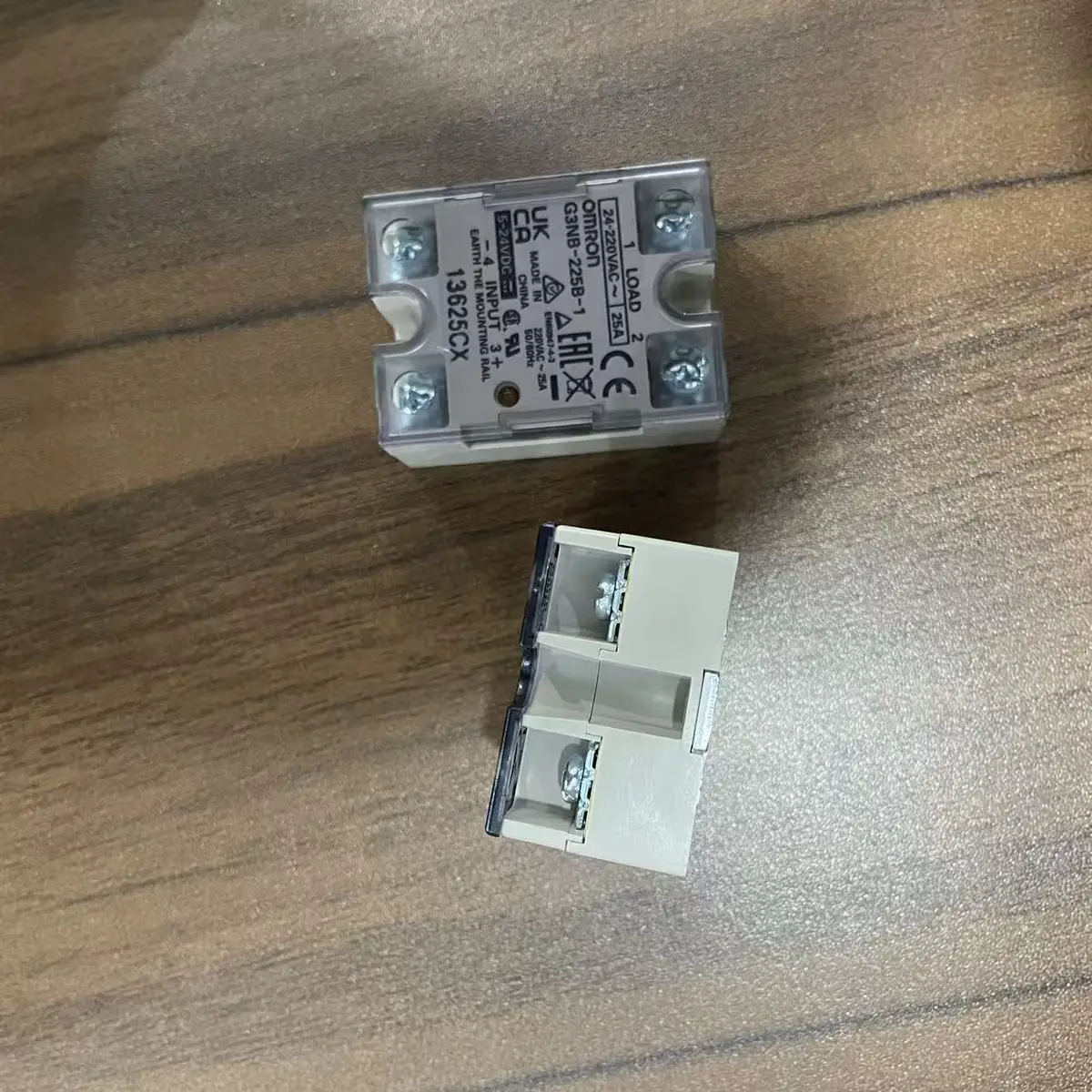

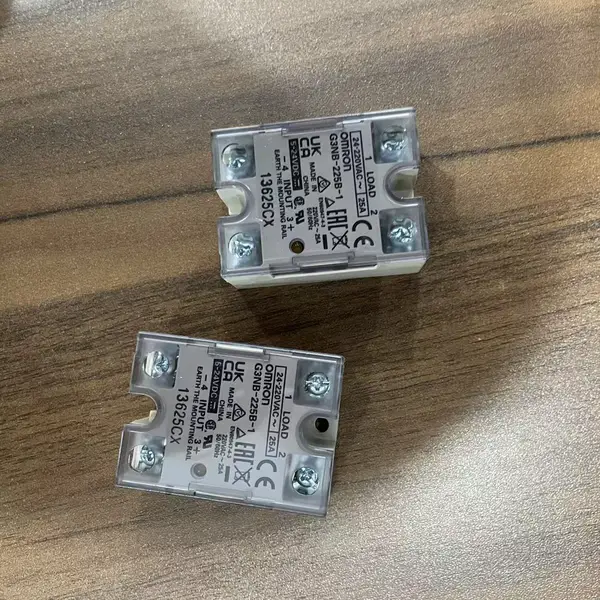

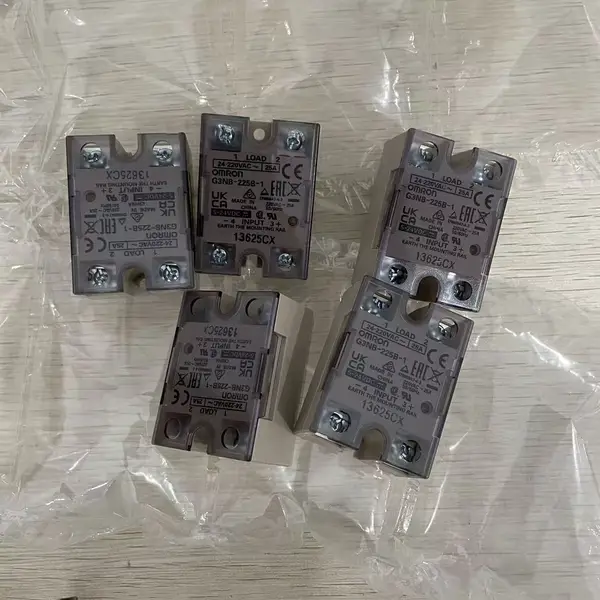

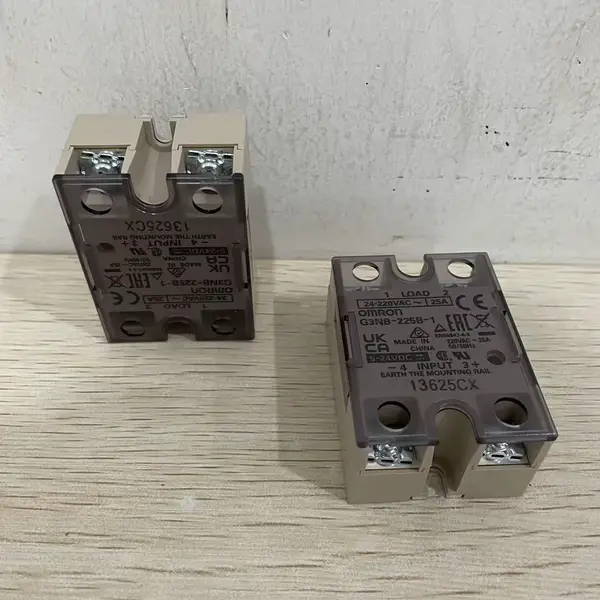

Omron G3NB-225B-1 — Solid State Relay, 25 A, DC5-24 V
SKU: G3NB-225B-1USD 8.00
G3NB solid state relay, 25 A load at AC24-220 V, DC5-24 V input, zero-cross switching, built-in varistor.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron G3NB-225B-1 is a solid state relay in the G3NB family, rated for 25 A continuous load current at AC24-220 V when mounted on a Y92B-N150 heat sink at 40 °C ambient. The DC5-24 V control input drops onto any PLC transistor output or sensor signal, and the relay switches the load at the AC zero-cross point to reduce inrush noise. The 'B' suffix marks zero-cross switching; the '-1' suffix marks the DC5-24 V input range. It is the standard pick for heater bands on extruders and injection moulders, heat-seal jaws on packaging machines, and any other resistive load that needs silent, fast, and bounce-free switching.
Why zero-cross vs non-zero-cross
A zero-cross SSR turns the load on at the next AC zero-voltage point after the control input is asserted, which removes the high di/dt inrush that would otherwise hit a cold heater or transformer. For purely resistive loads (heaters, lamps), zero-cross is always the right pick. For inductive or phase-angle control, the G3NB-D210B (random turn-on) is the alternative. For higher DC loads, the G3RD series covers DC switching.
Heat sink sizing
The 25 A rating only holds with the Y92B-N150 heat sink bolted to the relay; surface mounting drops the rating by 30 %. Below 25 A the relay runs cooler and can use a smaller Y92B-N100 (for 20 A) or Y92B-N50 (for 5-10 A) heat sink. For DIN-rail mounting, the R99-12 one-touch mounting plate fits the G3NB line. Always allow space above and below the relay for convection.
Before ordering
Confirm the load current is at or below 25 A at the actual ambient temperature, with the right heat sink fitted. Confirm the control signal is DC5-24 V (the '-1' suffix). For DC input around 100/200 V, the G3NB-225B-2 covers that range. Add a fast-blow fuse on the load side for short-circuit protection of the SSR output.
Key Features
- G3NB solid state relay, 25 A continuous load at 40 °C
- AC24-220 V load, zero-cross switching
- DC5-24 V control input (low-side trigger)
- Built-in varistor absorbs external surge
- LED operation indicator on the input side
- Photocoupler isolation, 2500 V AC dielectric
- UL / CSA / TUV certified, protective cover for safety
- SKU: G3NB-225B-1
- Series: G3NB solid state relay
- Voltage: 220 V
- I/O: 5 I/O
Best-Fit Applications
- Heater band switching on plastic extruders and injection moulders
- Heat-seal jaw temperature control on packaging machinery lines
- Resistive furnace or oven element control on a process line
- Solder pot or reflow oven element switching in electronic assembly
- Lamp or infrared heater control on a drying tunnel
Buying Checklist
- Choose G3NB-225B-1 for 25 A zero-cross at DC5-24 V input.
- Choose G3NB-220B-1 for the same family at 20 A (smaller heat sink).
- Choose G3NB-240B-1 when the load needs 40 A continuous.
- Choose G3NB-D210B for random turn-on switching of inductive loads.
- Choose G3PE-225B for a single-package SSR with built-in heat sink.
- Confirm the load is at or below 25 A with the right heat sink fitted.
Technical Specifications
| Series | G3NB solid state relay |
|---|---|
| Load Voltage | AC24-220 V (47-63 Hz) |
| Load Current | 25 A continuous at 40 °C with Y92B-N150 heat sink |
| Control Input | DC5-24 V (operate 4-32 V, release 1 V max.) |
| Input Current | 7 mA max. at 24 VDC |
| Switching Mode | Zero-cross (B suffix) |
| Surge Protection | Built-in varistor |
| Output Device | Triac |
| Isolation | Photocoupler, 2500 V AC dielectric |
| Operation Indicator | LED (lit when input is on) |
| Heat Sink | Y92B-N150 (required for 25 A rating) |
| Certifications | UL, CSA, TUV |
Resources & Downloads
FAQ for G3NB-225B-1
What heat sink do I need for the G3NB-225B-1?
For the full 25 A rating at 40 °C ambient, fit the Y92B-N150 heat sink. The smaller Y92B-N100 covers up to 20 A, and the Y92B-N50 covers up to 10 A. Surface-mounting without a heat sink drops the rating by 30 %. Add the R99-12 one-touch mounting plate for DIN-rail installation of the SSR and heat sink.
Can the G3NB-225B-1 switch a transformer or motor?
It can, but zero-cross switching is the wrong pick for inductive loads. For transformers, solenoids, or small motors, choose the G3NB-D210B random turn-on SSR or use a contactor instead. For purely resistive loads like heaters or lamps, the zero-cross G3NB-225B-1 is the correct pick.
What fuse should I use on the load side?
Fit a fast-blow semiconductor fuse rated at about 1.5 x the load current. A 25 A SSR typically pairs with a 40 A fast-blow fuse. The fuse protects the SSR triac from a load-side short circuit, which the SSR itself cannot clear.
