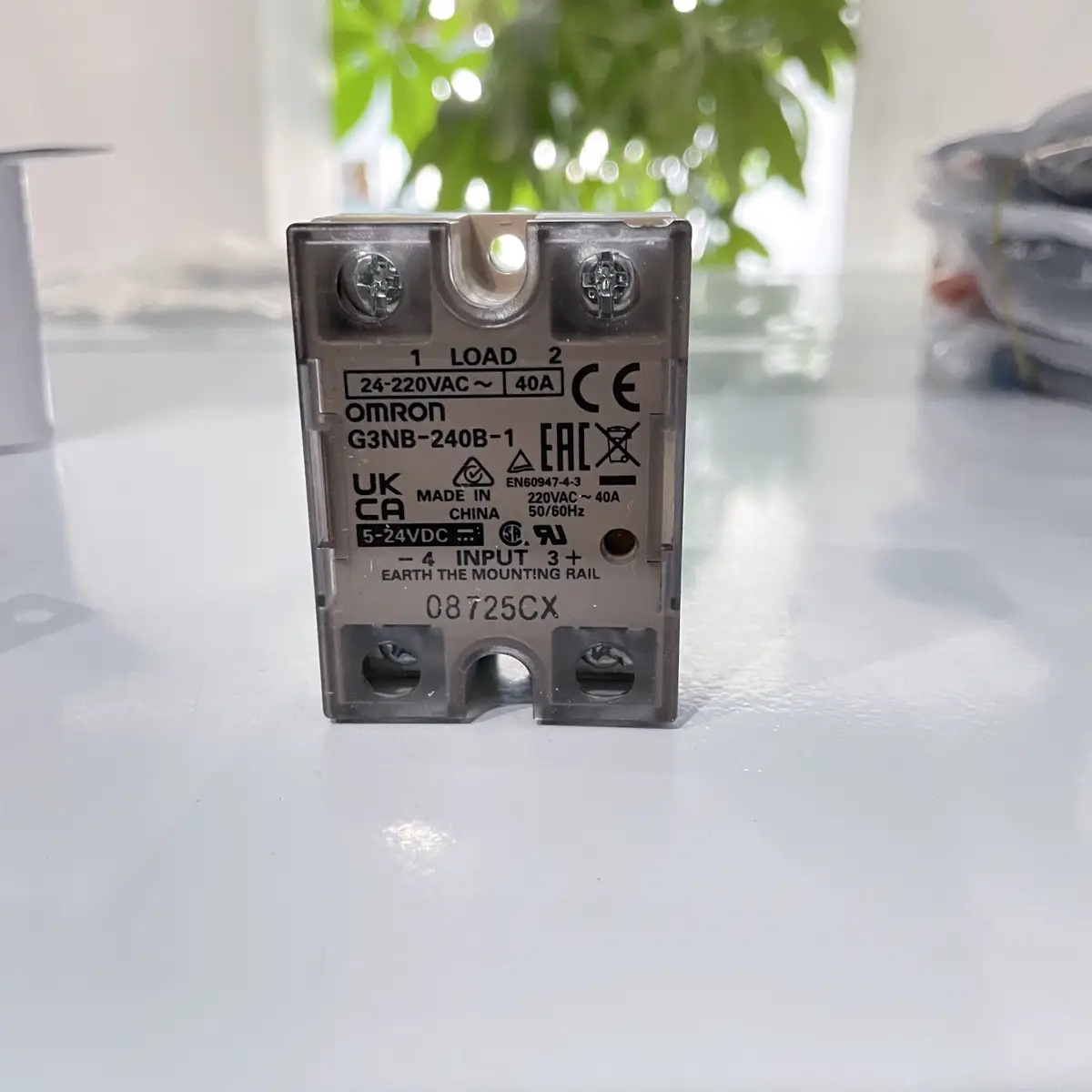

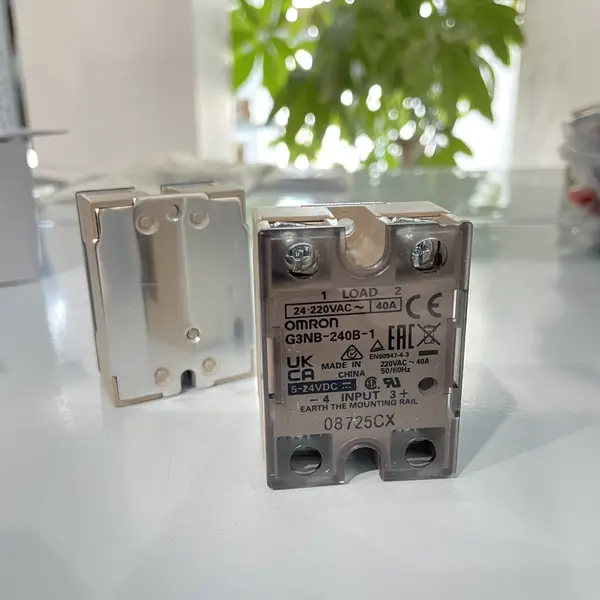

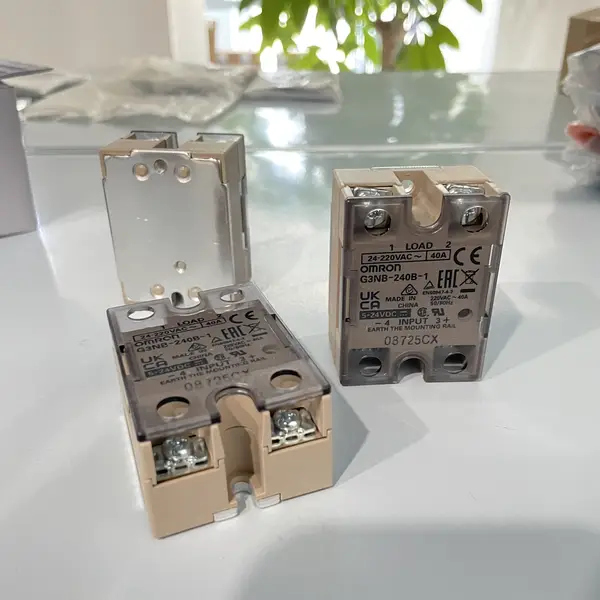

Omron G3NB-240B-1 DC5-24V — 40 A Zero-Cross SSR, 24-220 VAC
SKU: G3NB-240B-1 DC5-24VUSD 8.50
Compact solid-state relay with 40 A load current at 24-220 VAC, DC 5-24 V control input, zero-cross switching, phototriac isolation, screw terminals. Requires Y92B-N150 heat sink for >6 A continuous. 410 A peak inrush withstand for transformer-coupled and heater loads.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The G3NB-240B-1 DC5-24V is Omron's 40 A-class compact solid-state relay (SSR) for OEM high-volume AC load switching applications, the bigger sibling of the already-done G3NB-210B-1 (10 A) and G3NA-210B-UTU (10 A, batch 16). It uses a zero-cross phototriac output stage to switch 24-220 VAC loads at up to 40 A continuous (with the required Y92B-N150 heat sink), with a peak inrush capability of 410 A for the first AC cycle — sufficient for transformer-coupled loads, large heater banks, and motor starters. The DC 5-24 V control input draws 4-6 mA, making it directly compatible with CJ1W-OD212 PNP sourcing outputs (already done in our catalog) and most PLC transistor outputs.
Why zero-cross switching matters for 40 A loads
The G3NB-240B-1's zero-cross switching turns the AC load ON only when the AC voltage is near the zero-crossing point (typically within ±15 V of zero). This eliminates the inrush current spike that would occur if the SSR turned on at the peak of the AC cycle (where the instantaneous voltage is 170 V on a 120 VAC line or 340 V on a 240 VAC line).
Heat sink sizing and thermal management
The G3NB-240B-1 requires the Y92B-N150 heat sink (150 mm × 200 mm extruded aluminum) for continuous operation above 6 A. Without a heat sink, the SSR's load current is limited to 6 A at 40 °C ambient — beyond this, the triac's junction temperature exceeds 125 °C and the device fails. The Y92B-N150 heat sink provides the thermal mass to dissipate the heat generated by the SSR's on-state voltage drop (~1.5 V × 40 A = 60 W of heat at full load).
G3NB-240B-1 vs G3NB-210B-1 vs G3NB-225B-1 vs G3NB-275B-1 vs G3NB-290B-1
The G3NB series is a 5-tier current family for OEM applications: - G3NB-205B-1 = 5 A, 60 A inrush, Y92B-N50 heat sink (small loads, signals) - G3NB-210B-1 = 10 A, 150 A inrush, Y92B-N50 heat sink (already done — small heaters, solenoid valves) - G3NB-220B-1 = 20 A, 220 A inrush, Y92B-N100 heat sink (mid-size heaters) - G3NB-225B-1 = 25 A, 220 A inrush, Y92B-N150 heat sink (mid-size heaters) - G3NB-240B-1 = 40 A, 410 A inrush, Y92B-N150 heat sink (THIS SKU — large heaters, oven bands) - G3NB-275B-1 = 75 A, 800 A inrush, Y92B-P250NF heat sink (extra-large ovens, large process heaters) - G3NB-290B-1.
Key Features
- 40 A load current at 24-220 VAC
- 0.1 to 6 A without heat sink at 40 °C ambient
- Load voltage range: 19 to 286 VAC operating
- Zero-cross switching: critical for heater and transformer loads
- Inrush current: 410 A peak — handles transformer-coupled loads and large heaters
- Control input: DC 5 to 24 VDC, 4-6 mA input current
- Phototriac isolation between input and output
- Operate time: 1 ms max
- SKU: G3NB-240B-1 DC5-24V
- Series: G3NB Solid State Relays (compact OEM-style)
- Voltage: 24 TO 220 VAC
- I/O: 5 I/O
Best-Fit Applications
- Injection-molding barrel heater control — 4-6 × 40 A band heaters on a plastic injection molding machine, each controlled by.
- Food-processing oven heater bank — 4 × 40 A heating elements in a commercial baking oven, each controlled by a.
- Plastic extruder heater zones — 6-8 × 40 A extruder barrel heaters on a plastic extrusion line, each controlled by.
- Packaging heat-seal jaws — 4 × 40 A heat-seal band heaters on a form-fill-seal packaging machine, each controlled by a.
Buying Checklist
- Pick G3NB-240B-1 DC5-24V for 40 A zero-cross AC SSR with heat sink — OEM high-volume heater control, 410 A inrush for transformer-coupled loads
- Pick G3NB-210B-1 DC5-24V for 10 A zero-cross SSR — small heaters, solenoid valves, indicator lights
- Pick G3NB-225B-1 DC5-24V for 25 A zero-cross SSR — mid-size heaters, smaller than G3NB-240B-1
- Pick G3NB-275B-1 DC5-24V for 75 A zero-cross SSR — large process heaters, industrial oven bands
- Pick G3NB-290B-1 DC5-24V for 90 A zero-cross SSR — extra-large industrial process heaters
- Pick G3NA-210B-UTU DC5-24 for 10 A industrial DIN-rail SSR — heavy-industrial long-life applications with Y92B-N100 heat sink
Technical Specifications
| Model | G3NB-240B-1 DC5-24V |
|---|---|
| Series | G3NB Solid State Relays (compact OEM-style) |
| Type | Zero-cross solid-state relay, 40 A, 24-220 VAC, DC 5-24 V control |
| Rated Load Voltage | 24 to 220 VAC |
| Operating Load Voltage Range | 19 to 286 VAC |
| Load Current (with heat sink at 25 °C) | 0.1 to 40 A |
| Load Current (with heat sink at 40 °C) | 0.1 to 40 A (4-6 A at 25 °C without heat sink) |
| Load Current (without heat sink at 40 °C) | 0.1 to 6 A (significant derating) |
| Inrush Current Withstand | 410 A peak (60 Hz, 1 cycle, 1 non-repetitive) |
| Output Device | Phototriac (zero-cross switching) |
| Control Input Voltage | 5 to 24 VDC |
| Control Input Current | 4 to 6 mA (at 5 VDC: 4 mA typical; at 24 VDC: 6 mA typical) |
| Input Terminal | M3.5 screw terminals (2 terminals: +, -) |
| Mounting | Panel mount via two M4 screws (heat sink surface) |
| Dimensions (W × H × D) | Approx 50 × 100 × 50 mm (without heat sink) |
Resources & Downloads
FAQ for G3NB-240B-1 DC5-24V
What heat sink do I need for the G3NB-240B-1 DC5-24V?
The G3NB-240B-1 DC5-24V requires the Y92B-N150 heat sink (150 × 200 mm extruded aluminum) for continuous operation above 6 A. Without a heat sink, the SSR's load current is limited to 6 A at 40 °C ambient — beyond this, the triac's junction temperature exceeds 125 °C and the device fails within minutes to hours.
What's the difference between G3NB-240B-1 and G3NA-210B-UTU?
Both are Omron AC-output zero-cross solid-state relays with DC 5-24 V control input, but they target different applications: G3NB-240B-1 is the cost-optimized OEM-style SSR with screw terminals and 40 A current rating, requiring an external Y92B-N150 heat sink. G3NA-210B-UTU (already done in batch 16) is the higher-spec industrial SSR with 10 A current rating, integrated heat-sink-mounting surface, and built-in surge absorption for the output triac.
Can the G3NB-240B-1 switch DC loads?
No — the G3NB-240B-1 uses a phototriac output device, which is specifically designed for AC load switching. Triacs cannot turn off DC loads because the DC voltage never crosses zero — the triac latches ON and cannot be commutated off. For DC load switching (e.g., DC heaters, DC solenoids, DC motors), use the G3NA-D210B-UTU DC5-24 (already done in batch 16) which uses a MOSFET output instead of phototriac — MOSFETs can switch DC loads cleanly.
What's the inrush current capability of the G3NB-240B-1 DC5-24V?
The G3NB-240B-1 DC5-24V can withstand an inrush current of 410 A peak for 1 AC cycle (60 Hz) before the triac fails. This is sufficient for typical transformer-coupled loads (10-30x steady-state current for the first 1-10 cycles) and large heater banks (10-20x cold-to-hot resistance ratio). For a 5 kW heater at 240 VAC, the steady-state current is ~21 A, and the cold inrush is ~210-420 A — within the G3NB-240B-1's 410 A rating.
