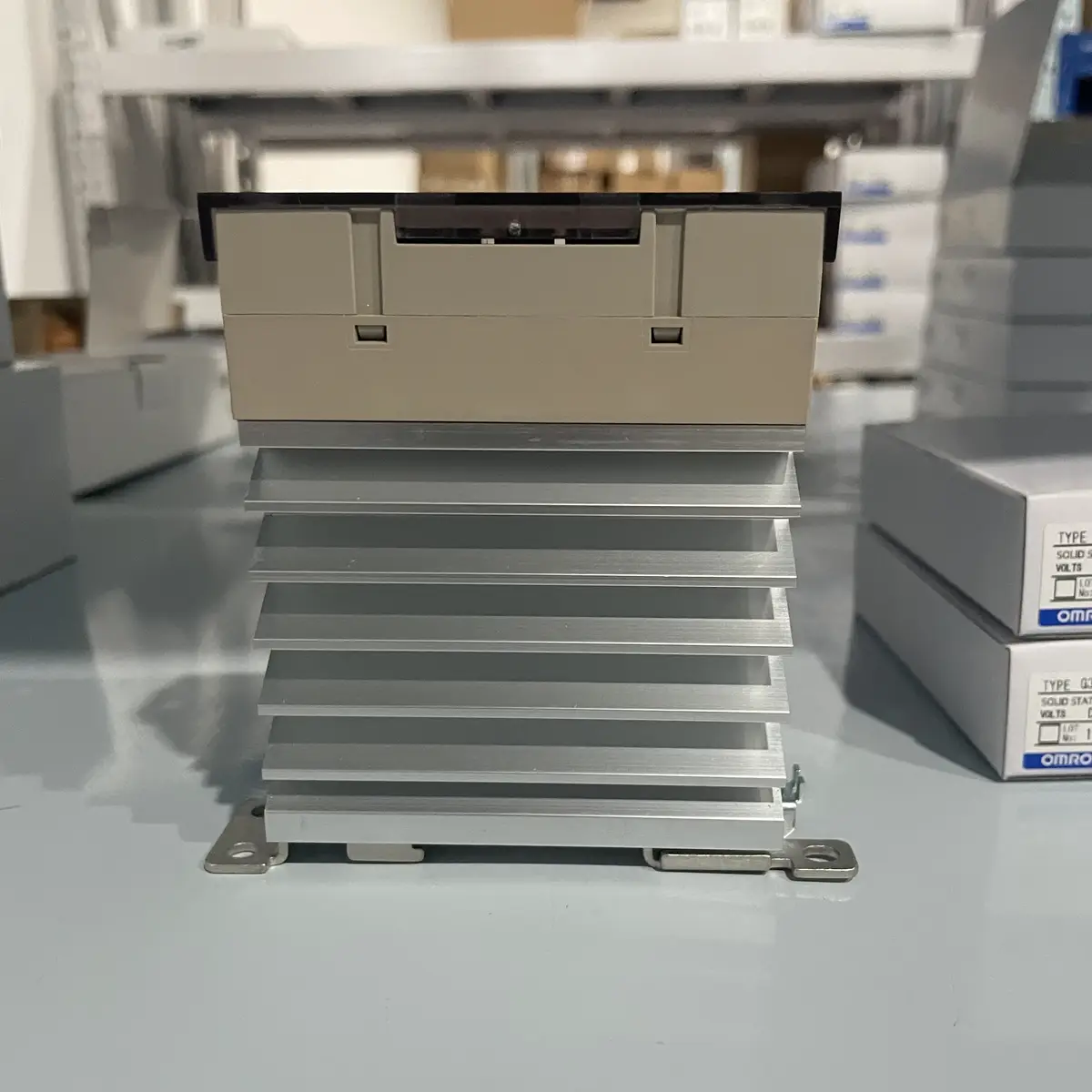

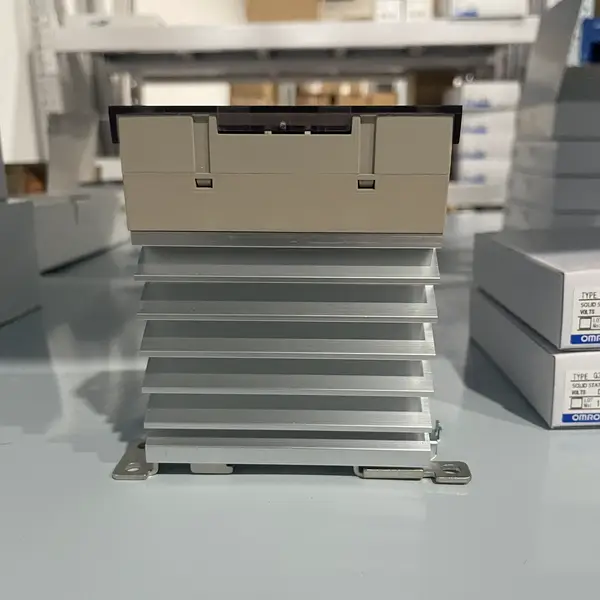

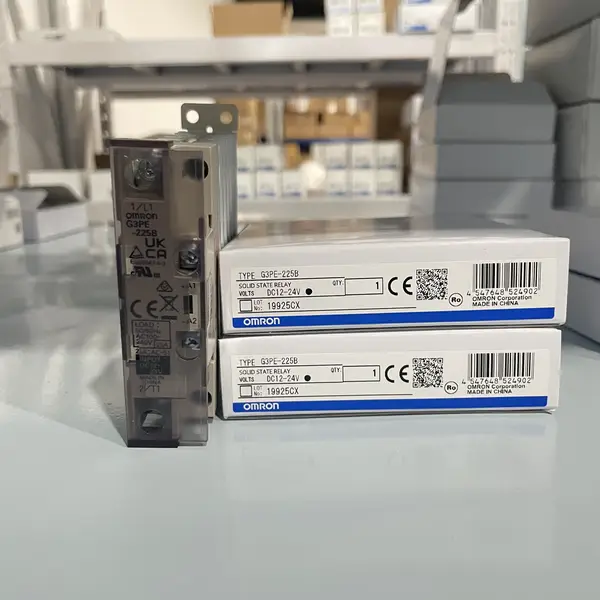

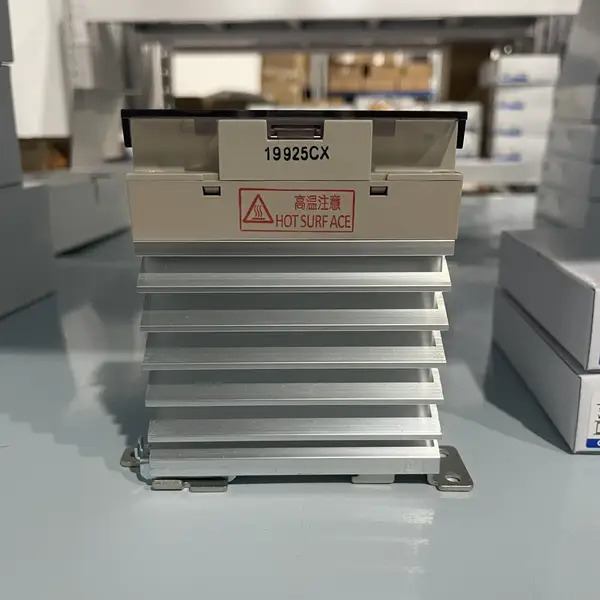

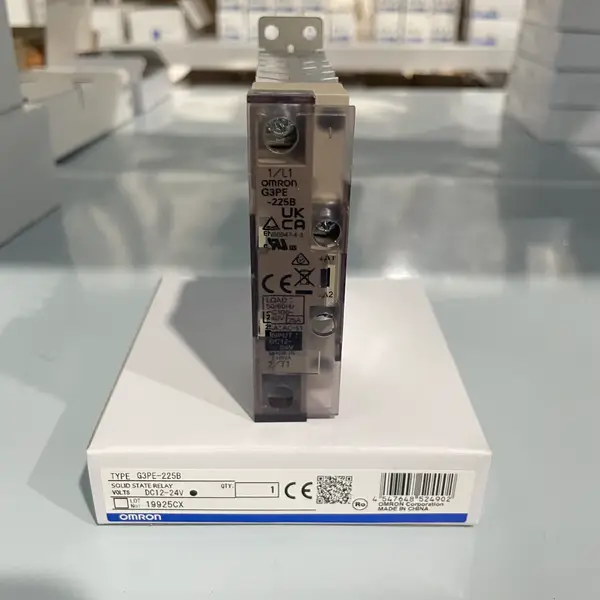

Omron G3PE-225B DC12-24V — 25 A SSR, 240 VAC, Zero-Cross
SKU: G3PE-225B DC12-24VUSD 19.00
Compact single-phase solid-state relay for heater control, 25 A load current at 40 °C, 100-240 VAC load voltage, 12-24 VDC control input, zero-cross switching, integrated heat sink, DIN rail / screw mount. Built-in varistor for surge absorption.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The G3PE-225B DC12-24V is the 25 A zero-cross solid-state relay (SSR) in Omron's compact G3PE single-phase family with integrated heat sink. The integrated heat sink eliminates the need to size and mount a separate heatsink — critical for SSRs because the 1.6 W per ampere heat dissipation of the output thyristor (at 25 A × 1.6 V = 40 W heat dissipation) would otherwise require a substantial aluminum heatsink to keep the junction temperature below the 125 °C Tj max. The G3PE-225B's integrated heatsink keeps the SSR compact (100 mm tall × 22.5 mm wide × 100 mm deep) and ready to mount directly on a DIN rail or panel.
Where the G3PE-225B fits in the G3PE single-phase family
The G3PE single-phase family ranges from 15 A to 45 A in 100-240 VAC and 200-480 VAC versions, with zero-cross (B) and non-zero-cross (BL) switching variants. By current rating: G3PE-215B (15 A at 40 °C), G3PE-225B (25 A at 40 °C — this SKU), G3PE-235B (35 A at 25 °C), G3PE-245B (45 A at 25 °C). The 200-480 VAC high-voltage branch uses the same model numbers with a 5 prefix: G3PE-515B (15 A), G3PE-525B (25 A), G3PE-535B (35 A), G3PE-545B (45 A).
Zero-cross switching vs non-zero-cross for heater loads
The G3PE-225B's zero-cross switching turns the output ON only when the AC line voltage is within ±20 V of zero — at 50 Hz this is a 0.8 ms window centered on each zero-crossing (every 10 ms). This eliminates the high di/dt inrush current that occurs when switching at peak voltage (sinusoidal peak is 325 VDC for 230 VAC) into a cold heater element whose resistance is 5-10× lower at room temperature than at operating temperature.
Heat dissipation, derating, and ventilation
The G3PE-225B at 25 A continuous load generates about 1.6 V × 25 A = 40 W of heat (the triac's on-state voltage drop times the load current). The integrated heatsink keeps the SSR's junction temperature below the 125 °C Tj max, but the heatsink's cooling capacity depends on ambient temperature and airflow. At 25 °C ambient the SSR can deliver the full 25 A continuous; at 40 °C ambient (the datasheet's rated condition) it can still deliver 25 A but with reduced margin; at 55 °C ambient the derating curve reduces the maximum current to ~20 A; at 70 °C ambient to ~15 A.
Key Features
- 25 A rated load current at 40 °C ambient
- 100 to 240 VAC rated load voltage
- 12 to 24 VDC control input
- Zero-cross switching
- Integrated heat sink — no separate heatsink required
- Compact slim-profile: 22.5 mm wide, 100 mm tall, 100 mm deep
- DIN rail / screw panel mount
- Built-in varistor for surge absorption
- SKU: G3PE-225B DC12-24V
- Series: G3PE Single-phase Solid State Relays for Heaters
- Voltage: 100 TO 240 VAC
- I/O: 12 I/O
Best-Fit Applications
- Injection-molding machine heater band control — G3PE-225B controlling 6-8 × 230 VAC heating bands via a temperature controller with PID.
- Food-processing oven heater control — G3PE-225B controlling 3 × 5 kW convection heater elements at 230 VAC, PID control via.
- Packaging-machine heat-seal jaw control — G3PE-225B controlling 2 × 1.5 kW heat-seal band heaters at 230 VAC, on/off control via.
- Plastic-extrusion line zone temperature control — multiple G3PE-225B units controlling 200-400 W band heaters at 230 VAC, integrated heatsink allows.
Buying Checklist
- Pick G3PE-225B DC12-24V for 25 A single-phase heater control with integrated heatsink and zero-cross switching
- Pick G3PE-215B DC12-24 for 15 A version
- Pick G3PE-235B DC12-24 for 35 A version
- Pick G3PE-225BL DC12-24 for non-zero-cross variant
- Pick G3PE-525B DC12-24 for 200-480 VAC high-voltage version
- Pick G3PE-325B DC12-24 for 25 A per-phase 3-phase version
Technical Specifications
| Model | G3PE-225B DC12-24 |
|---|---|
| Series | G3PE Single-phase Solid State Relays for Heaters |
| Type | Single-phase zero-cross SSR with integrated heat sink |
| Rated Load Voltage | 100 to 240 VAC |
| Operating Load Voltage Range | 75 to 264 VAC |
| Rated Load Current | 25 A at 40 °C ambient (with derating above 40 °C) |
| Minimum Load Current | 0.5 A |
| Inrush Current Resistance | 250 A peak (1 cycle, 60 Hz) |
| Control Input Voltage | 12 to 24 VDC |
| Control Input Range | 9.6 to 30 VDC |
| Control Input Current | 10 mA max at 24 VDC / 7 mA max at 12 VDC |
| Must-Operate Voltage | 9.6 VDC max |
| Must-Release Voltage | 1.0 VDC max |
| Output ON Voltage Drop | 1.6 V max (at rated current) |
| Leakage Current (OFF state) | 10 mA max (at 200 VAC) |
Resources & Downloads
FAQ for G3PE-225B DC12-24V
What's the difference between G3PE-225B and G3PE-225BL?
Both are 25 A single-phase SSRs with integrated heat sink. The G3PE-225B (this SKU) is zero-cross switching — turns ON only at the next AC line zero-crossing (±20 V of zero) to eliminate inrush current. The G3PE-225BL is non-zero-cross (random-phase) switching — turns ON at any AC phase angle within 1 ms of the control signal.
Why does the G3PE-225B have an integrated heat sink?
An SSR's triac output stage drops about 1.6 V when conducting — at 25 A load current that's 1.6 V × 25 A = 40 W of continuous heat dissipation that must be removed to keep the triac junction below the 125 °C Tj max. Without a heatsink the triac would overheat within seconds and fail.
Can the G3PE-225B switch DC loads?
No — the G3PE-225B is designed for AC load switching only. The output stage uses a triac, which requires an AC line voltage to commutate (turn off) — DC load voltage keeps the triac latched on indefinitely once triggered, even after the control signal is removed.
How do I derate the G3PE-225B at high ambient temperatures?
The G3PE-225B is rated for 25 A continuous load at 40 °C ambient — the datasheet's reference condition. At higher ambient temperatures the maximum continuous load current must be reduced per the derating curve: 25 A at 40 °C, ~23 A at 50 °C, ~20 A at 60 °C, ~17 A at 70 °C, ~13 A at 80 °C.
