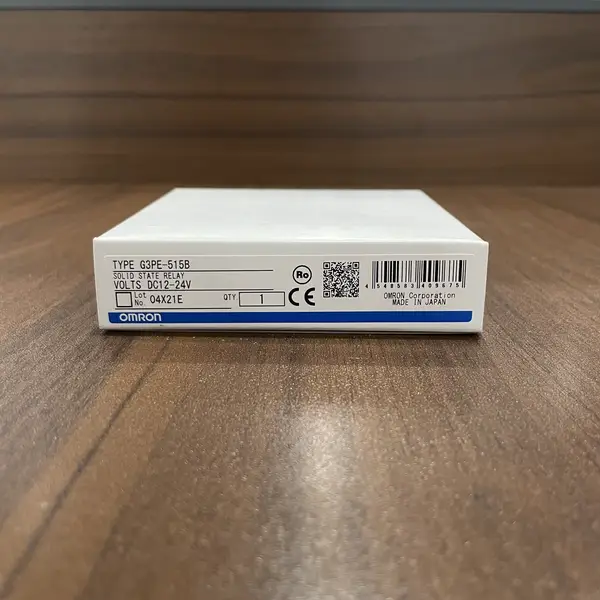

Omron G3PE-515B three-phase SSR in its shipping carton with the type label, current rating, and certifications visible

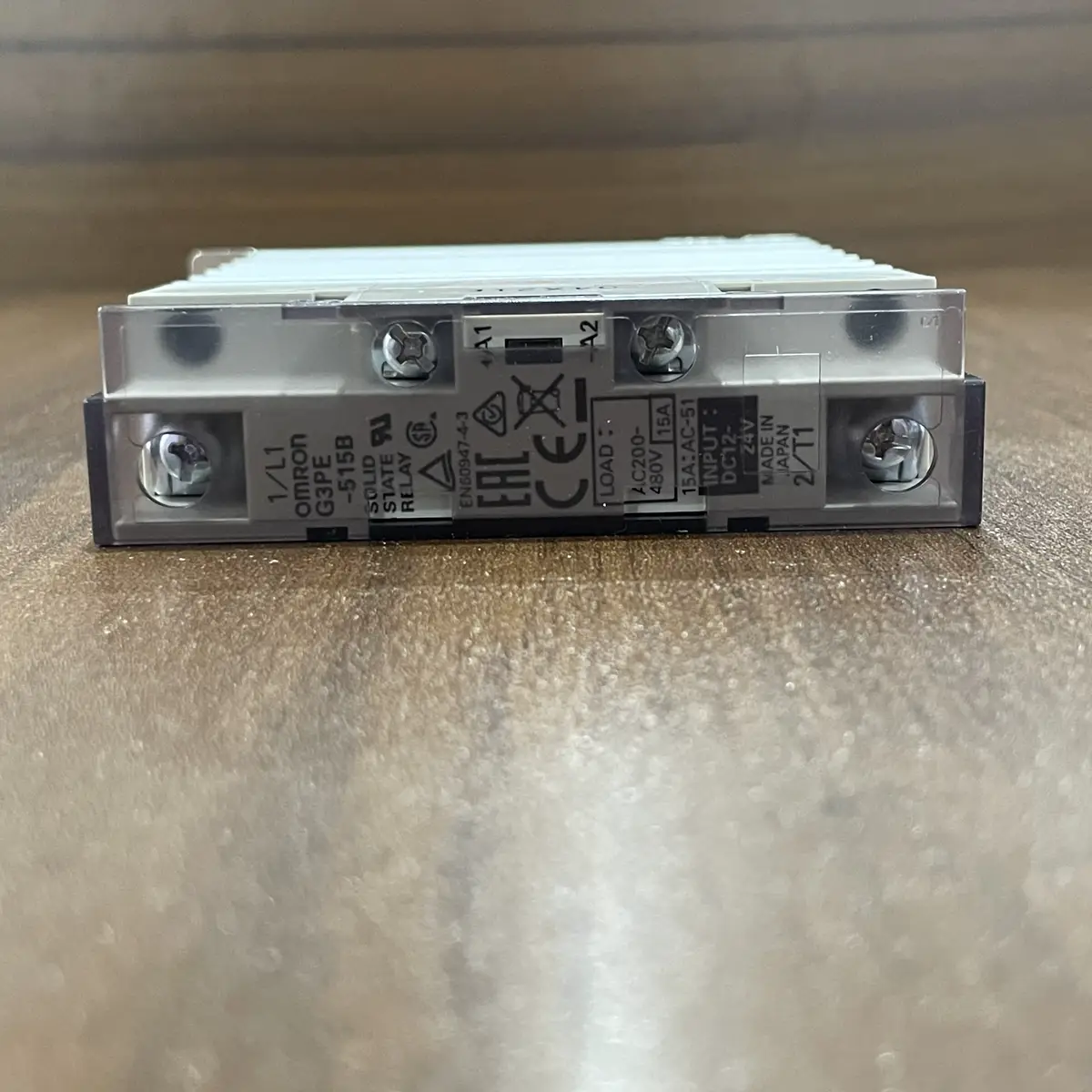

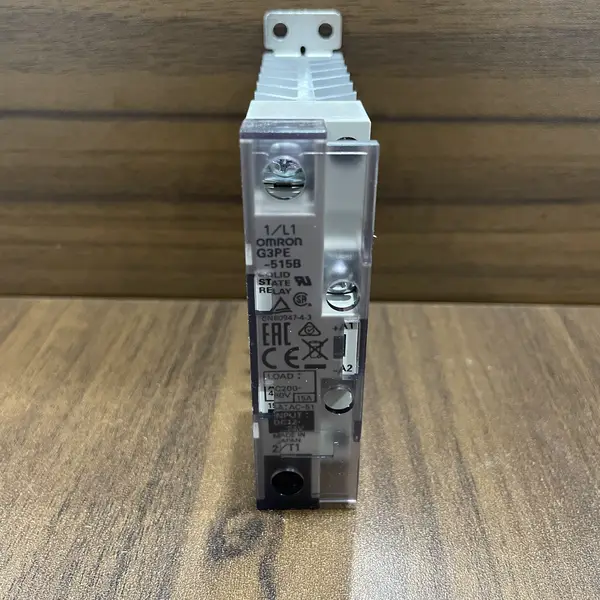

Omron G3PE-515B — 15 A Three-Phase SSR, 200-480 VAC

SKU: G3PE-515B

USD 45.00

Three-phase solid state relay for heaters, 15 A per phase, 200-480 VAC load, DC12-24V input, zero-cross, DIN-rail mount, built-in heat sink.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron G3PE-515B is a compact three-phase solid state relay (SSR) rated for 15 A per phase on a 200-480 VAC heater or motor load. The DC12-24V control input switches all three phases together through a zero-cross trigger, so the load is energised and de-energised near the AC waveform crossover — quieter and with less inrush stress than a random-fire SSR. The heat sink and DIN-rail mount are built in.

When a 3-phase SSR makes sense

A single-phase SSR (G3PE-215B at 15 A, or G3PE-225B at 25 A) is the right pick for a single-phase heater or 1-phase load. Pick the G3PE-515B for a balanced three-phase resistive load — a delta or star heater bank, a 3-phase oven zone, a heat-seal bar, or a thermal process chamber. One 3-phase SSR replaces three single-phase SSRs, halves the wiring and DIN-rail space, and uses one PLC output instead of three.

Sizing the current rating

The 15 A rating applies at 40 °C ambient with normal mounting. In a sealed cabinet above 40 °C, derate to 10-12 A or step up to the 25 A G3PE-525B for headroom. The relay is rated for 6 kW on a 400 V three-phase resistive load. For motor loads, add an output contactor — SSRs handle motor inrush poorly.

Before ordering

DIN-rail mount fits TR35-15Fe rail (IEC 60715). The control input is DC12-24V, so it takes a PLC sourcing output or a temperature-controller SSR drive signal directly. For 5 V logic control, pick a G3PE variant with a 5 V input instead. Add a fuse on the AC load side for short-circuit protection — the SSR itself has no internal fuse.

Key Features

  • Three-phase compact SSR, 15 A per phase at 40 °C
  • Load voltage 200-480 VAC, 50/60 Hz (operating range 180-528 V)
  • Control input DC12-24V (operating range DC9.6-30V), 7 mA
  • Zero-cross switching (B suffix) for low EMI and reduced inrush stress

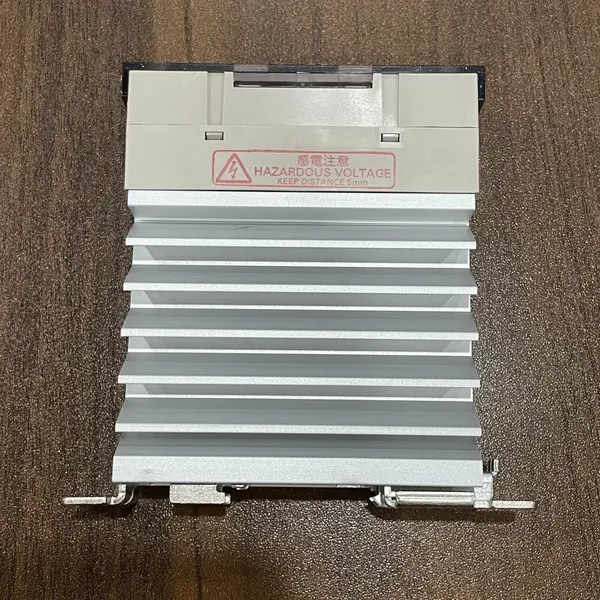

  • Built-in heat sink and DIN-rail mount — no extra heatsink sizing needed
  • Suitable for 6 kW three-phase resistive load at 400 V
  • UL, CSA, TÜV certified
  • SKU: G3PE-515B
  • Series: G3PE compact SSR for heater control
  • Voltage: 200 TO 480 VAC
  • I/O: 12 I/O

Best-Fit Applications

  • Three-phase heater bank on a plastic-extrusion line (barrel zones, die heaters)
  • Heat-seal bars on a three-phase packaging machine
  • Three-zone oven control for a thermal process chamber
  • Industrial dryer or curing tunnel with balanced 3-phase resistive elements
  • Boiler or furnace element switching on a 400 V three-phase supply

Buying Checklist

  • Choose G3PE-515B for a 15 A three-phase heater SSR on a 200-480 VAC supply; pick G3PE-525B (25 A) for higher load current.
  • Use a single-phase SSR (G3PE-215B or G3PE-225B) for a 1-phase heater — three-phase SSRs do not switch single-phase loads correctly.
  • Derate from 15 A to 10-12 A in a sealed cabinet above 40 °C, or step up to the 25 A model.
  • Add an AC-side fuse for short-circuit protection — the SSR has no internal fuse.
  • For motor loads, add a contactor in series — SSRs do not handle motor inrush as well as contactors do.

Technical Specifications

Model G3PE-515B DC12-24
Series G3PE compact SSR for heater control
Phases Three-phase, 3-pole NO
Rated Load Voltage 200 to 480 VAC, 50/60 Hz
Load Voltage Range 180 to 528 VAC
Rated Load Current 15 A per phase at 40 °C
Surge Current 150 A (60 Hz, 1 cycle)
Control Input Voltage DC12 to 24 V (operating range DC9.6 to 30 V)
Input Current 7 mA max
Operate / Reset Voltage DC9.6 V max operate / DC1.0 V min reset
Switching Method Zero-cross (B suffix)
Mounting DIN rail (TR35-15Fe, IEC 60715) or screws
Approvals UL, CSA, TÜV (EN 60947-4-3)

FAQ for G3PE-515B

What is the difference between G3PE-515B and G3PE-515BL?
Both are 15 A three-phase SSRs with the same load rating. The BL variant adds a status indicator that shows when the SSR is ON. Pick BL when you want a visual indicator at the cabinet for quick fault diagnosis; pick plain B for lower cost.
What control voltage does the G3PE-515B need?
DC12-24V on the input terminals (operating range DC9.6-30V). It takes a PLC sourcing output or a temperature-controller SSR drive signal directly. For 5 V logic control, pick a G3PE variant with a 5 V input instead.
Can I use the G3PE-515B on a single-phase load?
No. The G3PE-515B is wired with three AC output terminals, one for each phase. On a single-phase load, two of the three outputs would float and the load would not switch correctly. Use a single-phase SSR (G3PE-215B or G3PE-225B) for 1-phase loads.
Does the G3PE-515B need a separate heat sink?
No — the heat sink is built into the unit. The 15 A per phase rating already accounts for normal DIN-rail mounting with adequate cabinet ventilation. In a sealed cabinet above 40 °C, derate the load current or step up to the 25 A G3PE-525B for additional thermal headroom.
