Omron DRT2-ROS16 — DeviceNet 16 Relay Output Slave
SKU: DRT2-ROS16USD 170.00
DRT2 Smart DeviceNet slave, 16 NO relay outputs, 3 A per point, screw terminals. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

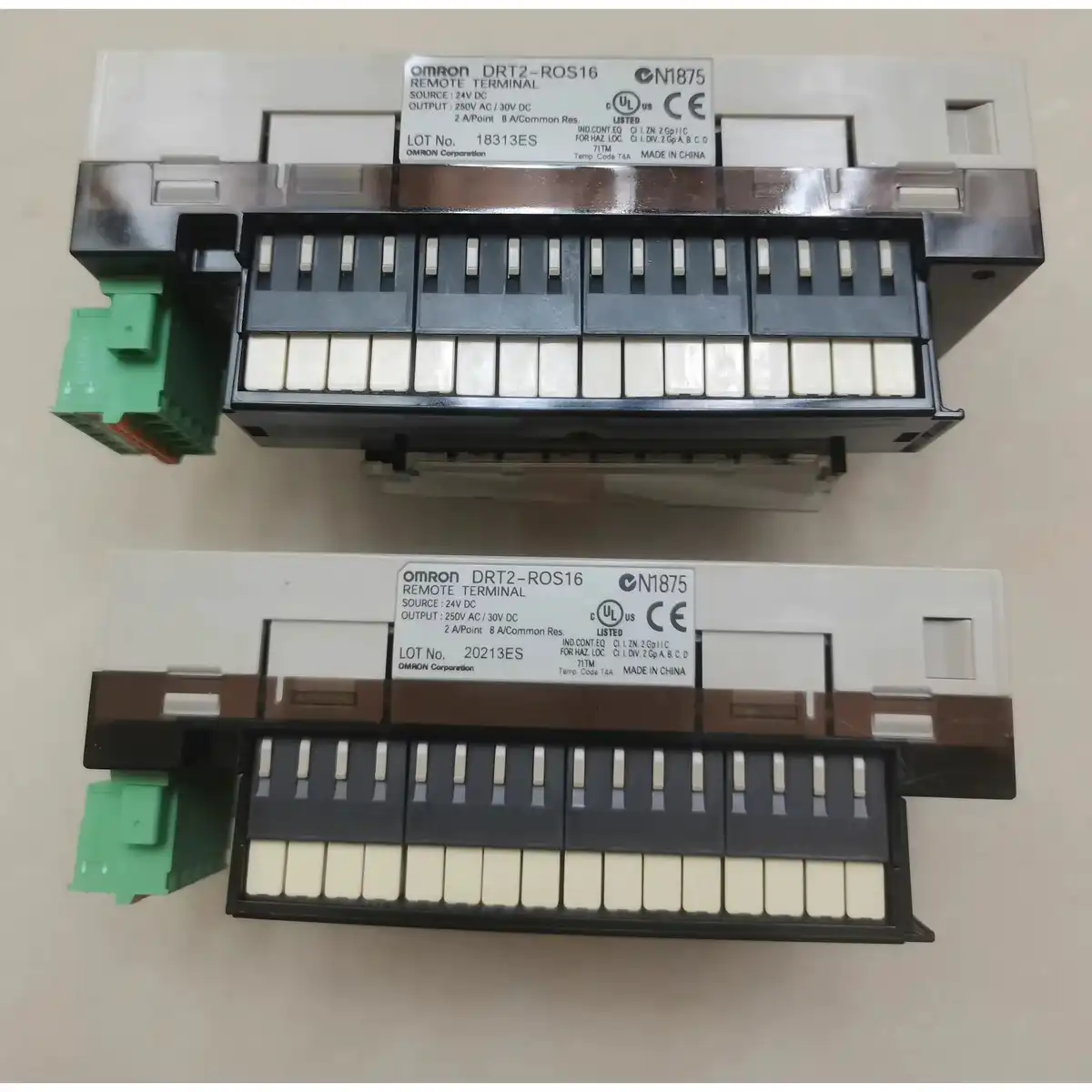

The Omron DRT2-ROS16 is a Smart DeviceNet slave with sixteen relay outputs on a screw terminal block It is manufactured by Omron Corporation. Hengyixin Automation stocks this relay in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. The slave sits on a DeviceNet network next to the machine it controls. A CJ1 / CJ2 / NJ master PLC writes the output bits over DeviceNet; the DRT2 energises sixteen DRTA-NY5W-K relays that switch loads up to 3 A at 250 VAC or 30 VDC. Smart Active Parts libraries on the NS HMI read operation counts and on-time straight from the slave without ladder code. Key specs: Output Type 16 relay outputs, normally open, plug-in DRTA-NY5W-K relays; Output Rating 3 A per point, 10 A per common, 250 VAC / 125 VDC max; Switching Capacity 750 VA AC max, 90 VDC DC max per relay; Network DeviceNet slave, 11-25 VDC communications power (from network); Current Draw 215 mA max at 24 VDC / 395 mA max at 11 VDC; Connection M3 screw terminal block, 1-wire I/O, detachable; Expansion XWT-ID08 / XWT-OD08 / XWT-ID16 / XWT-OD16 expansion.
Key Features
- 35 mm DIN rail mount, IP20, -10 to +55 degC
- 3 A per point, 10 A per common, 250 VAC / 125 VDC max
- DRT2-series Smart DeviceNet slave
- DRTA-NY5W-K plug-in relays, one-step field replacement
- SKU: DRT2-ROS16
- Series: DRT2-series Smart DeviceNet I/O slave
Best-Fit Applications
- Contactor control for a row of small pumps or fans in a process skid.
- Predictive-maintenance setup where operation counts flag relays nearing end of life.
- Replacing a hardwired relay panel on a retrofit that already runs DeviceNet.
Buying Checklist
- Choose DRT2-ID16 for 16 inputs if the panel needs to read field signals too.
- Choose DRT2-OD16 for 16 transistor outputs at 0.5 A if you only switch DC loads.
- Confirm the master PLC has a DeviceNet scanner module - CJ1W-DRM21 or CJ2 built-in port.
Technical Specifications
| Series | DRT2-series Smart DeviceNet I/O slave |
|---|---|
| Output Type | 16 relay outputs, normally open, plug-in DRTA-NY5W-K relays |
| Output Rating | 3 A per point, 10 A per common, 250 VAC / 125 VDC max |
| Switching Capacity | 750 VA AC max, 90 VDC DC max per relay |
| Network | DeviceNet slave, 11-25 VDC communications power (from network) |
| Current Draw | 215 mA max at 24 VDC / 395 mA max at 11 VDC |
| Connection | M3 screw terminal block, 1-wire I/O, detachable |
| Expansion | XWT-ID08 / XWT-OD08 / XWT-ID16 / XWT-OD16 expansion units via I/O link |
| Diagnostics | Operation counter, total on-time, supply voltage monitoring |
| Mounting | 35 mm DIN rail, IP20 housing, 125 x 50 x 51.8 mm, 260 g |
| Operating Temperature | -10 to +55 degrees C, 25-85 percent humidity (no condensation) |
FAQ for DRT2-ROS16
What relay fits inside the DRT2-ROS16?
The DRTA-NY5W-K is the replacement relay. It plugs into a socket on the DRT2 board, so swapping a failed relay takes seconds without unwiring. Order spares with the slave so a failed relay does not stop the line while you wait for parts.
Can the DRT2-ROS16 mix AC and DC loads on different outputs?
Yes - each relay output is independent, so you can wire some outputs to 24 VDC solenoids and others to 120 VAC indicator lamps from the same slave. Just stay within the 3 A per point and 10 A per common limits, and respect the 250 VAC / 125 VDC max contact voltage.
What master PLC works with the DRT2-ROS16?
Any Omron PLC with a DeviceNet scanner: CJ1W-DRM21 on CJ1 / CJ2, CS1W-DRM21 on CS1, or a built-in DeviceNet port on the NJ501-1500 / NX102 series. Configurable with CX-Integrator over USB or Ethernet - the EDS file is on the Omron Europe support site.
