Omron 61F-G3 AC100-220V — Floatless Level Controller
SKU: 61F-G3 AC100-220VUSD 90.00
Floatless level controller for conductive liquids. AC 100-220 V supply, 5 A SPDT contact, high-sensitivity G3 variant.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

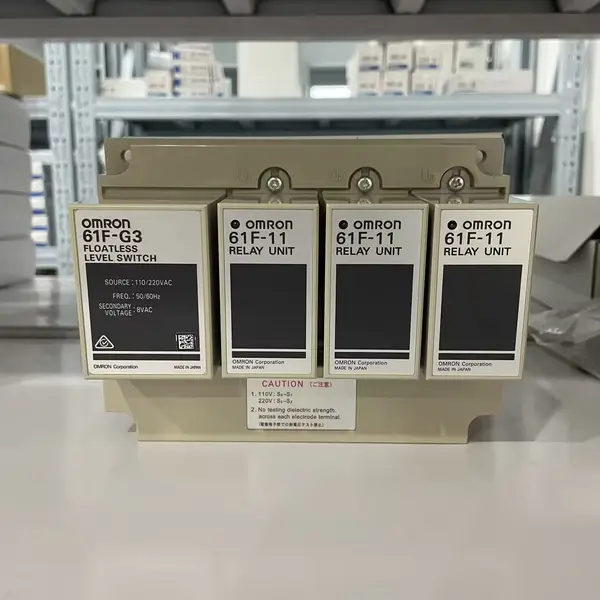

The Omron 61F-G3 AC100-220V is a floatless level controller for water and other conductive liquids. It reads the resistance between stainless-steel electrodes suspended in the tank and switches its output relay when the liquid touches or leaves a probe. There are no moving parts in the tank, so the controller suits water treatment, sump monitoring, and high-purity rinse systems where mechanical floats would corrode or collect debris. The unit plugs into an 8-pin octal base, which makes it quick to swap out during service.
What the G3 suffix means
The 61F series comes in four sensitivity grades: G (standard), G1, G2, and G3 (high sensitivity). G3 is the right pick for high-purity water, steam condensate, and other low-conductivity liquids that the standard G model would ignore. For ordinary tap water or wastewater, the G or G2 version is enough.
Choosing the electrodes and base
The 61F-G3 is the controller only. Order a separate electrode holder (PS series, F03-01, or F03-05 style) and the 8-pin surface- or DIN-rail-mounting socket. Two- or three-electrode configurations cover most empty / fill and upper / lower level jobs. Long cable runs between the electrodes and the controller can pick up noise, so keep the cable short and shielded for high-impedance probes.
Before ordering
Confirm the liquid is conductive (≥ 100 µS / cm). The controller will not see oil, deionized water below the rated conductivity, or dry chemicals. Pick the G3 sensitivity if the liquid is high-purity water or steam condensate. Make sure the supply voltage matches the 100-220 VAC range and the socket wiring is correct. Test the installation in air and again with water before relying on the relay.
Key Features
- Floatless conductive-electrode level control
- High-sensitivity G3 grade for low-conductivity liquids
- Plug-in 8-pin octal base for fast swap-out
- 5 A SPDT contact for direct load switching
- AC 100-220 V supply (50 / 60 Hz)
- Works with PS- and F03-series electrode holders
- Suitable for empty / fill and upper / lower level control
- SKU: 61F-G3 AC100-220V
- Series: 61F
- Voltage: 100-220 V
- I/O: 5 I/O
Best-Fit Applications
- Fill or drain control loops in industrial water-treatment tanks
- Sump and reservoir level monitoring in plant utility rooms
- High-purity water level control in semiconductor rinse systems
- Steam-condensate level detection in boiler feed or condensate tanks
- Cooling-tower and storage-tank upper and lower level control
Buying Checklist
- Choose 61F-G3 for high-purity water, steam condensate, or other low-conductivity liquids.
- Choose 61F-G or 61F-G2 for ordinary tap water or wastewater instead.
- Choose an 8-pin octal base (surface or DIN rail) with the controller.
- Choose the electrode holder and probes separately (PS- or F03-series).
- Confirm the liquid is conductive at ≥ 100 µS / cm before installing.
- Check the relay in air and with water during commissioning.
Technical Specifications
| Series | 61F |
|---|---|
| Type | Floatless level controller (conductive) |
| Supply Voltage | AC 100-220 V, 50 / 60 Hz |
| Sensitivity Grade | G3 (high sensitivity) |
| Control Output | SPDT relay, 5 A at 250 VAC |
| Liquid Conductivity | 100 µS / cm minimum |
| Number of Probes | 2 or 3 electrodes (separate) |
| Connection | 8-pin plug-in octal base |
| Mounting | Surface or DIN rail via 8-pin socket |
| Operating Temperature | -10 to +55 °C |
| Protection Rating | IP20 (socket dependent) |
Resources & Downloads
FAQ for 61F-G3 AC100-220V
What is the difference between 61F-G3 and 61F-G?
Both are 61F-series floatless controllers on the same AC 100-220 V supply. The G3 is the high-sensitivity grade for high-purity water, steam condensate, and other low-conductivity liquids. The plain G is the standard grade for ordinary tap water and wastewater. Pick the G3 only when the standard G ignores the liquid.
Does the 61F-G3 work with any liquid?
Only with conductive liquids at about 100 µS / cm or higher. Tap water, wastewater, and most process liquids are fine. Oil, fuels, deionized water, and dry chemicals will not be detected. For non-conductive liquids, use a float switch, a capacitive sensor, or an ultrasonic level sensor instead.
What is included in the box?
The controller module only. The 8-pin octal base, the electrode holder, and the stainless-steel probes are sold separately. Common pairings are the PF113A or similar octal base and the PS-31 or F03-05 electrode holder. Order them together with the controller to avoid a second shipment.
