Omron G3PE-535B-3N DC12-24V — 35 A 3-Phase SSR
SKU: G3PE-535B-3N DC12-24VUSD 123.00
Omron G3PE-535B-3N DC12-24V switches all three phases of a heater bank up to 29 kW, driven from 12-24 VDC.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron G3PE-535B-3N DC12-24V is a three-phase solid state contactor for heater control, manufactured by Omron Corporation. Hengyixin Automation stocks this solid-state relay in Xiamen and ships within 3-5 business days in original Omron packaging with the lot code visible.
It switches all three phases — the "3N" means three switching elements, one per phase. Rated load is 35 A at 200 to 480 VAC, enough for a resistive heater bank up to about 29 kW. A 12 to 24 VDC signal from a PLC output or temperature controller drives it, drawing 10 mA. Zero-cross switching keeps electrical noise down.

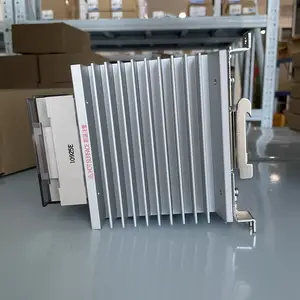

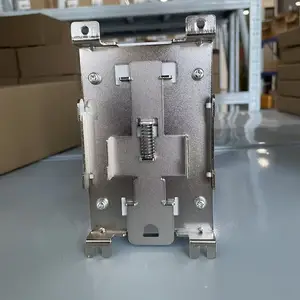

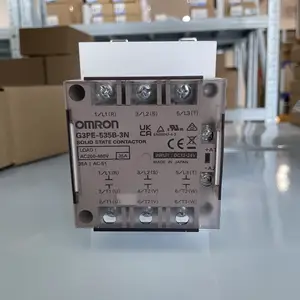

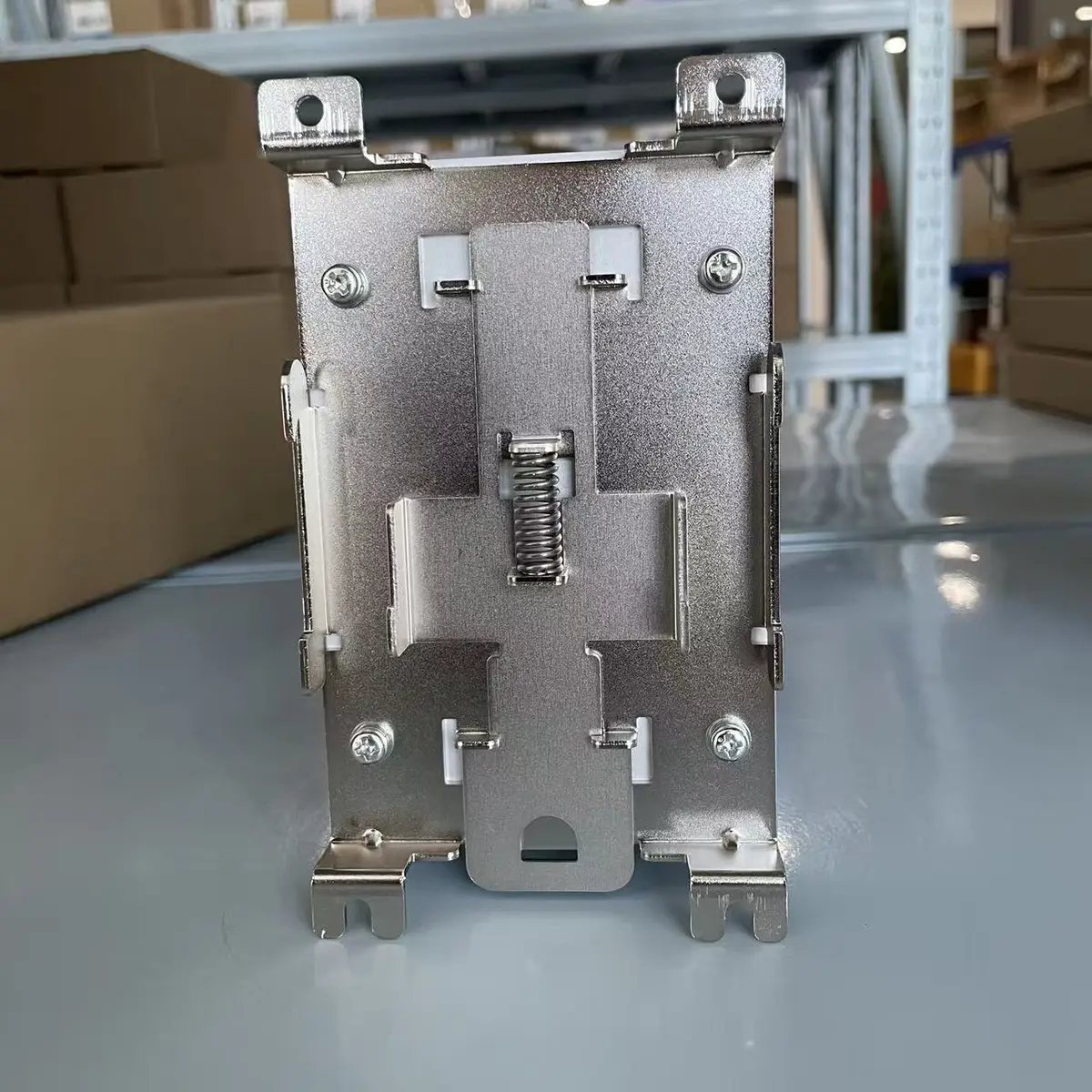

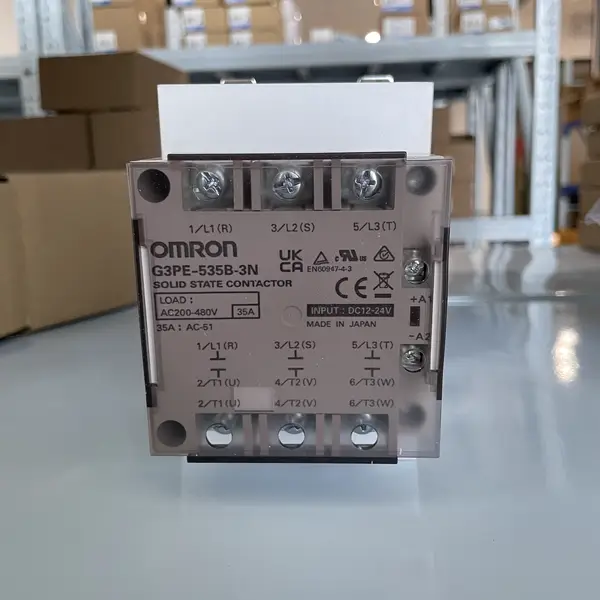

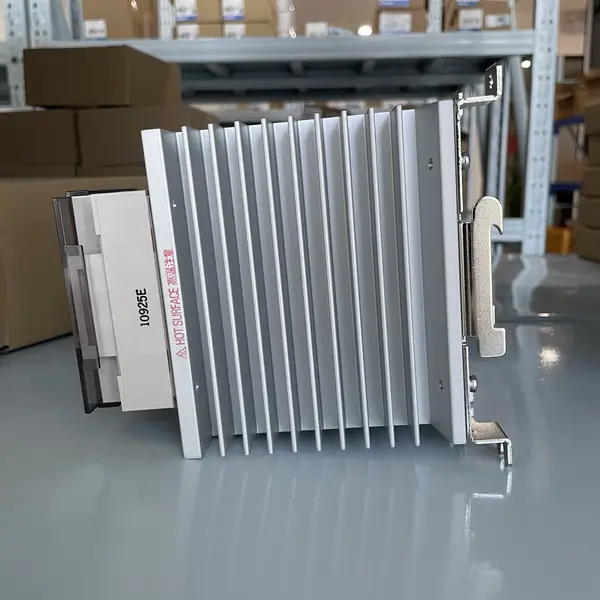

The heat sink is built in, and it clips to DIN rail or screws to a panel. Terminals are marked 1/L1, 3/L2, 5/L3 in and 2/T1, 4/T2, 6/T3 out, with A1 and A2 for the control signal. Leakage is 20 mA at 480 VAC, so this is not a safety isolating device — keep a breaker upstream. For a single-phase load in the same class, use the G3PE-515B.
Key Features
- Three switching elements — all three phases switched, not just two
- 35 A at 200 to 480 VAC, around 29 kW of resistive heater
- 12 to 24 VDC control input at 10 mA, drives straight from a PLC output
- Built-in heat sink, zero-cross switching, DIN rail or screw mounting
- SKU: G3PE-535B-3N DC12-24V
- Series: Omron G3PE three-phase solid state contactor
Best-Fit Applications
- Three-phase heater bank on a plastics extruder barrel, cycled by an E5CC-QX2ASM-802 temperature controller several times a minute
- Oven element control on a powder coating line where a mechanical contactor was welding its contacts under frequent cycling
- Replacing a three-phase contactor on a 25 kW immersion heater to remove the audible clunk and the contact wear
Buying Checklist
- Pick the G3PE-535B-3N DC12-24V for a 35 A three-phase heater load up to 480 VAC with all three phases switched.
- Pick the G3PE-515B instead for a single-phase load in the same 200-480 VAC class at 15 A.
- Pick the G3PE-225B DC12-24V instead for a 25 A single-phase load on a 100-240 VAC supply.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron G3PE three-phase solid state contactor |
| Model / SKU | G3PE-535B-3N DC12-24V |
| Number of Elements | 3 (all three phases switched) |
| Rated Load | 35 A at 200 to 480 VAC (180 to 528 VAC range), AC-51 |
| Heater Capacity | 29 kW (AC-1, resistive load) |
| Control Input | 12 to 24 VDC, 10 mA max (operate 9.6 V max, release 1 V min) |
| Switching | Zero-cross, phototriac isolation |
| Leakage Current | 20 mA max at 480 VAC |
| Mounting / Terminals | DIN rail or screw; screw terminals with protective covers |
| Dimensions | 80 x 140 x 155 mm, built-in heat sink |
| Operating Temperature | -30 to +80 °C |
FAQ for G3PE-535B-3N DC12-24V
G3PE-535B-3N vs G3PE-535B-2N — what is the difference?
The number of switching elements. The 3N switches all three phases; the 2N switches two and passes the third straight through. Omron notes that with a 2-element model the leakage current on phase S is about √3 times larger. Pick the 3N when all three legs must be broken.
Can the G3PE-535B-3N switch a three-phase motor?
No. Omron sells it as a solid state contactor for heaters and rates it 35 A at AC-51, a resistive-load category. Motor inrush is far above that rating, so use a motor-rated contactor or a soft starter instead.
Does the G3PE-535B-3N need an external heat sink?
No, the heat sink is built in. Leave the fins clear and mount the unit with room for airflow around it — the 35 A rating is quoted at 40 °C ambient and derates as the cabinet gets hotter.
