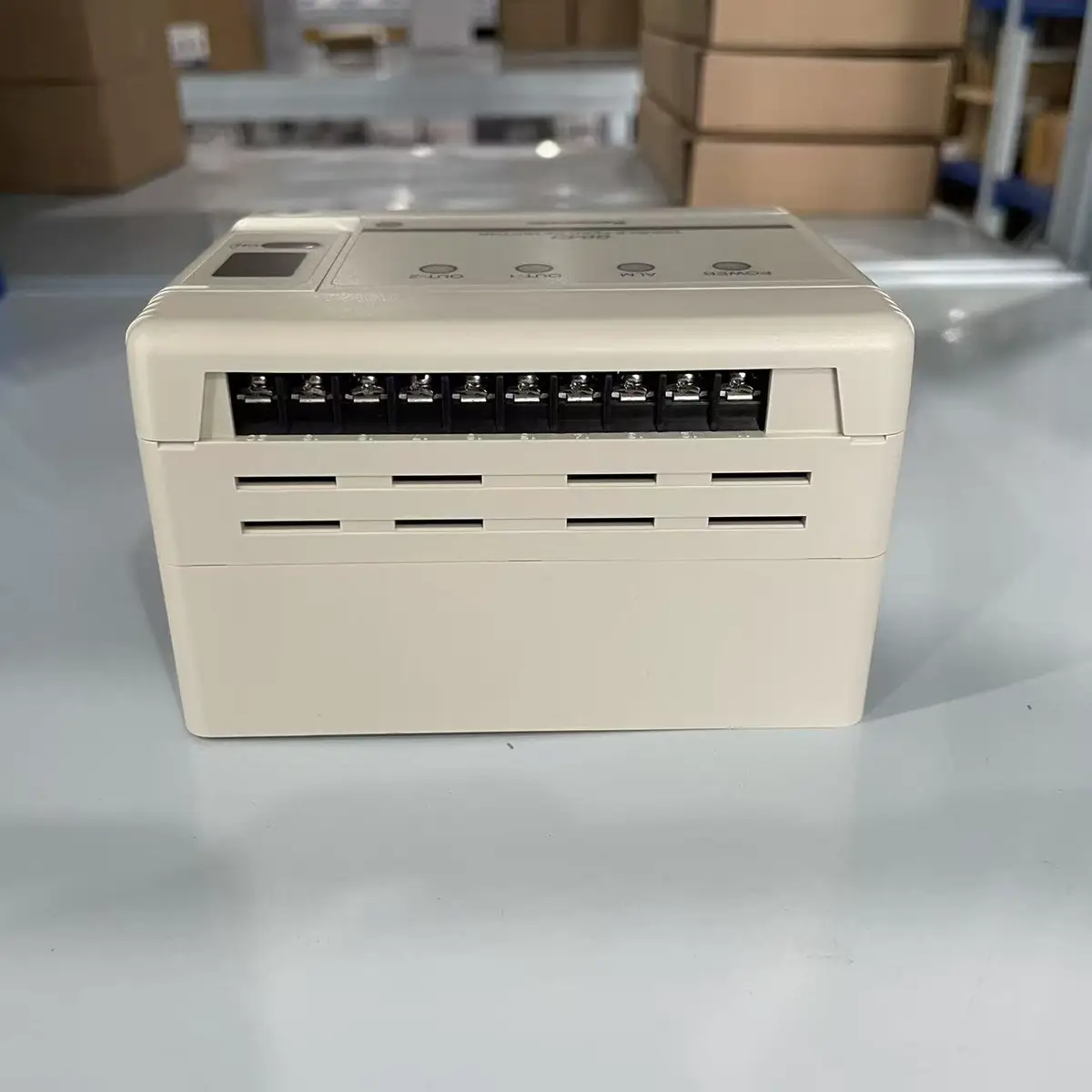

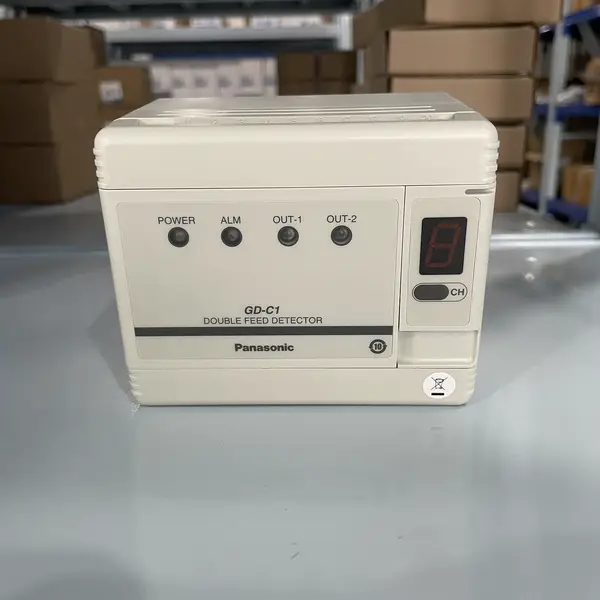

Omron GD-C1 — Metal Overlap Detector Controller
SKU: GD-C1USD 655.00
GD-series metal double-sheet overlap detector controller, RS-232C, 12-24 VDC, 2 NPN outputs + alarm. Pairs with GD-3 / GD-10 / GD-20 heads.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

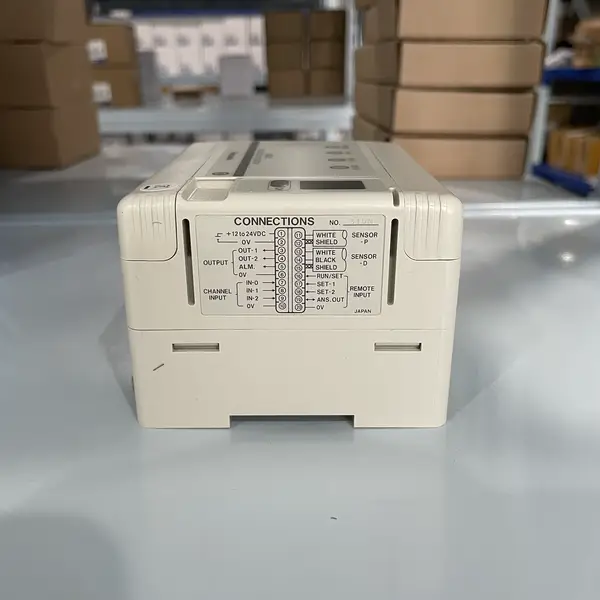

The Omron GD-C1 is the standard controller unit for the GD-series metal double-sheet overlap detection system. It is manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days; safety-rated components ship with a batch-trace certificate. It pairs with one of the GD detection heads (GD-3, GD-10, or GD-20 - sold separately) to detect single-sheet, double-sheet, and overlap conditions on metal feed lines. The controller runs on 12 to 24 VDC plus or minus 10 percent and provides RS-232C communication for parameter setup and process logging. Front-panel LEDs indicate power, self-diagnostic state, current detection level, and the state of OUT-1 / OUT-2 for easy commissioning without a PC. Key specs: Model GD-C1; Supply Voltage 12 to 24 VDC plus or minus 10 percent, ripple P-P 10 percent max; Current Consumption 700 mA max at 12 VDC, 400 mA max at 24 VDC; Outputs OUT-1 (single sheet), OUT-2 (double sheet), ALM (sensor fault), NPN open collector 100 mA max at 30 VDC max; Response Time 5 ms or 30 ms, auto-selected by target material; Setup Method Teach-in via front-panel buttons, 8-channel parameter memory; Communication RS-232C.
Key Features
- 50 ms fixed off-delay timer, switchable on or off
- ABS housing, approximately 440 g, DIN-rail or panel mount
- Teach-in sensitivity setup with 8-channel memory for different materials
- GD-series metal double-sheet overlap detector controller (standard type with RS-232C)
- SKU: GD-C1
- Series: GD-series metal overlap detector controllers
- Voltage: 12 TO 24 VDC
Best-Fit Applications
- Detecting overlap on a stack of lead frames entering assembly.
- Verifying foil thickness on a battery-tab feed line.
- Auditing aluminum-foil blister-pack loading on a pharma line.
Buying Checklist
- Choose GD-C3 (small-part) when the line carries parts too small for the GD-10 head.
- Choose GD-C2 (basic) when RS-232C parameter setup is not needed - the GD-C2 is the lower-cost basic variant.
- Allow for the 50 ms off-delay timer - faster lines need to disable the timer for accurate overlap detection.
Technical Specifications
| Model | GD-C1 |
|---|---|
| Series | GD-series metal overlap detector controllers |
| Supply Voltage | 12 to 24 VDC plus or minus 10 percent, ripple P-P 10 percent max |
| Current Consumption | 700 mA max at 12 VDC, 400 mA max at 24 VDC |
| Outputs | OUT-1 (single sheet), OUT-2 (double sheet), ALM (sensor fault), NPN open collector 100 mA max at 30 VDC max |
| Response Time | 5 ms or 30 ms, auto-selected by target material |
| Setup Method | Teach-in via front-panel buttons, 8-channel parameter memory |
| Communication | RS-232C for external setup and parameter logging |
| Off-Delay Timer | 50 ms fixed, switchable on / off |
| Compatible Heads | GD-3, GD-10, GD-20 detection heads (sold separately) |
| Housing / Rating | Heat-resistant ABS, approx 440 g, -10 to +50 degC operating |
FAQ for GD-C1
What detection heads work with the GD-C1 controller?
The GD-C1 accepts the GD-3, GD-10, and GD-20 detection heads. The GD-3 is the small-range head for thin metal foils down to 0.05 mm. The GD-10 is the standard 100 mm-range head for general sheet-metal applications. The GD-20 is the long-range head for thicker plates up to 6 mm. The head and controller are connected via the dedicated GD-series cable, available in 2 m, 5 m, and 10 m lengths.
What is the difference between GD-C1, GD-C2, and GD-C3?
All three are controllers for the GD-series metal overlap detector heads. The GD-C1 is the standard type with RS-232C communication for external setup and parameter logging. The GD-C2 is the basic type without RS-232C, set up via front-panel buttons only. The GD-C3 is the small-part detection variant with a tighter detection threshold for smaller parts. Pick GD-C1 for production lines that need external setup logging; pick GD-C2 for standalone cells with no PC link.
Can the GD-C1 detect non-metal materials?
No - the GD-series uses electromagnetic induction and is calibrated for ferrous and non-ferrous metals only. For paper, plastic, or cardboard overlap detection, use an ultrasonic double-sheet sensor such as the Microsonic DBK series or the Sick UD18. The GD-C1 will not detect non-conductive overlap.
How is sensitivity set on the GD-C1?
Use the teach-in routine via the front-panel buttons. Place a single sheet under the GD head, press SET-1, and the controller learns the single-sheet level. Place a double sheet, press SET-2, and the controller learns the double-sheet level. The eight memory channels store different setups for different materials - recall a channel with the rotary switch on the front panel.
