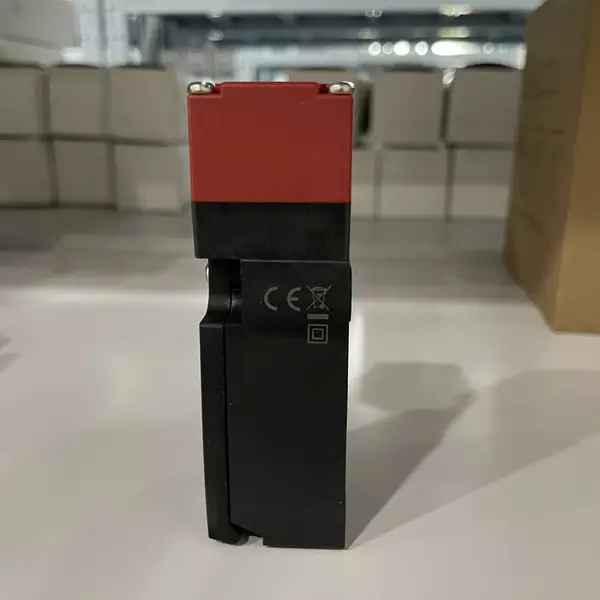

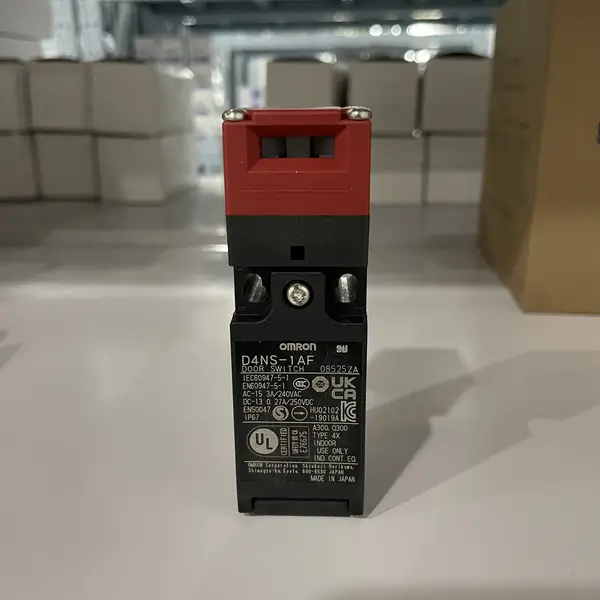

Omron D4NS-1AF — Plastic Safety Door Switch, 1NC/1NO
SKU: D4NS-1AFUSD 11.50
Plastic-body safety door interlock switch, tongue-operated, Pg13.5 1-conduit, 1NC + 1NO slow-action contacts, IP67, Type 2 / low-level coded per EN ISO 14119. Mechanical 1 M ops min. Pairs with D4DS-K1 / K2 / K3 operation key.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The D4NS-1AF is the smallest plastic-body 1NC + 1NO tongue-operated safety door interlock switch in Omron's D4NS family, with Pg13.5 (metric EN ISO 20) cable entry (the '1AF' suffix decodes as: 1 = Pg13.5 1-conduit, A = 1NC + 1NO contacts, F = slow-action / not snap-action). It uses a separate operation key (D4DS-K1 / K2 / K3 / K5 family) that the operator inserts into the switch head when the door closes; the switch's tongue contacts then mechanically monitor whether the key is present (door closed) or absent (door open).
Where the D4NS-1AF sits in the D4NS safety door switch family
The D4NS family splits along four axes: conduit entry (1 = Pg13.5 metric, 2 = G1/2 inch Asian, 4 = M20 European metric, 4-NPT = 1/2-14NPT), contact configuration (A = 1NC + 1NO slow-action, B = 2NC slow-action, C = 2NC + 1NO slow-action), and actuator / head type (F = flat / straight, R = 4-direction adjustable, M = top-mount, A = high-holding-force). The D4NS-1AF (this SKU) is the 1-conduit Pg13.5 / 1NC + 1NO slow-action / flat-head variant — the standard pick for small panels and machine guards in EU/US/JP installations.
Standards, certifications, and safety category
The D4NS-1AF is certified to EN 60947-5-1 (low-voltage switchgear / controlgear — proximity switches section), EN ISO 14119 (interlocking devices for guards — Type 2, low-level coded), UL 508 (industrial control equipment), CSA C22.2 No. 14, and CCC (China Compulsory Certificate). It is suitable for use in safety circuits up to Category 1 / PL c per EN ISO 13849-1 and up to SIL 1 per EN 61508 when used with a single switch per door.
Installation, operation, and common pitfalls
Mount the D4NS-1AF with two M4 / M5 screws through the 4 mounting holes in the body (mounting centres 38 × 76 mm). The Pg13.5 cable entry accepts cable diameters 6 to 12 mm (gland included with the switch). The head can be removed / rotated for door orientation — the head has 4 possible insertion angles (90° rotation steps), allowing the door to approach from any of 4 directions. Wire the NC and NO contacts to your safety relay or monitoring device.
Key Features
- Plastic-body tongue-operated safety door interlock switch
- Pg13.5 1-conduit cable entry
- 1NC + 1NO contacts
- Forcibly-guided contact linkage
- Type 2 interlock / low-level coded per EN ISO 14119
- Mechanical life 1,000,000 operations min
- Electrical life 500,000 operations min at 3 A 250 VAC
- IP67 protection
- SKU: D4NS-1AF
- Series: D4NS Plastic-Body Safety Door Interlock Switch
- Voltage: 250 VAC
Best-Fit Applications
- Sliding-door interlock on a conveyor guard — D4NS-1AF mounted on the door frame, D4DS-K2 operation key attached to the sliding.
- Hinged-door safety monitoring on a packaging machine — D4NS-1AF on the machine frame, D4DS-K1 horizontal operation key on the hinged.
- Removable panel interlock on a hydraulic press — D4NS-1AF on the press body, D4DS-K3 angled operation key on the panel.
- Drawer interlock on a CNC machine tool — D4NS-1AF on the tool magazine drawer frame, D4DS-K5 adjustable operation key on.
Buying Checklist
- Pick D4NS-1AF for plastic-body 1NC+1NO safety door switch with Pg13.5 1-conduit — the standard pick for EU / US / JP installations
- Pick D4NS-4AF for the M20 1-conduit European-metric version of this SKU
- Pick D4NS-2AF for the G1/2 1-conduit Asian-standard version of this SKU
- Pick D4NS-4AF-NPT for the 1/2-14NPT 1-conduit version of this SKU
- Pick D4NS-SK1AF for a stainless-steel body IP69K washdown-rated variant
- Pick D4BL-2CRA for a die-cast aluminum 700 N guard-lock switch when the application requires mechanical lock-out
Technical Specifications
| Model | D4NS-1AF |
|---|---|
| Series | D4NS Plastic-Body Safety Door Interlock Switch |
| Type | Tongue-operated interlock (requires separate D4DS-Kx operation key) |
| Coding Level | Low-level coded (EN ISO 14119 Type 2) |
| Interlock Type | Type 2 per EN ISO 14119 (low-level coded, single-channel) |
| Conduit Entry | Pg13.5 1-conduit (cable gland included, accepts 6-12 mm cable OD) |
| Contact Configuration | 1NC + 1NO (slow-action, positive-opening NC per IEC 60947-5-1 Annex K) |
| Contact Type | Forcibly-guided contacts (VDE 0660-200 compliant) — welded NC cannot prevent NO from re-opening |
| Rated Voltage | 250 VAC (insulation voltage 250 V) |
| Rated Thermal Current | 10 A (at 250 VAC / 30 VDC) |
| Rated Operating Voltage (per IEC 60947-5-1) | AC-15: 240 VAC at 3 A / DC-13: 24 VDC at 1 A |
| Operating Temperature | -30 to +70 °C (no icing) |
| Storage Temperature | -40 to +80 °C |
| Wire Range | 0.5 to 1.5 mm² (AWG 20 to 16) |
| Dimensions (W × H × D) | 31 × 78 × 50 mm (body only, with Pg13.5 gland) |
Resources & Downloads
FAQ for D4NS-1AF
Does the D4NS-1AF include the operation key?
No — the D4NS-1AF is just the switch body. The operation key is a separate item (D4DS-K1 / K2 / K3 / K5, sold individually) and must be ordered separately.
What is the difference between snap-action and slow-action contacts?
The D4NS-1AF is a slow-action (simultaneous-make / simultaneous-break) switch — both the NC and NO contacts change state at the SAME moment as the key crosses a threshold position (around 6 mm insertion). A snap-action (D4NS-2BF or similar) switch has a mechanical snap mechanism that ensures the contact state changes INSTANTLY when the threshold is crossed — the snap action reduces the contact bounce that occurs on slow-action switches during slow door approach.
What's the difference between D4NS and D4BL?
Both are safety door interlock switches in Omron's D4-series, but they serve different applications. D4NS is the plastic-body non-locking interlock switch — the door is mechanically held closed by a separate latch mechanism (or just by the operator); the switch's only function is to detect whether the door is open or closed.
What safety category / SIL level can the D4NS-1AF achieve?
The D4NS-1AF by itself supports Cat 1 / PL c per EN ISO 13849-1 (lowest category using a single switch) or SIL 1 per EN 61508 — and only if used SINGLE-CHANNEL with a single safety input on the monitoring relay.
Similar Products
Explore related Omron models often viewed alongside this product.
