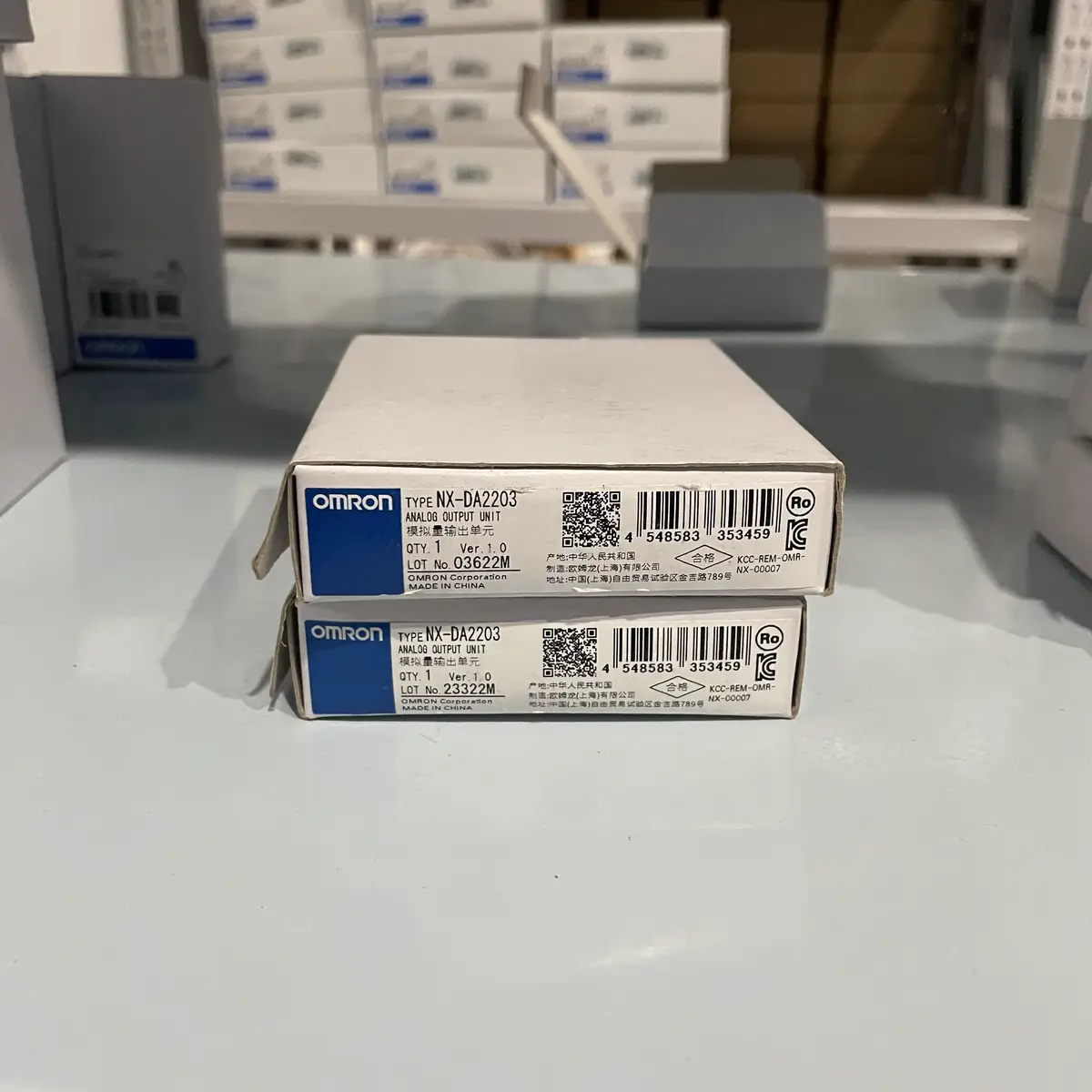

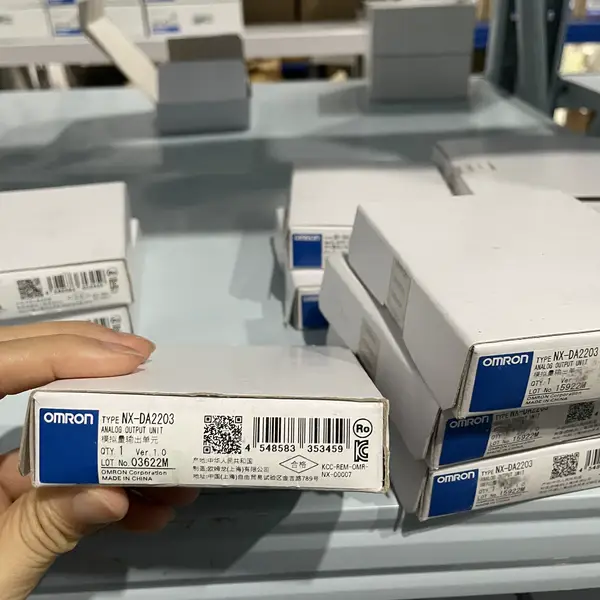

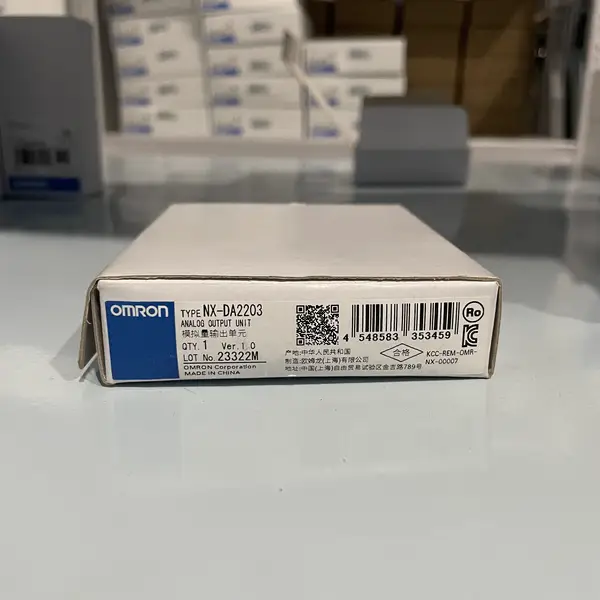

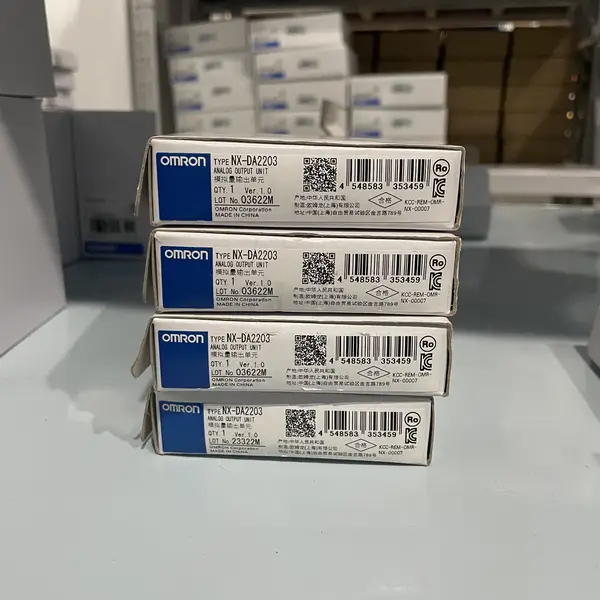

Omron NX-DA2203 — 2-Pt 4-20 mA Analog Output, 1/8000
SKU: NX - DA2203USD 134.00
NX-series 2-point analog current-output module with 4-20 mA range, 1/8000 (13-bit) resolution, 250 µs per-channel conversion time, screwless push-in connectors. Pairs with NX-ECC EtherCAT couplers or NX-ILM400 IOLink master for remote analog-out slices on Sysmac architectures.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The NX-DA2203 is the cost-effective 2-point analog current-output module in Omron's NX-series modular I/O family — the right pick when you need 4-20 mA command signals for VFD speed references, pneumatic valve-positioner commands, or process-loop setpoints, but you don't need 4-pt density or precision-grade 10 µs conversion. Two analog outputs on a 12 mm slice consuming 250 µs of conversion time per channel give you enough performance for the bulk of process-control applications (valves, drives, dampers), at the lowest price per channel in the NX-DA family. The module uses Free-Run I/O refresh (the NX-DA3605 and NX-DA2605 are the variants that support selectable Sync I/O refresh for high-precision motion or rapid dynamic changes).
Decoding the NX-DA2203 model number
NX = NX series modular I/O (EtherCAT / IOLink compatible); DA = Digital-to-Analog (output); 2 = voltage-or-current 2-point form factor (vs 3 = 4-point form factor, 6 = compact 2-point precision); 2 = current output 4-20 mA (vs 0 = voltage output -10 to +10 V); 0 = standard version (no Synchronous I/O refresh — vs 5 = high-precision version); 3 = 4-20 mA output range with Free-Run I/O refresh. So NX-DA2203 = 2-pt 4-20 mA analog output, standard variant.
Current output vs voltage output — when each matters
The NX-DA2203 is a current-source output: it sources 4-20 mA into the load connected between the OUT+ and OUT- terminals, with the load referenced back to the module's ground. Current output is the right pick for noise-immune transmission over long distances (a current loop is unaffected by lead resistance and pick-up noise — the same reason 4-20 mA is the dominant process-control signal in the field).
Wiring and load resistance
The maximum load resistance is 350 Ω per channel — meaning the module can drive any load up to 350 Ω total at 20 mA (which is 7 V compliance at 20 mA × 350 Ω). This covers all standard 4-20 mA loops (most process drives have a 250 Ω burden resistor for 1-5 V conversion internally; some field devices have 100 Ω to 500 Ω; the NX-DA2203's 350 Ω max covers them all). For loops exceeding 350 Ω (rare — typically only when there's a very long cable run plus a series burden resistor), you'd need the NX-DA3605 high-precision variant with higher compliance.
Key Features
- NX-series 2-point analog current output module
- 4-20 mA output range per channel
- 1/8000 resolution per channel
- 250 µs per-point conversion time — adequate for process-control loop bandwidth
- Free-Run I/O refresh
- Screwless push-in terminal block
- 12 mm wide slice — highest density analog output in the NX family
- EtherCAT-compatible via NX-ECC201 / 202 / 203 couplers
- SKU: NX - DA2203
- Series: NX-series Analog Output Modules (NX-DA family)
- Voltage: 8 VDC
- I/O: 4 I/O
Best-Fit Applications
- VFD speed-reference command from an NJ501-1500 PLC — the NX-DA2203 sources 4-20 mA into the drive's speed-reference input; the PLC.
- Pneumatic proportional valve-positioner command — the NX-DA2203 drives a 4-20 mA loop into a Fisher / Samson / Emerson FIELDVUE.
- Hydraulic valve-flow command — the NX-DA2203 outputs 4-20 mA into a Bosch Rexroth / Eaton / Parker hydraulic proportional valve.
- Process-control panel-meter / chart-recorder retransmission output — the NX-DA2203 mirrors a PID controller's process variable to a remote 4-20 mA.
Buying Checklist
- Pick NX-DA2203 for 2-pt 4-20 mA analog output with Free-Run refresh — the lowest-cost NX analog output for standard process loops
- Pick NX-DA2205 for 2-pt -10 to +10 V voltage output — for short-distance drive commands, not 4-20 mA loops
- Pick NX-DA2605 for 2-pt voltage output with SELECTABLE Sync I/O refresh — for high-precision applications that need deterministic EtherCAT timing
- Pick NX-DA3203 for 4-pt 4-20 mA output — when you need higher density on a single slice
- Pick NX-DA3603 for compact high-precision 4-20 mA output with 1/30000 resolution — for lab-grade precision, load-cell, or thin-film processes
- Pick NX-DA3605 for compact high-precision -10 to +10 V output with SELECTABLE Sync I/O refresh — for motion-control voltage reference outputs
Technical Specifications
| Model | NX-DA2203 |
|---|---|
| Series | NX-series Analog Output Modules (NX-DA family) |
| Type | 2-point analog current output module, 4-20 mA, Free-Run refresh |
| Output Range | 4 to 20 mA per channel |
| Output Channels | 2 points |
| Output Type | Current source (sink-type output referenced to module ground) |
| Resolution | 1/8000 (13-bit equivalent with sign) |
| Output Settable Range | -4000 to 4000 (decimal integer; maps to 4-20 mA over 0-100%) |
| Data Output Size | 2 words per unit (16-bit each, one per channel) |
| Allowable Conversion Range | -5% to 105% of full scale (i.e., 3.2 to 20.8 mA physically) |
| Max Open-Circuit Voltage | 8 VDC (the compliance voltage) |
| Temperature Coefficient | ±0.02 % / °C (typ) / ±0.005% FS / °C (max) |
| Internal Current Consumption (NX bus) | 70 mA at 5 VDC (from coupler) |
| Internal Current Consumption (I/O) | 0.4 W max per point (24 VDC from I/O supply) |
| Mounting | NX-series slice rail (DIN rail), behind NX-ECC EtherCAT coupler or NX-ILM400 IOLink master |
Resources & Downloads
FAQ for NX - DA2203
What is the difference between NX-DA2203 and NX-DA3603?
Both are 2-point 4-20 mA analog output modules in the NX-DA family, and they look identical from a wiring perspective. The differences: NX-DA2203 (this SKU) is the standard variant with 1/8000 resolution and 250 µs conversion time, Free-Run I/O refresh only — right for most process-control loops where the loop period is 1-10 s.
Can the NX-DA2203 drive an AC variable-frequency drive (VFD)?
Yes — this is one of the primary applications for any 4-20 mA analog output module. Connect the NX-DA2203's OUT+ terminal to the VFD's speed-reference (+) input terminal (often labeled AI+, ANA+, or FREQ IN+) and OUT- to the VFD's reference-ground (often labeled COM, AI-, or Gnd). The VFD has an internal 250 Ω burden resistor that converts the 4-20 mA current to a 1-5 V signal for its analog-to-digital converter.
How do I configure NX-DA2203 in Sysmac Studio?
Open Sysmac Studio, double-click the EtherCAT coupler (NX-ECC201/202) on the Multiview Explorer to open the configuration editor, and drag the NX-DA2203 onto the slice rail at the desired position (between NX-PD1000 power supply slices). The Studio automatically creates 2 output words at the next free offset. Right-click the NX-DA2203 in the slice rail and select 'Edit Initial Settings' to configure scaling (Linear / SqRoot / Range), output range (always 4-20 mA for DA2203), and the per-channel offset/gain adjustment.
Is the NX-DA2203 compatible with the NJ-series PLCs?
Yes — the NX-DA2203 is compatible with all NJ-series controllers that support EtherCAT slave expansion: NJ101-1000 / NJ101-9000 / NJ301-1200 / NJ501-1300 / NJ501-1400 / NJ501-1500. The NX-DA2203 must be mounted on a slice rail behind an NX-ECC201/202/203 EtherCAT coupler, which is in turn connected to the NJ's built-in EtherCAT port. Sysmac Studio on the NJ configures the NX-DA2203 the same as on an NX102 / NX502 controller.
