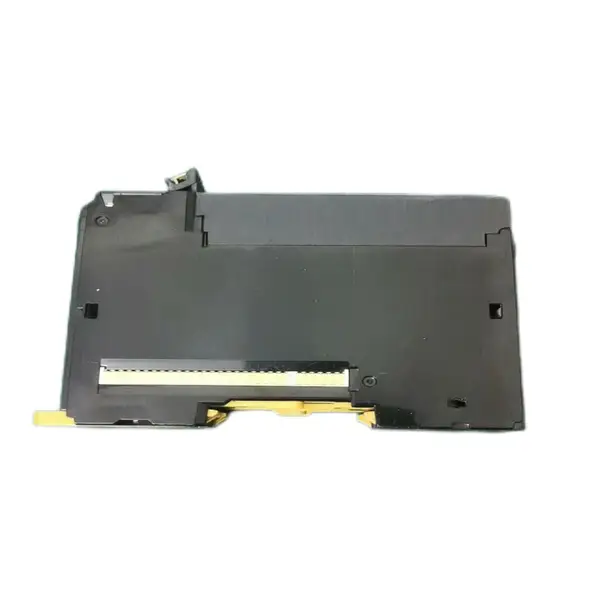

Omron NX-AD3603 — 4 Ch ±10 V Analog Input, NX Series
SKU: NX-AD3603USD 150.00
4-channel analog input module for NX-series PLC and EtherCAT coupler, -10 to +10 V single-ended voltage, 1/8000 resolution
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NX-AD3603 is a 4-channel voltage analog input unit for the NX-series I/O system. manufactured by Omron Corporation. Hengyixin Automation stocks this I/O expansion unit in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. Specifications on this page were checked against Omron's NX-series I/O System brochure (R183).
It plugs onto the right side of an NX102, NX1P2, or NJ501 CPU, or onto an NX-EIC202 / NX-ECC202 EtherCAT coupler, and exposes four -10 to +10 V single-ended inputs with 1/8000 (13-bit) resolution. It is the right pick when you need to read bipolar analog signals — a servo drive velocity command, a hydraulic valve positioner, a load-cell amplifier with a ±5 V output, or any sensor that swings both above and below zero — into the NX rack without adding external signal conditioning.
Absolute maximum input voltage is ±15 V — exceed this and you will damage the front end.
Key Features
- Input impedance 1 MΩ min, absolute maximum ±15 V
- 4 analog input channels, -10 to +10 V single-ended voltage
- 250 µs/point conversion time, full 4-channel scan in ~1 ms
- Free-Run I/O refresh, aligns naturally with 1–2 ms NX task periods
- SKU: NX-AD3603
- Series: NX (Analog I/O)
Best-Fit Applications
- Reading ±10 V servo drive velocity commands into an NX102 to log follower behaviour
- Monitoring load-cell amplifier output on a batching scale with ±5 V bipolar signal
- Reading analog reference signals on a lab test rig where multiple sensors share a common 0 V
Buying Checklist
- Pick NX-AD3203 when the field device is a current-loop sensor
- Pick NX-AD3603 for 4-point ±10 V single-ended; pick NX-AD3604 for differential, 1/30000 resolution, synchronous refresh
- Pick NX-AD2603 when you only need 2 channels and want to save the panel width
Technical Specifications
| Model | NX-AD3603 |
|---|---|
| Series | NX (Analog I/O) |
| Type | Analog Input Unit |
| Channels | 4 |
| Input Type | Voltage, single-ended |
| Input Range | -10 to +10 V |
| Input Conversion Range | -5 to 105 % of full scale |
| Absolute Max Rating | ±15 V |
| Input Impedance | 1 MΩ minimum |
| Resolution | 1/8000 (13-bit) |

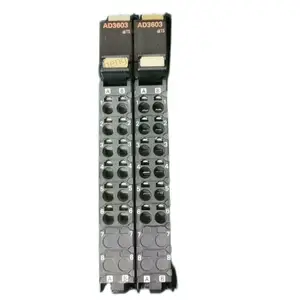

| Terminal Type | Screwless push-in, 12 terminals, detachable (NX-TBA122) |
| Wire Range | 0.14 to 1.5 mm² (26–16 AWG) with ferrules |
| Dimensions (W x H x D) | 12 × 100 × 71 mm |
| Operating Temperature | 0 to +55 °C |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NX-AD3603
What is the difference between NX-AD3603 and NX-AD3604?
NX-AD3603 is single-ended, 1/8000 resolution, 250 µs/point conversion, Free-Run refresh only. NX-AD3604 is differential, 1/30000 resolution, 10 µs/point conversion, supports selectable Synchronous I/O refresh. Single-ended is adequate for sensors that share a common 0 V near the panel; differential is required when sources are far apart, grounded at different potentials, or you need 1/30000 precision.
Is the NX-AD3603 isolated between input channels?

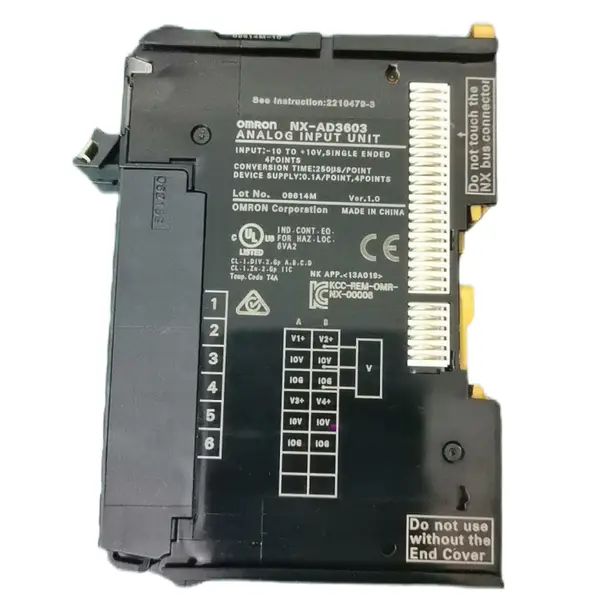

No. The four inputs share a common 0 V (terminals B1–B4 are linked internally on the single-ended module), and there is no channel-to-channel isolation. There is isolation between the input section and the NX bus (the digital side), but the four analog channels themselves are not isolated from each other. For per-channel isolation you would need external signal isolators or a different module.
What is the conversion time of the NX-AD3603?
250 µs per point, so approximately 1 ms to scan all four channels. This is well within the typical 1–2 ms EtherCAT task period of an NX102 or NJ501 controller. Free-Run refresh means the module samples independently and the most recent value is what the controller reads; if you need the sample aligned to the EtherCAT cycle (deterministic timing), use the differential NX-AD3604 instead.
Can the NX-AD3603 accept 4–20 mA current inputs?
No — the NX-AD3603 is voltage input only (-10 to +10 V). For 4–20 mA current inputs in the same 4-channel single-ended tier, pick the NX-AD3203. If your field device is 4–20 mA but you have no NX-AD3203 in stock, you can convert the current to voltage with an external 250 Ω precision resistor across the input terminals, but this is a workaround that adds components and reduces accuracy.
