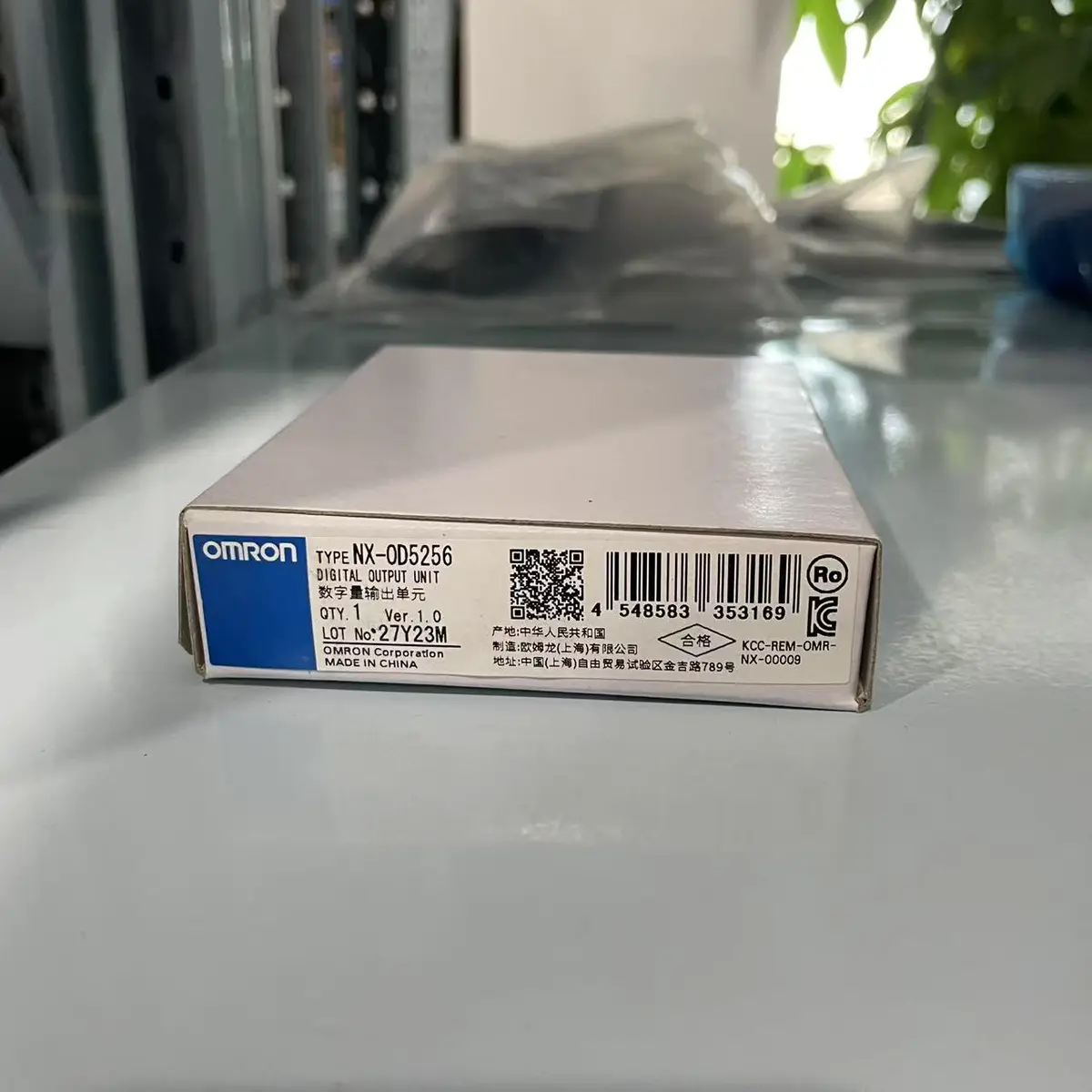

Omron NX-OD5256 — 16-Pt PNP Output 0.5 A / 4 A, 12 mm
SKU: NX-OD5256USD 50.00
NX-series 16-point PNP sourcing 24 VDC transistor output unit, 0.5 A per point, 4 A per unit total, 0.5 ms ON / 1 ms OFF response, screwless push-in 16-terminal connector. Selectable Synchronous or Free-Run I/O refresh on EtherCAT. The 16-point density sibling of the 8-point NX-OD4256 (already done).
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The NX-OD5256 is the 16-point density variant of the standard PNP sourcing transistor output unit in Omron's NX-series modular I/O family — when you need more than the 8 points provided by the NX-OD4256 (already in our catalog) per slice, you can double up to 16 points on the same 12 mm slice width. Each of the 16 outputs sources up to 0.5 A from a 24 VDC rail, with the total per-unit current capped at 4 A (so the practical continuous output is 16 × 0.25 A = 4 A on average; if any one output is sustained >0.5 A the overload protection triggers and that output is latched off until power-cycle).
Decoding the NX-OD5256 model number
NX = NX series modular I/O (EtherCAT / IOLink compatible); OD = Digital Output unit; 5 = 16-point density form factor (vs 4 = 8-point density, 6 = 32-point density); 2 = PNP sourcing output (vs 1 = NPN sinking); 5 = standard-speed response (vs 7 = high-speed 300 ns pulse for laser or stepper applications); 6 = NX-OD5256 model number identification. So NX-OD5256 = 16-pt PNP sourcing 24 VDC standard-speed transistor output, 0.5 A per point. Sibling products in the NX-OD family: NX-OD4121 (8-pt NPN sinking, done previously), NX-OD4256 (8-pt PNP sourcing, done previously), NX-OD5121 (16-pt NPN sinking), NX-OD5256-5 (16-pt PNP 16-pt with M12 connector — different suffix for terminal type), NX-OD5268 (32-pt PNP).
PNP sourcing output — what it means for wiring
PNP sourcing means the output point switches the +24 VDC side of the load: when the output is ON, the point sources +24 VDC to the load; when OFF, the point is high-impedance (the load sees 0 VDC). The load's return terminal connects to the unit's COM terminal, which is the common reference tied to 0 VDC. Typical wiring: PNP output #0 → 1 → solenoid valve A1 terminal; valve A2 → 0 VDC bus → returns to the unit's COM terminal. When the PLC writes a '1' to output bit 0, the output point sources +24 VDC, energizing the valve.
Grouping — 8 points per common
The 16 outputs are arranged as 2 groups of 8 outputs, each group with its own common terminal. Group 1: outputs 0-7 share one COM terminal; Group 2: outputs 8-15 share a second COM terminal. The two groups are independently switchable (one group can drive 24 VDC while the other is OFF or even unused).
Key Features
- NX-series 16-point PNP sourcing digital output unit
- Standard-speed transistor output
- 0.5 A per point continuous output current
- 4 A per unit total output current
- 15.0 to 28.8 VDC output voltage
- Screwless push-in connector
- 12 mm wide slice — same width as 8-point NX-OD4256
- EtherCAT-compatible via NX-ECC201 / 202 / 203 couplers
- SKU: NX-OD5256
- Series: NX-series Digital Output Units (NX-OD family)
- Voltage: 24 VDC
- I/O: 16 I/O
Best-Fit Applications
- Pneumatic solenoid-valve matrix control on an assembly machine — NX-OD5256 drives 16 single-solenoid pneumatic valves; the 16 outputs on this.
- Cabinet indicator-light stack driver — 16 outputs each driving one 24 VDC panel indicator on a multi-station machine's operator station.
- 24 VDC relay-coil driver in a control panel — NX-OD5256 drives the 24 VDC coils of G2R-2-SND DC24V relays at.
- Pick-and-place output signaling — the NJ501-1500 writes output bits to NX-OD5256 to control vacuum-destruction valves, gripper open/close, and reject-diverter cylinders.
Buying Checklist
- Pick NX-OD5256 for 16-pt PNP sourcing digital output — when you need higher density than NX-OD4256
- Pick NX-OD4256 for 8-pt PNP sourcing digital output — when 8 points per slice is enough
- Pick NX-OD4121 for 8-pt NPN sinking digital output — when the application uses NPN sinking
- Pick NX-OD5121 for 16-pt NPN sinking digital output — for Mitsubishi / older C-series PLC replacement
- Pick CJ1W-OD212 for 16-pt PNP sourcing output on CJ-series bus — when expanding an existing CJ1M/CJ2M rack, not EtherCAT
- Pick NX-OD3257 for high-speed pulse output — when application requires pulse-train or step-direction signaling
Technical Specifications
| Model | NX-OD5256 |
|---|---|
| Series | NX-series Digital Output Units (NX-OD family) |
| Type | 16-point PNP sourcing 24 VDC transistor output, standard speed |
| Output Points | 16 points |
| Output Configuration | PNP sourcing (no contact) |
| Rated Output Voltage | 24 VDC nominal (operating range 15.0 to 28.8 VDC) |
| Per-Point Output Current | 0.5 A maximum (continuous) |
| Per-Unit Output Current | 4 A maximum total across 16 outputs |
| Output Groups | 2 groups of 8 outputs each |
| Residual Voltage (output ON) | 1.5 V max at 0.5 A load |
| Leakage Current (output OFF) | 0.1 mA max |
| Over-Temperature Protection | YES — per-channel thermal shutdown with status flag |
| Output Indicators | 16 orange LEDs (one per output, light when ON) |
| Mounting | NX-series slice rail, behind NX-ECC EtherCAT coupler or NX-ILM400 IOLink master |
| Operating Temperature | 0 to +55 °C |
Resources & Downloads
FAQ for NX-OD5256
What's the difference between NX-OD5256 and NX-OD4256?
Both are NX-series PNP sourcing 24 VDC transistor output units with the same 0.5 A per-point and 4 A per-unit current rating, the same 12 mm slice width, the same I/O refresh options, and the same general electrical specs.
Can the NX-OD5256 be used with NPN loads?
No — the NX-OD5256 is PNP sourcing output only. PNP sourcing switches the +24 VDC side of the load; the load's return terminal connects to the COM terminal (0 VDC). If you connect a NPN sinking load (which expects the output to switch the 0 VDC side and have its positive terminal always at +24 VDC), the load would see constant +24 VDC regardless of the output state and never activate.
How do I configure the NX-OD5256 in Sysmac Studio?
Open Sysmac Studio and double-click the EtherCAT coupler (NX-ECC201/202/203) on the Multiview Explorer. The Studio shows the slice rail; drag the NX-OD5256 onto the rail at the desired position. Right-click the slice and select 'Edit Initial Settings' to configure: (a) I/O refresh method — choose Synchronous for time-critical outputs (e.g., trigger camera exposure at precise axis position) or Free-Run for general outputs; (b) per-channel short-circuit recovery mode (manual vs auto); (c) fault / status-flag assignment. Save and download.
What is the maximum peak current per output on the NX-OD5256?
The continuous rating is 0.5 A per point, but the per-point triac can deliver peaks of 1 A for the first few milliseconds (sufficient to charge the solenoid coil's magnetic circuit). The 1 A peak-withstand is short-term (typically 100 ms max), after which the overload protection triggers if the average current exceeds 1 A.
