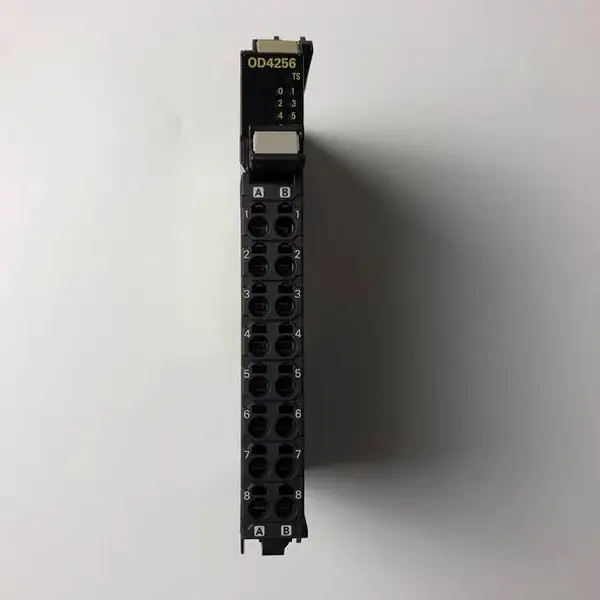

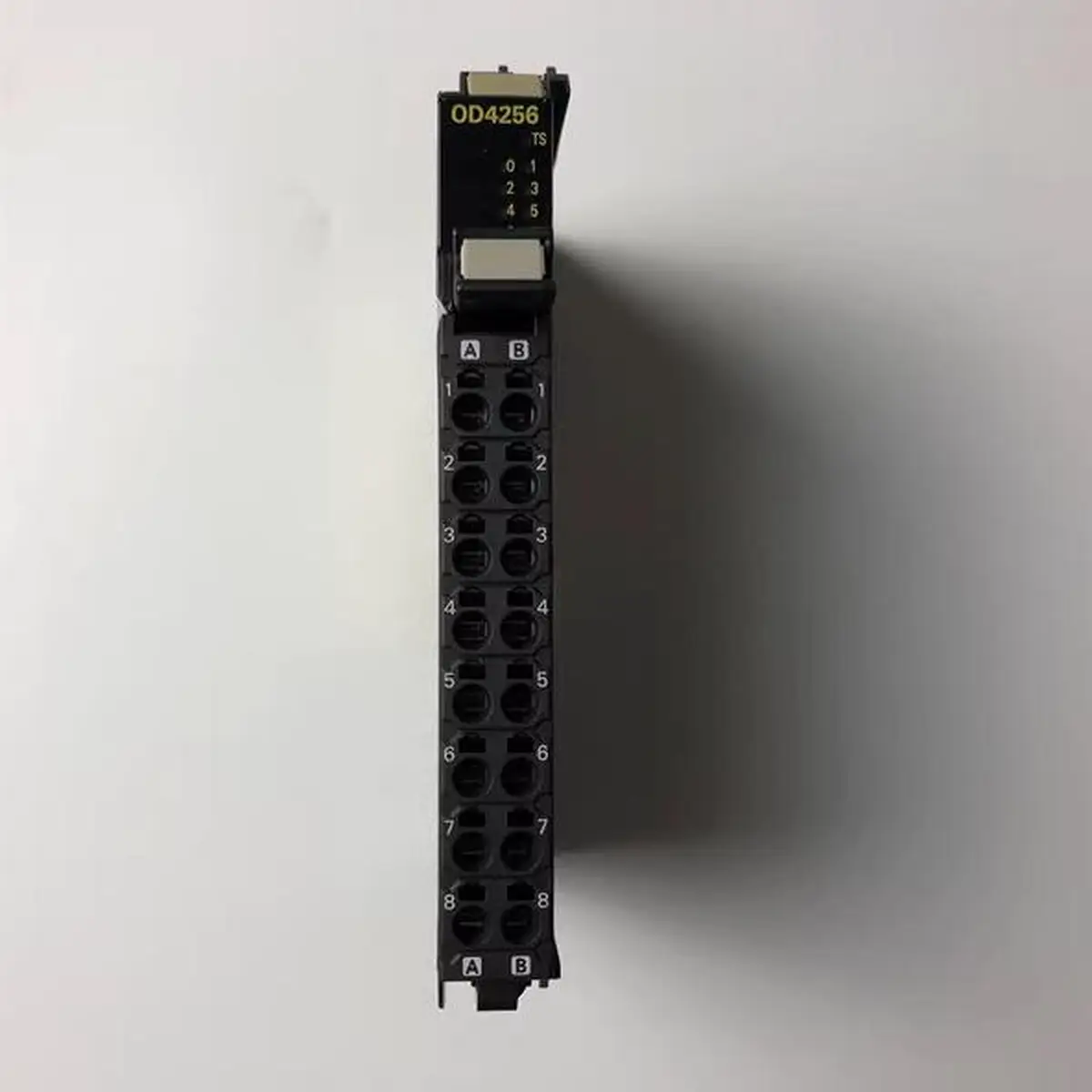

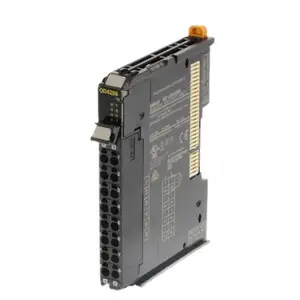

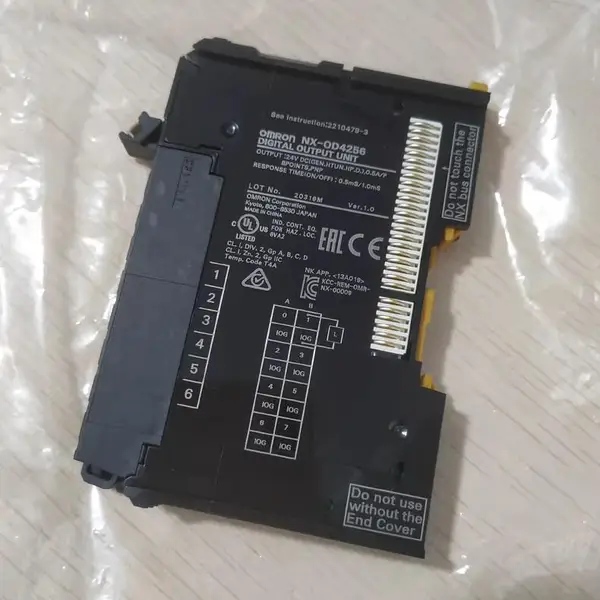

Omron NX-OD4256 — 8-Point PNP Output, 12 mm, 0.5 A
SKU: NX-OD4256USD 47.00
NX-series 8-point 24 VDC PNP transistor output unit, 0.5 A per point / 4 A per unit, screwless push-in connector, 12 mm wide. Standard-speed 0.5 ms ON / 1.0 ms OFF. EtherCAT slave, supports Sync I/O and Free-Run refresh modes.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The NX-OD4256 is an 8-point standard-speed PNP (sourcing, +V output) transistor output unit for Omron's NX I/O family — the small 12-mm-wide slide-on module that adds 8 digital outputs to any NX-series EtherCAT slave slice built on a CJ1W-IC101 / NX-ECC201 / NX-ECC202 coupler or on a NX102-1000 / NX502-1300 NX machine controller. Each of the 8 outputs switches a 24 VDC load at 0.5 A per point (4 A total per unit), with overload and short-circuit protection that folds back current and signals an alarm to the controller.
Where the NX-OD4256 sits in the NX digital output family
The NX-OD4xxx and NX-OD5xxx families are split along four axes: output type (NPN sinking vs PNP sourcing), point count (4 / 8 / 16 / 32), current rating (0.5 A / 2 A per point), and speed (standard 0.5 ms vs high-speed 300 ns). The NX-OD4256 (this SKU) is the standard 8-point PNP 0.5 A variant with screwless push-in connector — the typical pick for machine-control outputs (24 VDC solenoid valves, indicator lamps, signal relays, contactors via interposing relays). The 16-point NPN sibling is NX-OD5121 (sinking, 16 points, 0.5 A per point); the 8-point NPN sinking is NX-OD4121.
Screwless push-in connector wiring (16 terminals)
The 16-terminal screwless push-in connector accepts solid wire 0.2 to 1.5 mm² (AWG 24 to 16) or stranded wire 0.2 to 1.5 mm² with ferrule. To insert a wire, push a 2.5 mm flat-blade screwdriver into the orange release slot directly above the wire entry, push the screwdriver in to open the spring clamp, insert the stripped 8 mm wire end into the round wire entry, then remove the screwdriver — the spring clamps the wire in place with a positive stop. To release, push the screwdriver back into the slot — the wire comes out.
EtherCAT synchronization, Free-Run, and Sysmac Studio config
The NX-OD4256 supports two I/O refreshing methods: Synchronous (DC / Distributed Clock synchronized) and Free-Run. In Synchronous mode, the output state is updated at each EtherCAT DC cycle (configurable from 250 µs minimum), with all 8 outputs changing simultaneously at the DC sync event — needed for closed-loop motion control, registration, and high-speed packaging lines. In Free-Run mode, the output refresh is asynchronous — the EtherCAT master writes to the NX-OD4256's PDO whenever convenient, and the module updates the outputs when the next scan completes (typically 500 µs later). Free-Run is the right mode for general-purpose digital outputs where cycle-to-cycle deterministic timing is not needed.
Key Features
- 8-point PNP sourcing transistor output for NX I/O bus
- 24 VDC load supply
- 0.5 A per point continuous output current, 4 A per unit maximum
- Standard-speed: 0.5 ms ON / 1.0 ms OFF response time
- Screwless push-in connector — solid and stranded wire 0.2 to 1.5 mm²
- Built-in overload and short-circuit protection with diagnostic flag
- Per-channel status feedback in EtherCAT PDO — alarm / overload
- Supports both Synchronous and Free-Run I/O refresh modes
- SKU: NX-OD4256
- Series: NX-Series Digital I/O Units — Transistor Output
- Voltage: 24 VDC
- I/O: 8 I/O
Best-Fit Applications
- Valve bank interface on a small pneumatic press — 8 × 24 VDC solenoid valves wired one each to NX-OD4256.
- Indicator lamp and HMI backlight driver on a machine console — 8 × NX-OD4256 outputs driving green/red/yellow stack lights, buzzer.
- Small motor contactor driver via interposing relays — 8 × NX-OD4256 outputs wired to 24 VDC relays, each relay switches.
- Conveyor VFD control on a packaging line — 8 × NX-OD4256 outputs wired to digital inputs on multiple 3G3MX2-A4110-V2 drives.
Buying Checklist
- Pick NX-OD4256 for 8 PNP outputs at 0.5 A per point with screwless push-in connector — the standard pick for 24 VDC valve / indicator / relay control
- Pick NX-OD5256 for 16 PNP outputs at 0.5 A per point — same 0.5 A rating but more dense on the NX-Bus
- Pick NX-OD4121 for 8 NPN sinking outputs — needed only for legacy Japanese-style NPN wiring
- Pick NX-OD3268 for 8 PNP outputs at 2 A per point — for high-current solenoid valves, heaters, and high-inrush loads
- Pick NX-OD3257 for 4 PNP high-speed outputs with 300 ns response — for step/direction pulse output to servos at up to 200 kHz
- Pick NX-OC2633 for 8 relay outputs — for AC switching or mixed-voltage loads that exceed the NX-OD4256's 30 VDC transistor limit
Technical Specifications
| Model | NX-OD4256 |
|---|---|
| Series | NX-Series Digital I/O Units — Transistor Output |
| Type | 8-point PNP transistor output, screwless push-in connector |
| Number of Outputs | 8 points (allocated as 1 word in EtherCAT PDO) |
| Output Type | PNP sourcing (sources +V to load) |
| Rated Output Voltage | 24 VDC (load supply, 15.0 to 28.8 VDC operating range) |
| Output Current per Point | 0.5 A max continuous (0.5 ms surge 1.0 A) |
| Output Current per Unit | 4 A max total (across all 8 points) |
| Output ON Response Time | 0.5 ms max |
| Output OFF Response Time | 1.0 ms max |
| Leakage Current (OFF) | 0.1 mA max |
| Residual Voltage (ON) | 1.0 V max at 0.5 A (Vce-sat of output transistor) |
| Overvoltage Protection | Output transient suppressors (TVS diodes) |
| Wire Range | 0.2 to 1.5 mm² (AWG 24 to 16), solid or ferrule stranded |
| Operating Temperature | 0 to +55 °C |
Resources & Downloads
FAQ for NX-OD4256
What's the difference between NX-OD4256 (PNP) and NX-OD4121 (NPN)?
Both are 8-point 24 VDC transistor outputs with 0.5 A per point and 4 A per unit, on the same 12 mm wide body. The difference is the output configuration: NX-OD4256 (this SKU) is PNP sourcing — each output sources +V to the load, with the load's other side returning to the 0 V terminal (European-style PNP wiring).
How fast can the NX-OD4256 switch compared to NX-OD3257?
The NX-OD4256 (this SKU) is the standard-speed output with 0.5 ms ON / 1.0 ms OFF response time — suitable for valve switching, indicator lamp driving, contactor driver, and general-purpose machine I/O at cycle times of 5-10 ms or slower. For high-speed pulse output (servo drive step/direction, VFD pulse command, indexing pulses, registration trigger), pick the NX-OD3257 instead — 300 ns ON / 300 ns OFF response, supporting pulse frequencies up to 200 kHz single-axis or 50 kHz two-axis.
How many NX-OD4256 can I mount on one NX-ECC201 coupler?
Physically and logically the NX-OD4256 mounts on the right-hand side of an NX-ECC201 / NX-ECC202 / NX-ECC203 EtherCAT coupler and daisy-chains with other NX I/O units. The hardware limit of the NX-Bus is 63 NX modules per slice (the NX-Bus protocol addressing is 6-bit, so 0-63). So in theory you could mount 63 × NX-OD4256 on one NX-ECC coupler for 504 outputs in one EtherCAT node.
Do I need NX-ECC201 or NX-ECC202 for NX-OD4256?
Both NX-ECC201 (the standard) and NX-ECC202 (the high-current variant) support the NX-OD4256 — the difference between the two is only the I/O current capacity on the I/O power supply side (4 A on NX-ECC201 vs 10 A on NX-ECC202). Pick the NX-ECC202 when you need more I/O current — large solenoid valve arrays, multi-motor contactor drivers, etc. Pick the NX-ECC201 when you have less I/O current demand and want a slightly lower-cost coupler.
