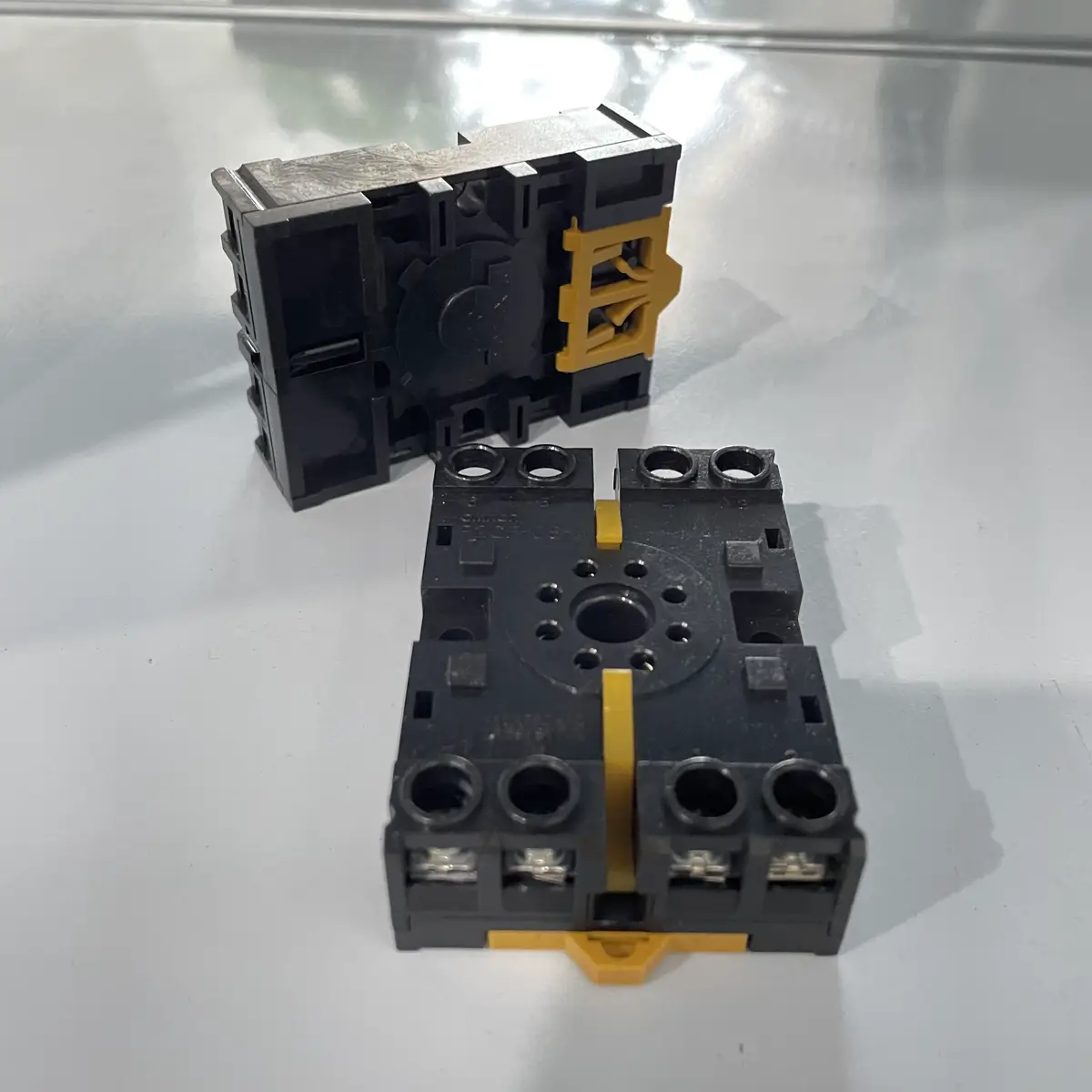

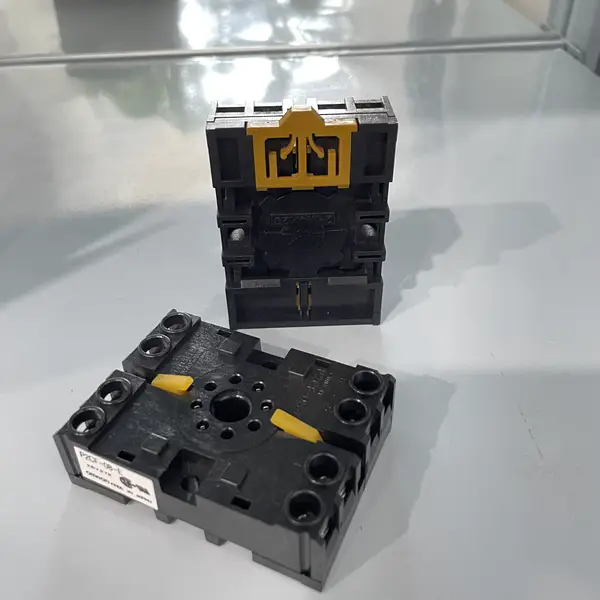

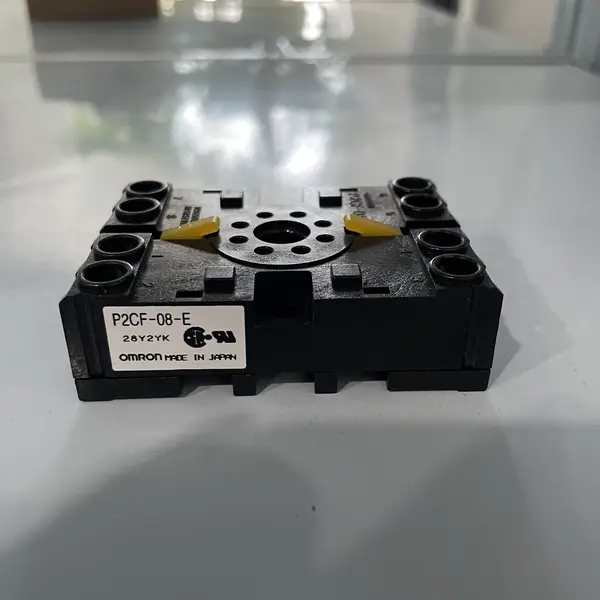

Omron P2CF-08-E — front view of the 8-pin relay socket showing the Omron model label, the eight M3 screw terminals with finger-safe -E covers, the relay locating pin and the hold-down spring clip

Omron P2CF-08-E — Socket, 8-Pin, Front, Finger-Safe

SKU: P2CF-08-E

USD 5.00

8-pin DIN-rail relay socket, front connection, screw terminal, finger-safe, 6 A. In stock.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron P2CF-08-E is an 8-pin front-connecting relay socket for the G2R-2 / LY2 / MY2 family and the H3CR-A / -F / -G / -H timer family It is manufactured by Omron Corporation. Hengyixin Automation stocks this relay socket in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.

The socket has eight M3 screw terminals on the front face. The -E suffix marks the finger-safe construction with protective covers over the coil and contact screws to VDE 0106 / P100.

For an octal socket with finger-safe construction for the G2R-2 family, pick the P2RFZ-08-E. Key specs: Pin Count 8; Compatible Timers H3CA, H3CR, H5CN, H5CX, H5CZ; H3CR-A, H3CR-F, H3CR-G, H3CR-H timers; Rated Current / Voltage 6 A at 250 VAC; Terminal Type M3 screw (finger-safe -E construction per VDE 0106 / P100); Applicable Wire 22-14 AWG (0.5 to 2.5 mm squared); 0.5 N.m torque; Mounting 35 mm DIN rail or screw surface mount; Approvals UL, CSA, CE; Material / Color PBT (flame retardant); black.

Key Features

  • P2CF 8-pin front-connecting relay socket for H3CA, H3CR, H5CN, H5CX, H5CZ, H3CR-A/F/G/H
  • M3 screw terminals with finger-safe VDE 0106 / P100 construction
  • 6 A at 250 VAC, 22-14 AWG wire, 0.5 N.m torque
  • 35 mm DIN-rail or screw surface mount, 50 x 70 x 20 mm, black PBT
  • SKU: P2CF-08-E
  • Series: Omron P2CF-series 8-pin front-connecting relay socket
  • Voltage: 250 VAC

Best-Fit Applications

  • Spare replacement on a packaging line where the original LY2N-J relay is replaced coil-out without rewiring the 8-pin socket
  • DIN-rail marshalling block where five P2CF-08-E sockets sit side by side with a commoning bar across the coil terminals
  • Control panel rebuild where the new G2R-2-SND DC24V relay drops into the existing P2CF-08-E socket footprint for size compatibility

Buying Checklist

  • Pick the P2CF-08-E for an 8-pin front-connecting relay socket with M3 screws and finger-safe -E construction.
  • Pick the P2RFZ-08-E instead when the relay is the modern G2R-2 family and the cabinet needs a finger-safe square socket.
  • Pick the PYF-08-E instead when the panel uses the older round-body 8-pin octal socket for the LY2 family.

Technical Specifications

Manufacturer Omron Corporation (Japan)
Series Omron P2CF-series 8-pin front-connecting relay socket
Model / SKU P2CF-08-E
Pin Count 8
Compatible Timers H3CA, H3CR, H5CN, H5CX, H5CZ; H3CR-A, H3CR-F, H3CR-G, H3CR-H timers
Rated Current / Voltage 6 A at 250 VAC
Terminal Type M3 screw (finger-safe -E construction per VDE 0106 / P100)
Applicable Wire 22-14 AWG (0.5 to 2.5 mm squared); 0.5 N.m torque
Mounting 35 mm DIN rail or screw surface mount
Approvals UL, CSA, CE
Material / Color PBT (flame retardant); black
Dimensions (W x H x D) 50 × 70 × 20 mm; 60 g

Manufacturer documentation

Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.

FAQ for P2CF-08-E

What relays fit the P2CF-08-E?
Any 8-pin octal relay with the same pinout. The common fits are the G2R-2 family (modern square DPDT), the LY2 family (DPDT general-purpose) and the MY2 family (DPDT miniature). The H3CR-A, H3CR-F, H3CR-G and H3CR-H timers also share the footprint.
What does the -E suffix mean on the socket?
The -E suffix marks the finger-safe construction per VDE 0106 / P100. The terminal screws sit behind protective covers so a technician cannot touch a live conductor with a finger. The bare P2CF-08 socket has exposed screws.
Is the P2CF-08-E DIN-rail compatible?
Yes. The socket mounts on a 35 mm top-hat DIN rail or it can be screwed to a panel with two M4 screws. The DIN-rail clip is built into the back of the socket body; no separate adapter is needed.
