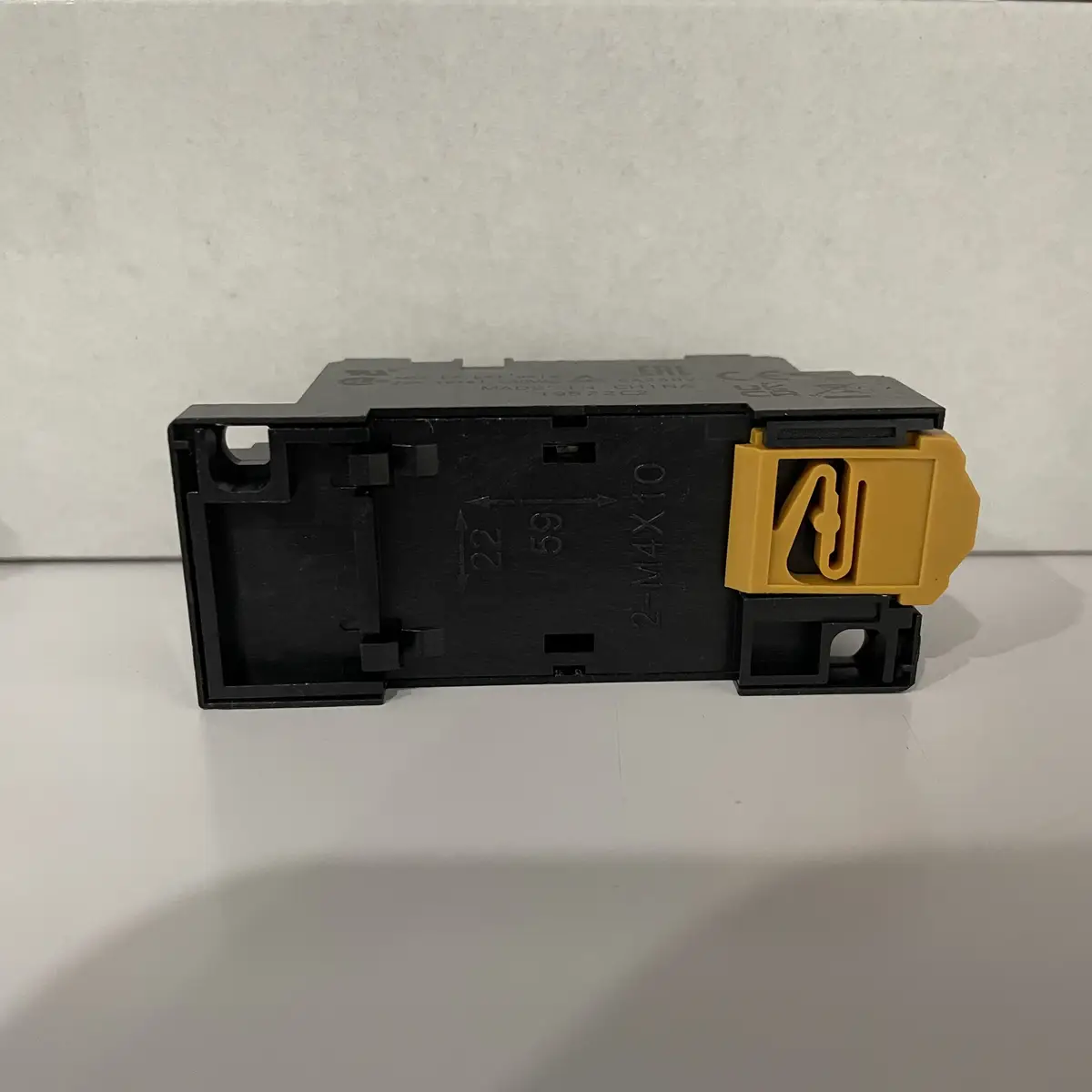

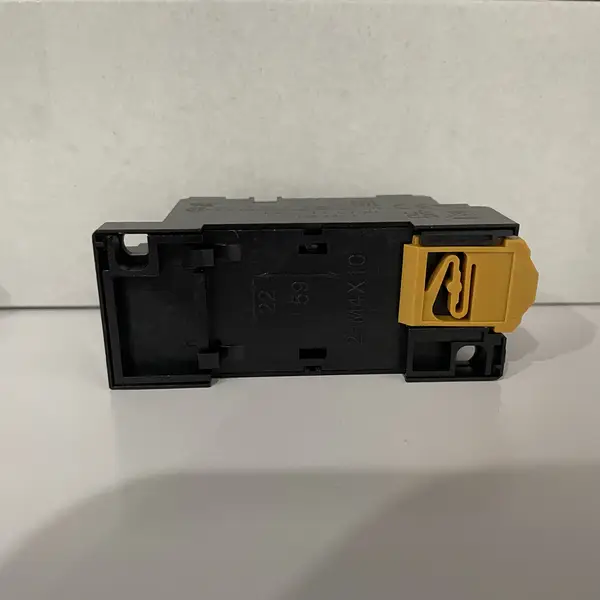

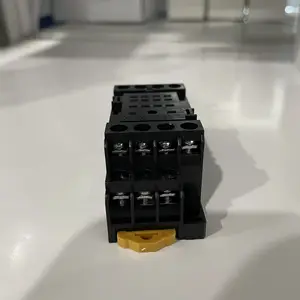

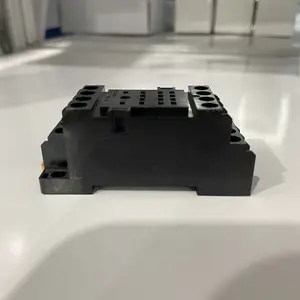

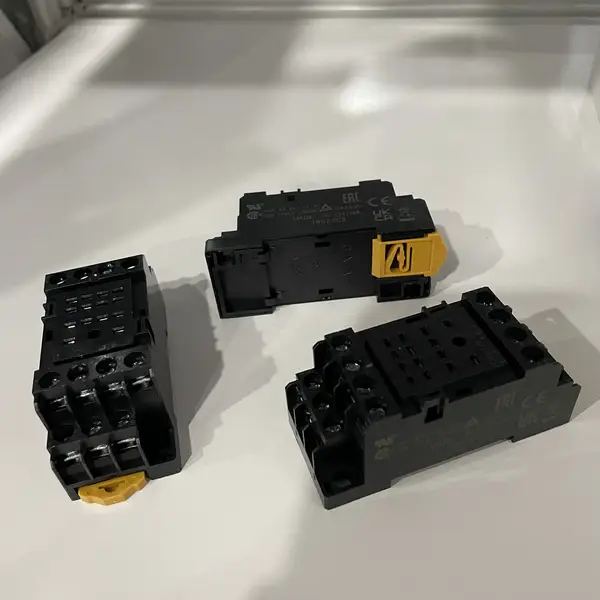

Omron PYFZ-14-E — 14 Pin Relay Socket, Screw
SKU: PYFZ-14-EUSD 0.95
Omron PYFZ-14-E 14-pin relay socket for MY4 / H3YN, screw terminal, 250 VAC / 6 A, DIN rail. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron PYFZ-14-E is a 14-pin relay socket with screw terminals, manufactured by Omron Corporation. Hengyixin Automation stocks this relay in Xiamen and ships within 3-5 business days in original Omron packaging with the lot code visible.
The socket fits 14-pin plug-in relays from the H3YN, MY2K, MY4, and MY4-GS Omron families. Hold-down clip and release lever are sold separately. Terminals are screw type accepting forked ferrules only, rated 250 VAC at 6 A. The black body is 29.5 mm wide, 72 mm tall, and 31 mm deep.
Mounting is DIN rail or panel with M4 screws using the standard 72 mm mounting pitch. The socket carries cULus File E87929 and CSA22.2 File LR31928 plus TUV EN 61984 and VDE 0106 finger-safe approvals. For an 8-pin variant of the same MY4 family, use the PYF08A-E. For an 11-pin socket for the MY3 / LY3 family, use the PYF11-E. The matching H3YN-4-B DC24 timer and H3YN-2-B DC24V timer both plug straight onto a PYFZ-14-E base.
Key Features
- 14-pin screw-terminal socket for Omron H3YN, MY2K, MY4, MY4-GS plug-in relays
- DIN rail or M4 screw panel mount, 29.5 (W) x 72 (H) x 31 (D) mm, black body
- 250 VAC rated at 6 A, forked ferrule terminals, hold-down clip sold separately
- cULus E87929, CSA22.2 LR31928, TUV EN 61984, VDE 0106 finger-safe approvals
- SKU: PYFZ-14-E
- Series: Omron PYFZ-series 14-pin relay socket
- Voltage: 250 VAC
Best-Fit Applications
- Interface relay bay on a packaging-machine panel where four MY4N-GS relays sit on PYFZ-14-E bases with the screw terminals landing 24 VDC outputs
- Spare replacement for a damaged PYF14A-E on a maintenance shelf where the cabinet is being rebuilt with the newer PYFZ-14-E base
- H3YN timer socket on a process line where the timer drives a 24 VDC PLC input through a clean pull-up resistor on the PYFZ-14-E base
Buying Checklist
- Pick the PYFZ-14-E for a 14-pin Omron socket on DIN rail or panel mount with screw terminals.
- Pick the P2CF-08-E instead for an 8-pin front-mount socket for the G2R series.
- Pick the PYFZ-08-E instead for an 8-pin MY2 socket when the relay is an 8-pin DPDT, not a 14-pin 4PDT.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron PYFZ-series 14-pin relay socket |
| Model / SKU | PYFZ-14-E |
| Pin Count | 14-pin, square blade layout |
| Compatible Relays | Omron H3YN, MY2K, MY4, MY4-GS |
| Mounting | DIN rail or M4 panel screw |
| Terminal Type | Screw, forked ferrules only |
| Rated Voltage | 250 VAC |
| Rated Current | 6 A |
| Hold-Down Clip | Not included (sold separately) |
| Dimensions | 29.5 (W) x 72 (H) x 31 (D) mm |
| Approvals | cULus E87929, CSA22.2 LR31928, TUV EN 61984, VDE 0106 |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for PYFZ-14-E
Which relays fit the PYFZ-14-E?
Omron H3YN, MY2K, MY4, and MY4-GS relays. The LY2 (8-pin) and LY3 (11-pin) relays do not fit the PYFZ-14-E -- LY4 uses a different 14-pin socket (PTF14A-E).
Is the hold-down clip included with the PYFZ-14-E?
No. The PYFZ-14-E ships as the socket base only. The hold-down clip and the release lever are sold separately as PYC-A1 (clip) and PYC-P (lever) for serviceability.
What wire size fits the PYFZ-14-E terminals?
Forked ferrules on AWG22-14 solid or stranded wire (0.5 to 2.5 mm^2). Use a Y-shape ferrule compatible with the M3 screw and torque to 0.5-0.6 N.m.
Does the PYFZ-14-E fit on a DIN rail?
Yes -- snap-mount onto any standard 35 mm DIN rail. Alternatively, panel-mount with two M4 screws at the 72 mm standard pitch.
