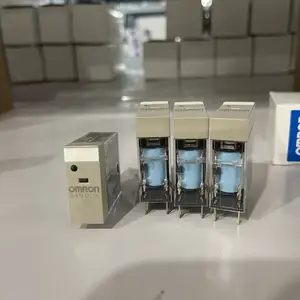

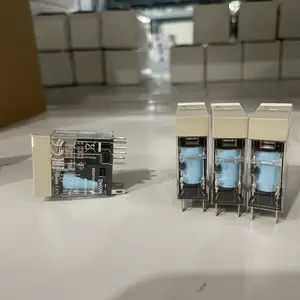

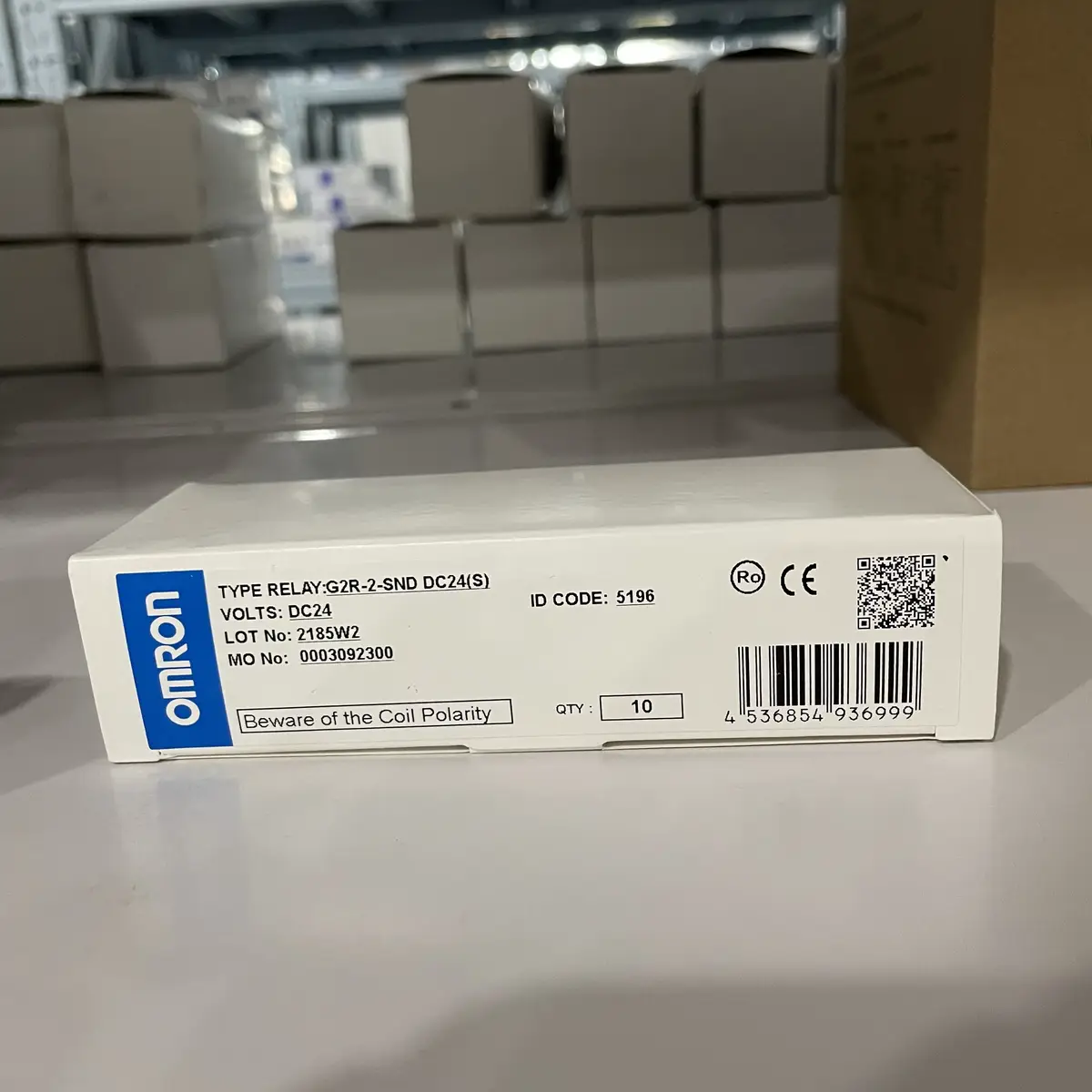

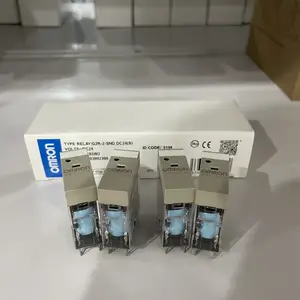

Omron G2R-2-SND DC24(S) — DPDT Relay, 5 A, 24 VDC
SKU: G2R-2-SND DC24(S)USD 2.00
DPDT (2 Form C) plug-in relay with 24 VDC coil, LED status indicator, built-in coil-surge diode, 5 A continuous contact.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron G2R-2-SND DC24(S) is a 24 VDC DPDT plug-in relay from the G2R family, built for interposing between a PLC output and a field load. The 2 means DPDT (2 Form C) - two complete sets of NO+NC contacts, each rated 5 A at 250 VAC or 30 VDC resistive. The S marks the standard housing, N adds the LED operation indicator, and D adds a coil-surge absorption diode that kills back-EMF when the coil de-energises. Pick this relay when you need a serviceable 24 VDC DPDT relay to switch two independent loads from one PLC output, with on-board status feedback and quiet coil switching.
Why DPDT in a single relay
Most interposing duties use SPDT to switch one load from one PLC output. The DPDT gives two independent NO/NC pairs in the same 29 mm body - you wire one pair to a contactor coil and the second to a status indicator or interlock. In fail-safe circuits, wiring both contacts into the same dual-channel safety logic gives a mechanically linked pair that opens together, satisfying the redundancy requirement for higher safety categories with one relay rather than two.
Decoding the G2R-2-SND DC24(S) code
G2R is the family; 2 marks the DPDT 5 A version, S the standard housing, N the LED, D the coil-surge diode. The DC24(S) suffix is the 24 VDC coil. Pick G2R-2-SN for a plain DPDT without LED or diode. Pick LY2N-J DC24 for the legacy LY-series pinout at the same 5 A DPDT rating.
Before ordering
Confirm the coil is 24 VDC - the same G2R-2-SND body is available in DC12V, DC48V, DC100V, and several AC coils. Order the P2RF-08-E octal socket for screw-terminal DIN-rail mounting, or P2R-08P for PCB mount. Wire the coil terminals (A1, A2) to the 24 VDC source, the COMs to the circuits being switched, and NO/NC to the loads. Verify each pole stays within 5 A at rated voltage, and derate to 2 A on inductive loads.
Key Features
- G2R-series general-purpose plug-in power relay
- DPDT (2 Form C) contact form, 2-pole changeover
- 5 A continuous contact rating at 250 VAC or 30 VDC resistive
- 24 VDC coil, 21.8 mA nominal, 1.1 kOhm coil resistance
- Mechanical flag indicator + LED operation indicator
- Built-in coil-surge absorption diode
- 15 ms operate / 10-15 ms release typical
- 8 mm creepage distance between coil and contact
- 10,000 V surge resistance, 5,000 V dielectric coil-to-contact
- Octal 8-pin plug-in socket (P2RF-08-E or P2R-08P)
- -40 to +70 degC operating, UL / CSA / EN (VDE) approved
- 29 x 13 x 35.5 mm housing
- SKU: G2R-2-SND DC24(S)
- Series: G2R-series general-purpose plug-in relay
- Voltage: 24 VDC
Best-Fit Applications
- Interposing a 24 VDC PLC output to switch a 100-240 VAC contactor coil in a cabinet.
- Switching two independent field loads from one PLC output (e.g. indicator light + solenoid valve).
- Signal isolation and voltage-level translation between mismatched control sections.
- Fail-safe relay logic that sits alongside a PLC for legacy panels needing simple discrete wiring.
- Serviceable relay replacement where the original Omron LY2N or G2R-2 in an old panel has failed.
Buying Checklist
- Confirm the coil voltage is 24 VDC - the same G2R-2-SND body is available in DC12V, DC48V, DC100V, and several AC coils.
- Choose G2R-2-SN for the same DPDT relay without the LED or diode when you do not need on-board status.
- Choose the P2RF-08-E octal socket for screw-terminal DIN-rail mounting, or the P2R-08P for PCB through-hole.
- Verify each pole stays within 5 A at rated voltage - derate to 2 A on inductive loads or use a contactor.
- Allow for the 10-15 ms release time in high-speed counting - the solid-state G3NA-210B-UTU is sub-millisecond.
Technical Specifications
| Series | G2R-series general-purpose plug-in relay |
|---|---|
| Contact Form | DPDT (2 Form C, 2-pole changeover) |
| Contact Rating | 5 A at 250 VAC / 30 VDC resistive |
| Coil Voltage | 24 VDC (21.8 mA nominal, 1.1 kOhm coil) |
| Indicator | Mechanical flag + LED operation indicator (N suffix) |
| Surge Protection | Built-in coil-suppression diode (D suffix) |
| Operating Time | 15 ms operate, 10-15 ms release (with diode) |
| Socket Mount | P2RF-08-E octal socket (screw-terminal) or P2R-08P (PCB-mount) |
| Operating Temperature | -40 to +70 degC |
| Electrical Life | 100,000 operations at rated resistive load |
Resources & Downloads
FAQ for G2R-2-SND DC24(S)
What is the difference between G2R-2-SND DC24(S) and G2R-2-SN?
Both are DPDT 5 A plug-in relays in the same G2R housing with the same octal 8-pin footprint. The SND adds the LED operation indicator (N) AND a coil-surge absorption diode (D). The plain SN has neither. Pick the SND on new builds - the LED confirms the coil is energised, and the diode protects the driving PLC output from coil back-EMF.
What socket fits the G2R-2-SND DC24(S)?
Use the P2RF-08-E for finger-safe screw-terminal DIN-rail or panel mounting, or the P2R-08P for through-hole PCB mounting. Both are 8-pin octal sockets sized for the G2R-2 DPDT pin-out. The P2RF-08-E accepts ring or fork lugs and ships with a hold-down clip.
Does the diode on the G2R-2-SND slow the relay release?
Yes - the coil diode adds 5 to 10 ms to the release time versus a non-diode relay. That is fine for interposing, contactor driving, and most logic interlock duty. If the application is high-speed counting or sequencing at sub-50 ms cycle, choose the G2R-2-SN without the diode, or step up to the G2RV-ST500 solid-state slim relay for sub-millisecond switching.
