Omron P7SA-10F-ND — 4-Pole G7SA Socket with LED
SKU: P7SA-10F-NDUSD 10.00
P7SA 4-pole screw relay socket with indicator LED. Holds a G7SA-3A1B / G7SA-2A2B safety relay (sold separately) on a 22.5 mm DIN rail.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

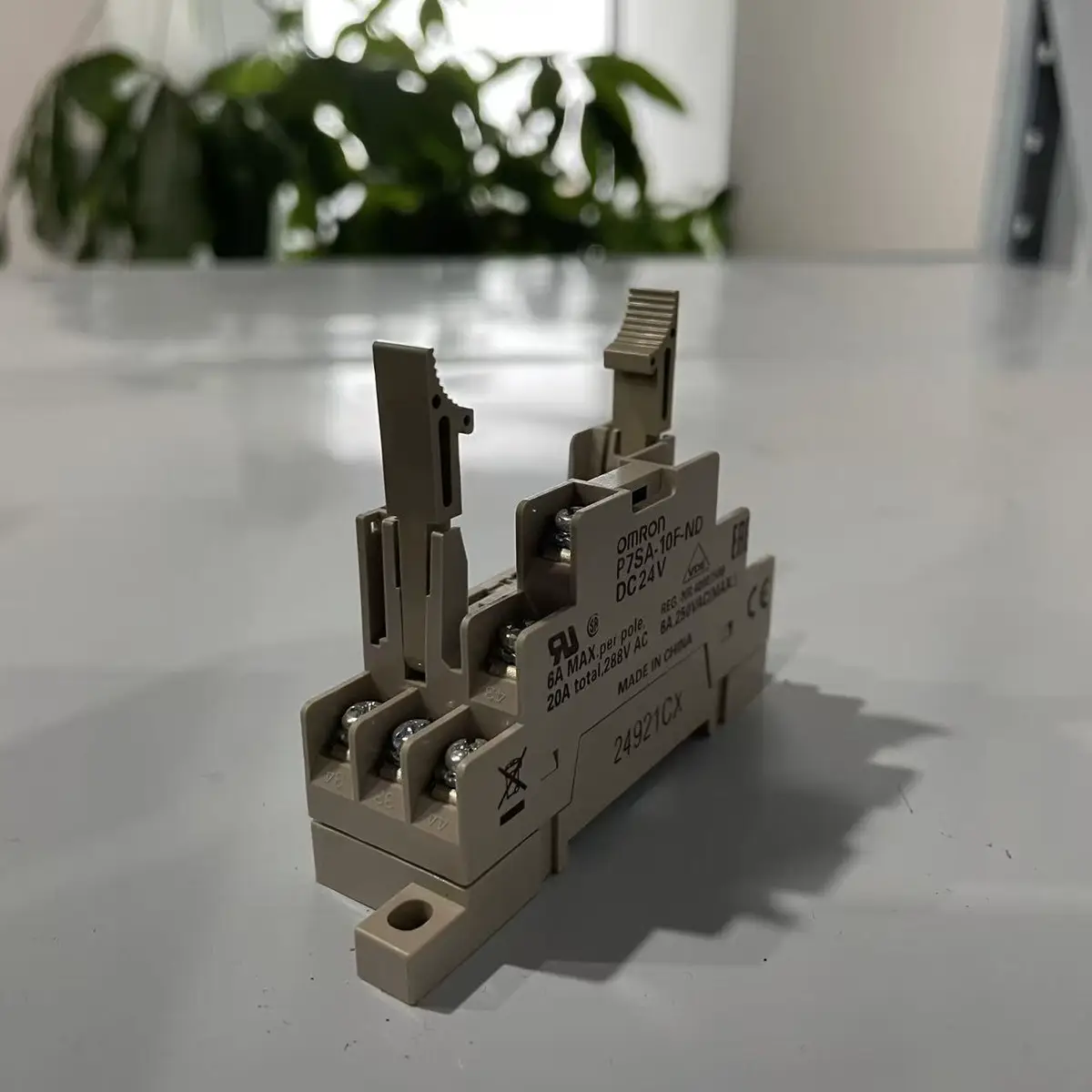

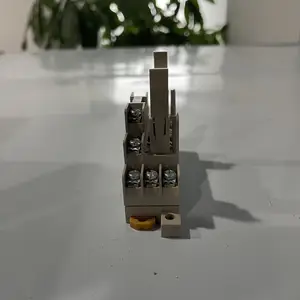

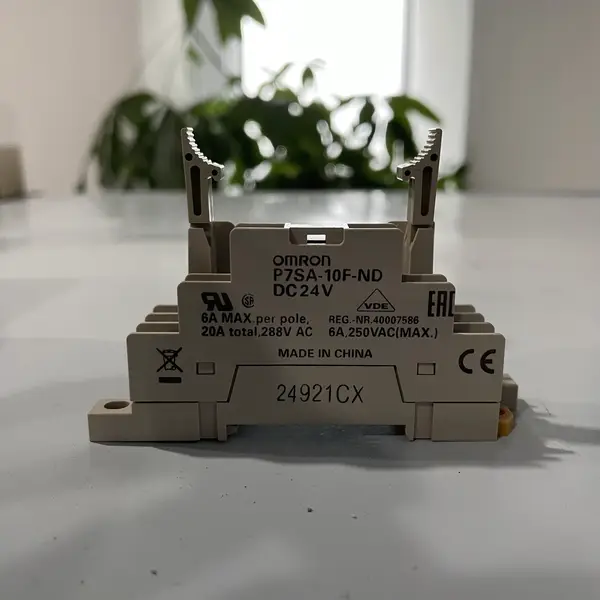

The Omron P7SA-10F-ND is a 4-pole relay socket for the G7SA family of safety relays. It is the BASE / HOLDER -- the relay itself, the G7SA-3A1B or G7SA-2A2B, is a separate line item that snaps into the socket. The socket carries the wiring to the relay's coil (A1 / A2) and to its four contact poles (the 11-12 / 13-14 / 21-22 / ... pattern on the terminal block), and adds the panel-side spacing for a 35 mm DIN rail or surface panel mount.
What the -ND suffix means
P7SA sockets carry a -F (screw terminals) or -P (PCB back-mount) terminal style and a trailing letter that signals whether the socket has the action indicator light. The P7SA-10F is the bare socket with no LED; the P7SA-10F-ND (this SKU) adds an LED that lights when the matching G7SA coil is energised -- so service techs can see at a glance whether the safety relay is armed. The -PU suffix means Push-In Plus terminals; this screw-terminal SKU is the original / lower-cost form.
What this socket does NOT do
The socket alone provides no safety function -- it is a passive wiring holder. The safety category (Cat 1, Cat 3, Cat 4 / PL e, SIL 3) is set by the wiring scheme plus the upstream safety controller that drives the coil. The G7SA relay provides the forced-guided contacts that make Cat 4 / PL e with redundancy possible -- match the relay to the channel count (G7SA-3A1B = 3 N/O + 1 N/C, the common pick; G7SA-2A2B = 2 N/O + 2 N/C), both snap into this 10-pin 4-pole socket.
Before ordering
Order the matching G7SA relay at the same time -- this socket is incomplete by itself. Match the relay coil voltage to the cabinet rail: the -ND24 on this SKU is the 24 VDC coil variant with LED; the bare P7SA-10F (no ND suffix) accepts any G7SA coil voltage across the DC range. Seat the G7SA relay into the socket and push the yellow release lever down until it clicks; lift the lever up to remove the relay for bench-side swap-out.
Key Features
- P7SA-series 4-pole relay SOCKET (base / holder, not the relay)
- Holds the G7SA family of safety relays (G7SA-3A1B, G7SA-2A2B, G7SA-5A1B sold separately)
- 10 pins matching the 4-pole G7SA contact pattern (4 NO + 1 NC pairs)
- M3 screw-terminal wiring on the coil and contact sides
- WITH action indicator LED that lights when the G7SA coil is energised
- Yellow / orange release lever on the front for relay swap-out
- 22.5 mm wide on a 35 mm top-hat DIN rail (IEC 60715) or surface mount via M4 holes
- 6 A max per pole / 20 A total per socket / 288 V AC max per cULus rating
- Compatible with the G7SA relay coils from 12 VDC through 110 VDC (the socket is universal; the LED variant is the 24 VDC coil)
- cULus / TUV / VDE / CE / EAC approved
- 60.5 mm height, screw-terminal depth ~83 mm
- SKU: P7SA-10F-ND
- Series: P7SA-10F-ND
- Voltage: 24 VDC
Best-Fit Applications
- DIN-rail socket for a 24 VDC G7SA safety relay inside an emergency-stop and guard-door interlock panel
- Spare-base replacement in safety cabinets where the G7SA relay is treated as a serviceable part
- Socket for the 4-pole G7SA family in machine-safety panels with mixed AC and DC contactor logic
- Indicator-equipped socket for cabinets where the technician needs to see at a glance whether the safety relay is armed
- Spare socket in service stock so a failed G7SA relay can be replaced on the panel without disturbing the wiring
Buying Checklist
- Pick P7SA-10F-ND when you want the 4-pole G7SA socket WITH the action indicator LED on a 24 VDC coil.
- Pick P7SA-10F instead when the indicator LED is unnecessary and the coil voltage varies.
- Pick P7SA-10F-ND-PU for Push-In Plus terminals (no M3 screwdriver) when wiring speed matters.
- Pick P7SA-14F-ND for a 6-pole G7SA socket (the G7SA-5A1B or G7SA-4A2B relay).
- Pick P7SA-10P for the back-mount PCB socket when the socket is hard-wired onto the cabinet's PCB.
- Order the matching G7SA relay in the same order -- the socket alone does nothing.
Technical Specifications
| Function | 4-pole relay socket / base for G7SA safety relay |
|---|---|
| For Relay | G7SA-3A1B / G7SA-2A2B / G7SA-5A1B (sold separately) |
| Pole Count | 4 pole (10 pins: 4 NO + 1 NC contact pattern) |
| Coil Voltage Match | Compatible with G7SA coils across the DC range; LED variant for 24 VDC |
| Contact Rating | 6 A max per pole, 20 A total, 288 V AC max (matches the G7SA relay) |
| Indicator | Built-in green action LED lights when the G7SA coil is energised |
| Terminal Style | M3 screw terminals (the -PU sibling is Push-In Plus) |
| Mounting | 35 mm top-hat DIN rail (PFP-100N / PFP-50N) or 2x M4 panel holes |
| Dimensions | 22.5 (W) x 60.5 (H) x ~83 (D) mm |
| Operating Temperature | -10 to +55 deg C |
| Approvals | cULus / TUV / VDE / CE / EAC |
Resources & Downloads
FAQ for P7SA-10F-ND
Does the P7SA-10F-ND include the safety relay?
No. The P7SA-10F-ND is the SOCKET / BASE only. The relay itself -- the G7SA-3A1B (3 NO + 1 NC) or the G7SA-2A2B (2 NO + 2 NC) -- is a separate line item that snaps into the socket. The socket holds the relay, lands the wiring, and adds the action indicator LED; the relay carries the forced-guided contacts that make Cat 4 / PL e safety interlock possible.
What is the difference between P7SA-10F and P7SA-10F-ND?
The ND suffix adds an action-indicator LED on the socket that lights when the G7SA coil is energised. The P7SA-10F (no ND) is the bare socket with no LED; this P7SA-10F-ND is the same socket with the LED added. Both are 4-pole, both use M3 screw terminals. The -PU suffix on P7SA-10F-ND-PU switches the terminals to Push-In Plus instead of screw.
Can this socket achieve Cat 4 / PL e by itself?
No. The socket is a passive wiring holder and cannot claim any safety category. Cat 4 / PL e (or SIL 3 per IEC 61508) requires the G7SA relay's forced-guided contacts PLUS dual-channel wiring from the safety input device (E-stop or guard switch) PLUS an upstream safety controller or safety relay (G9SA-301, G9SP, or the matching safety controller in the panel). One socket with one channel of wiring caps at a lower category (Cat 1 or Cat 2 typically).
Which G7SA relay fits the P7SA-10F-ND?
Any 4-pole G7SA relay: G7SA-3A1B (3 NO + 1 NC, the most common pick), G7SA-2A2B (2 NO + 2 NC). Order the relay by coil voltage to match the cabinet's 24 VDC or other DC rail. The 6-pole G7SA-5A1B / G7SA-4A2B / G7SA-3A3B will NOT fit this 4-pole socket -- those need the wider P7SA-14F-ND or P7SA-14F-ND-PU socket.
